Description

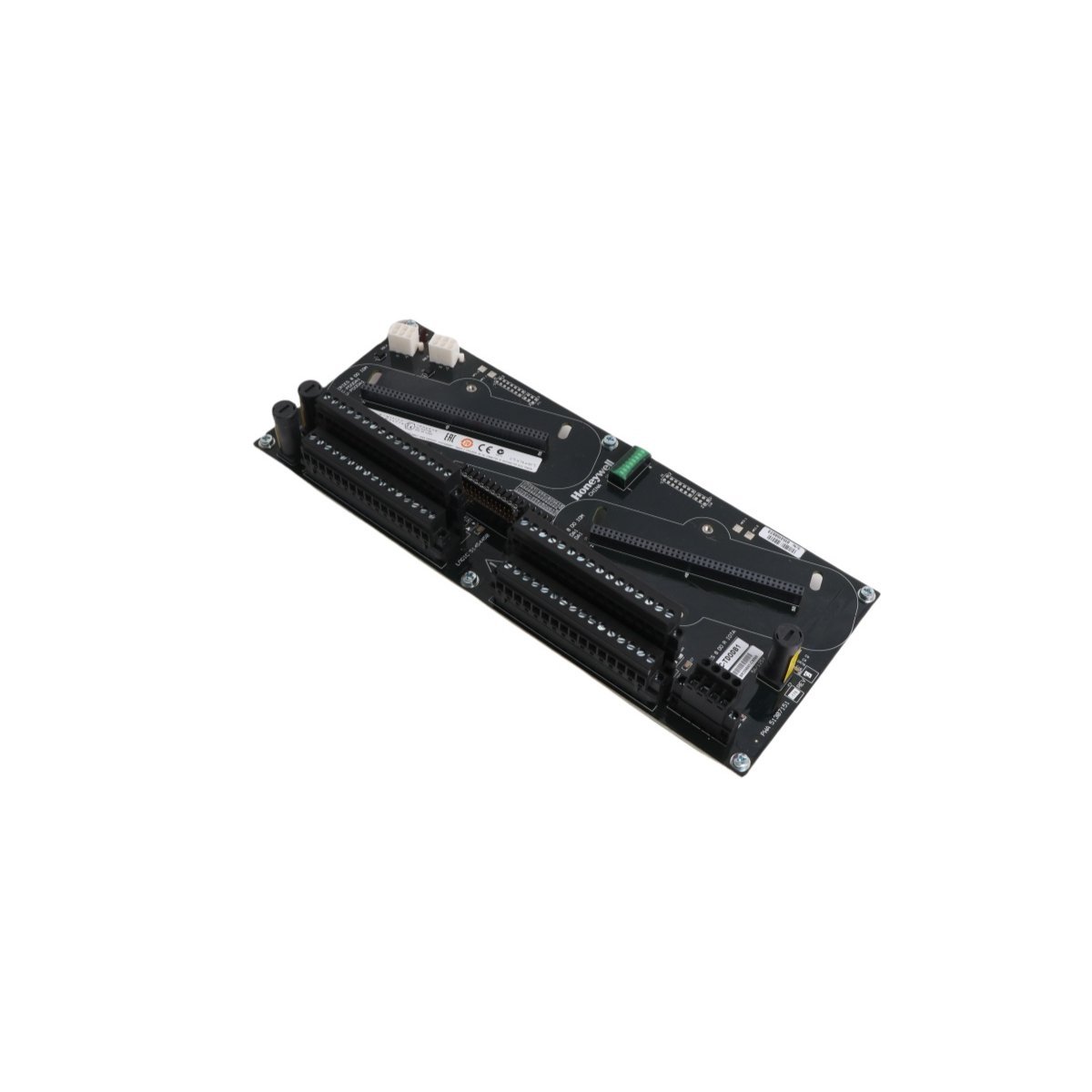

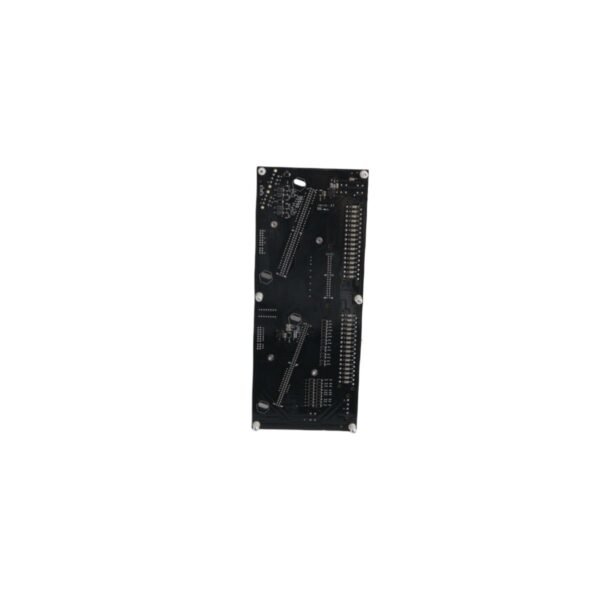

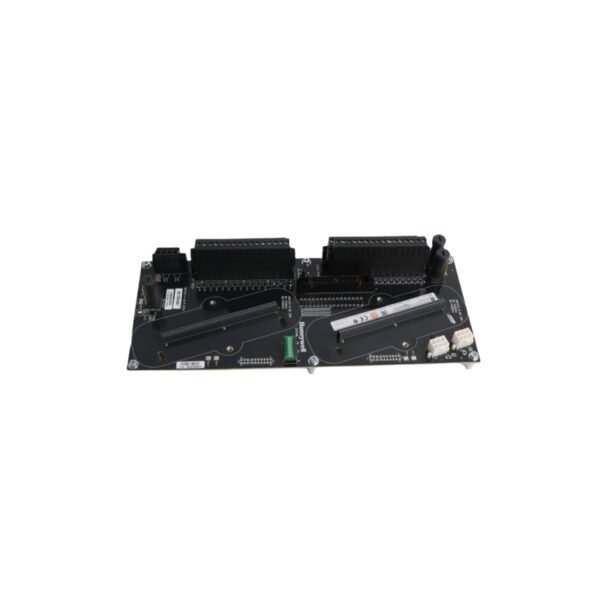

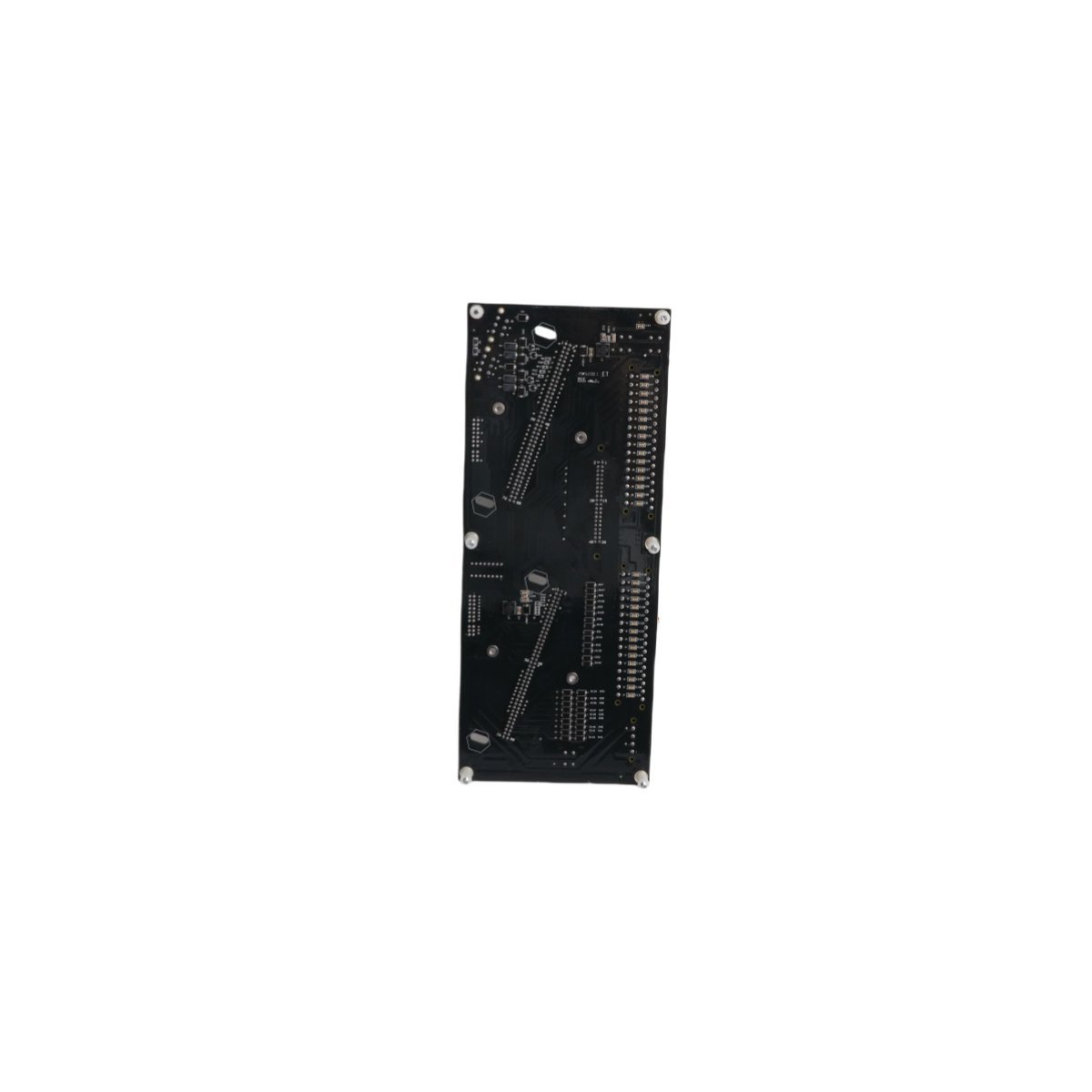

The Honeywell 8C-TDODB1 functions as a high-density discrete control interface for the Experion Series 8 platform. This module manages 16 independent 24VDC channels to drive field equipment. Its integrated design merges electronic circuitry with field terminations. This approach eliminates the need for bulky external chassis components. Consequently, it optimizes cabinet space for modern industrial facilities.

Technical Specifications

Advanced Design and Maintenance

The 8C-TDODB1 features a specialized two-level detachable terminal block. This configuration allows technicians to access wiring without disturbing other module functions. Furthermore, the Series 8 architecture distributes power directly through the IOTA base. This internal distribution removes the necessity for auxiliary field power supplies. Such streamlined engineering reduces the total cost of installation.

Durability remains a core strength of this specific model. The “8C” designation signifies a standard conformal coating. This protective layer shields the internal electronics from moisture and corrosive gases. Therefore, the module maintains long-term reliability in aggressive chemical environments.

Operational Safety and Redundancy

Implementing system redundancy is straightforward with the 8C-TDODB1. Users simply add a second module to the IOTA base. This setup requires no additional cabling or complex software mapping. The module provides continuous health monitoring to ensure consistent output states. These features prevent unexpected downtime during critical control sequences.

Core Industrial Applications

Oil and gas refineries utilize this module for solenoid valve control. Chemical processing plants implement it for motor starter logic. Additionally, power generation utilities rely on it for safety signaling. The 8C-TDODB1 remains a preferred choice for high-reliability Experion PKS deployments. Its compact size and robust protection suit any demanding automation task.
