Description

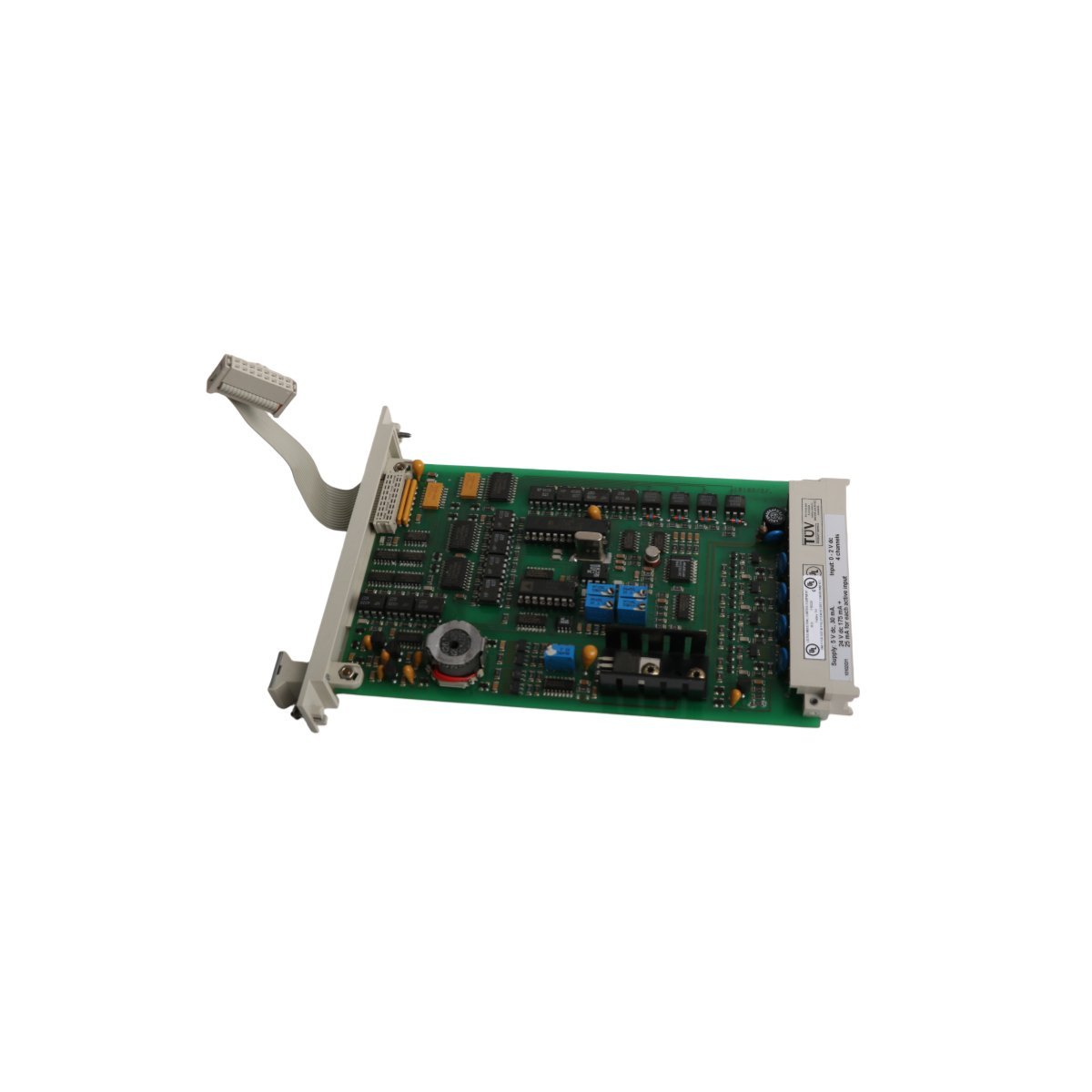

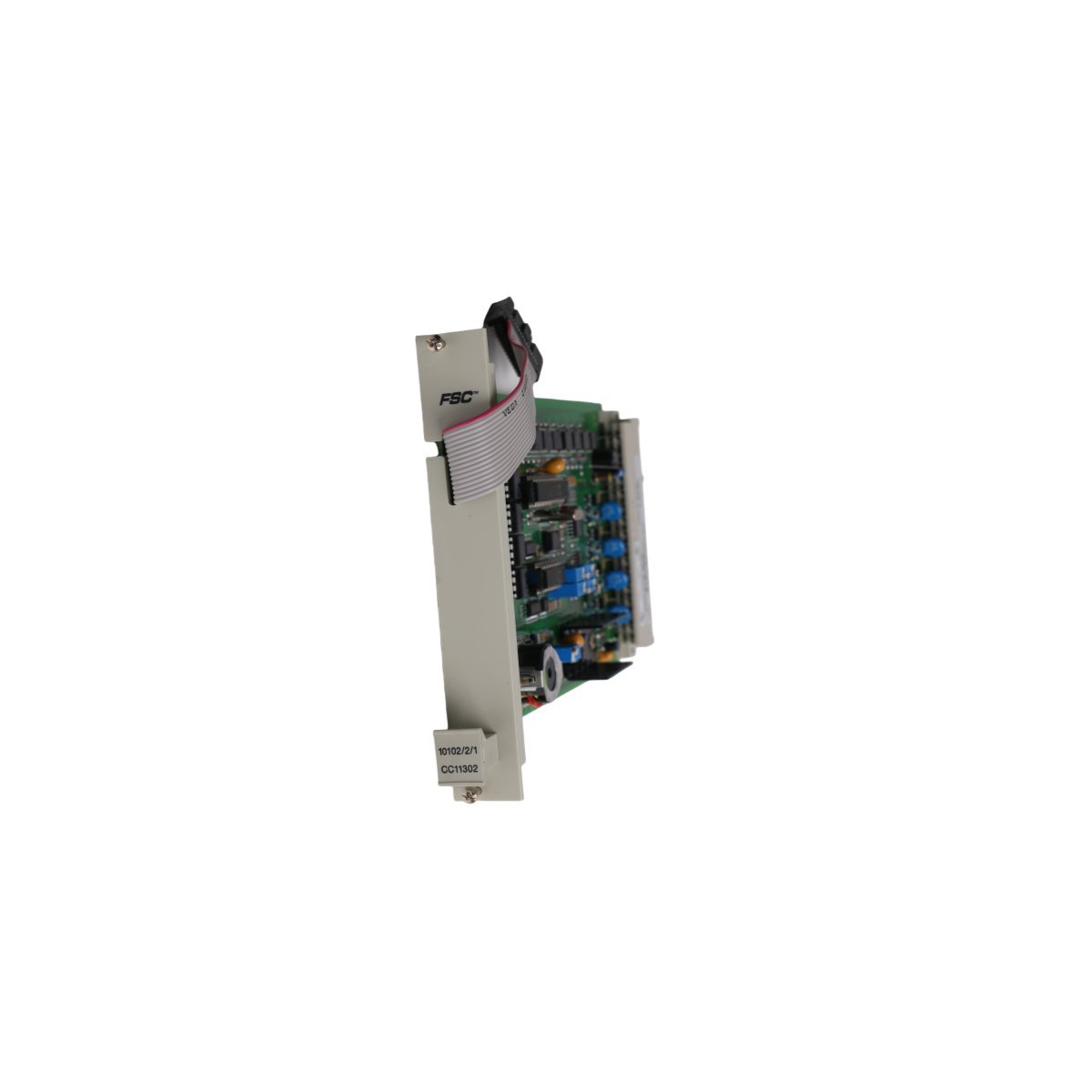

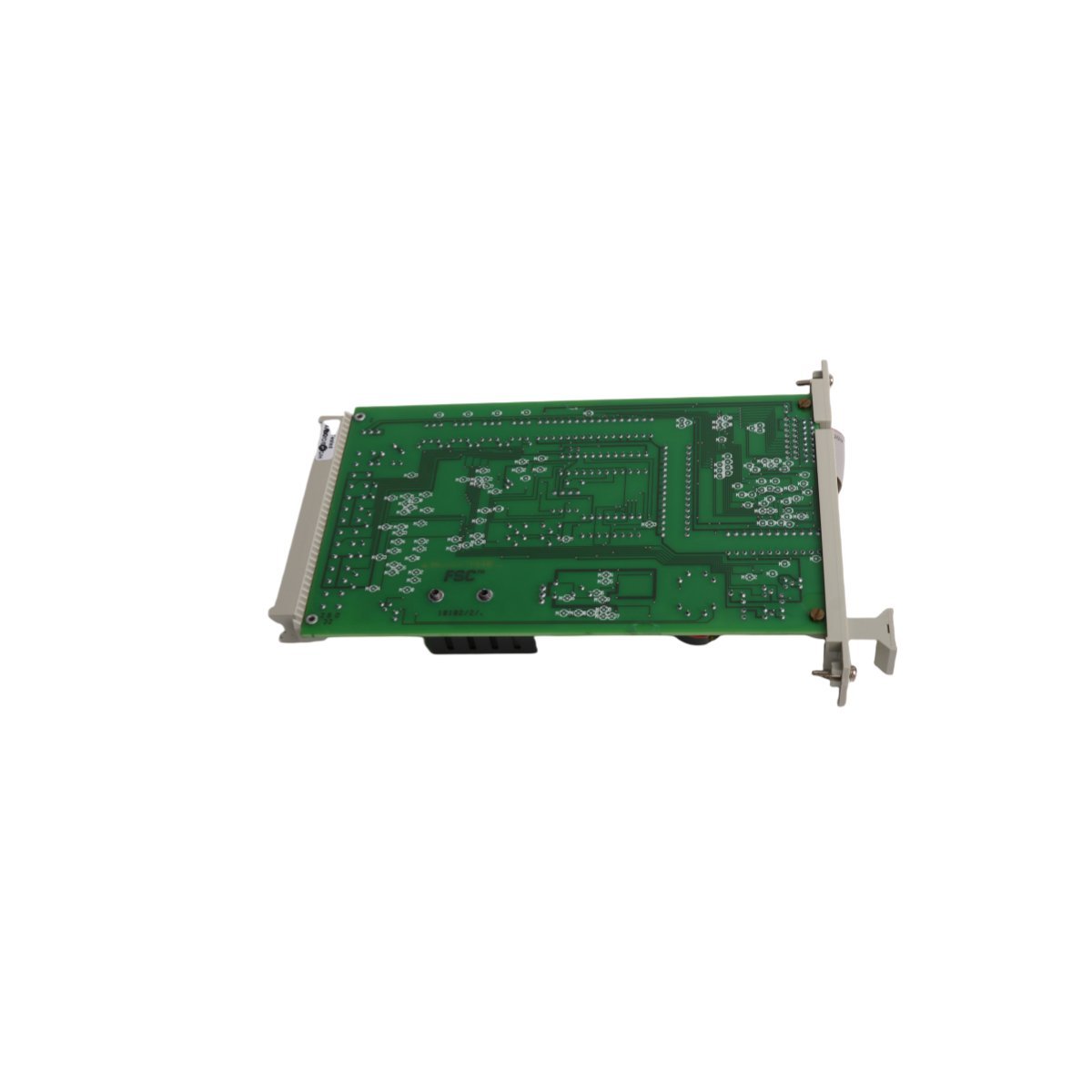

The Honeywell 10102/2/1 serves as a high-integrity Fail-safe Digital Input module for the FSC system. This hardware interfaces between field-side discrete sensors and the central safety logic solver. It primarily monitors critical binary states in hazardous process environments. While some legacy descriptions misidentify it as analog, this module specifically processes digital signals. It ensures that the safety system receives accurate data regarding valve positions and limit switches.

Safety and Operational Integrity

This module features a dedicated fail-safe architecture to meet stringent SIL requirements. Internal self-diagnostic routines constantly check for channel failures or electrical anomalies. Consequently, the module detects potential faults before they compromise the safety loop. If it identifies an error, it defaults to a predefined safe state. This proactive design significantly reduces the risk of undetected dangerous failures. Furthermore, the unit supports redundant configurations to maximize process uptime.

Key Technical Attributes

• High Safety Integrity: Engineered for Fail-Safe Controller (FSC) applications requiring SIL certification.
• Signal Accuracy: Advanced input filtering removes electrical noise and prevents false signal triggers.
• Real-time Monitoring: High-speed digital state acquisition ensures rapid response to process changes.
• Diagnostic Depth: Comprehensive onboard diagnostics report channel health to the host controller.
• Rugged Design: Built with industrial-grade components to survive harsh chemical and thermal conditions.

Product Specifications

Industrial Applications

Automated safety systems in refineries and chemical plants frequently utilize the 10102/2/1 module. It provides essential monitoring for emergency shutdown (ESD) and fire and gas (F&G) systems. Because it prioritizes fail-safe operation, it is ideal for protecting personnel and assets. The module integrates easily into existing FSC racks for system maintenance or expansion.
