Description

Brief Product Description

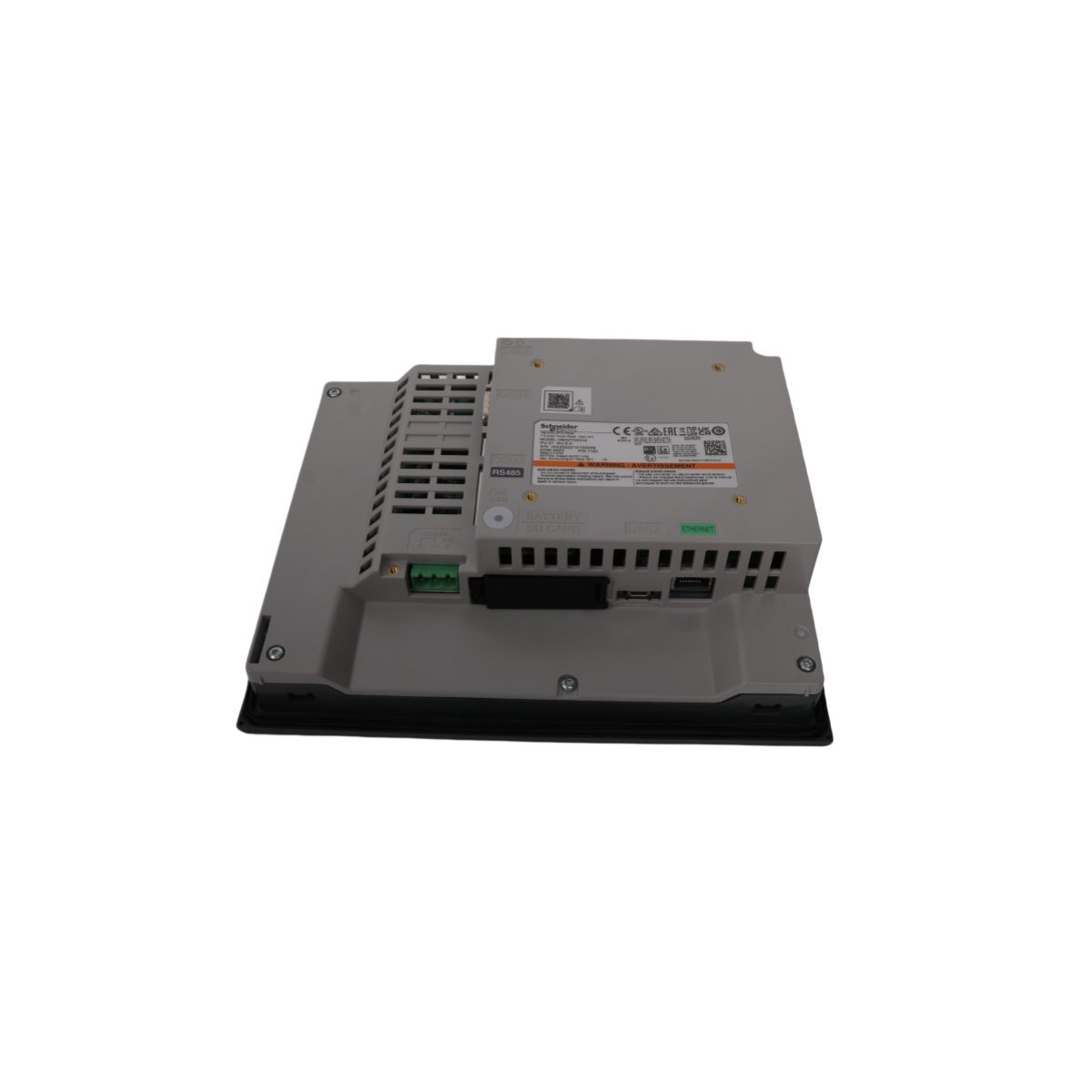

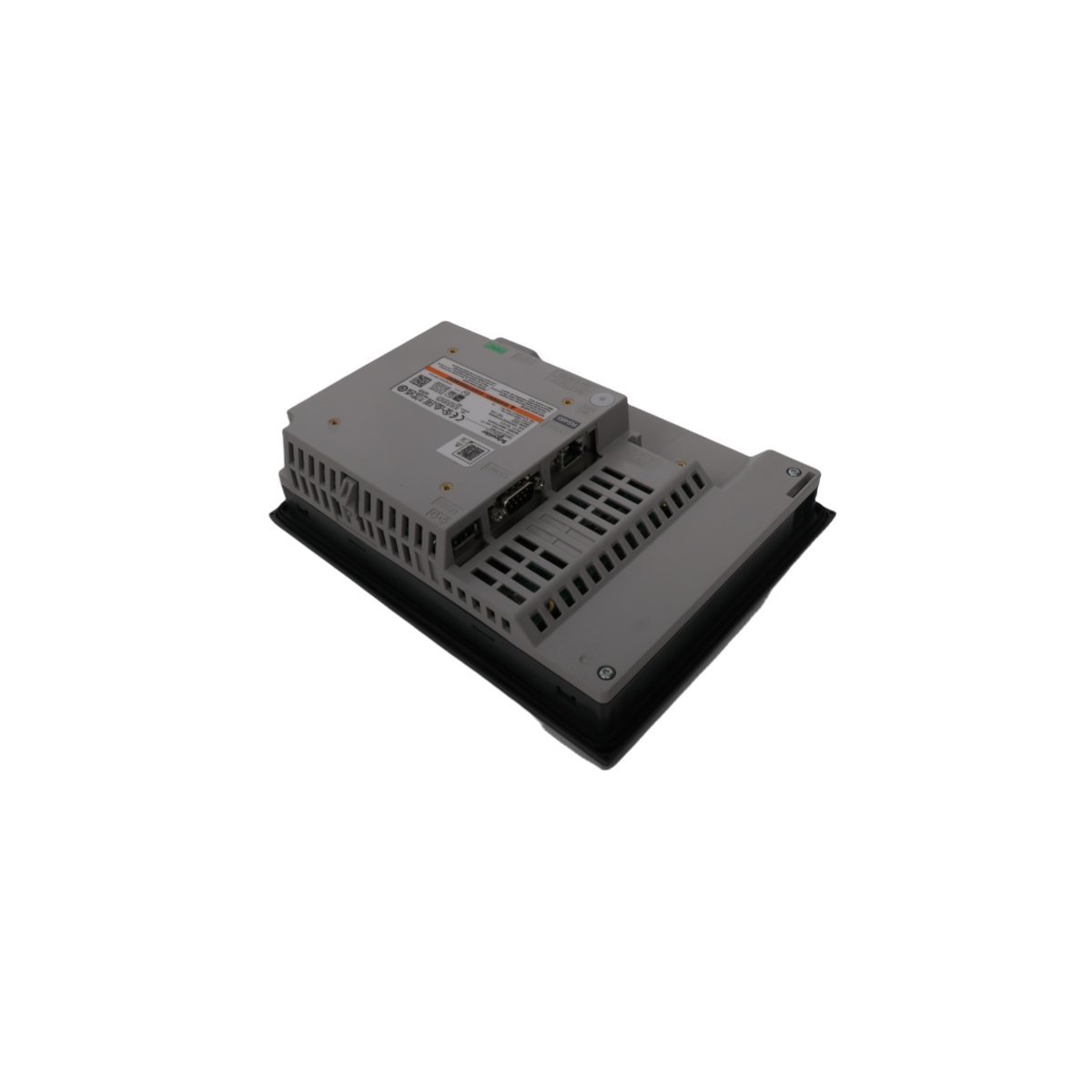

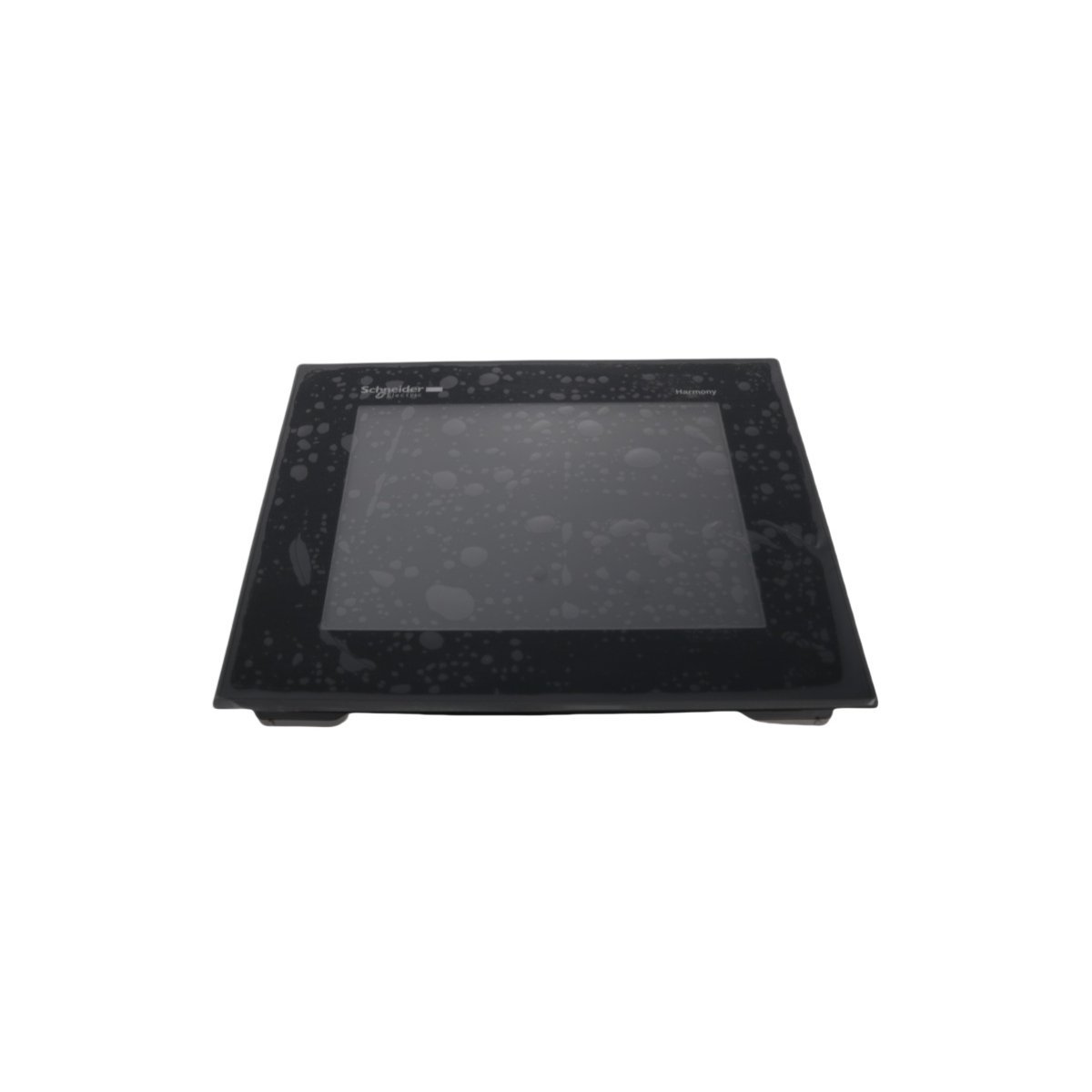

The Schneider Electric HMIGTO4310 is a high-performance 7.5-inch color TFT touch screen terminal designed for the Harmony GTO range. This advanced HMI provides clear process visualization and intuitive control for complex industrial automation systems.

High-Resolution Visualization and Operator Control

The Schneider Electric HMIGTO4310 serves as a sophisticated Human-Machine Interface (HMI) that streamlines interaction between operators and automated machinery. Featuring a 7.5-inch TFT color display, the unit renders industrial graphics with a palette of 65,536 colors and a VGA resolution of 640 x 480 pixels. This high level of detail ensures that complex data, trend graphs, and system alarms remain legible in diverse lighting conditions. By upgrading to this graphic terminal, facilities improve operational accuracy and reduce the response time required for process adjustments.

Optimized Integration and Data Management

Engineered for the modern connected factory, the HMIGTO4310 incorporates a robust 96 MB flash memory for efficient application handling and data logging. It operates seamlessly within the Harmony platform, facilitating rapid synchronization with Schneider Electric PLCs and third-party automation controllers. The terminal supports a wide array of industrial communication protocols via its integrated Ethernet and serial ports. Furthermore, the inclusion of an SD card slot and USB interfaces allows for easy project backups, firmware updates, and external data storage, ensuring that the system remains flexible as production requirements evolve.

Industrial Reliability and Compact Architecture

The HMIGTO4310 combines a slim mechanical profile with the ruggedness necessary for harsh manufacturing environments. It functions reliably on a standard 24V DC power supply, maintaining stable operation even during minor voltage fluctuations between 19.2V and 28.8V. Because of its compact 16.8 x 13.6 x 6 cm dimensions, engineers can easily integrate this panel into space-constrained control cabinets or machine-mount consoles. The front face offers high protection ratings, making it resistant to the dust and moisture typical of industrial settings, while the fanless design ensures a long service life with minimal maintenance needs.

Key Technical Characteristics

• Advanced Display: 7.5-inch VGA TFT screen providing vibrant 640 x 480 visualization.
• High Color Depth: Supports 65,536 colors for realistic and clear HMI interface design.
• Robust Memory: Equipped with 96 MB of internal flash memory for complex application storage.
• Versatile Connectivity: Features built-in Ethernet, serial links (RJ45/RS485), and USB ports.
• Wide Operating Range: Designed for 24V DC power systems with broad tolerance for industrial environments.
• Expandable Storage: Includes an SD card slot for easy data logging and project transfers.
