Description

Brief Product Description

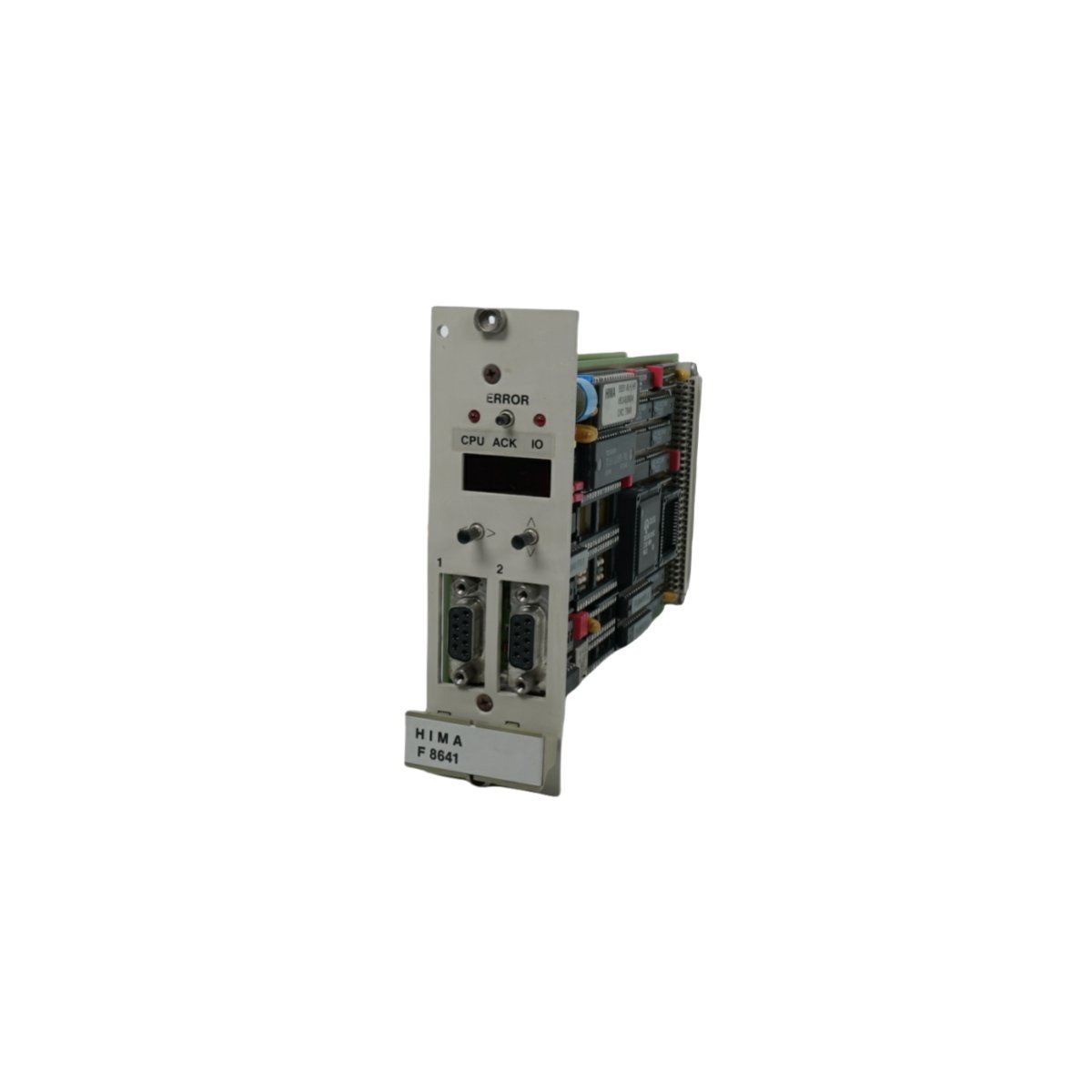

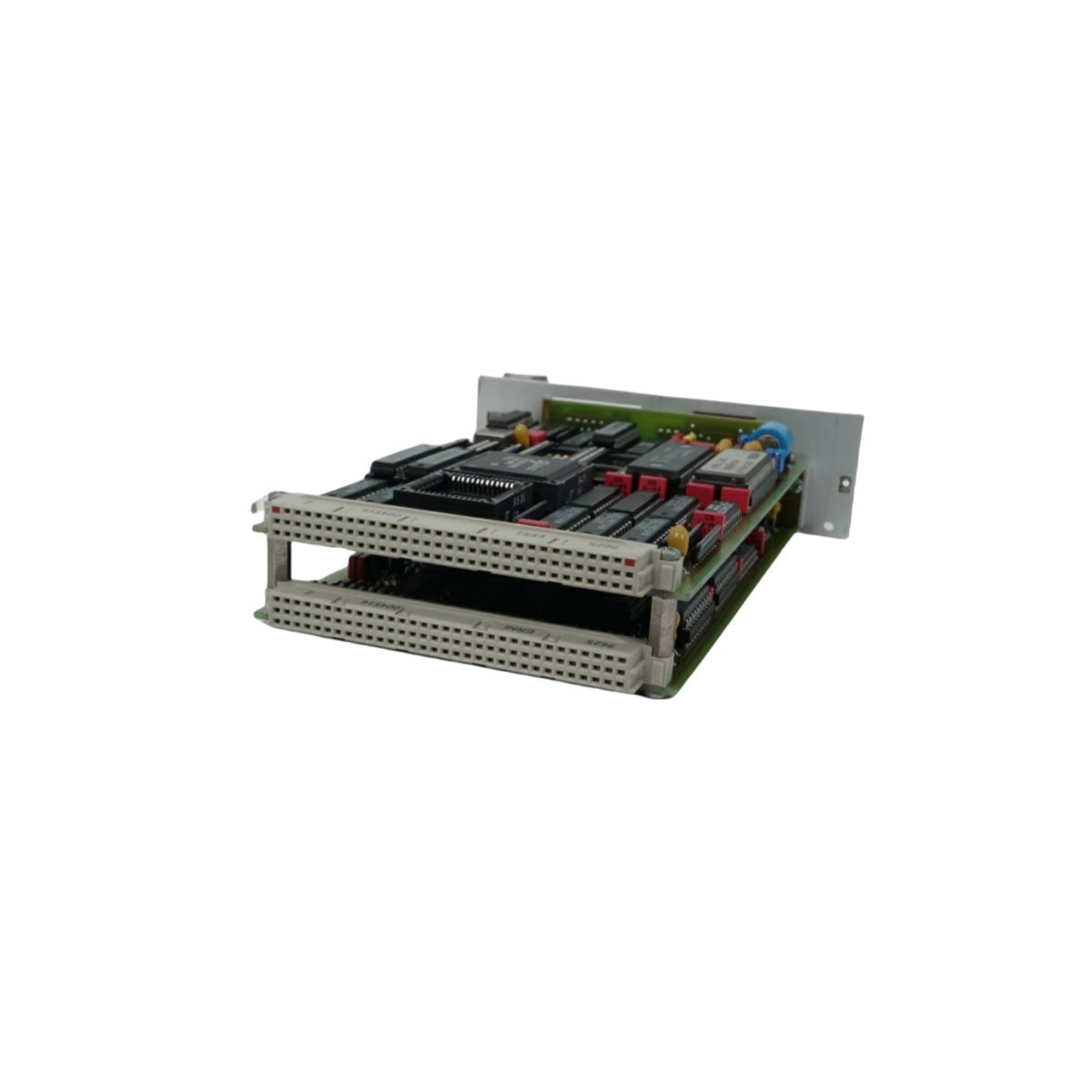

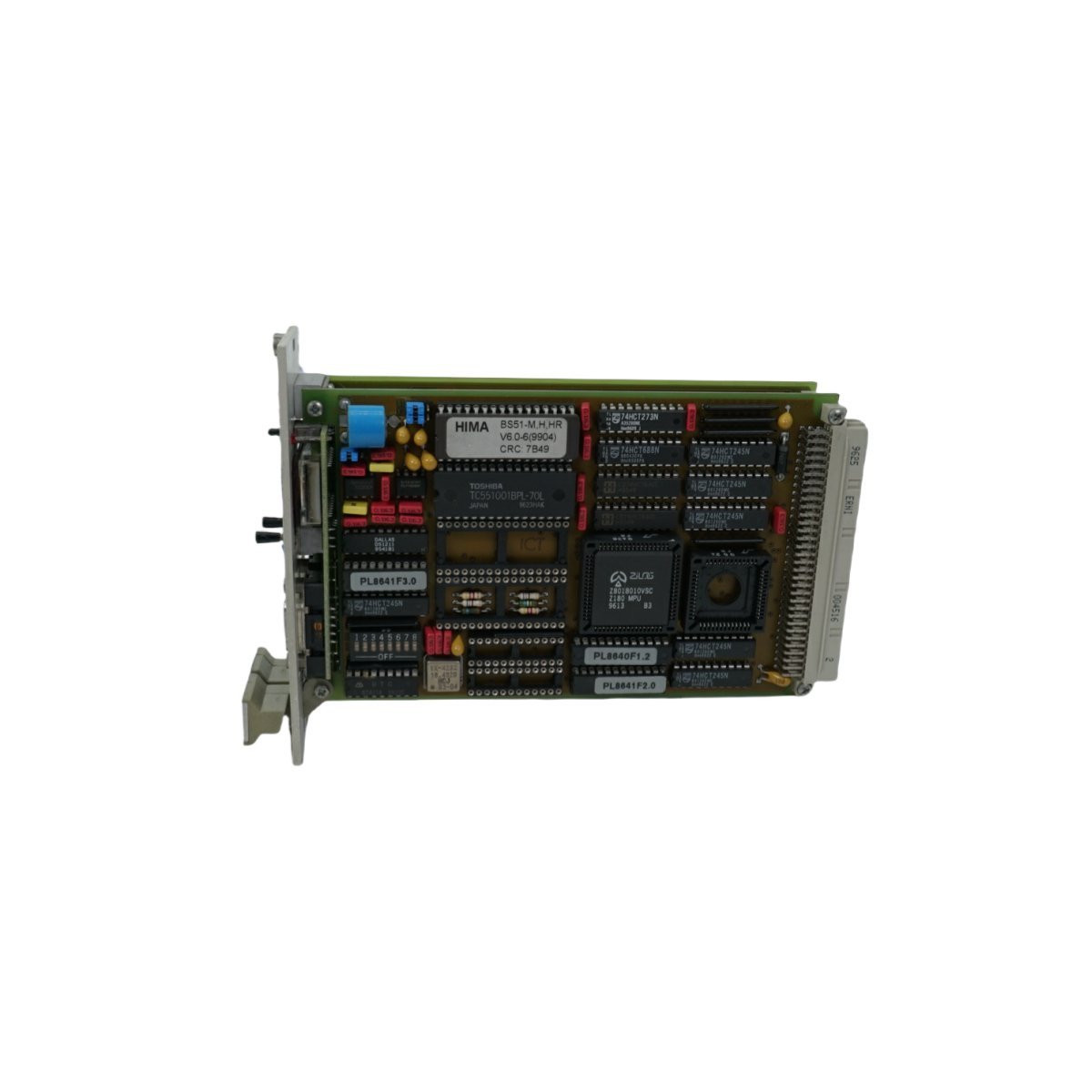

The HIMA F8641 is a safety-related central module designed for the H41q and H51q HIMax/HIMA controller families. It provides high-integrity digital output management and communication processing to ensure fail-safe operation in critical industrial processes.

High-Integrity Safety Control Architecture

The HIMA F8641 functions as a critical component within the H41q and H51q safety systems, providing specialized control for safety-related digital outputs. This module utilizes a high-availability design to maintain process integrity in emergency shutdown (ESD) systems and fire and gas (F&G) applications. By processing safety-critical logic, the F8641 ensures that all connected field devices respond correctly to system commands. Furthermore, the module integrates seamlessly with the HIMA safety bus, facilitating synchronized data exchange between the processor and distributed I/O racks.

Professional Safety Engineering and Compliance

Manufactured in Germany, the F8641 adheres to the strictest international safety standards, including IEC 61508. The module incorporates sophisticated hardware diagnostics that continuously monitor internal circuitry for potential faults. If the system detects a discrepancy, the F8641 initiates a fail-safe state to protect both personnel and equipment. This proactive monitoring extends to the communication interface, where the module handles data packets with high-level CRC checks. Consequently, this prevents corrupted signals from affecting the safety logic, making it a cornerstone for plants requiring SIL 3 certification.

Integrated Communications and System Versatility

The F8641 serves as a bridge for complex data networking, supporting Ethernet-based routing and serial communication services within the DCS environment. This connectivity allows operators to perform real-time diagnostics and remote system configuration via HIMA’s proprietary ELOP II software. Because the module supports hot-swapping in redundant configurations, maintenance teams can replace units without interrupting the active safety process. This capability significantly increases total system uptime and reduces the operational costs associated with plant shutdowns.

Key Technical Characteristics

• Fail-Safe Logic Processing: Engineered specifically for high-integrity safety-related digital output control.
• H41q/H51q Compatibility: Designed for seamless installation in HIMA’s legacy and contemporary safety racks.
• Robust Diagnostic Coverage: Continuous internal testing detects hardware failures before they impact process safety.
• High-Speed Communication: Features integrated support for Ethernet routing and safety-bus data exchange.
• Redundancy Support: Facilitates dual-module configurations for maximum fault tolerance in critical applications.
• Precision German Engineering: Offers long-term durability and stable performance in harsh industrial climates.

Technical Specifications
