Description

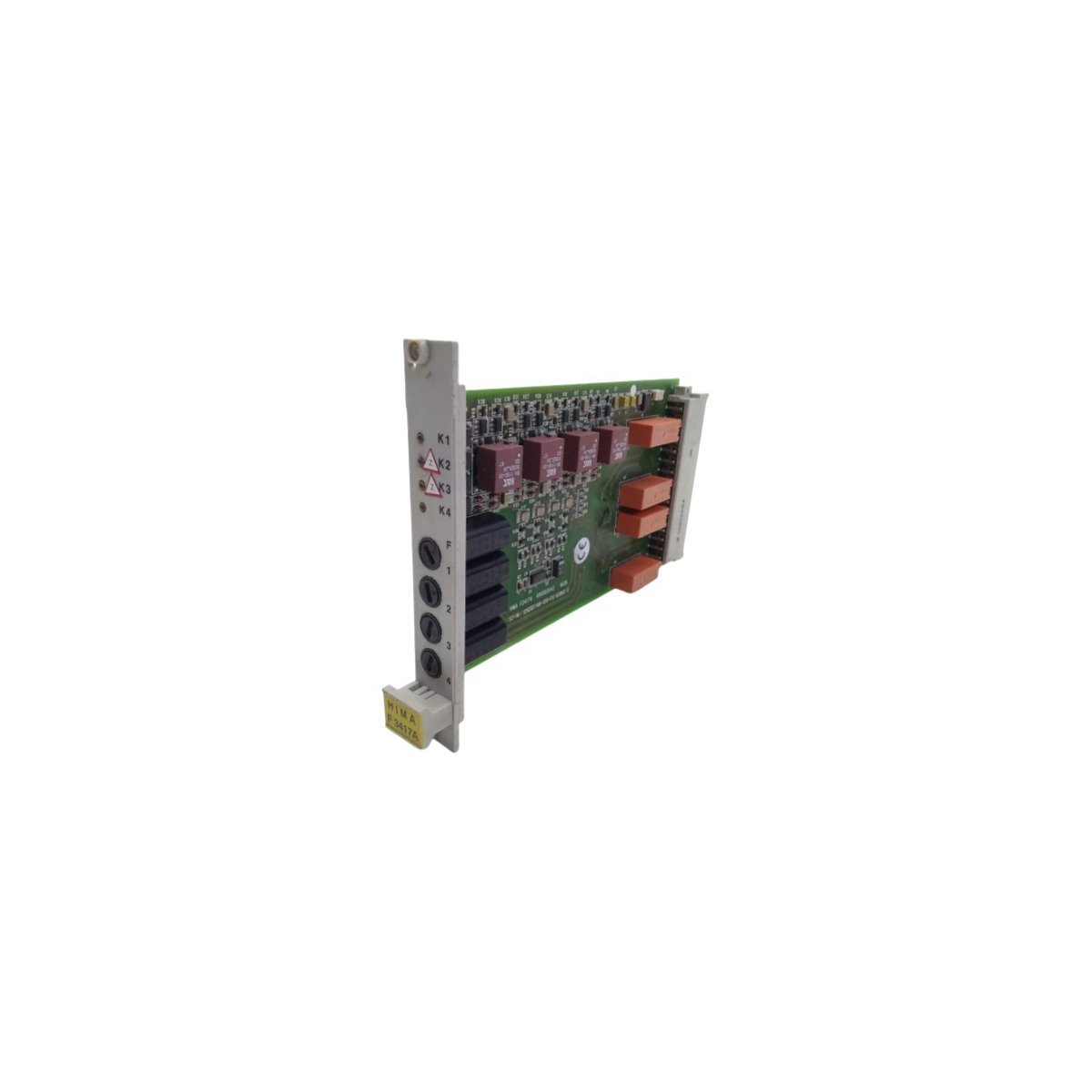

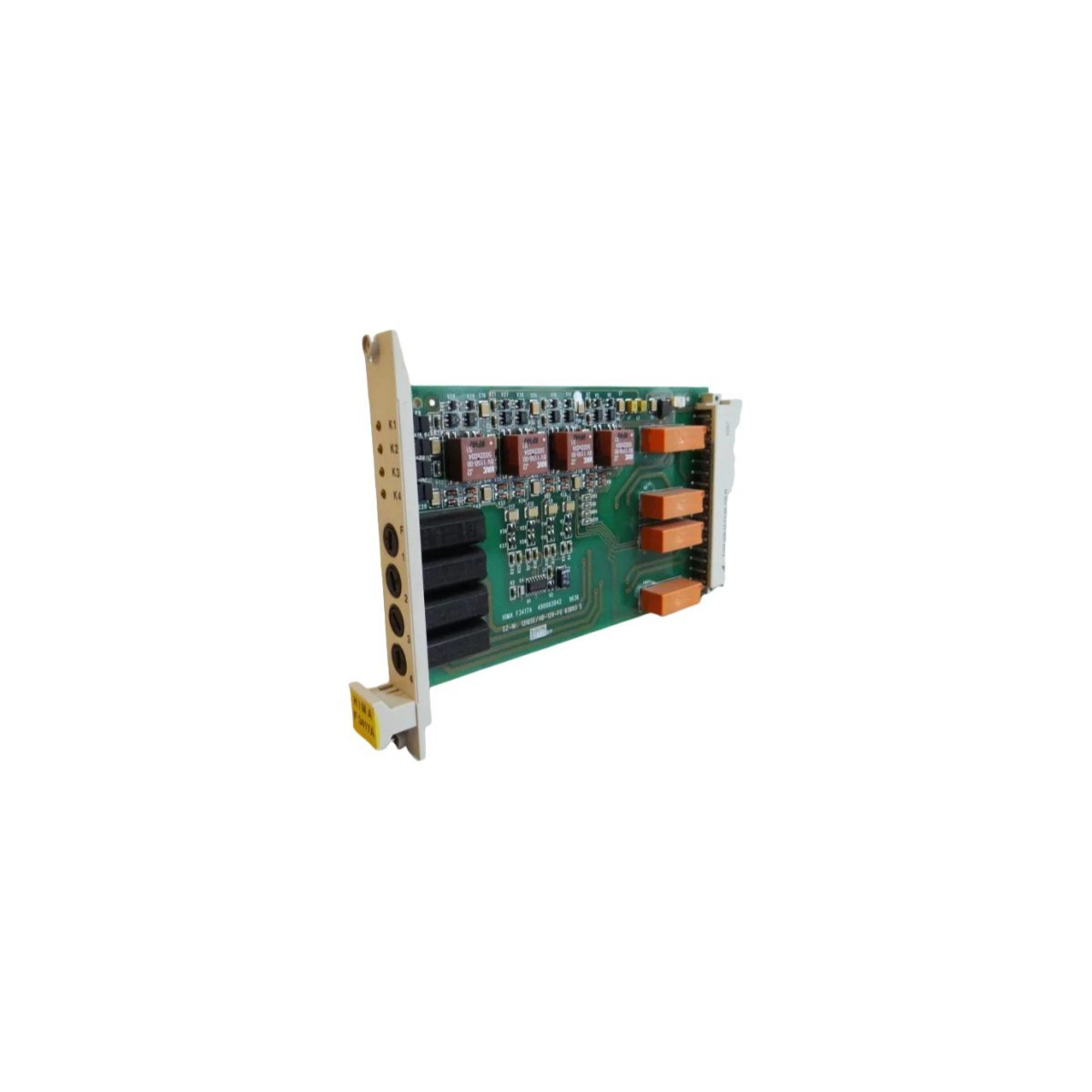

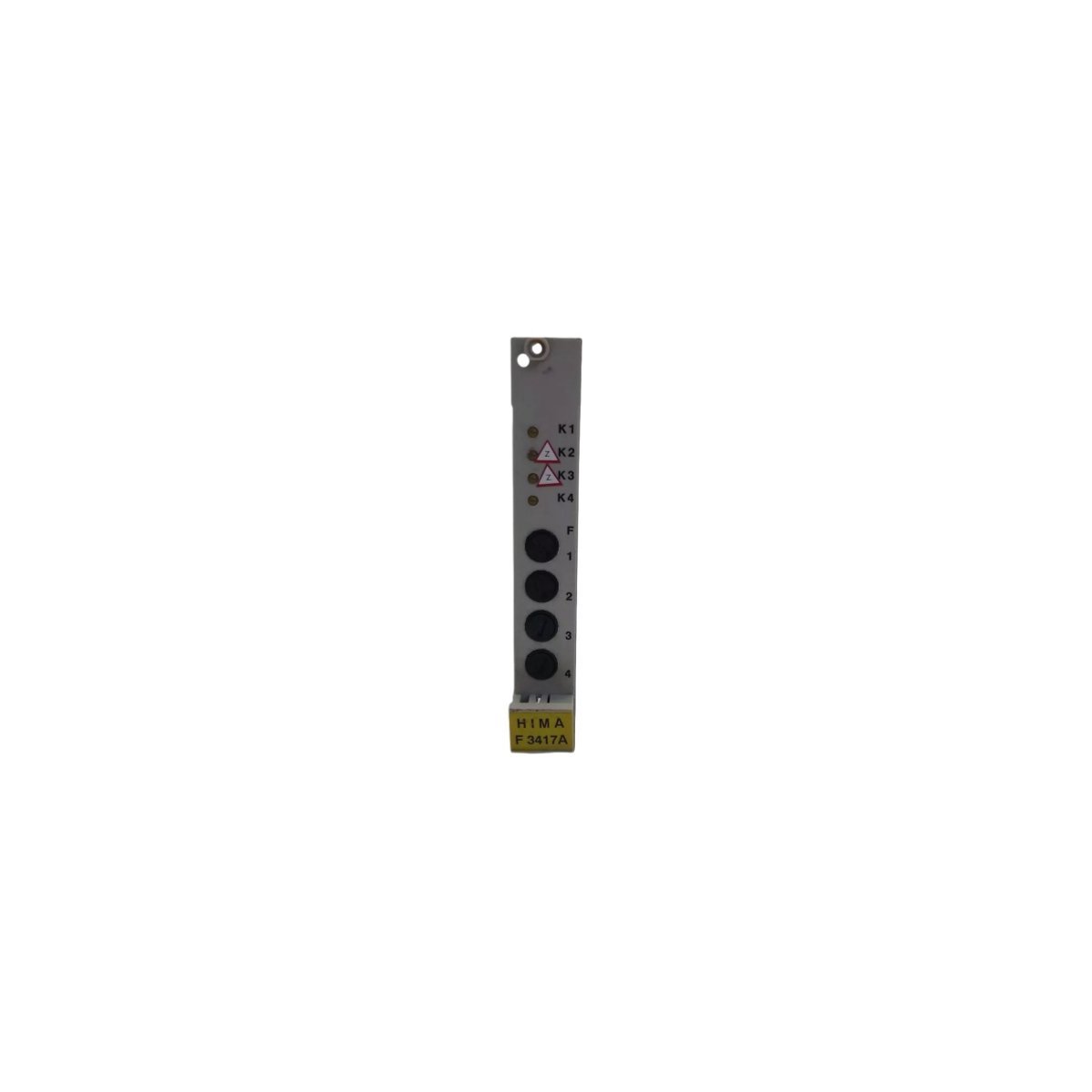

The HIMA F3417A serves as a critical fail-safe relay amplifier within the Planar F system architecture. This module provides high-integrity signal amplification for safety-instrumented functions. It ensures the reliable execution of switching commands in high-risk industrial zones. The hardwired logic of the Planar F series offers maximum immunity to cyber threats. This board acts as a dependable interface between logic solvers and field actuators. German engineering ensures the module maintains rigorous safety standards during continuous operation.

Technical Specifications and Hardware Data

Safety Certification and Hazardous Area Use

This amplifier board holds specialized certifications for use in explosive (Ex) atmospheres. Consequently, operators can safely deploy the hardware in hazardous process environments. The fail-safe design ensures that all outputs return to a de-energized state during faults. This “de-energize to trip” principle protects personnel and machinery from uncontrolled restarts. Furthermore, the robust construction satisfies international compliance for high-demand safety loops. It provides an essential layer of protection for volatile chemical and gas operations.

Operational Performance and Integration

The F3417A features eight independent relay outputs for versatile process control. These channels allow for the simultaneous management of multiple emergency shutdown devices. Because the module utilizes high-quality contact materials, it offers exceptional long-term electrical durability. The wide operating temperature range allows installation in unconditioned industrial cabinets. Maintenance teams can integrate the board quickly into existing DCS or PLC racks. This compatibility reduces system downtime during essential hardware upgrades. The module delivers consistent switching accuracy even under heavy electromagnetic interference.
