Description

Brief Product Description

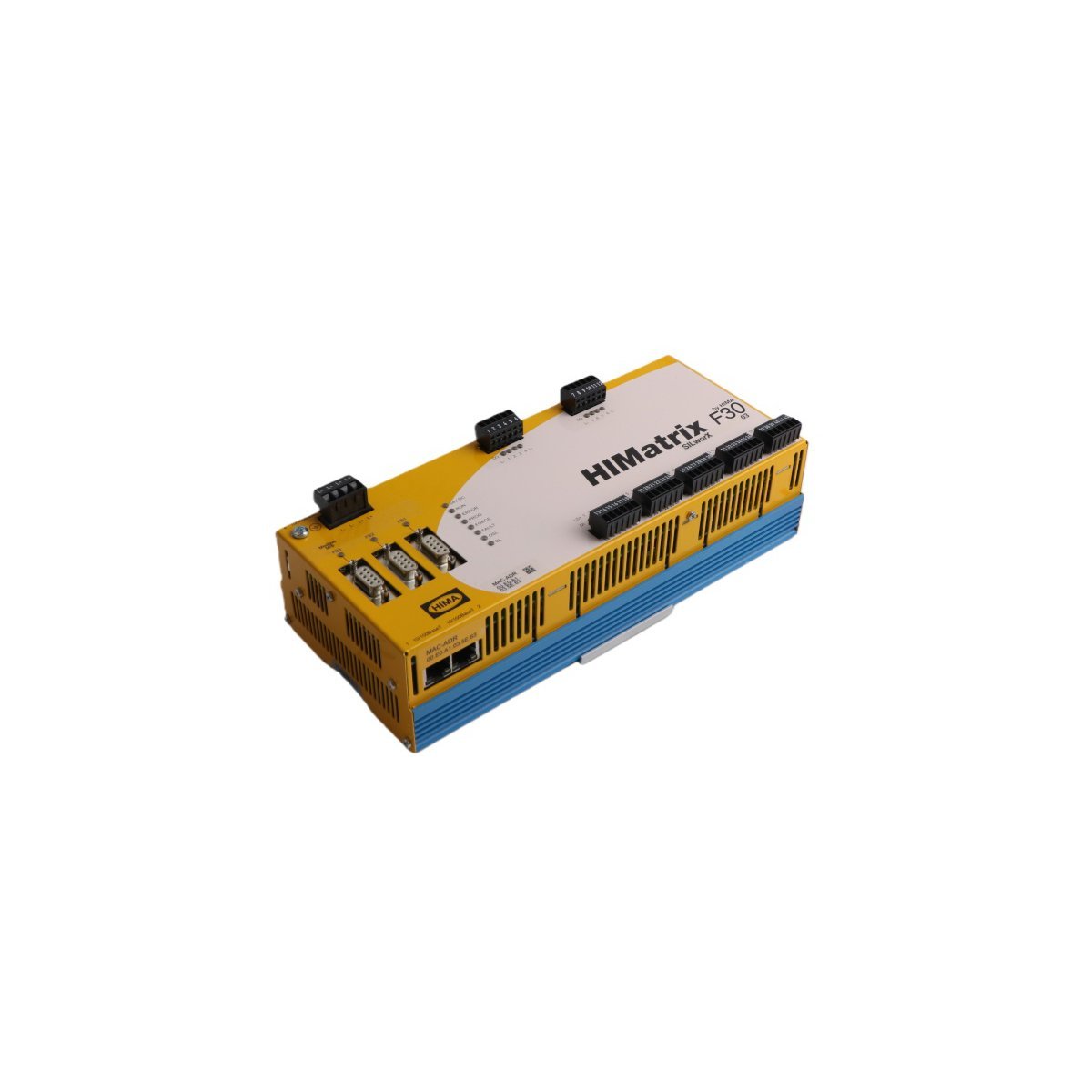

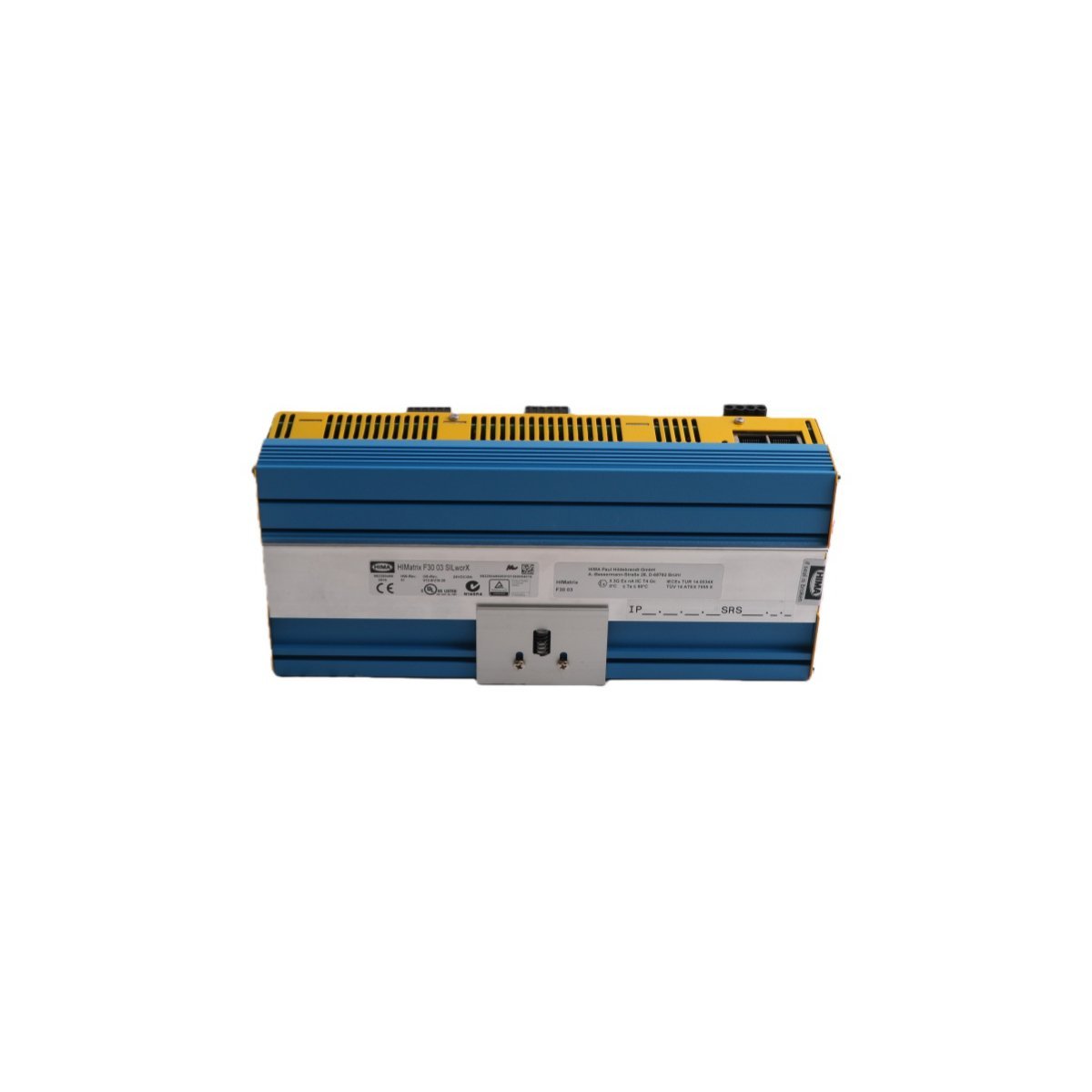

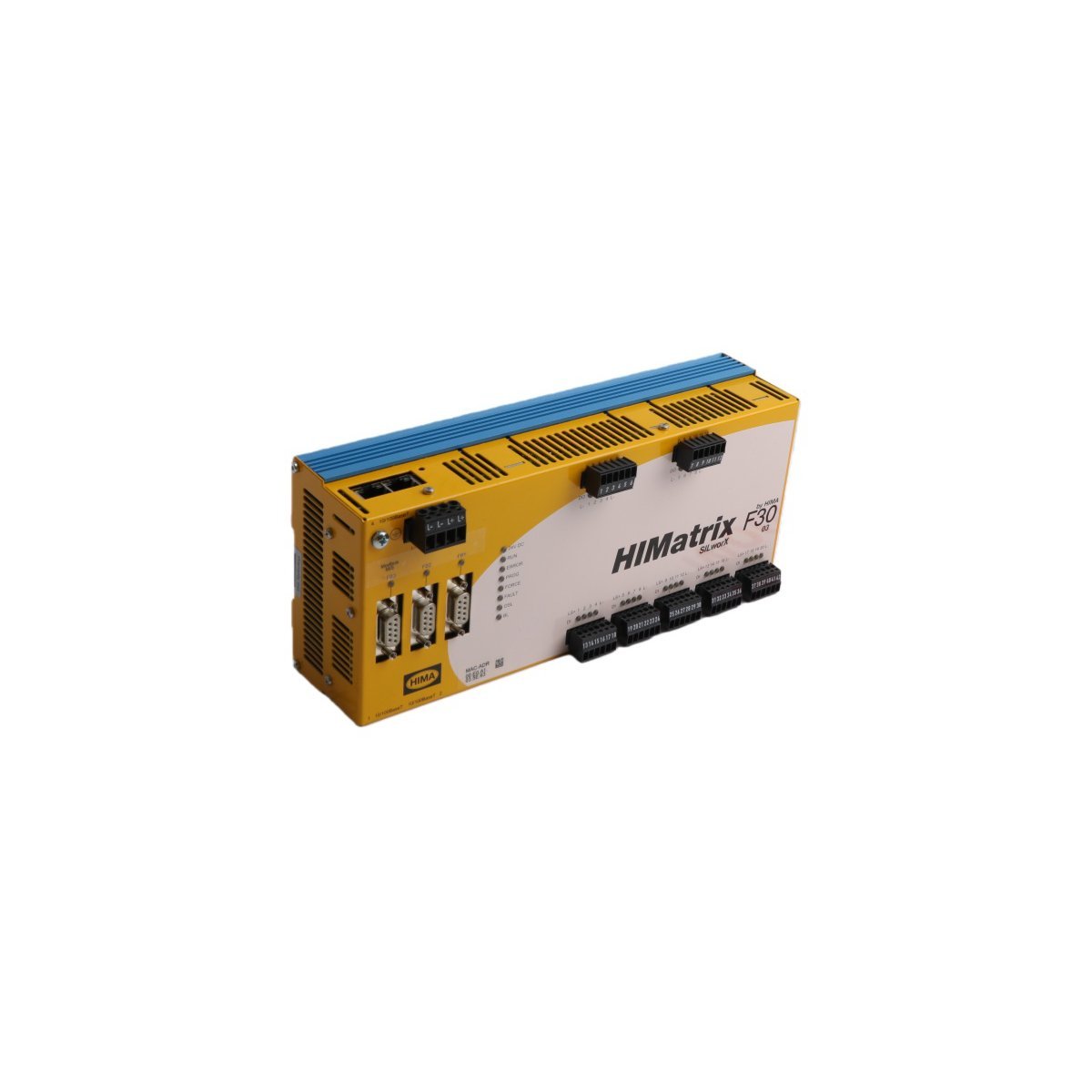

The HIMA HIMatrix F30 01 is a high-performance, standalone safety controller engineered for SIL 3 applications in both standard and hazardous environments. It integrates 20 safety-related digital inputs and 8 digital outputs within a compact, metal-shielded housing to provide decentralized protection for critical industrial loops.

Product Description

High-Integrity Safety Logic and Control

The HIMA HIMatrix F30 01 functions as a specialized programmable safety system designed to meet the most stringent global safety requirements. This controller carries TÜV certification for use in Safety Integrity Level 3 (SIL 3) applications according to IEC 61508 and IEC 61511, as well as Category 4 performance per EN 954-1. By centralizing 20 digital inputs and 8 digital outputs into one rugged module, the F30 01 executes complex safety logic for emergency shutdown (ESD) and fire and gas (F&G) systems. The robust metal enclosure not only protects internal electronics but also facilitates excellent heat dissipation and electromagnetic shielding.

Versatile Deployment in Hazardous Areas

A primary technical advantage of the HIMatrix F30 01 involves its operational flexibility in volatile environments. The unit holds certification for installation in ATEX Ex-zone 2 hazardous areas, which allows engineers to place the safety control logic closer to the actual field equipment. Furthermore, the module features an internal, short-circuit-proof 24V power source. This integrated supply powers potential-free mechanical contacts in groups of four, effectively eliminating the requirement for external power distribution hardware. Consequently, this design reduces the overall footprint of the control cabinet while maintaining superior diagnostic coverage.

Seamless Engineering and Maintenance

The F30 01 controller supports modern industrial workflows through its compatibility with both SILworX and ELOP II Factory programming environments. This dual-variant support ensures that the controller fits into both legacy architectures and new installations with minimal friction. Maintenance personnel benefit from the dedicated LED status indicators located on each digital input, which allow for rapid visual verification of signal integrity during troubleshooting. Because the controller communicates via safeethernet, it integrates effortlessly into larger HIMA safety networks, ensuring that distributed safety functions remain synchronized and responsive.

Technical Specifications
