Description

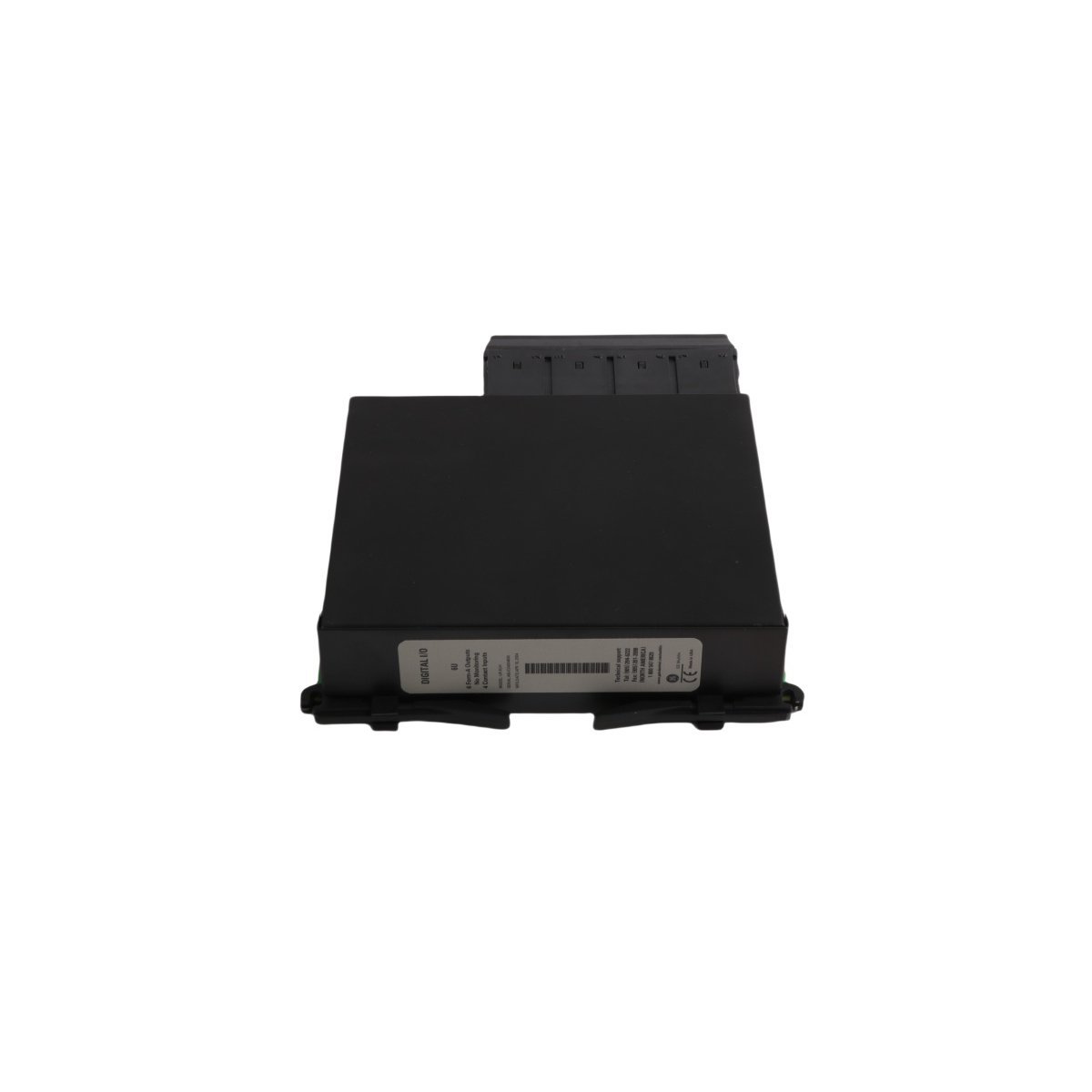

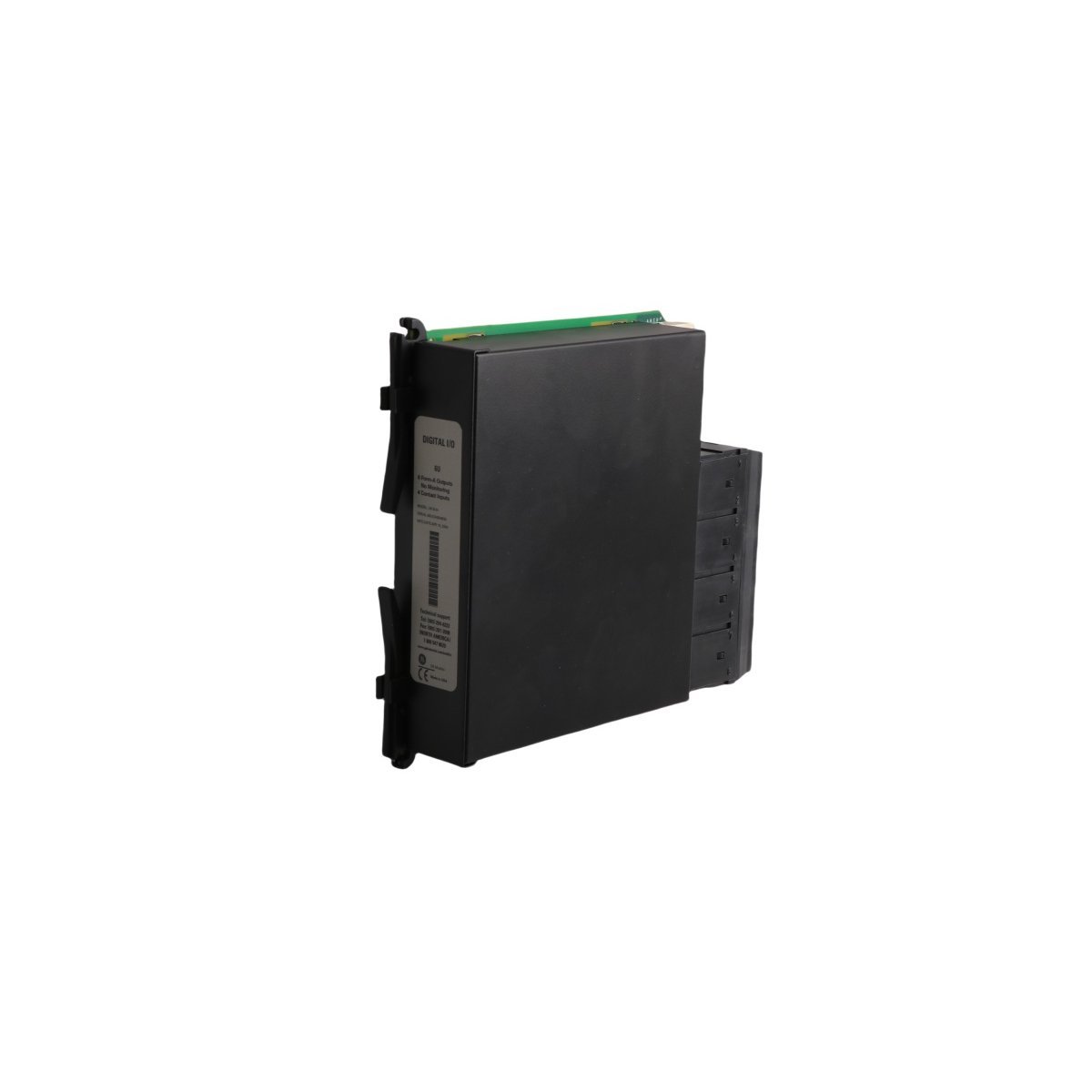

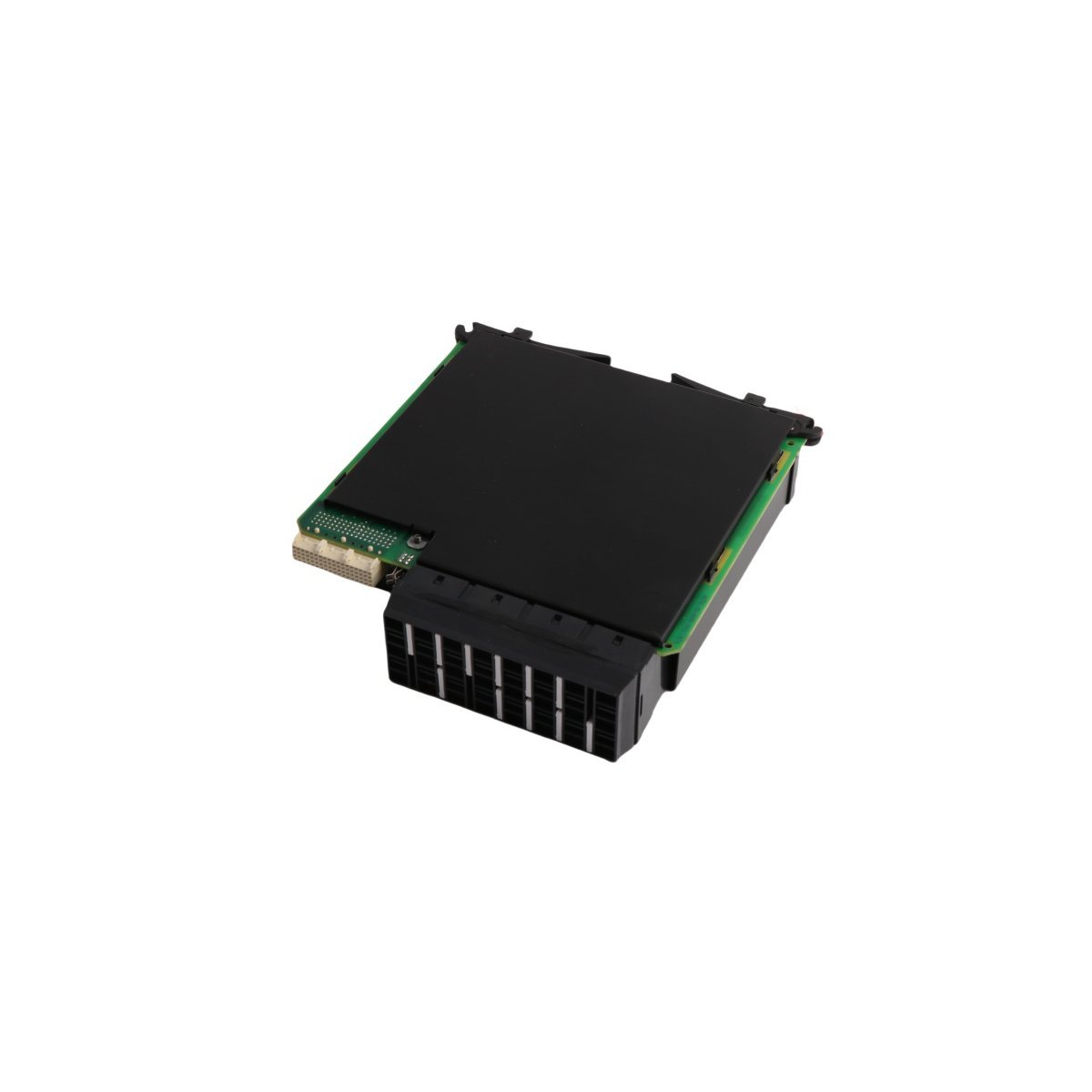

The GE UR6UH serves as a specialized expansion component for the Multilin Universal Relay (UR) platform. This module enhances the monitoring and control of auxiliary equipment within power substations. It facilitates the transition from complex analog wiring to streamlined digital signal processing. Consequently, the hardware reduces overall system costs while improving signal clarity. Engineers utilize this module to achieve high-speed protection and automation. Its robust 6U architecture ensures compatibility with standard Multilin chassis. Furthermore, the unit provides the reliability necessary for critical utility and industrial power applications.

Technical Specifications and Hardware Features

Operational Advantages and Design

The UR6UH features a hot-swappable, plug-and-play design for rapid field deployment. This modularity allows for system upgrades without significant operational interruptions. Each module contains four digital inputs for precise status tracking of field devices. Additionally, six Form-A outputs provide reliable command execution for external circuitry. The internal shielding minimizes the impact of electrical noise in high-voltage areas. Operators benefit from a stable interface that withstands extreme industrial conditions. Therefore, this module represents a durable choice for long-term grid management.

Configuration and Software Integration

Technicians configure the UR6UH using the professional EnerVista UR software suite. This platform allows for detailed logic mapping and threshold adjustments. Alternatively, the front-panel keypad and LCD interface support manual configuration changes. The module integrates seamlessly into the existing relay communication network. This ensures that all I/O data remains synchronized with the central processor. Furthermore, the digital nature of the inputs eliminates the need for frequent calibration. In summary, the UR6UH provides a flexible and user-friendly solution for sophisticated power protection schemes.
