Description

The GE IS2020RKPSG2A functions as a high-capacity power distribution unit for the Mark VI Speedtronic control system. This VME Rack Power Supply (RKPS) provides regulated electrical energy to critical turbine control components. It supports advanced automation for steam, gas, and wind turbine applications. By leveraging decades of Speedtronic innovation, this module ensures high availability for large-scale power generation equipment.

Core Technical Specifications

The IS2020RKPSG2A converts high-voltage DC input into stable outputs for internal rack electronics. Its robust electrical profile suits heavy-duty industrial environments.

• Series Name: Mark VI Speedtronic Control
• Input Voltage: 125V DC
• Power Output: 400 Watts
• Output Channels: Five +28V DC outputs plus one remote +28V DC output
• Cooling Method: Passive dissipation via integrated heavy-duty metal heat sink fins
• Weight: 7.24 kg
• Standard Dimensions: 8.5 x 33.3 x 40 cm
• Visual Interface: Diagnostic LEDs (Green, Yellow, Red) and integrated power switch

Mechanical and Thermal Design

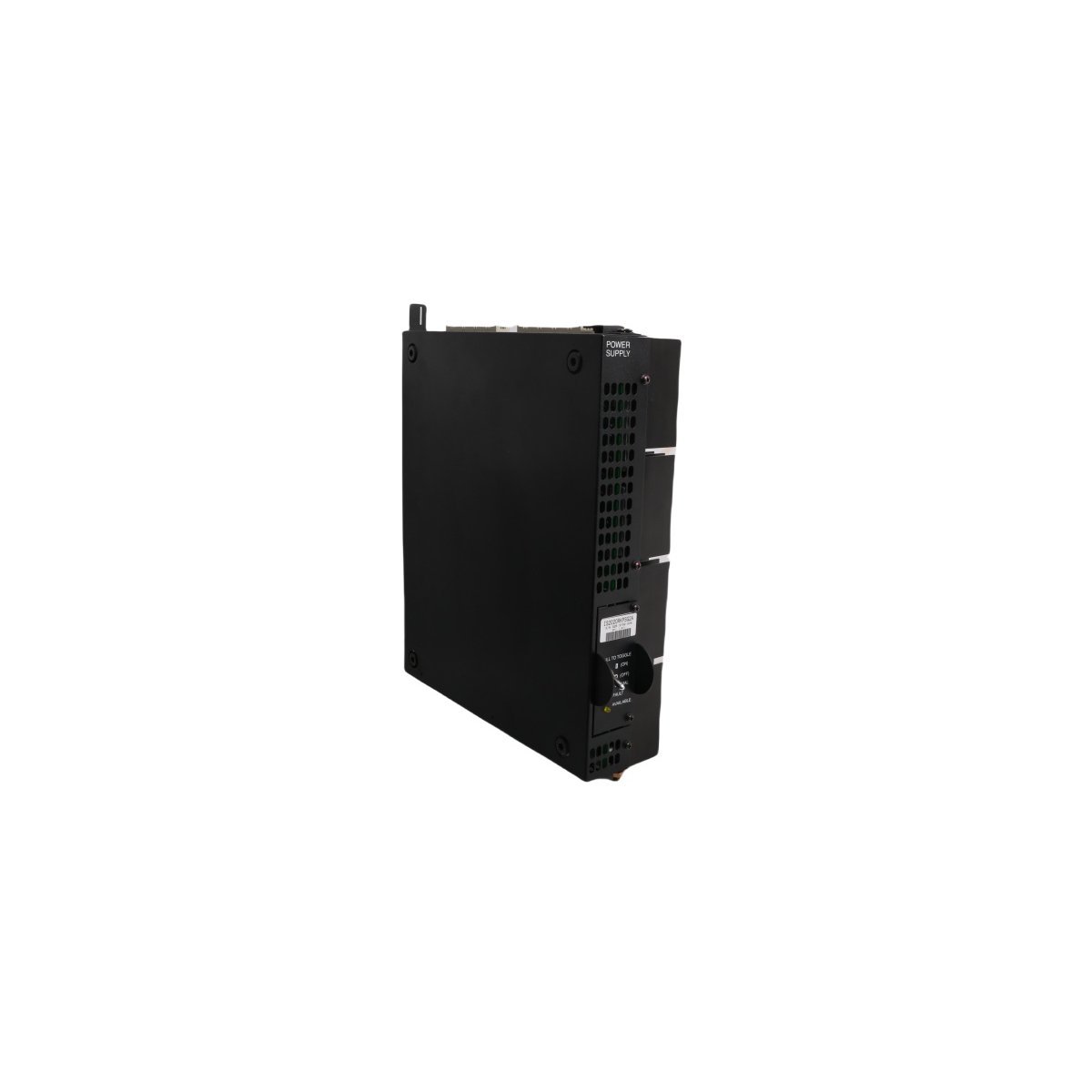

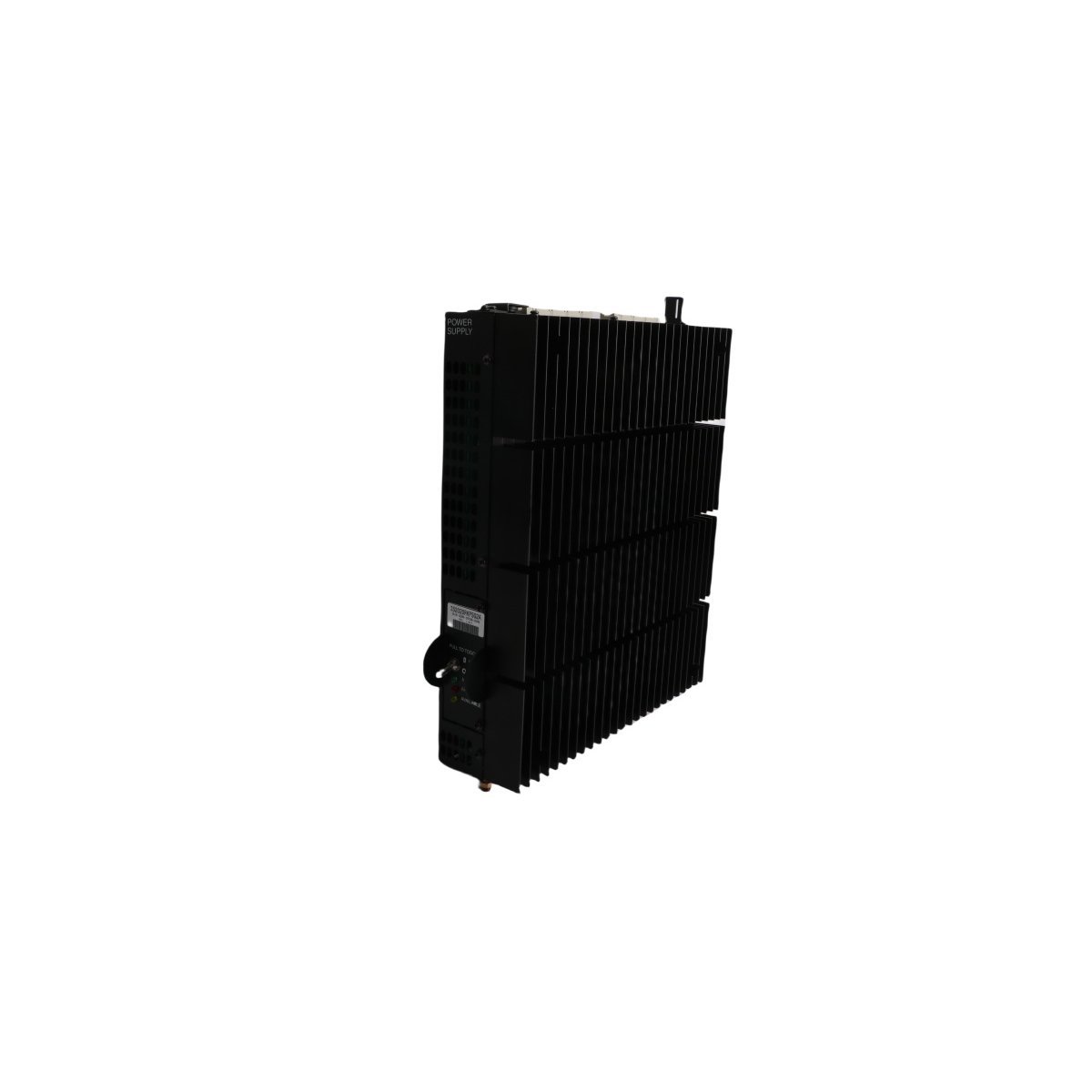

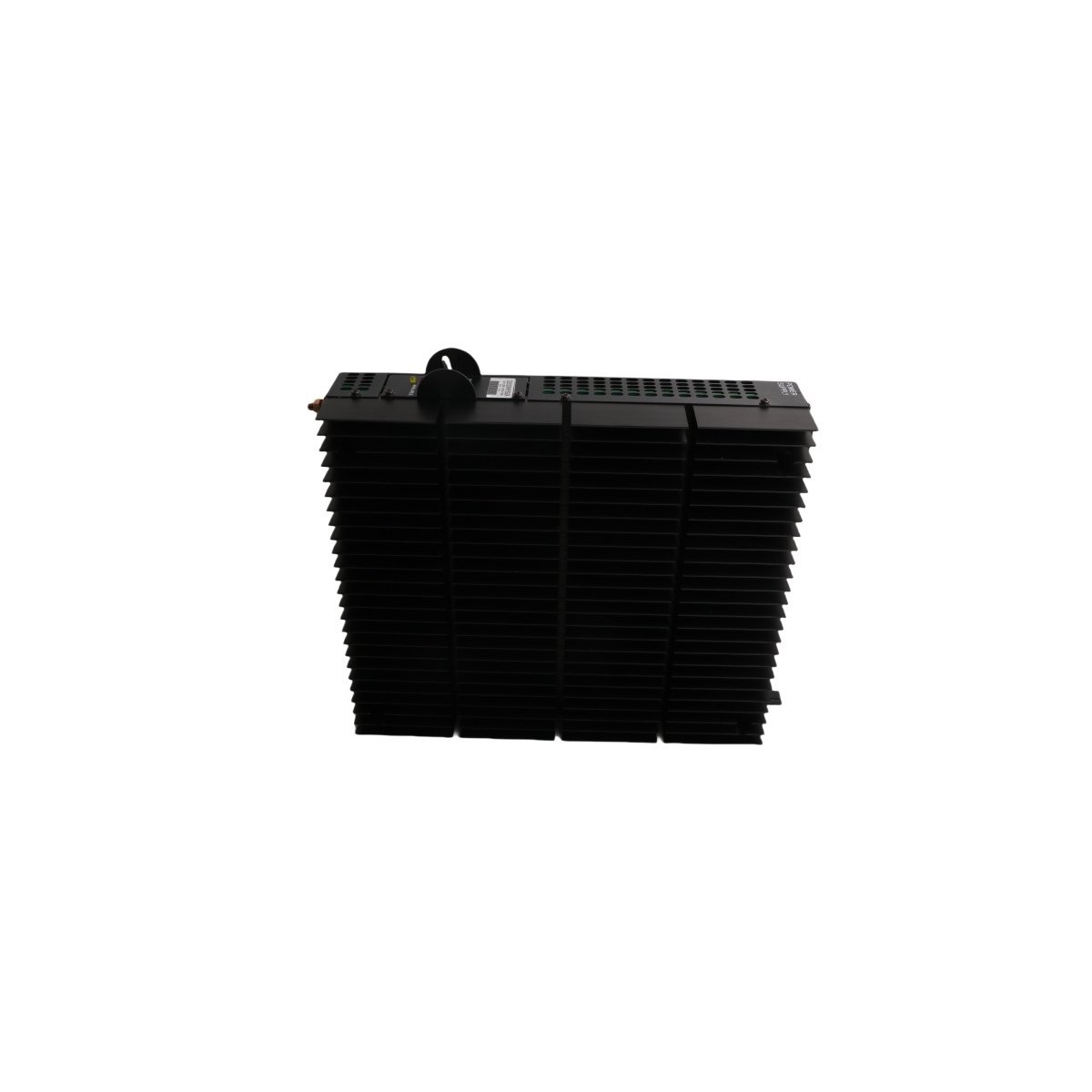

Engineers designed this module to manage significant thermal loads within a VME enclosure. The side panel features extensive metal finning to facilitate efficient heat transfer. This passive cooling system increases the lifespan of internal capacitors and power transistors. The front faceplate includes a dedicated labeling area for catalog numbers and serial tracking. Diagnostic LEDs provide immediate status updates regarding the health of the internal power rails. Furthermore, the unit features specialized connectors for PSA, PSB, and status monitoring (PSSTAT).

System Protection and Fault Management

This power supply module incorporates advanced safety protocols to protect the wider turbine control network. The internal circuitry monitors for voltage fluctuations and over-current conditions. If a fault occurs, the module can isolate a single output to prevent system-wide damage. In severe cases, the unit initiates a protective shutdown to safeguard the VME rack. Recovery typically requires a manual reset or component replacement to restore full operational capacity. These features ensure the turbine drive system remains stable during electrical disturbances.
