Description

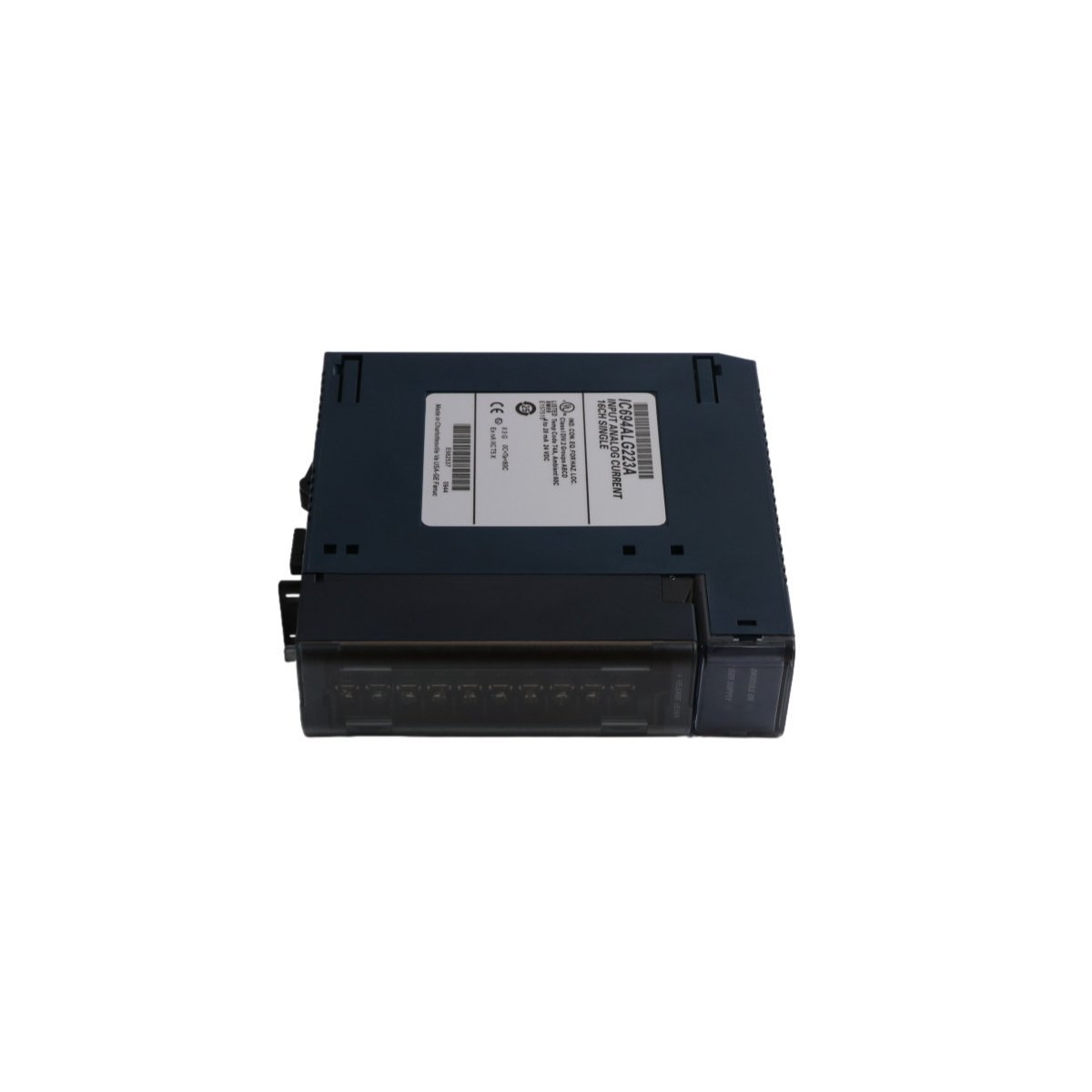

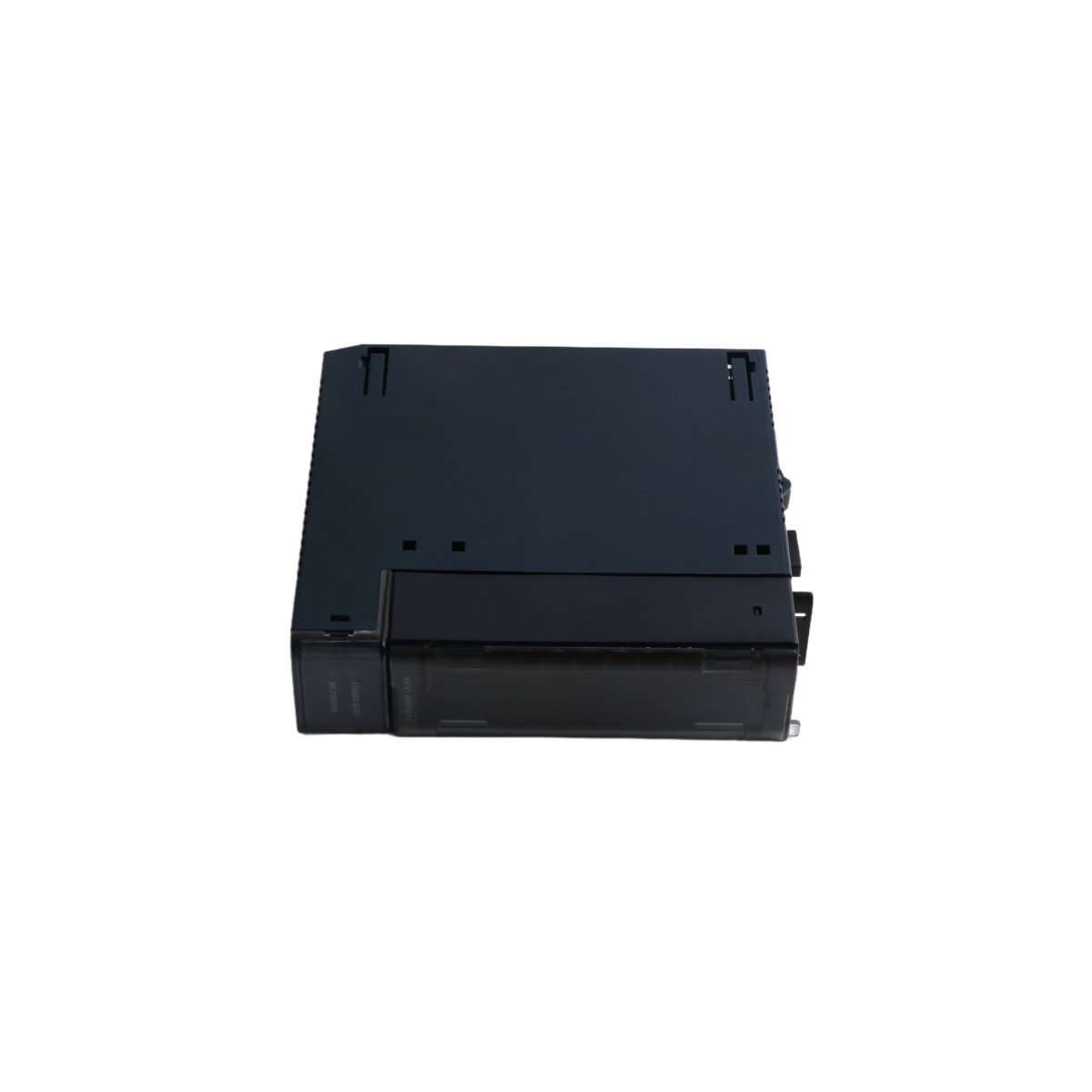

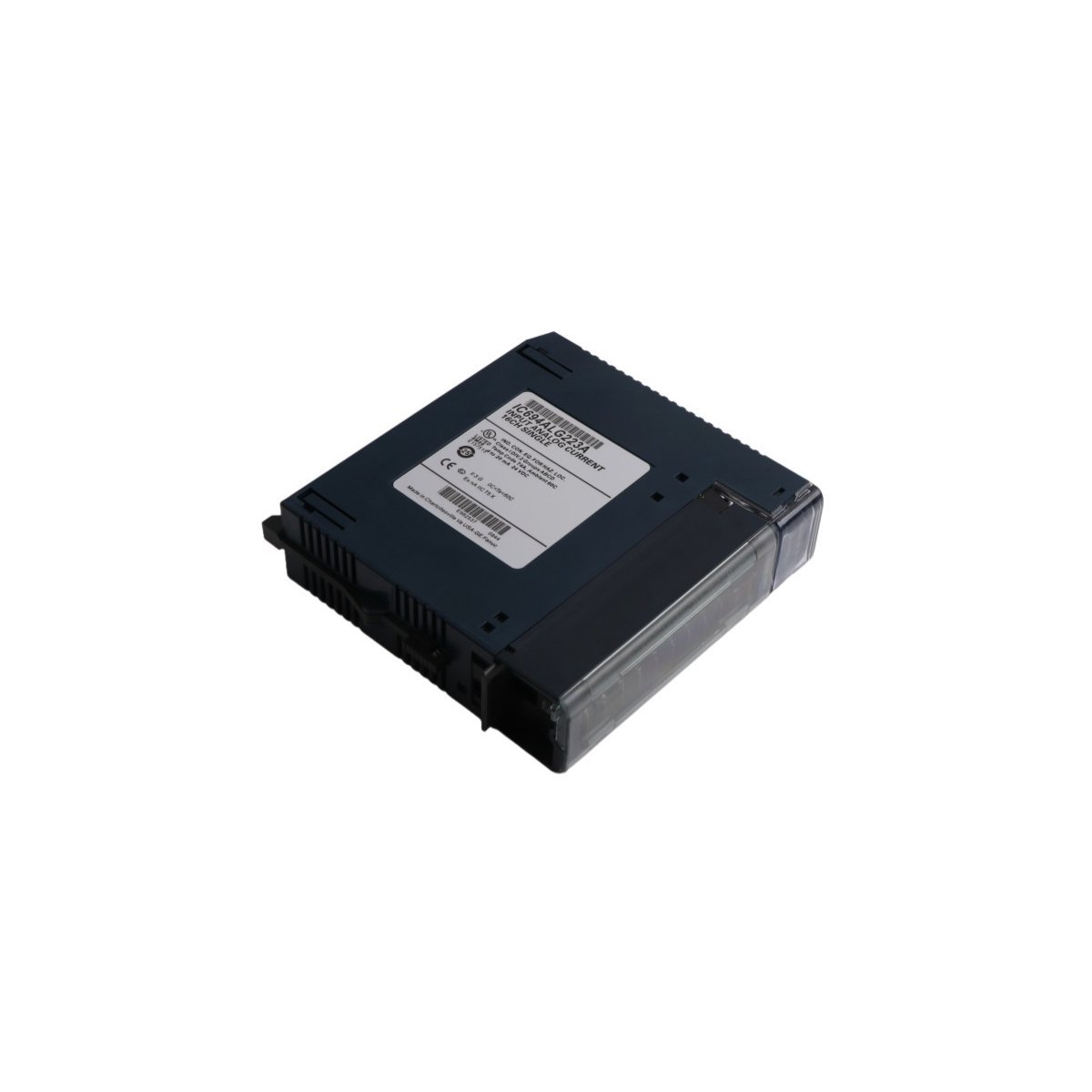

The GE IC694ALG223 provides 16 high-density current input channels for PACSystems RX3i control architectures. This module effectively translates analog field signals into digital data for real-time process monitoring. It features a single-ended circuit design to maximize channel density within a single rack slot. Consequently, the unit supports diverse industrial sensors including pressure transmitters and flow meters. Operators can select between multiple current ranges to match specific field device requirements. This flexibility ensures the module excels in both manufacturing and complex process control applications.

Technical Performance and Interface Specifications

Intelligent Diagnostics and Loop Monitoring

Reliability remains a priority for the IC694ALG223 through integrated diagnostic tools. The “Enhanced” 4-20 mA mode identifies open-wire conditions within the current loop. Furthermore, the module constantly tracks the status of the external 24V DC power supply. If the field power fails, the unit sends immediate feedback to the RX3i CPU. These proactive alerts prevent signal loss and simplify troubleshooting during maintenance. Additionally, factory-calibrated values ensure high accuracy across the entire operating temperature range. This unit provides the precision necessary for critical infrastructure and utility management.

Installation and Hardware Configuration

The IC694ALG223 module mounts easily into any universal backplane of an RX3i system. It utilizes a standard terminal block for field wiring connections. During setup, engineers configure channel parameters through the Proficy Machine Edition software. The module design emphasizes noise immunity to handle interference in heavy industrial zones. Moreover, the compact dimensions save valuable space in overcrowded control cabinets. This unit provides a cost-effective way to expand analog capacity without adding extra racks. It remains an essential component for modernizing legacy Series 90-30 systems to RX3i standards.
