Description

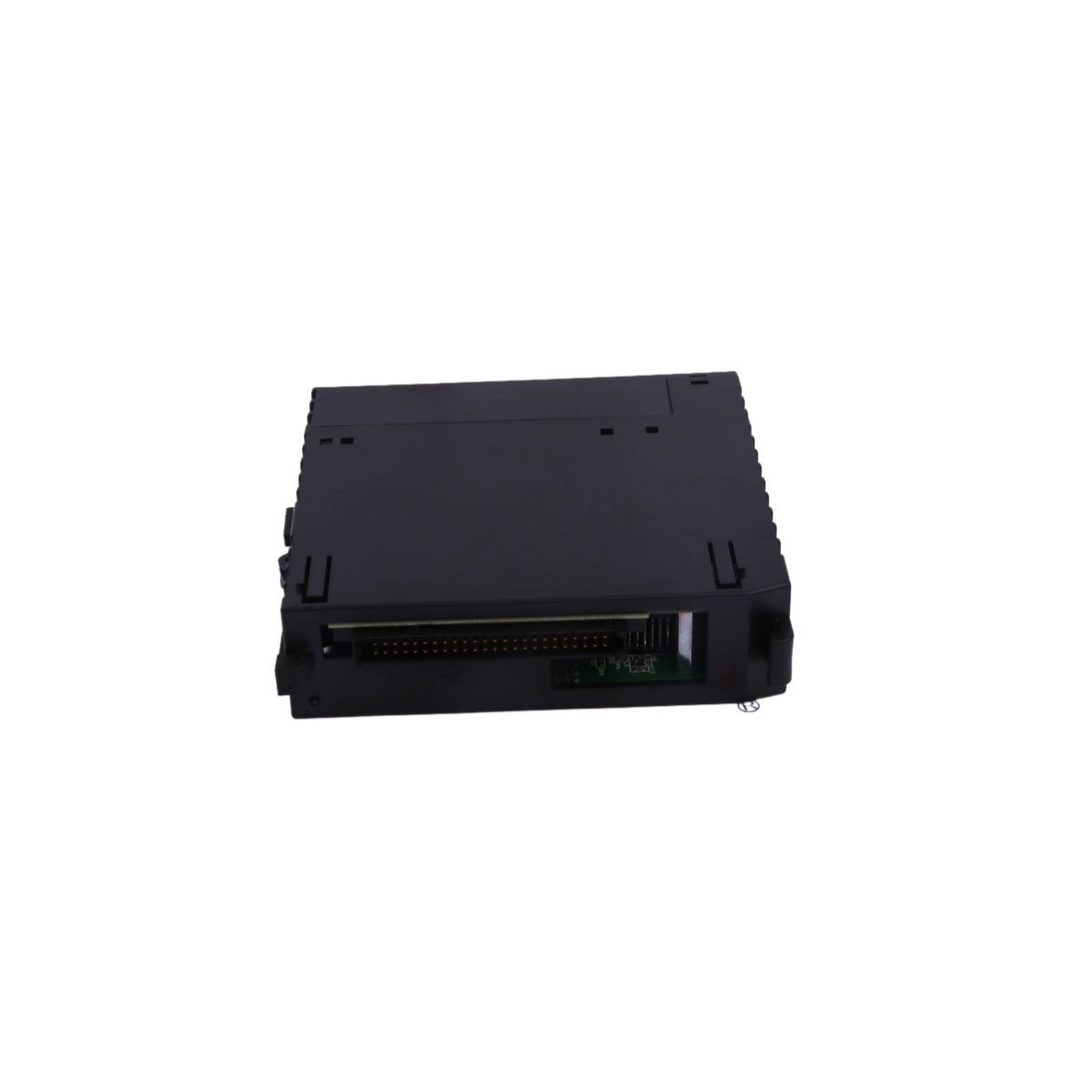

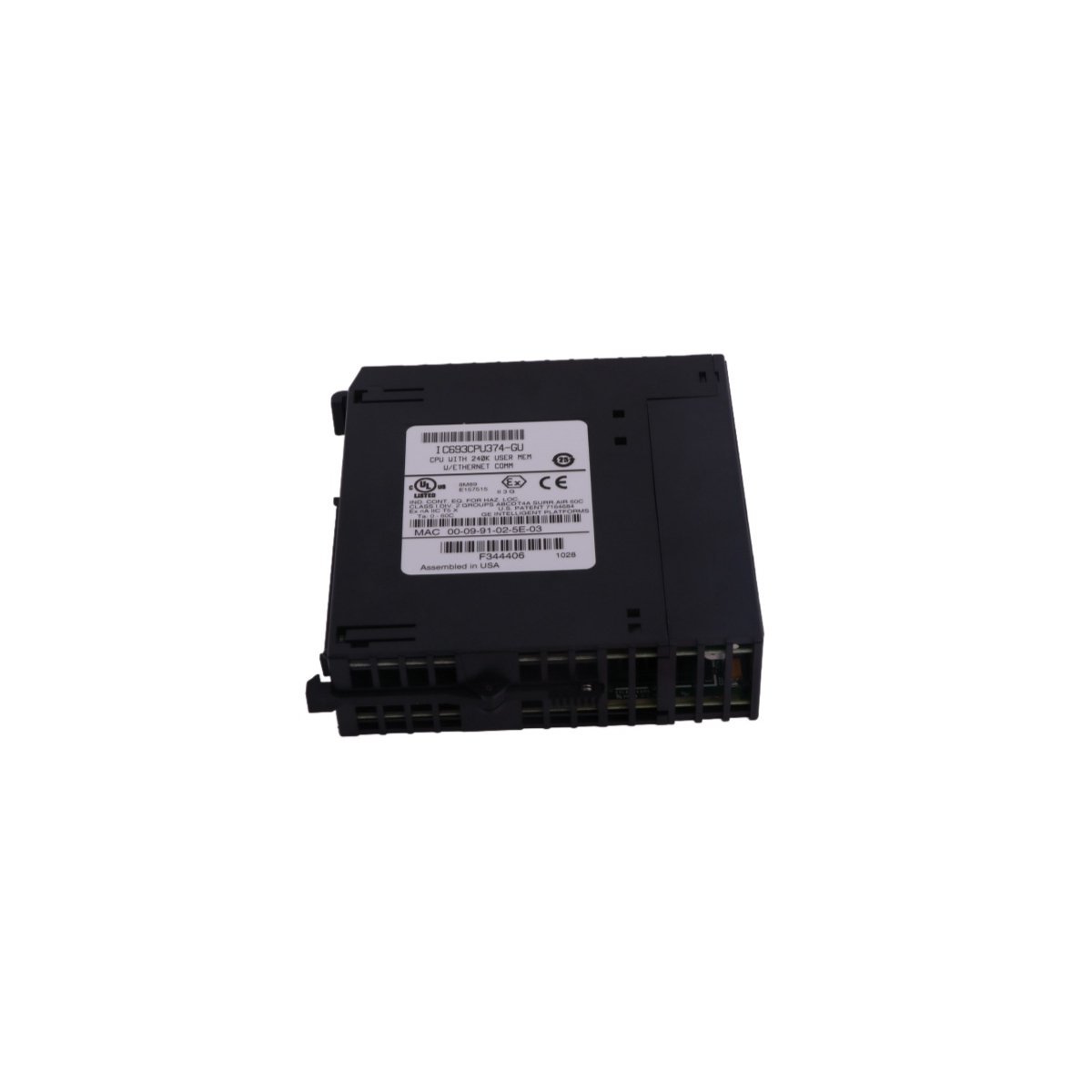

The GE IC693CPU374 serves as the primary intelligence for Series 90-30 programmable logic controller systems. This single-slot module executes complex control logic with high-speed precision. It coordinates data movement across the local backplane and connected I/O networks. Engineers utilize this processor to manage automated machinery and sophisticated process loops. The integrated 133 MHz microprocessor handles intensive computational tasks efficiently. Furthermore, the unit features an embedded Ethernet interface for modern industrial networking. This combination of speed and connectivity makes it a versatile hub for diverse factory automation needs.

Key Technical Specifications and Data

Memory Management and Logic Capacity

This processor offers a robust 240KB memory bank for storing user programs and configuration data. Operators can define memory allocation for registers from 128 to over 32,000 words. This flexibility allows the system to support up to 2,000 timers and counters simultaneously. Consequently, the CPU manages large-scale I/O counts without sacrificing cycle time performance. The non-volatile flash memory protects program integrity during power loss events. Additionally, the module supports online programming edits to minimize process downtime. These features ensure that the controller scales effectively with increasing system complexity.

Advanced Connectivity and Integration

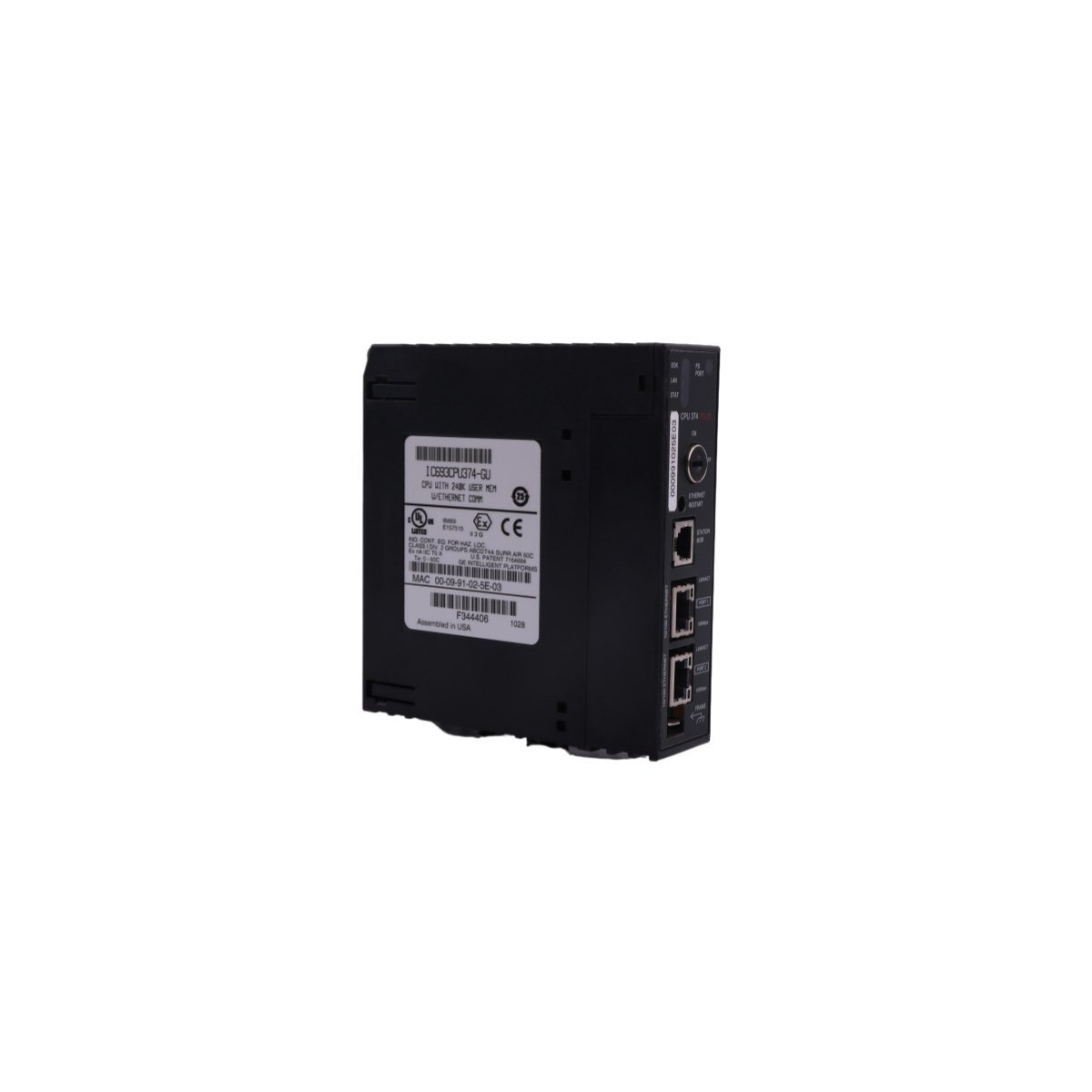

Integrated networking capabilities distinguish the IC693CPU374 from basic PLC controllers. The dual RJ-45 ports support auto-sensing Ethernet communication at 10/100 Mbps. These ports facilitate simultaneous connections to SCADA systems and programming software. Furthermore, the unit communicates via SNP and SNPX protocols through the power supply interface. Maintenance personnel use VersaPro or Machine Edition Logic Developer for configuration tasks. The processor also supports SRTP and Modbus TCP/IP protocols for broad device compatibility. This extensive communication framework streamlines data exchange between the plant floor and enterprise levels.

Industrial Durability and Application

The GE Series 90-30 architecture remains a standard for reliable industrial control. This CPU module withstands the electrical noise and vibration of manufacturing environments. It functions as the central node in DCS-style architectures or standalone machine controllers. The compact design optimizes cabinet space while delivering high-tier processing power. Furthermore, the module includes comprehensive LED indicators for real-time status diagnostics. These visual cues assist in rapid troubleshooting of network and processor health. Overall, the IC693CPU374 provides a stable platform for long-term automation lifecycle management.
