Description

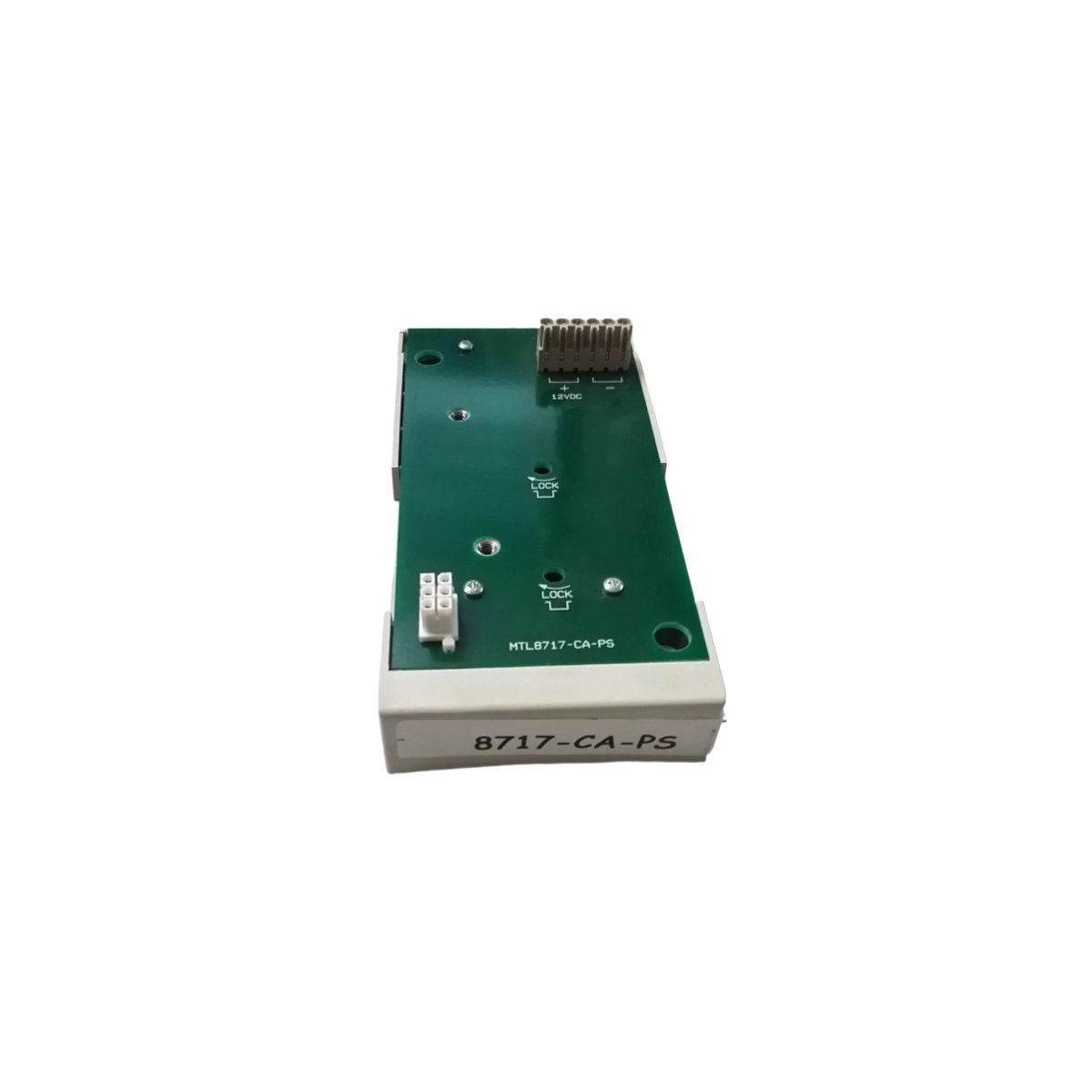

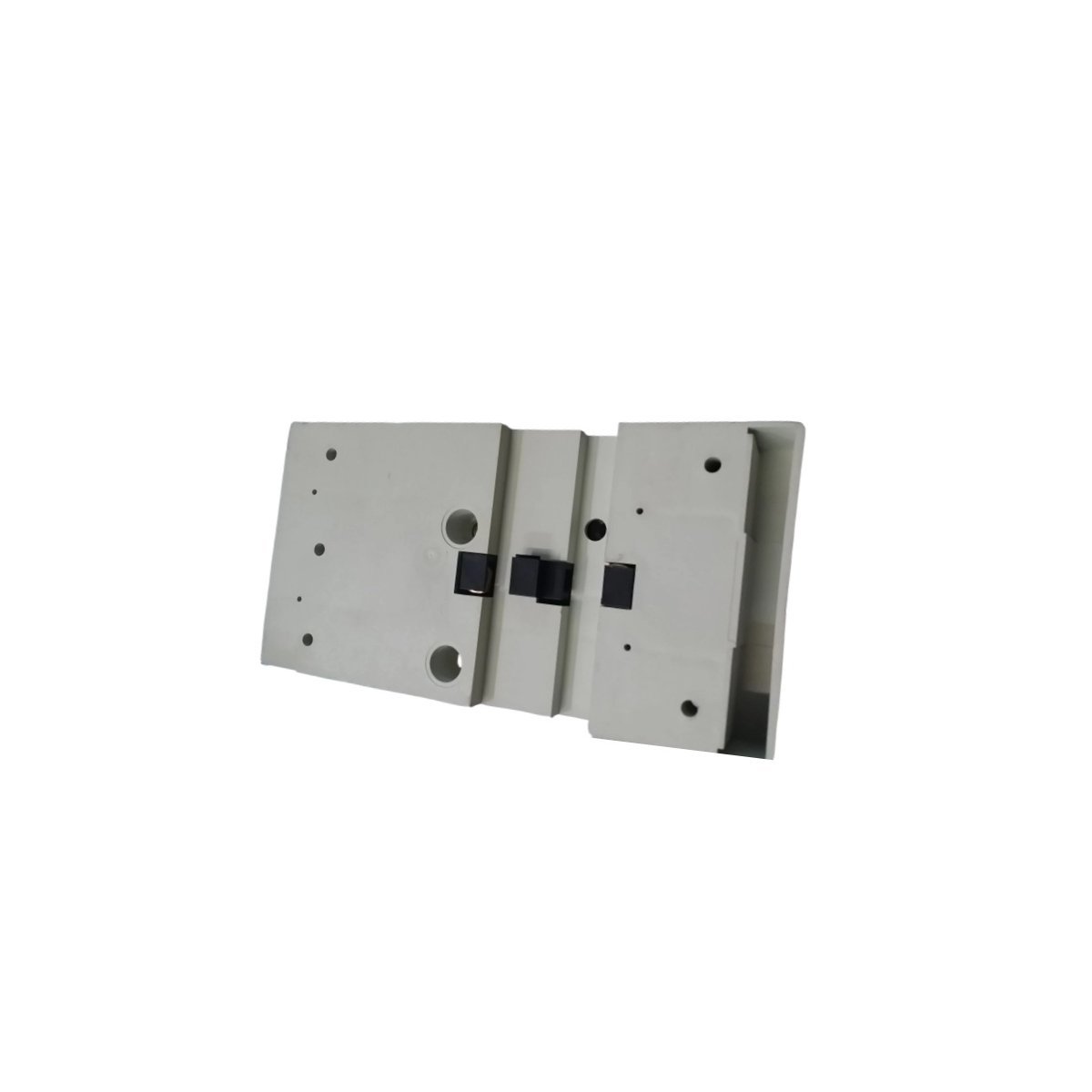

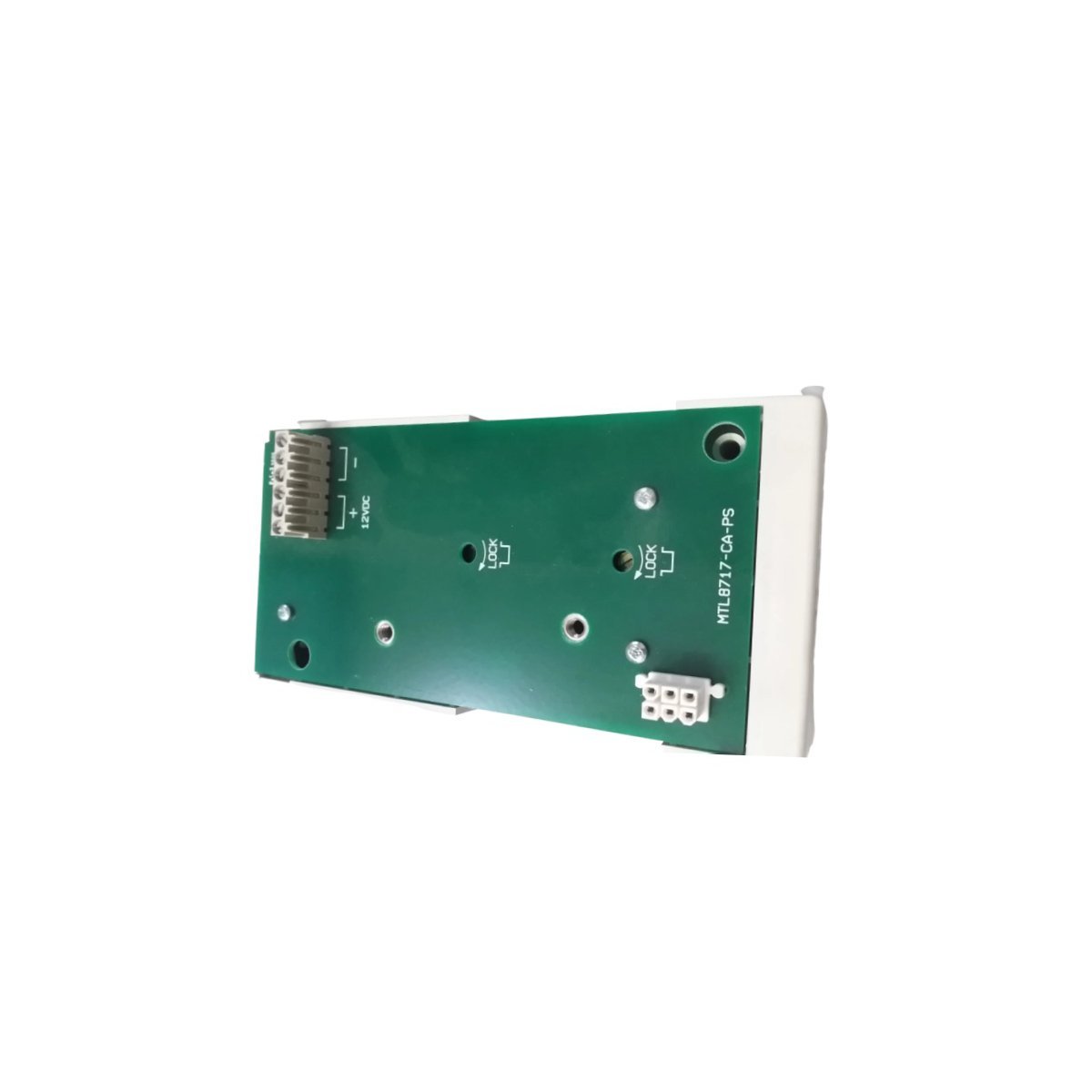

The GE 8717-CA-PS is a specialized power supply module within the PAC8000 (formerly 8000 2/x) Process I/O family. This unit provides regulated DC power to ensure the stability of connected field instruments and control modules. Because industrial environments often face electrical fluctuations, this module acts as a critical buffer. It maintains high signal integrity for precise process automation tasks. The 8717-CA-PS represents a rugged energy solution for demanding distributed control systems (DCS). It effectively prevents logic errors caused by inconsistent voltage levels.

Core Technical Specifications

The following table summarizes the primary physical and electrical characteristics of the 8717-CA-PS module.

High-Availability Design and Integration

The 8717-CA-PS power supply facilitates seamless integration within the PAC8000 I/O carrier system. This design allows the module to occupy a small footprint in dense control cabinets. Consequently, plant engineers can maximize rack space while ensuring redundant power distribution. The unit utilizes industrial-grade materials to resist heat and vibration in field-mounted applications. Furthermore, the module supports the deterministic performance of Series 90-30 and PAC8000 architectures. This reliability is vital for continuous production cycles in oil, gas, and chemical industries.

Operational Benefits and System Protection

Implementing the 8717-CA-PS enhances the overall lifecycle of an automation system. By delivering clean DC power, the module protects sensitive processor electronics from premature failure. It includes internal circuitry to guard against over-voltage and short-circuit conditions. Transitioning to this dedicated supply reduces the risk of unexpected system reboots during power transients. Maintenance teams can easily swap modules due to the simple carrier-lock mechanism. This feature significantly minimizes mean time to repair (MTTR) during scheduled or emergency service.
