Description

Brief Product Description

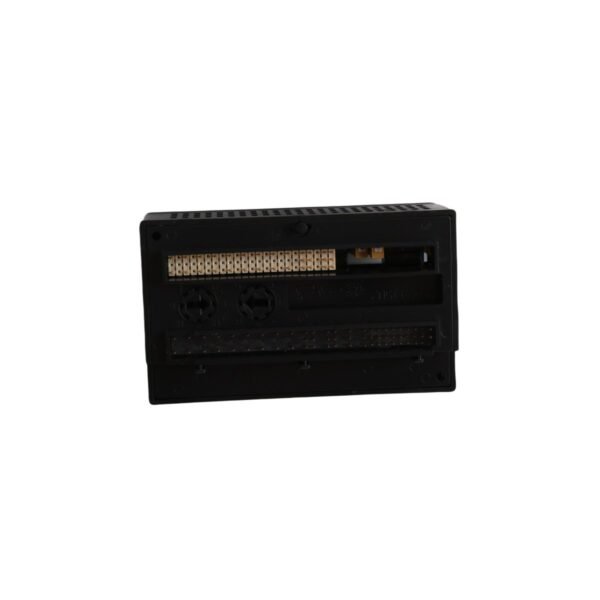

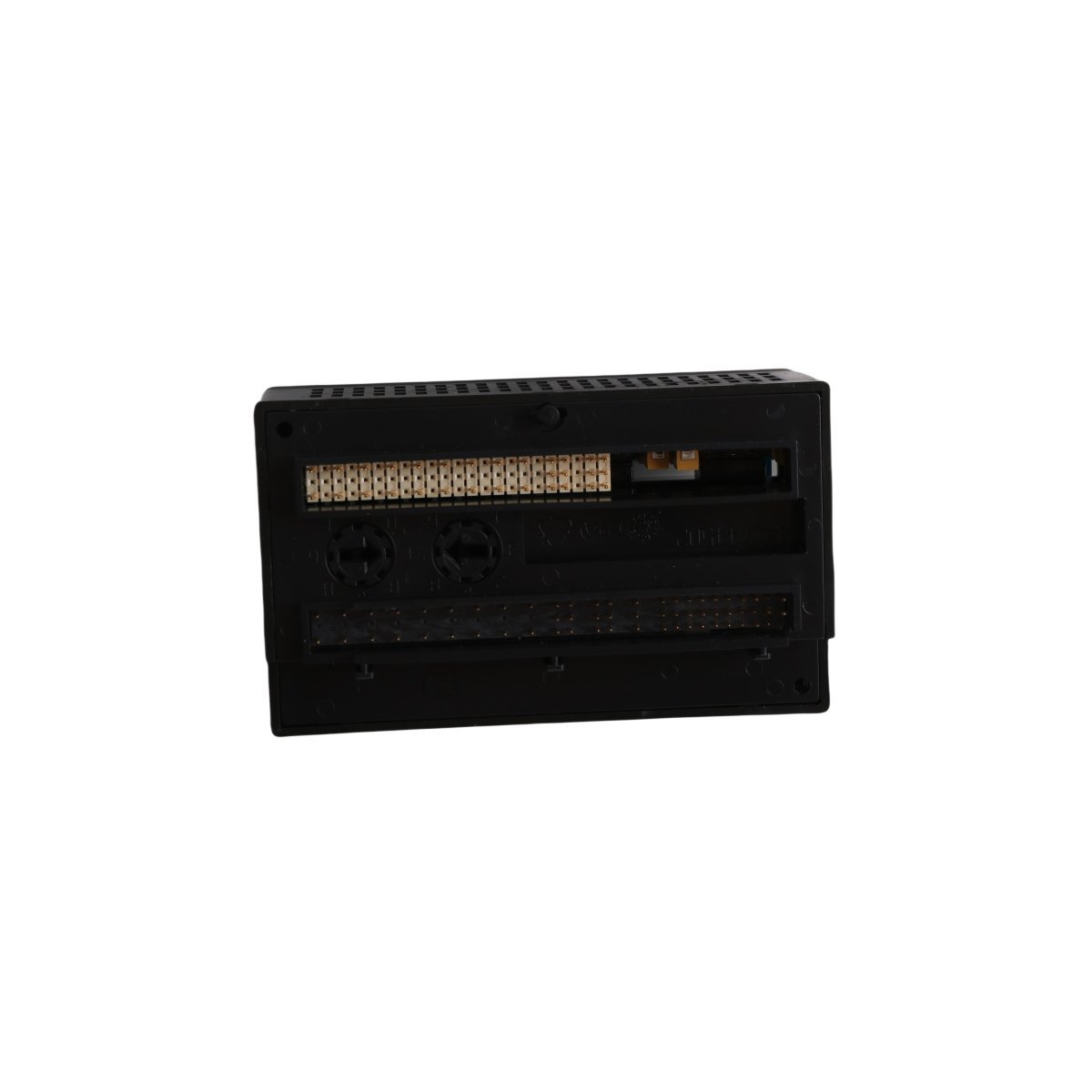

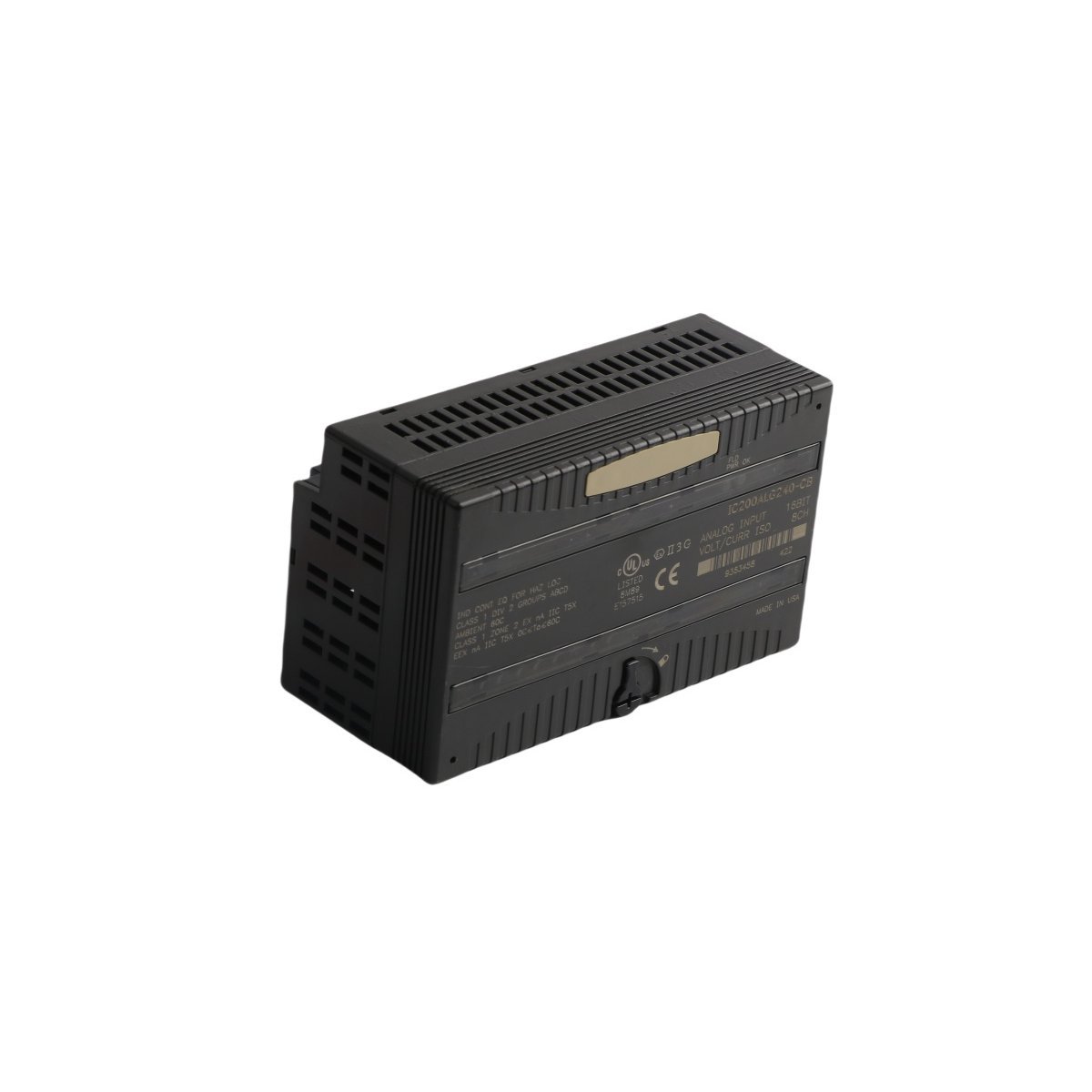

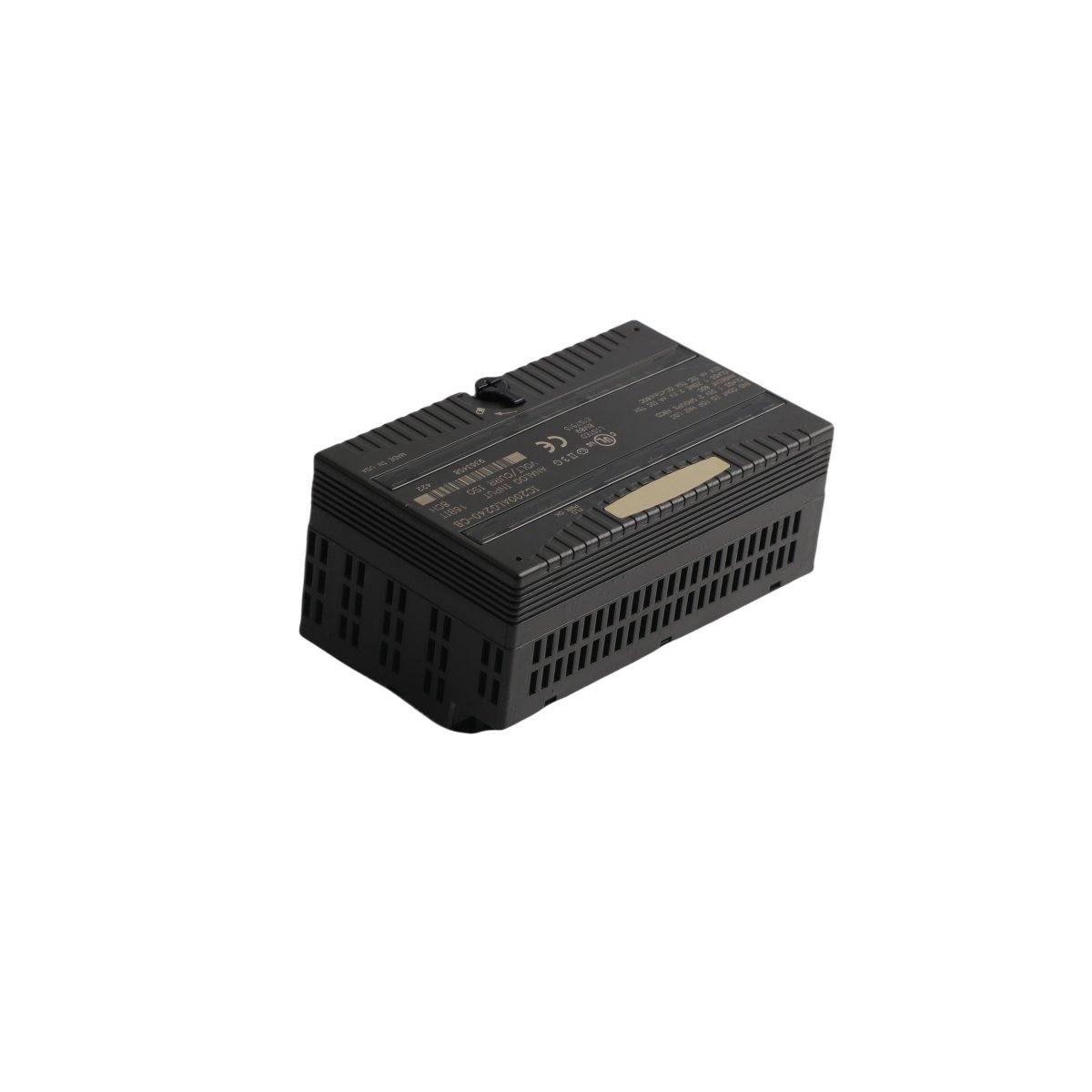

The GE Fanuc IC200ALG240 is a high-resolution VersaMax analog input module that provides eight independent channels for precise current or voltage signal acquisition. Featuring 16-bit data processing and superior channel-to-channel isolation, it ensures accurate measurements for complex industrial automation tasks.

​Product Description

High-Resolution Signal Processing

The GE Fanuc IC200ALG240 serves as a core component for the VersaMax I/O family, delivering 16-bit resolution for highly accurate data conversion. This module interfaces with up to eight different analog devices, converting physical signals into digital values for the PLC CPU. Because it supports both current (4-20 mA) and voltage (-10 to +10 VDC) ranges, it offers the flexibility required for various sensor types. The high bit-depth allows the system to detect minute process changes, which is a critical requirement for precision-heavy industries such as wastewater treatment, food processing, and chemical manufacturing.

Superior Electrical Isolation and Safety

Safety and signal integrity remain paramount in the design of the IC200ALG240. Unlike standard modules, this unit provides robust channel-to-channel isolation rated at 250 VAC continuously and 1500 VAC for one-minute transients. This architecture prevents electrical noise from one loop from affecting others, thereby ensuring stable readings across the entire module. Furthermore, the module incorporates input-to-logic and input-to-ground isolation. These protective layers safeguard the sensitive backplane electronics from field-side surges, effectively increasing the overall lifespan of the PLC system.

Advanced Intelligent Diagnostics

To maximize system uptime, the IC200ALG240 features an intelligent diagnostic engine that monitors the health of every connected loop. The module proactively identifies common field issues such as open wiring, field power loss, and signal ranges that fall outside of calibrated limits (under-range/over-range). Additionally, users can configure high and low alarm thresholds to trigger immediate logic responses. Integrated LED indicators provide local status updates, while the software-level error reporting allows operators to pinpoint faults remotely. These features significantly streamline maintenance routines and reduce the time required to resolve field-side failures.
