The General Electric IS200EXAMG1AAB is a specialized Exciter Attenuation Module designed for the EX2100 excitation control system.² It functions as a critical interface for scaling high-voltage signals down to measurable levels for the system’s control processors.³

Product Description

High-Voltage Signal Conditioning

The GE IS200EXAMG1AAB serves as a vital bridge between high-power excitation circuits and sensitive digital control logic. Specifically engineered for the EX2100 Excitation System, this module performs precision attenuation of voltage signals, ensuring that the control system can safely and accurately monitor the generator’s electrical state. By reducing these signals to manageable levels, the EXAM board facilitates real-time feedback for the excitation regulators. This process is fundamental to maintaining stable generator output and protecting the overarching Speedtronic Mark VI control architecture from high-voltage transients.

Optimized Circuit Architecture

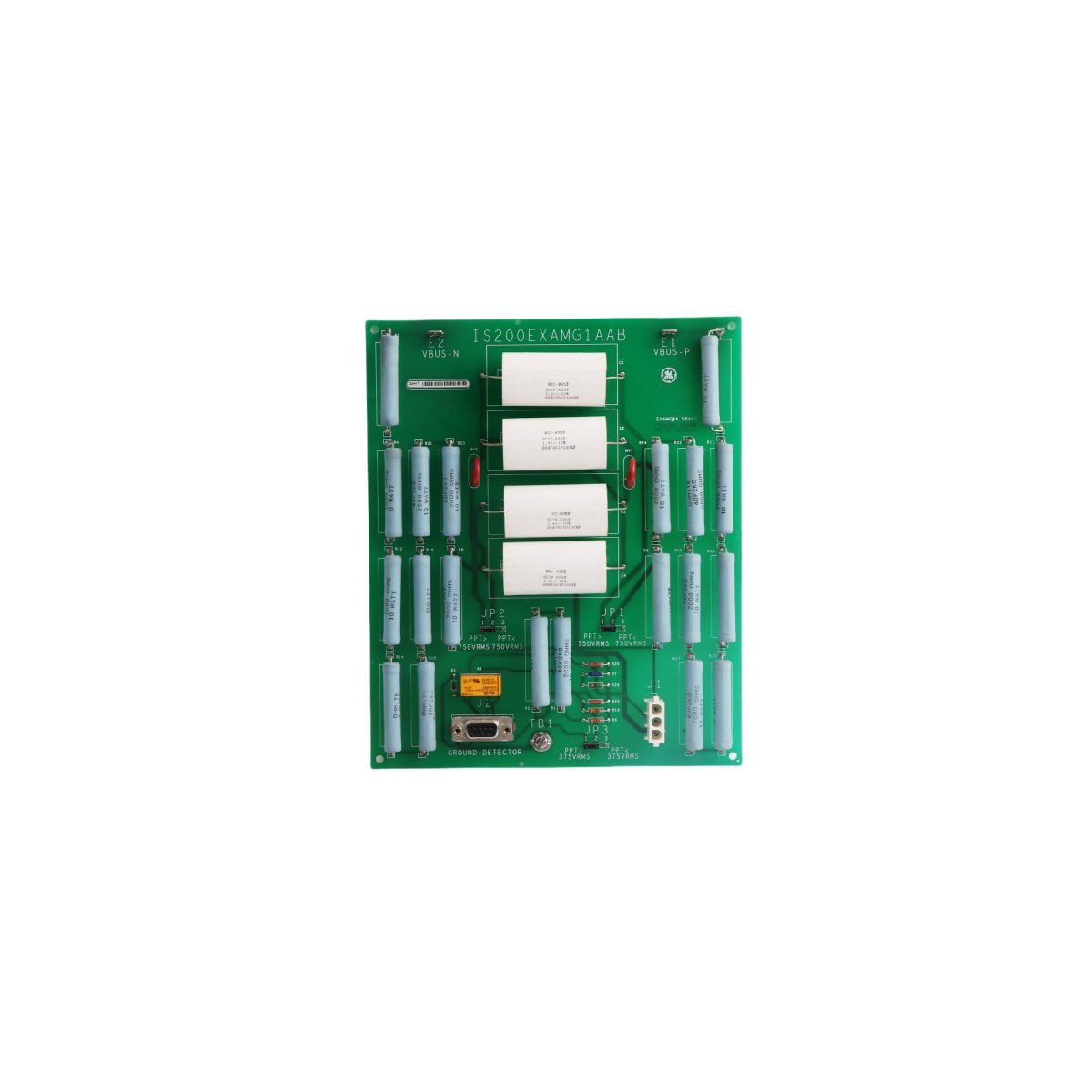

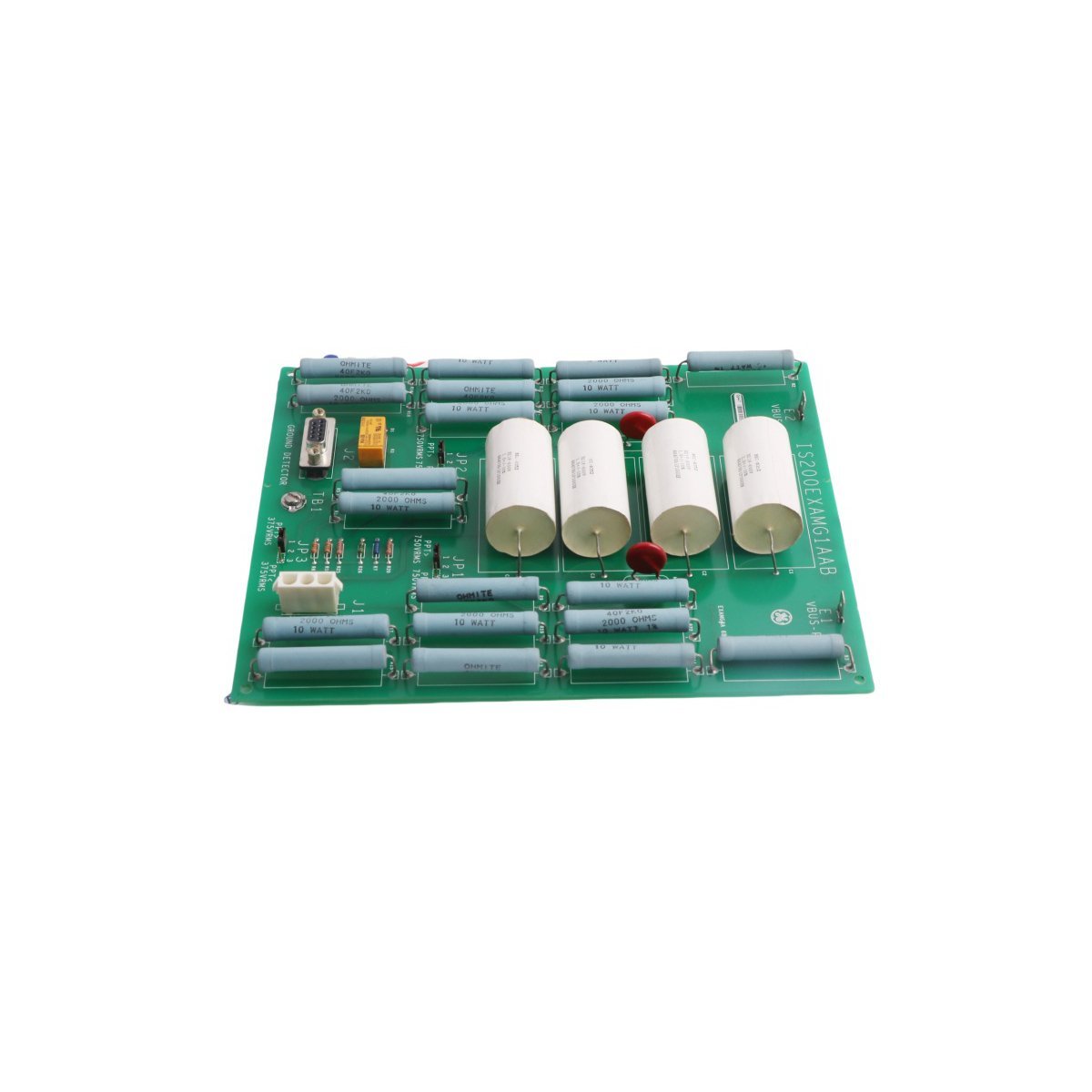

To achieve superior signal stability, the IS200EXAMG1AAB utilizes a robust array of high-grade passive components. The board features a strategic layout of diodes and capacitors that work in tandem to filter noise and stabilize the electrical throughput. Specifically, the diode banks manage directional current flow, while the integrated capacitors provide the necessary decoupling to maintain signal integrity in electrically noisy industrial environments. These components ensure that the data fed to the processor remains clean, which directly correlates to the precision of the turbine’s excitation control.

Installation and Integration Standards

The IS200EXAMG1AAB features a compact form factor that allows for efficient mounting within standard GE drive cabinets. For external interfacing, the board includes high-density terminal blocks and a specialized connector port located along the upper edge, enabling rapid integration with the system backplane. Operators can easily verify the board’s authenticity and revision level via the part number and GE branding printed on the PCB surface. Given its role in high-voltage attenuation, this module remains an essential component for both new installations and the maintenance of legacy Speedtronic systems, providing the reliability required for continuous power plant operations.
