Description

Brief Product Description

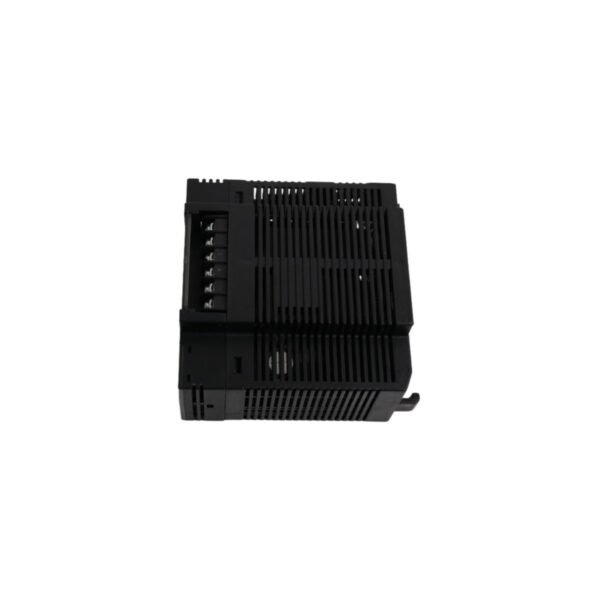

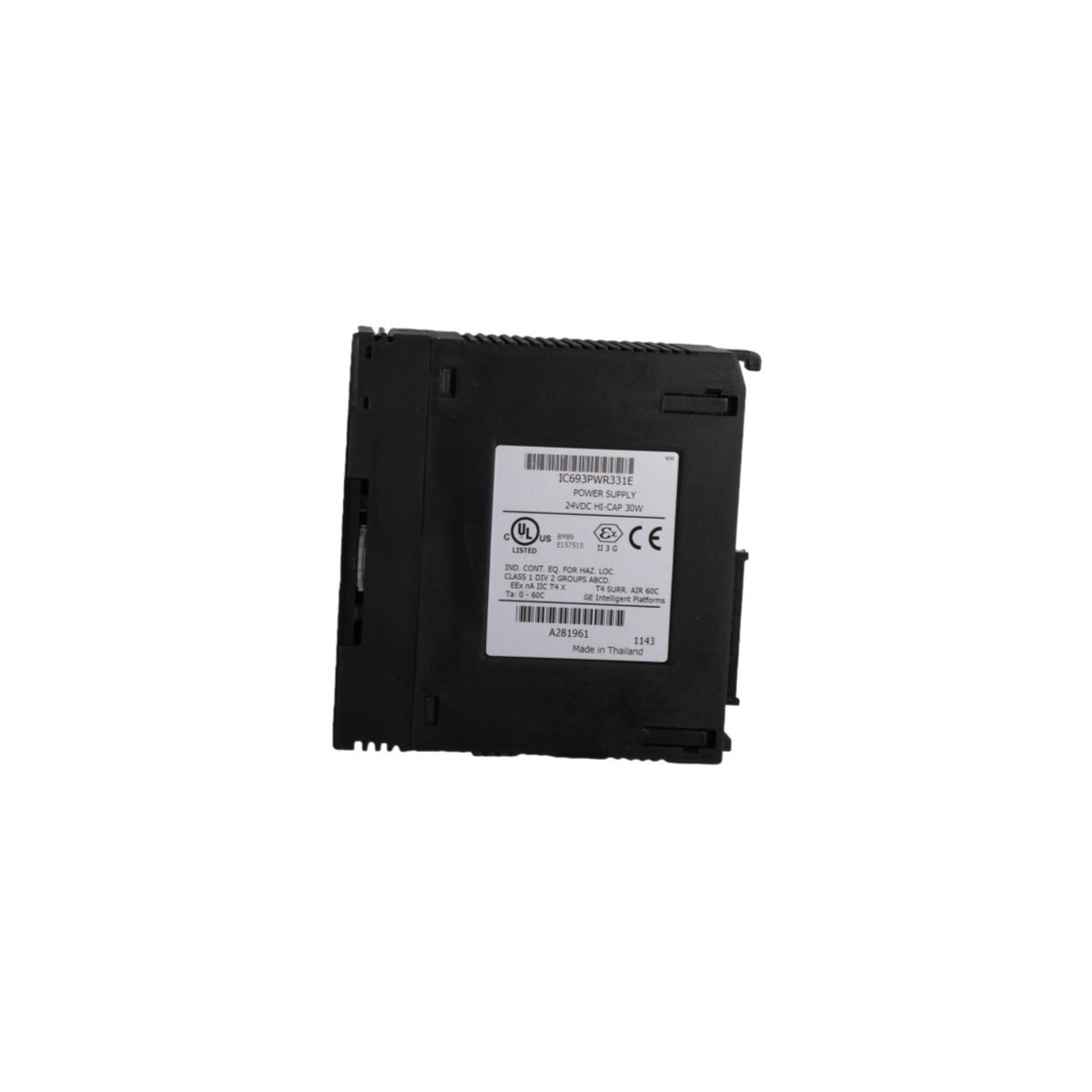

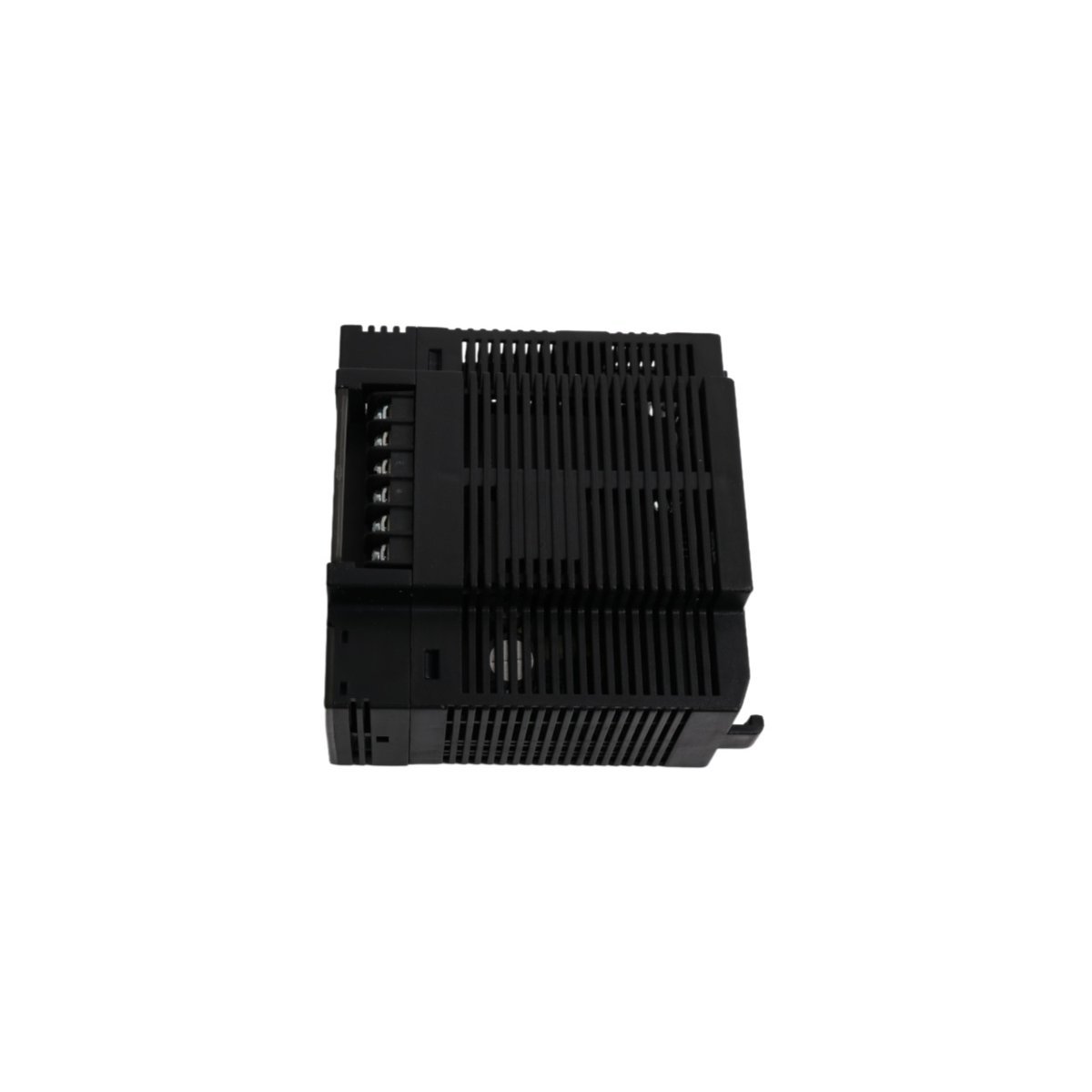

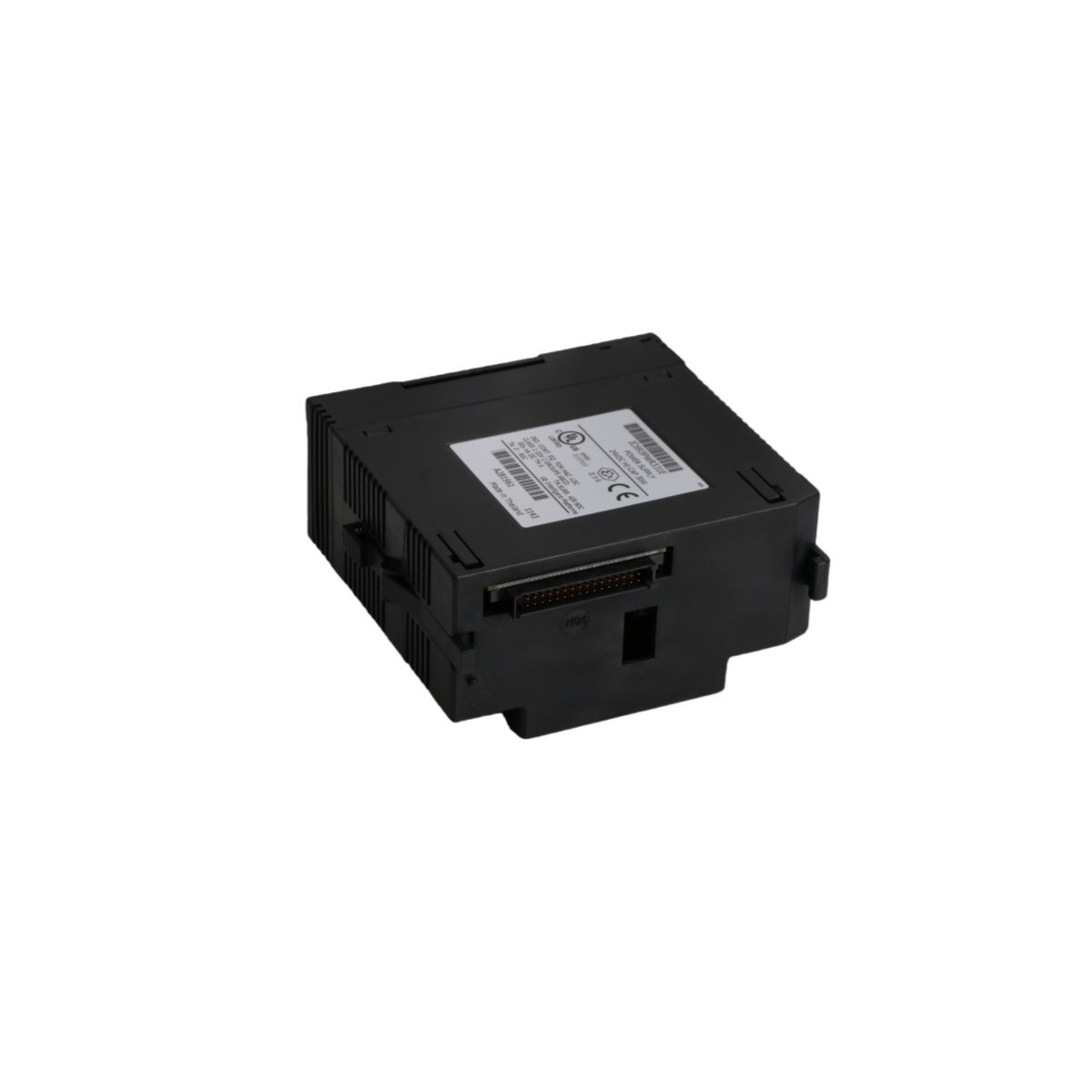

The General Electric IC693PWR331 is a high-capacity, multi-rail power supply module designed specifically for the GE Fanuc Series 90-30 PLC family. It provides stable logic and field power across three regulated outputs, ensuring consistent performance for CPU and I/O components in demanding automation environments.

​Product Description

Versatile Power Distribution and Output

The GE IC693PWR331 serves as the primary energy source for Series 90-30 PLC racks, converting DC input into three essential voltage rails. This module delivers a 5V DC logic supply at 30 watts, a 24V DC relay power supply at 15 watts, and an isolated 24V DC field power output at 20 watts. By segregating these power paths, the module prevents electrical noise from field devices from interfering with sensitive logic circuits. This architectural separation enhances system stability while providing sufficient overhead for high-density I/O configurations.

Comprehensive Monitoring and Integration

Reliability in industrial operations depends on clear diagnostic feedback. The IC693PWR331 incorporates a dedicated LED status panel including PWR, OK, RUN, and BATT indicators. These visual cues allow technicians to monitor power health and battery status at a glance. Furthermore, the module features an integrated RS485 communication port, which supports seamless connection to Hand-Held Programmers or Proficy Machine Edition software for advanced system configuration and performance tracking.

User-Centric Hardware Design

General Electric optimized the physical layout of the IC693PWR331 to facilitate rapid installation and low-impact maintenance. A protective swing-open door on the front panel provides easy access to the battery connection terminals and the main power wiring strip. Because the unit occupies the dedicated leftmost slot of any Series 90-30 baseplate, it simplifies cabinet layout and thermal management. The module supports a flexible DC input range, accepting both 24V and 48V nominal inputs, which allows it to adapt to various battery-backed or industrial DC power grids.

Technical Specification Table
