Description

Brief Product Description

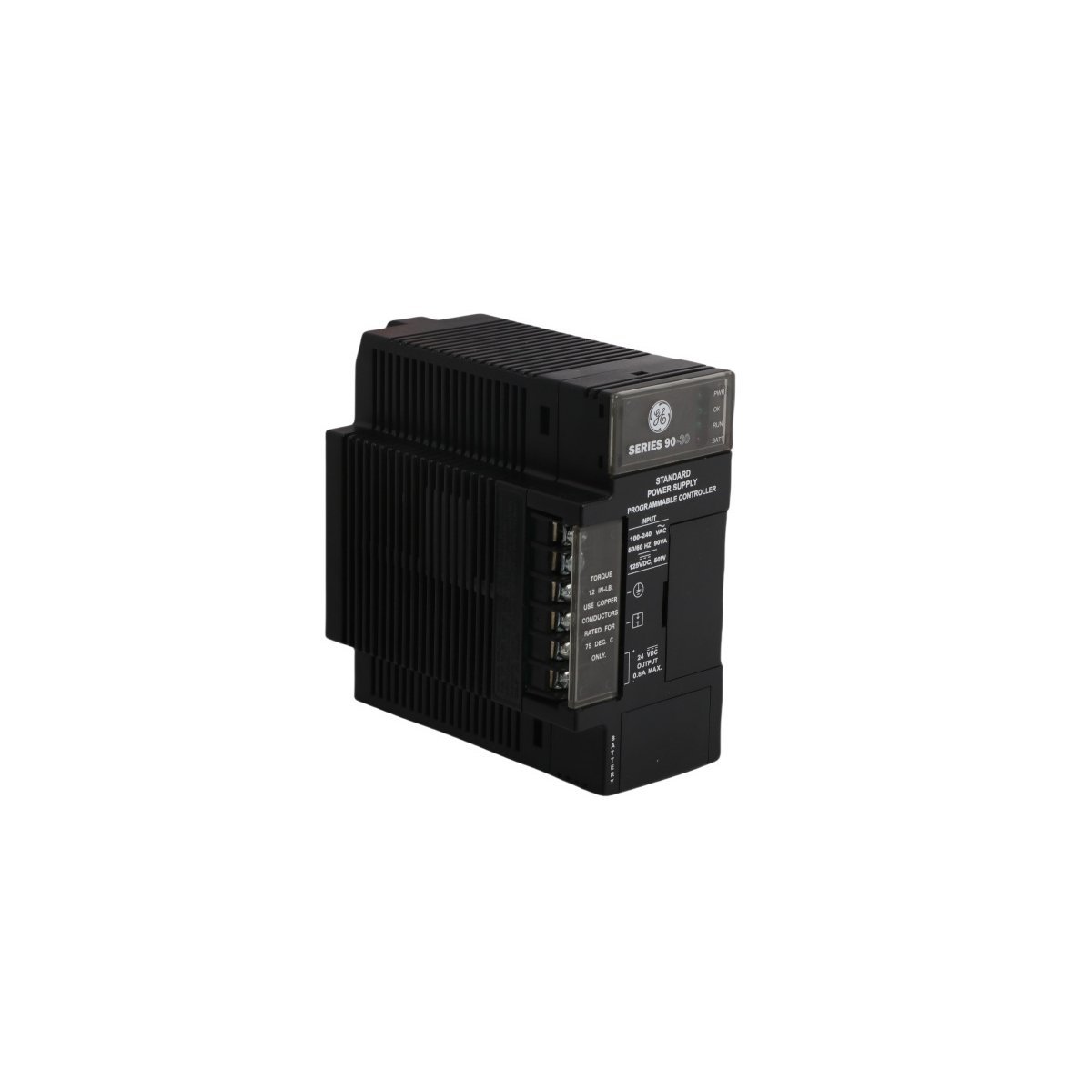

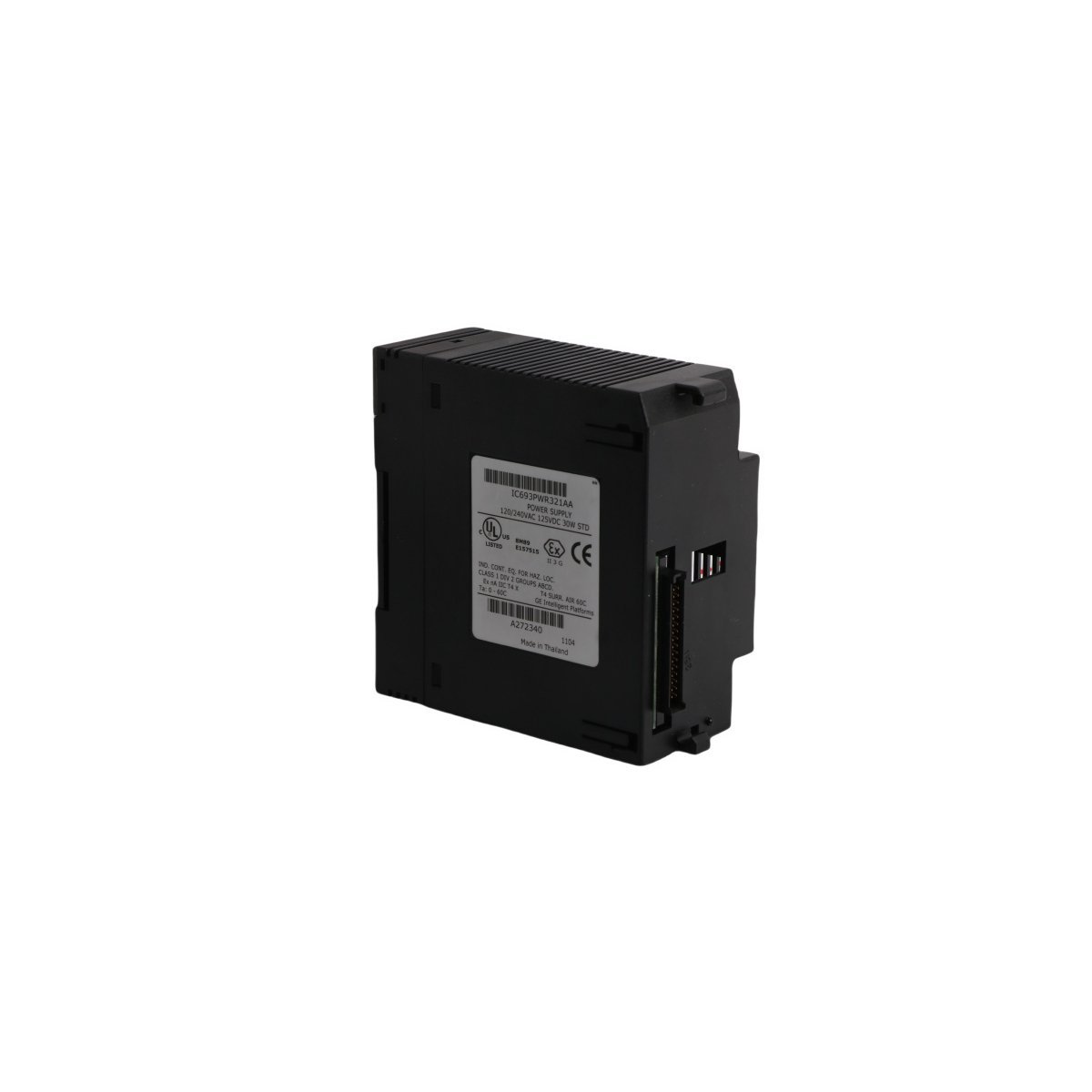

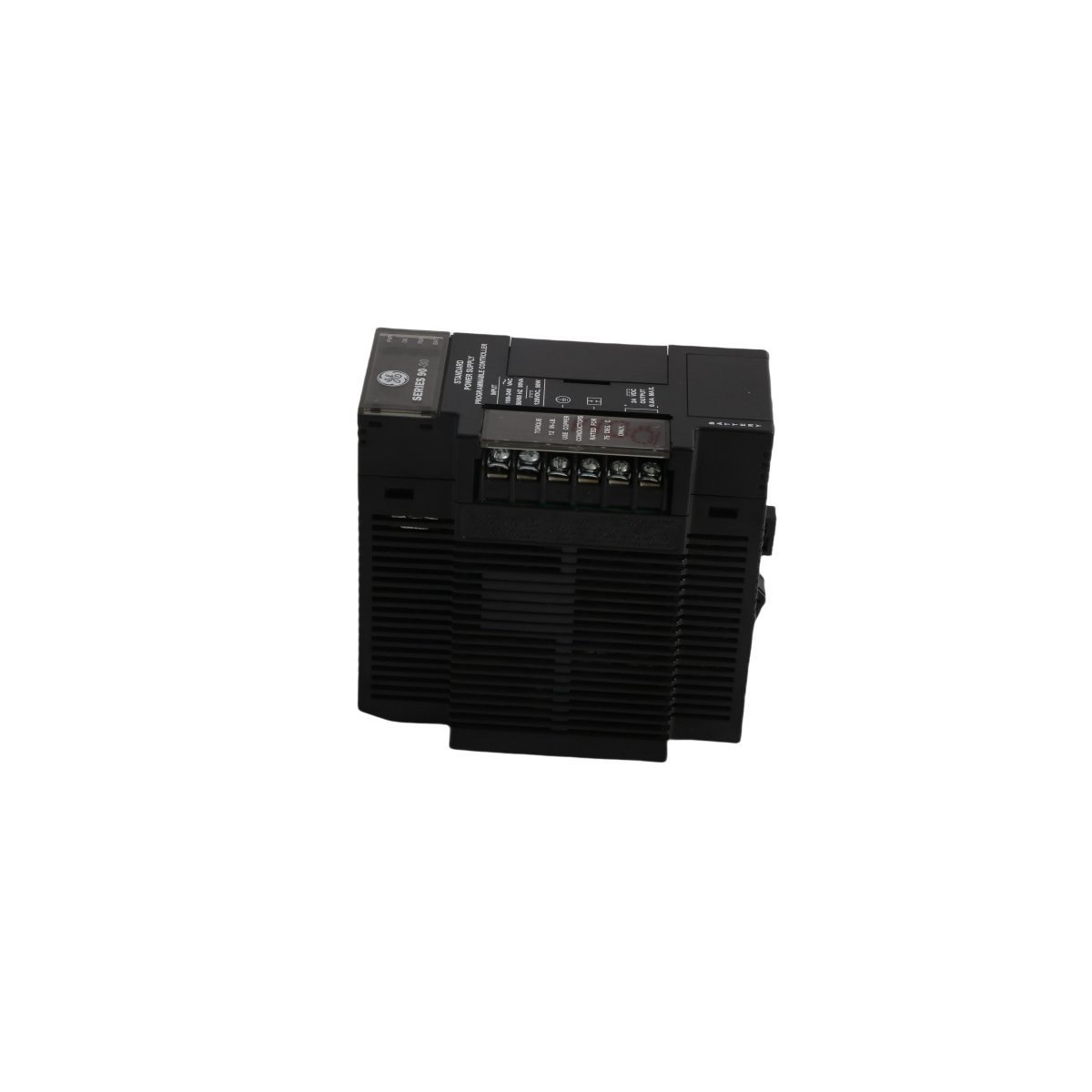

The GE Fanuc IC693PWR321 is a versatile 30-Watt high-capacity power supply module designed for the Series 90-30 PLC rack. It supports a broad range of AC and DC input voltages, providing stable 5VDC and 24VDC outputs to power the CPU and expansion modules.

Versatile Power Management for Industrial Control

The GE Fanuc IC693PWR321 serves as the primary energy source for Series 90-30 Programmable Logic Controllers. This module installs exclusively into the dedicated power supply slot on the far left of any 90-30 baseplate. Because it accepts a wide input range of 85–264 VAC or 100–300 VDC, this power supply facilitates global deployment across diverse electrical environments. The unit efficiently converts incoming power into three distinct outputs: a 5VDC bus for the logic circuitry, a 24VDC relay power output, and an isolated 24VDC supply intended for external field devices. This multi-rail architecture ensures that sensitive internal logic remains shielded from potential noise on the field-side circuits.

Advanced Circuit Protection and Diagnostics

Reliability drives the design of the IC693PWR321, which incorporates comprehensive safety mechanisms to prevent system failure. The module utilizes an internal current-limiting feature that automatically shuts down the outputs in the event of a direct short circuit, thereby protecting the expensive CPU and I/O cards. Furthermore, the unit manages an inrush current of up to 4A peak, allowing the system to stabilize during the initial 250 milliseconds of startup. Operators can monitor the module’s health through integrated diagnostics, while the internal fuse and smart switch fusing provide secondary layers of hardware defense against electrical surges.

Connectivity and System Integration

Beyond simple power delivery, the IC693PWR321 enhances system functionality through an integrated RS-485 serial communication port. This port allows the PLC to interface directly with programmer hardware, human-machine interfaces (HMIs), and other peripheral devices. The module maintains rigorous industry standards, holding cULus and CE certifications, and is specifically rated for hazardous environments under Class 1, Division 2 guidelines. With a 30-Watt total output capacity, this high-capacity version provides the necessary overhead for complex racks populated with high-density I/O modules.

Key Technical Characteristics

• Universal Input Range: Supports 85–264 VAC or 100–300 VDC for maximum installation flexibility.
• Triple Voltage Output: Provides 5VDC, 24VDC Relay, and Isolated 24VDC to power all rack components.
• Integrated RS-485 Port: Facilitates local communication between the PLC and external serial devices.
• Short Circuit Protection: Automatically protects internal rails from field-side wiring faults.
• 30W Rated Capacity: Offers sufficient power for high-density 90-30 PLC configurations.
• Environmental Safety: Complies with Class 1, Division 2 standards for safe operation in industrial zones.
