Description

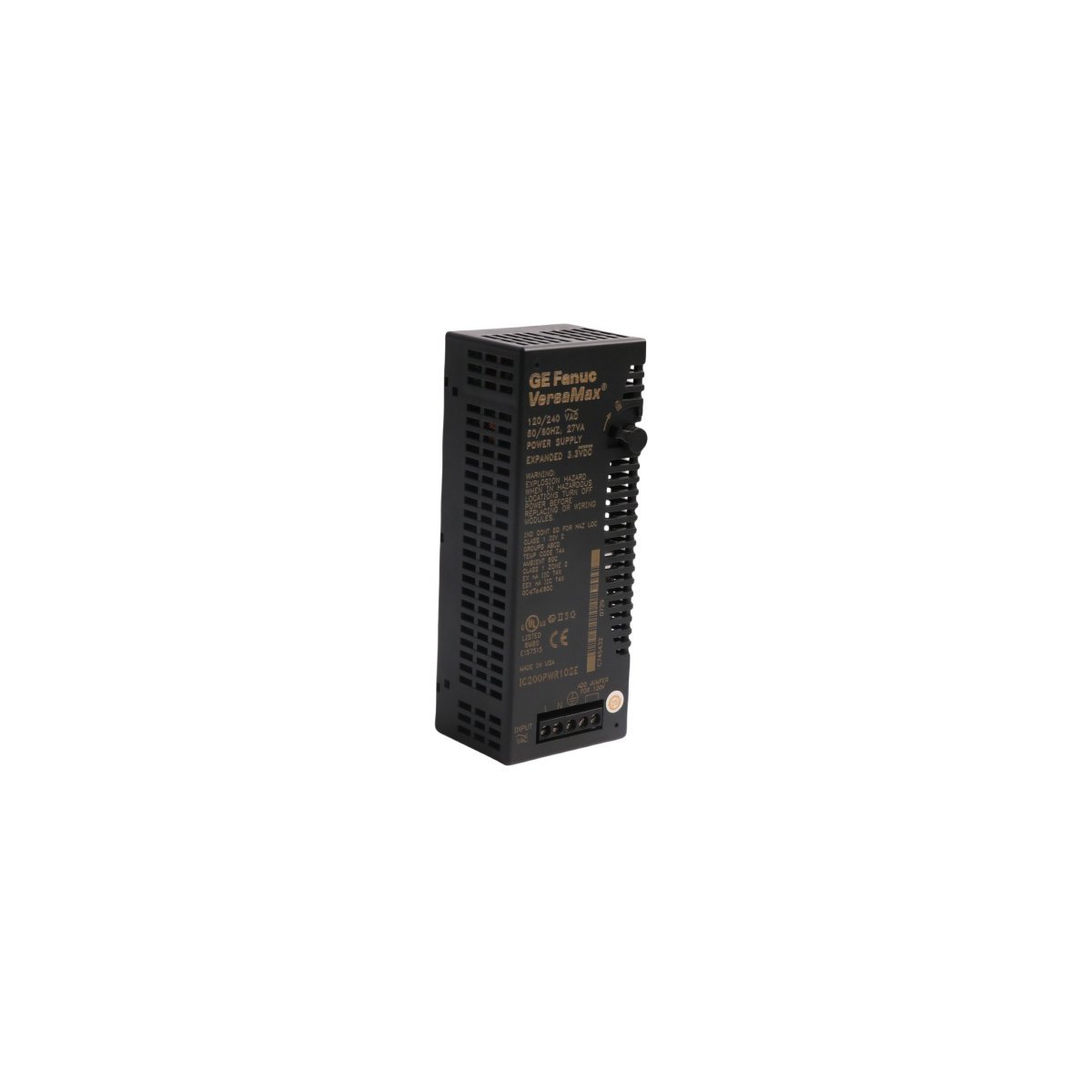

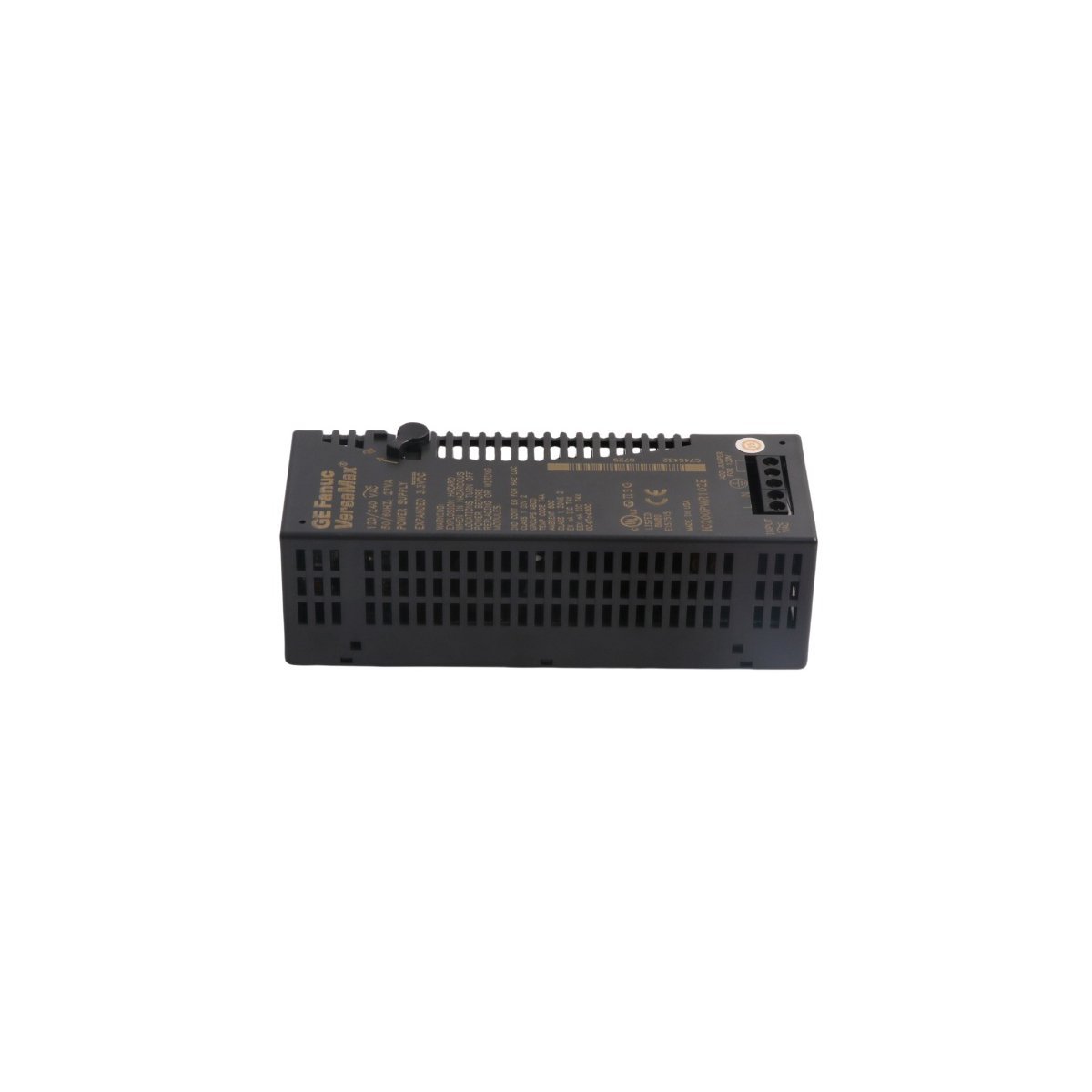

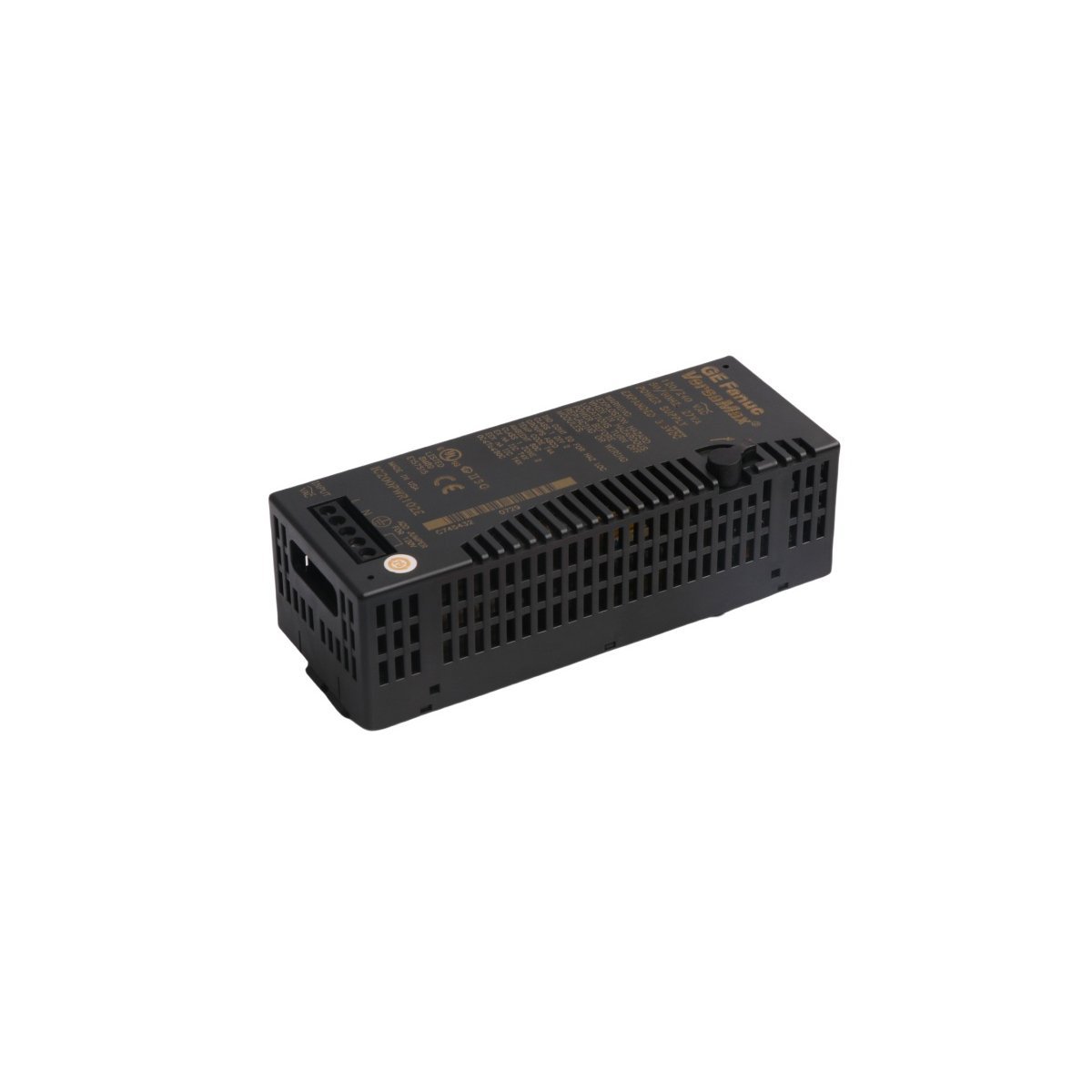

The IC200PWR102 is a specialized power supply module within the Emerson VersaMax product line. This unit provides the necessary DC voltages to the backplane for CPU and I/O module operation. It supports both 120VAC and 240VAC input ranges through a configurable jumper system. By delivering expanded 3.3V power, this module accommodates high-density configurations and intelligent modules. It functions as a primary power source or as a supplemental booster for larger racks. The compact design ensures efficient use of space within the PLC assembly.

Functional Characteristics

This module distributes regulated 5V and 3.3V DC power directly across the VersaMax backplane. Integrated protection circuits guard against short-circuits and electrical overloads during operation. Specifically, the unit maintains stable output for 20ms during brief power interruptions. A manual jumper determines the nominal input voltage for the device. Installing the jumper sets the module for 120VAC operation. Conversely, removing the jumper allows for 240VAC input. Users must verify this setting to prevent hardware damage or safety hazards.

Installation and Hardware Compatibility

The IC200PWR102 mounts directly onto a VersaMax power supply carrier or a booster carrier. This flexibility allows engineers to add power capacity exactly where the system requires it. The module interfaces seamlessly with various Network Interface Units and standard I/O modules. Furthermore, the lightweight construction simplifies DIN rail or panel mounting. Individual status LEDs provide immediate visual feedback regarding the health of the power outputs. This simplifies the diagnostic process for maintenance personnel in the field.

Operational Reliability

The robust internal design ensures consistent performance in varied industrial settings. This power supply manages thermal dissipation effectively within its small 35mm wide footprint. Moreover, it complies with standard industrial certifications for noise immunity and emissions. The unit supports hot-swappable configurations when used with specific booster carriers. This feature minimizes system downtime during power component replacement. Consequently, the IC200PWR102 remains a critical component for high-availability VersaMax control systems.

Technical Specifications

• Manufacturer: GE Fanuc / Emerson
• Model Number: IC200PWR102
• Input Voltage: 85-132 VAC or 176-264 VAC
• Input Frequency: 47 to 63 Hz
• Total Output Current: 1.5 Amps (Maximum)
• 3.3V Output Limit: 1.0 Amp
• 5V Output Limit: 1.5 Amps
• Power Consumption: 27 VA
• Holdup Time: 20 milliseconds
