Description

Product Overview

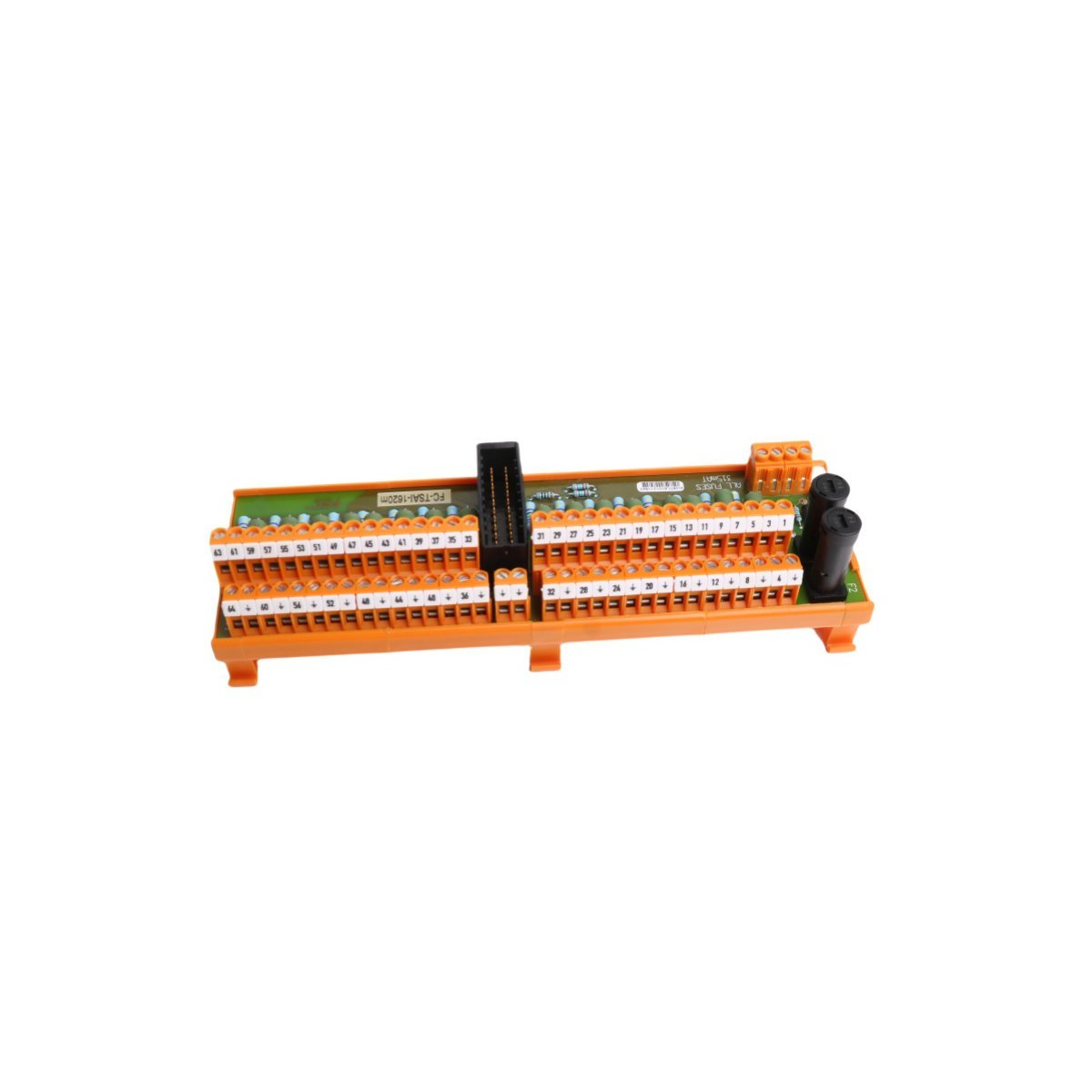

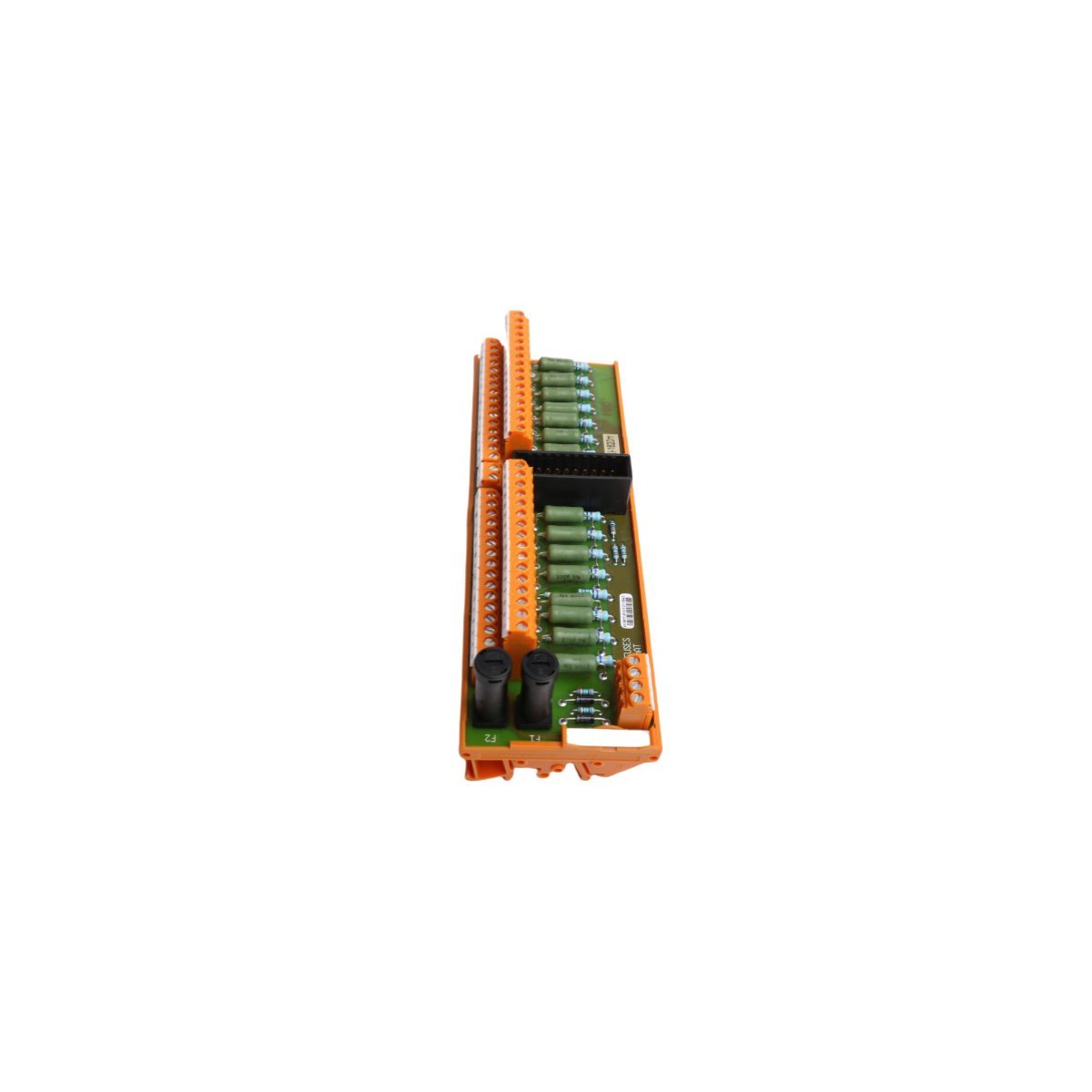

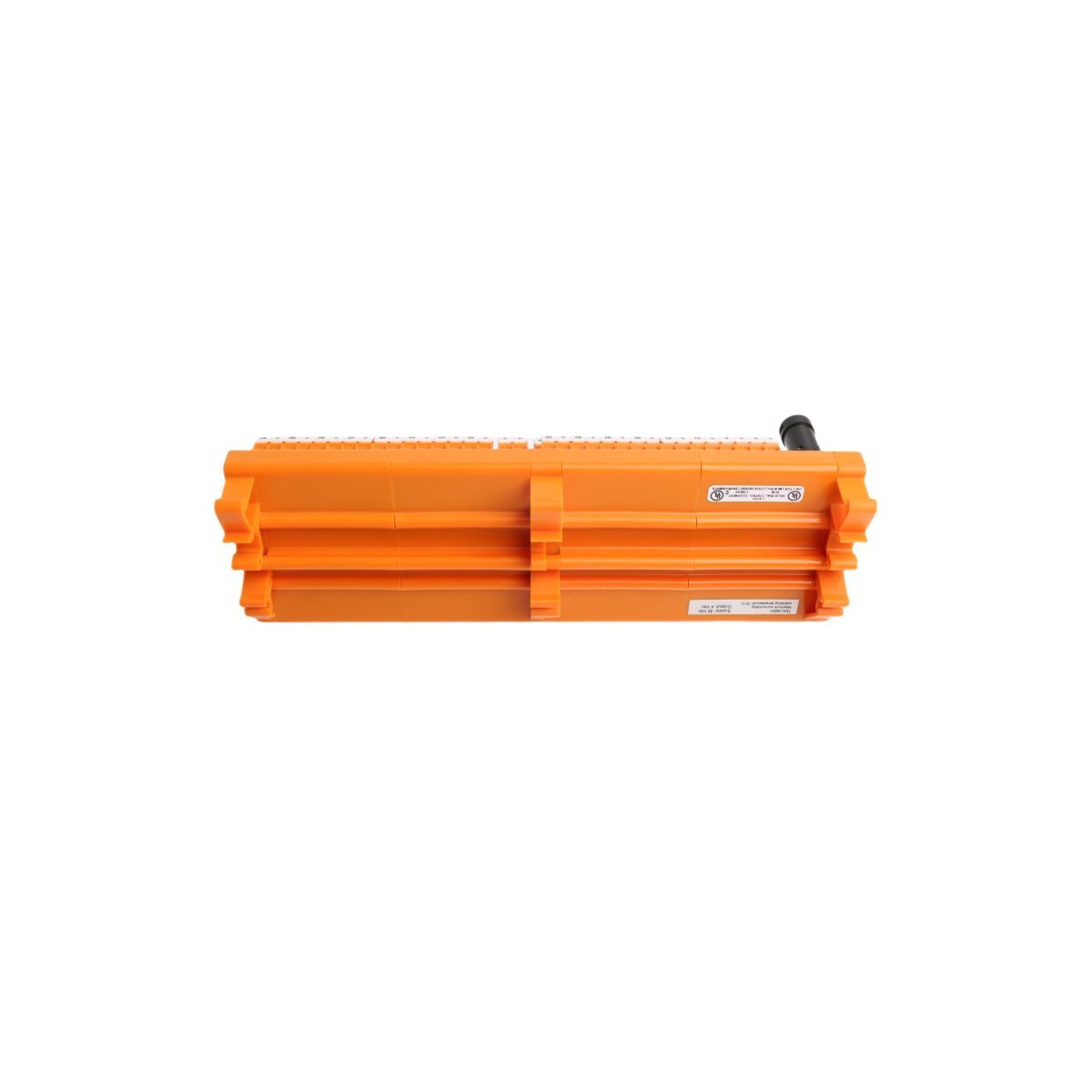

The Honeywell FC-TSAI-1620M is a high-integrity, 16-channel analog input module engineered for Safety Instrumented Systems (SIS) requiring SIL 3 certification. This module serves as a critical interface in high-risk industrial environments, converting field signals into precise digital data for emergency shutdown and process safety control loops.

High-Precision Signal Acquisition and Smart Diagnostics

The FC-TSAI-1620M excels in capturing 4-20mA and 0-10V signals with an impressive accuracy rating of ±0.1%. Because it fully supports the HART communication protocol, the module allows for deep integration with intelligent field devices, enabling advanced asset management and remote calibration. To ensure maximum uptime, Honeywell integrated comprehensive self-diagnostic capabilities into every channel. Technicians can instantly verify system health through dedicated LED status indicators, which facilitate rapid troubleshooting without external testing equipment.

Fail-Safe Architecture for Hazardous Environments

Honeywell designed this module specifically for the Experion PKS and Safety Manager platforms, utilizing a Fault Tolerant Ethernet (FTE) interface to maintain communication even during network disturbances. The hardware architecture meets stringent electromagnetic compatibility (EMC) standards and hazardous area certifications, making it suitable for deployment in explosive or electrically noisy atmospheres. Furthermore, the module supports hot-swapping functionality. This feature allows maintenance teams to replace units while the system remains energized, effectively eliminating production downtime and preserving the safety integrity of the plant.

Robust Application in Critical Process Safety

The FC-TSAI-1620M is a staple in sectors such as petrochemical refining, chemical processing, and power generation. It provides the reliable foundation needed for Emergency Shutdown (ESD) systems and Fire and Gas (F&G) monitoring. By maintaining high-precision signal paths, the module ensures that critical control loops respond accurately to process excursions. Consequently, engineers rely on this hardware to mitigate risks in volatile environments, knowing the SIL 3 rating guarantees the highest level of functional safety for personnel and equipment.

Technical Characteristics
