Description

Brief Product Description

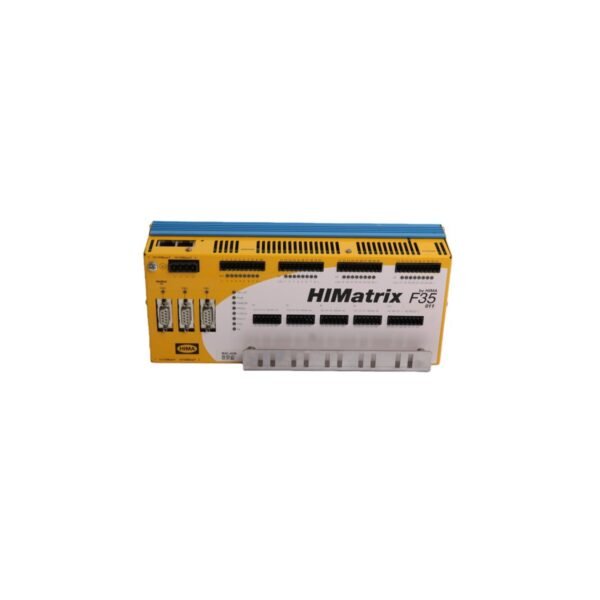

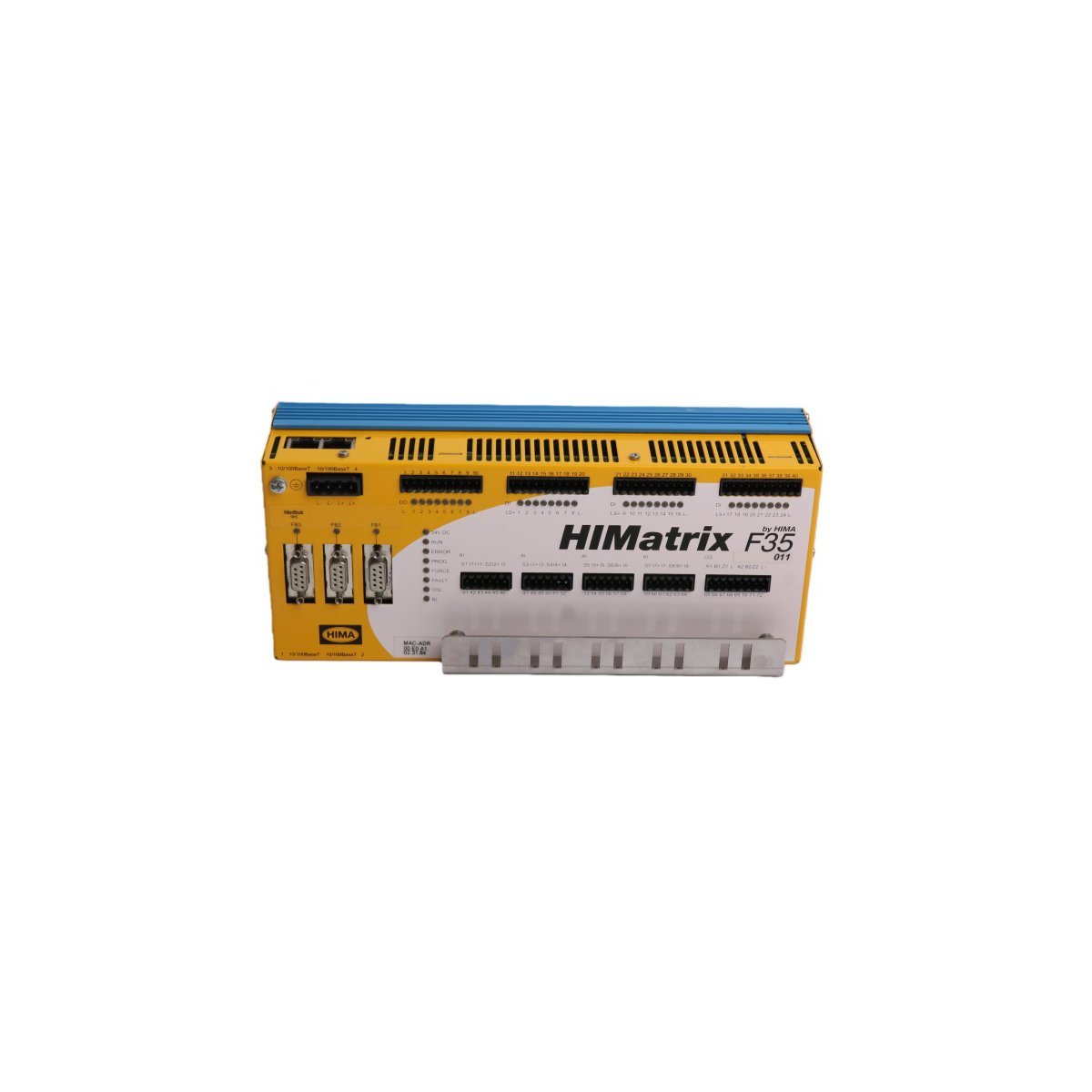

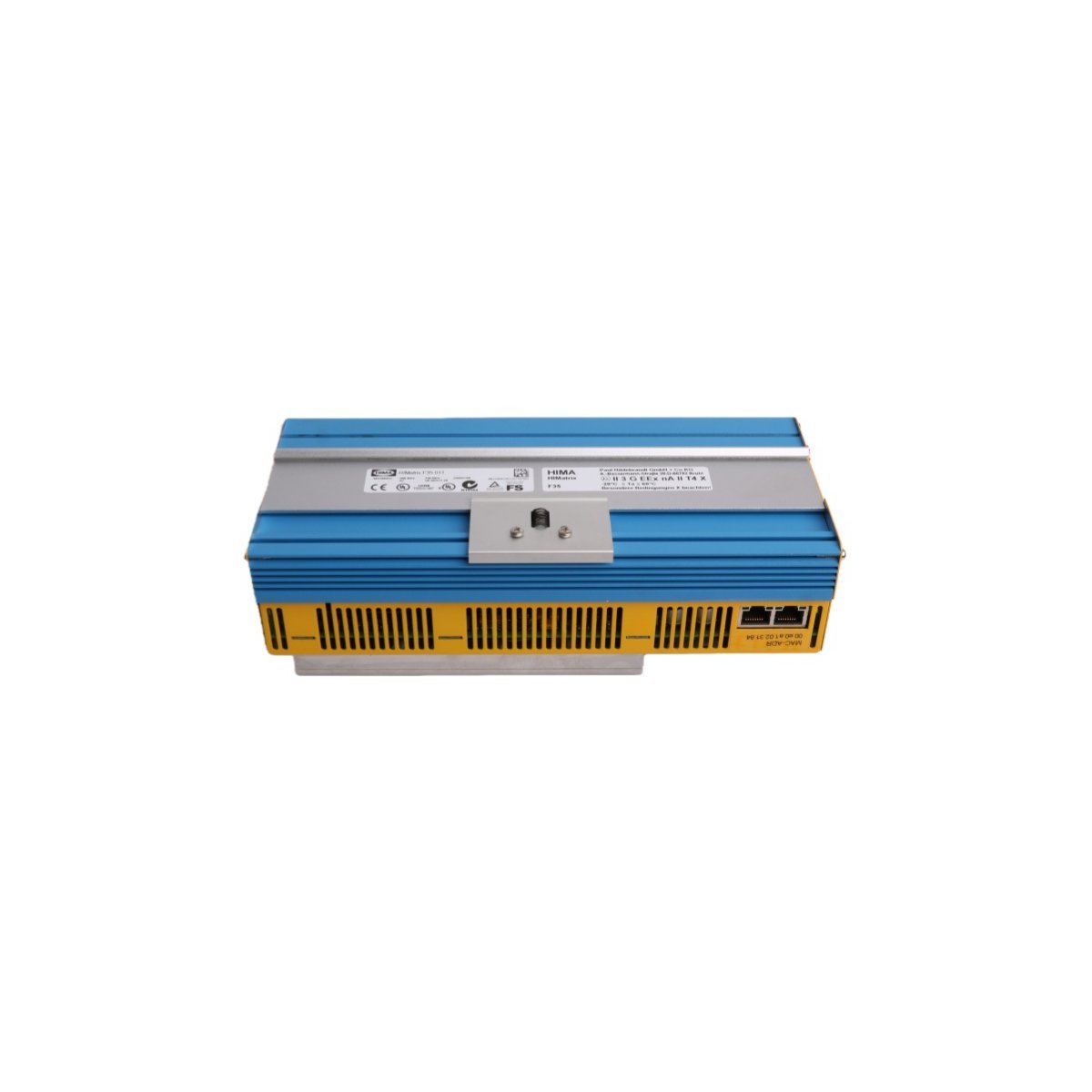

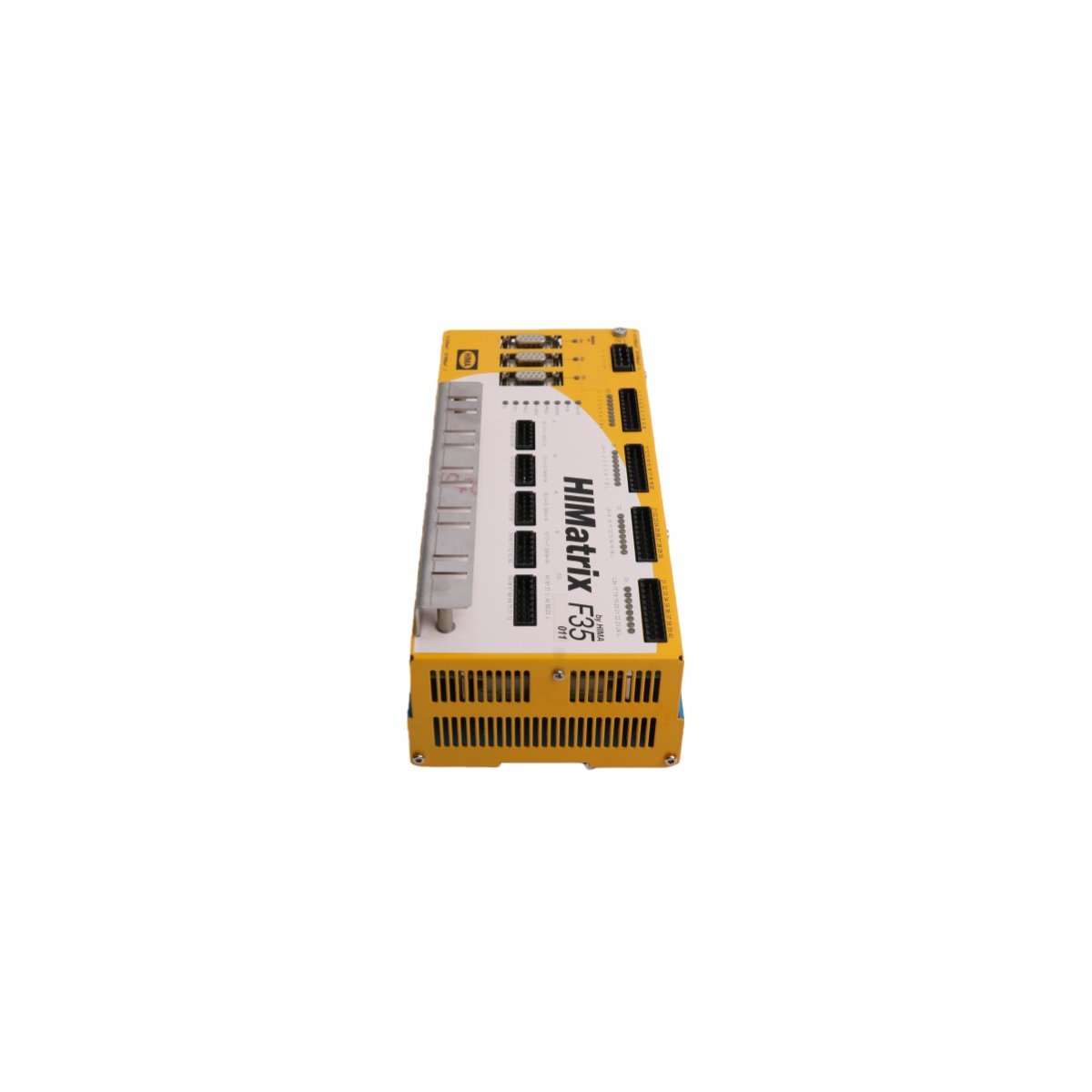

The HIMA HIMatrix F35 011 is a high-performance, standalone safety controller certified for SIL 3 industrial applications.¹ This compact unit integrates diverse digital and analog I/O with built-in line monitoring to provide comprehensive protection in emergency shutdown and process control systems.

Integrated Safety Logic and Versatile I/O

The HIMA HIMatrix F35 011 functions as a centralized intelligence unit for mission-critical safety instrumented functions (SIF). This controller consolidates a high density of I/O points—including 24 digital inputs, 8 digital outputs, 8 analog inputs, and 2 dedicated counters—into a single ruggedized housing.² By processing these signals through its internal safety logic, the F35 011 executes complex protective commands for machinery and process equipment. This integrated approach replaces multiple discrete modules, significantly reducing the hardware footprint within control cabinets while maintaining the highest levels of safety integrity.

Advanced Diagnostics and Line Monitoring

Engineers designed the F35 011 with a primary focus on diagnostic coverage and fault detection. The module features sophisticated line monitoring for its digital outputs, utilizing the analog input channels to identify short-circuits or open-circuit conditions in the field wiring.³ Consequently, the system can reach SIL 3 compliance according to IEC 61508 by ensuring that wiring failures do not result in a loss of safety function. Furthermore, the controller provides real-time monitoring of the supply voltage and internal hardware health, allowing operators to preemptively address potential failures before they impact plant productivity.⁴

Programming and Environmental Resilience

The F35 011 utilizes the HIMA SILworX engineering tool, which streamlines the configuration of safety logic and communication parameters.⁵ This software environment ensures that the transition from safety requirements to functional code remains transparent and error-free. To accommodate diverse installation sites, the controller operates reliably across a wide temperature range from -20°C to +60°C. Whether deployed in emergency shutdown systems (ESD), burner management (BMS), or fire and gas (F&G) applications, the F35 011 maintains stable performance. This resilience, combined with the module’s German engineering heritage, ensures a long-term safety solution for global industrial infrastructure.

Key Technical Characteristics

• High Safety Integrity: Fully certified for SIL 3 (IEC 61508) and Cat. 4 (EN 954-1) safety loops.
• Comprehensive I/O Matrix: Features 24 digital inputs, 8 digital outputs, 8 analog inputs, and 2 counters.⁶
• Intelligent Diagnostics: Built-in short-circuit and open-circuit detection for enhanced field-side security.
• SILworX Compatibility: Seamless integration with HIMA’s premier safety engineering software.⁷
• Ruggedized Thermal Design: Guaranteed operation in environments ranging from -20°C to +60°C.
• High-Speed Processing: Optimized for rapid safety-related reaction times in high-demand modes.⁸

Technical Specifications
