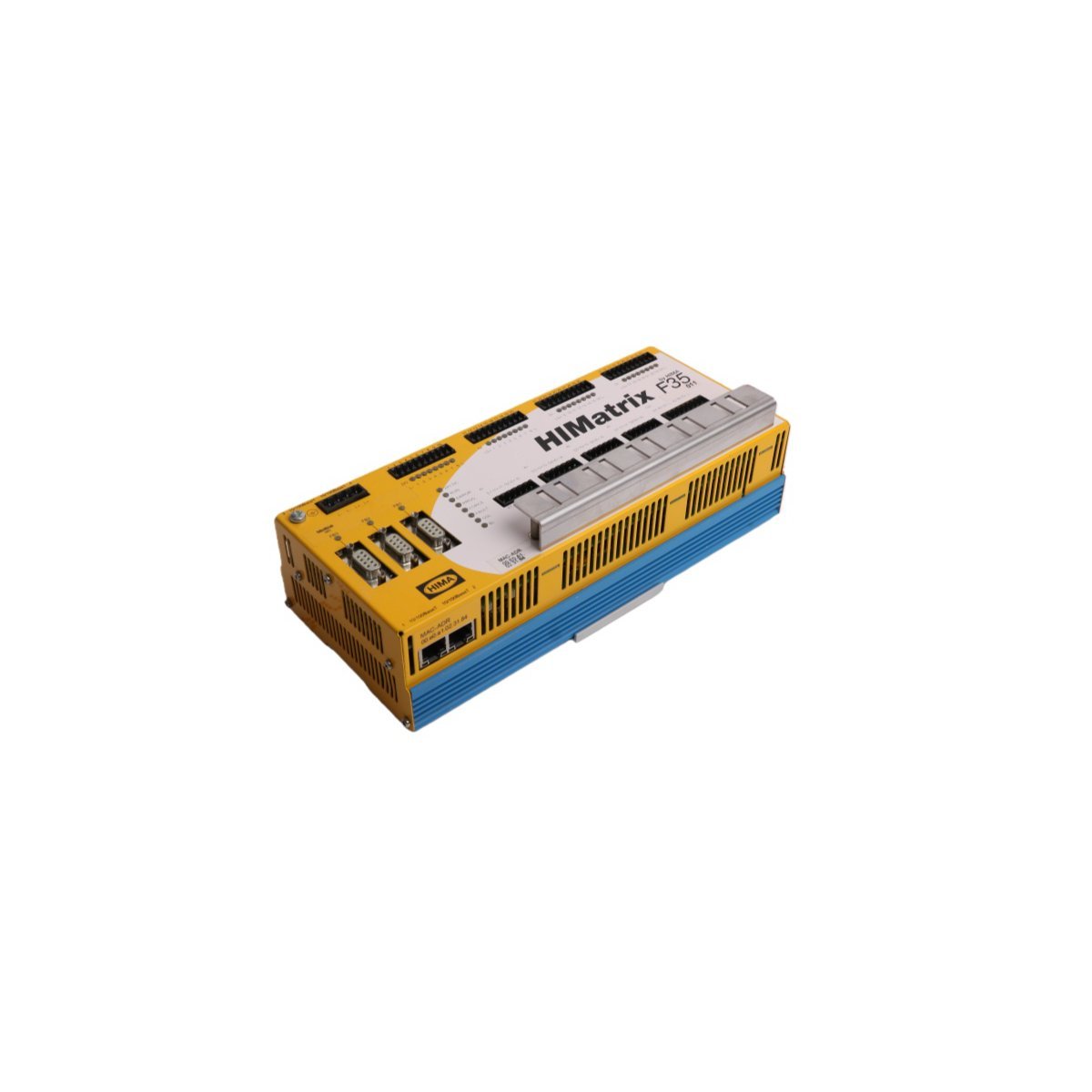

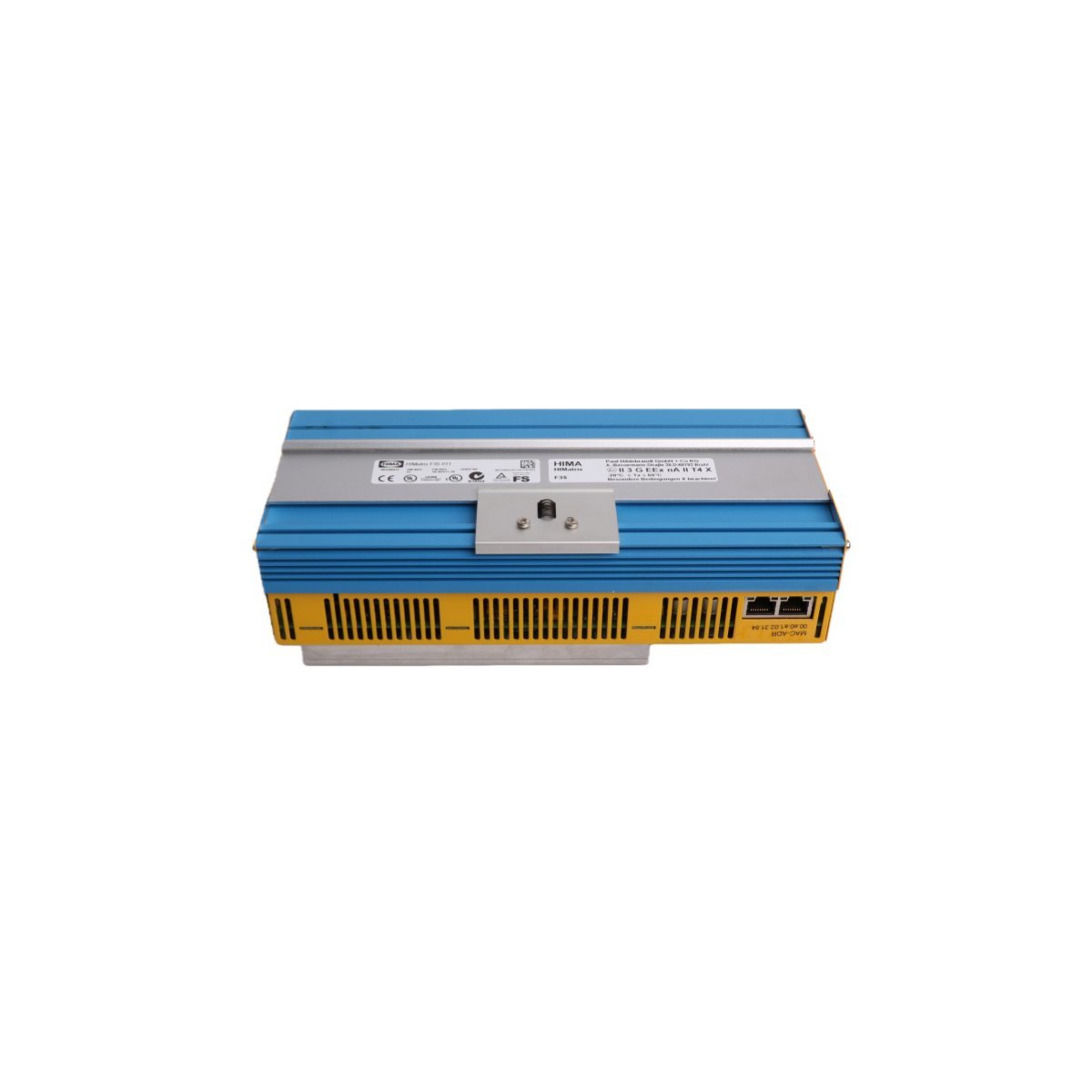

F35 011 30 HIMA Safety-Related Controller with Analog and Counter Inputs
The HIMA HIMatrix F35 011 30 is a SIL 3 certified safety controller featuring 24 digital inputs, 8 analog inputs, and 8 digital outputs. Designed for Ex-zone 2, it provides reliable high-integrity protection for emergency shutdown and process safety applications.
Description
Product Description
The HIMA HIMatrix F35 011 30 stands as a high-performance, programmable safety controller designed specifically for decentralized safety applications.1 This module executes safety-critical logic to protect high-hazard industrial processes, ensuring personnel and equipment remain safe during operational upsets.2
Multipurpose I/O Architecture and Logic Execution
The F35 011 30 integrates a sophisticated array of signal processing capabilities within a single, metal-shielded unit.3 It manages 24 digital inputs and 8 digital outputs, alongside 8 analog inputs and 2 specialized counter inputs.4 This diverse I/O density allows the module to monitor complex process variables, such as flow rates and pressures, while simultaneously handling discrete interlocks. The controller operates with deterministic timing, ensuring that safety-instrumented functions respond within the specific process safety time required by the application.
Hazardous Area Suitability and Compliance
Safety engineers frequently deploy the HIMatrix F35 011 30 in demanding environments due to its robust certification profile. The module carries ATEX approval for installation in Ex-zone 2, making it an ideal choice for oil and gas or chemical processing facilities.5 Furthermore, TÜV has certified the hardware for use in SIL 3 systems (IEC 61508) and PL e applications (ISO 13849). To facilitate seamless project integration, the module supports both the SILworX and ELOP II Factory engineering environments, allowing users to leverage their existing software infrastructure for programming and diagnostics.
- Certified Safety: Reaches SIL 3, Cat 4, and PL e standards for maximum functional integrity.6
- Explosion Protection: Approved for hazardous locations in Ex-zone 2 environments.7
- Integrated Analog Monitoring: Includes 8 analog inputs for continuous process variable tracking.8
- High-Speed Counting: Features 2 dedicated counter inputs for frequency-based safety monitoring.
- Flexible Programming: Works with HIMA’s industry-standard SILworX and ELOP II engineering tools.9
Technical Specifications
| Feature | Specification |
| Manufacturer | HIMA |
| Series | HIMatrix |
| Model Number | F35 011 30 |
| Digital Inputs | 24 Channels |
| Digital Outputs | 8 Channels (2A) |
| Analog Inputs | 8 Channels (0/4-20 mA or 0-10 V) |
| Counter Inputs | 2 Channels (up to 10 kHz) |
| Safety Integrity Level | SIL 3 / PL e |
| Certifications | TÜV, ATEX (Zone 2), CE |
| Enclosure | Metal, IP20 |
Additional information
| Weight | 0.1 kg |
|---|---|
| Country of Origin | Germany |
| Dimension | 2.5 x 12.7 x 20.3 cm |
