Description

Brief Product Description

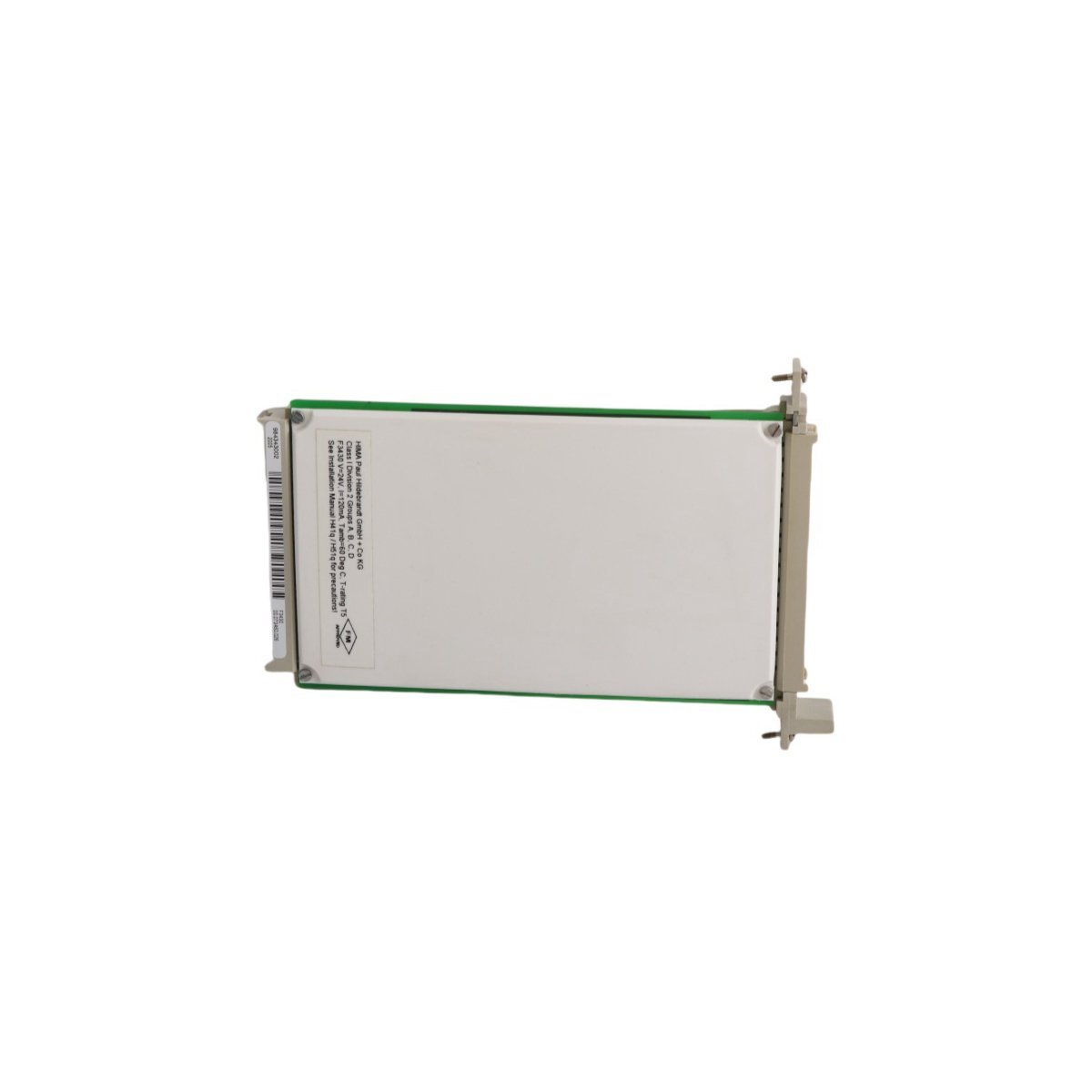

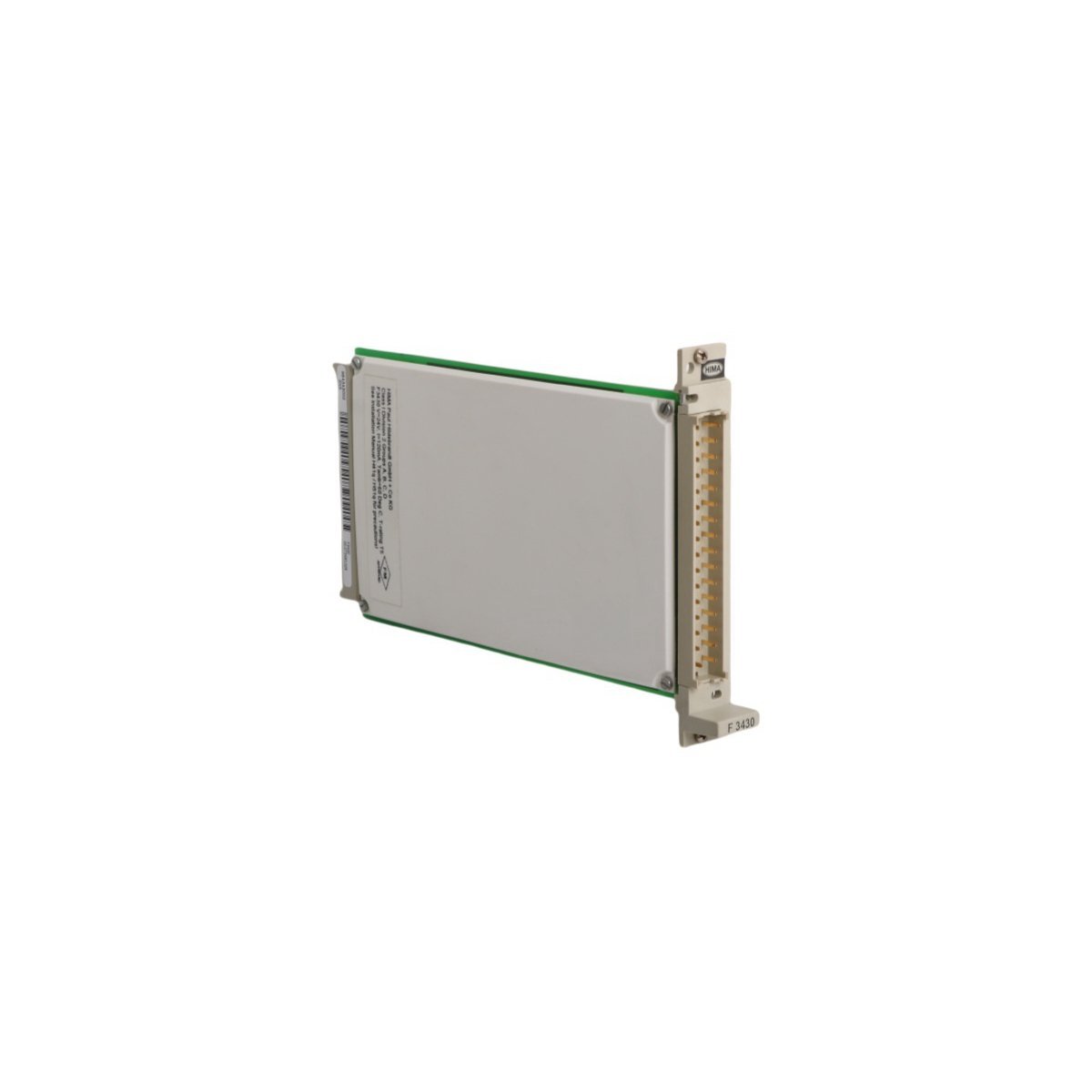

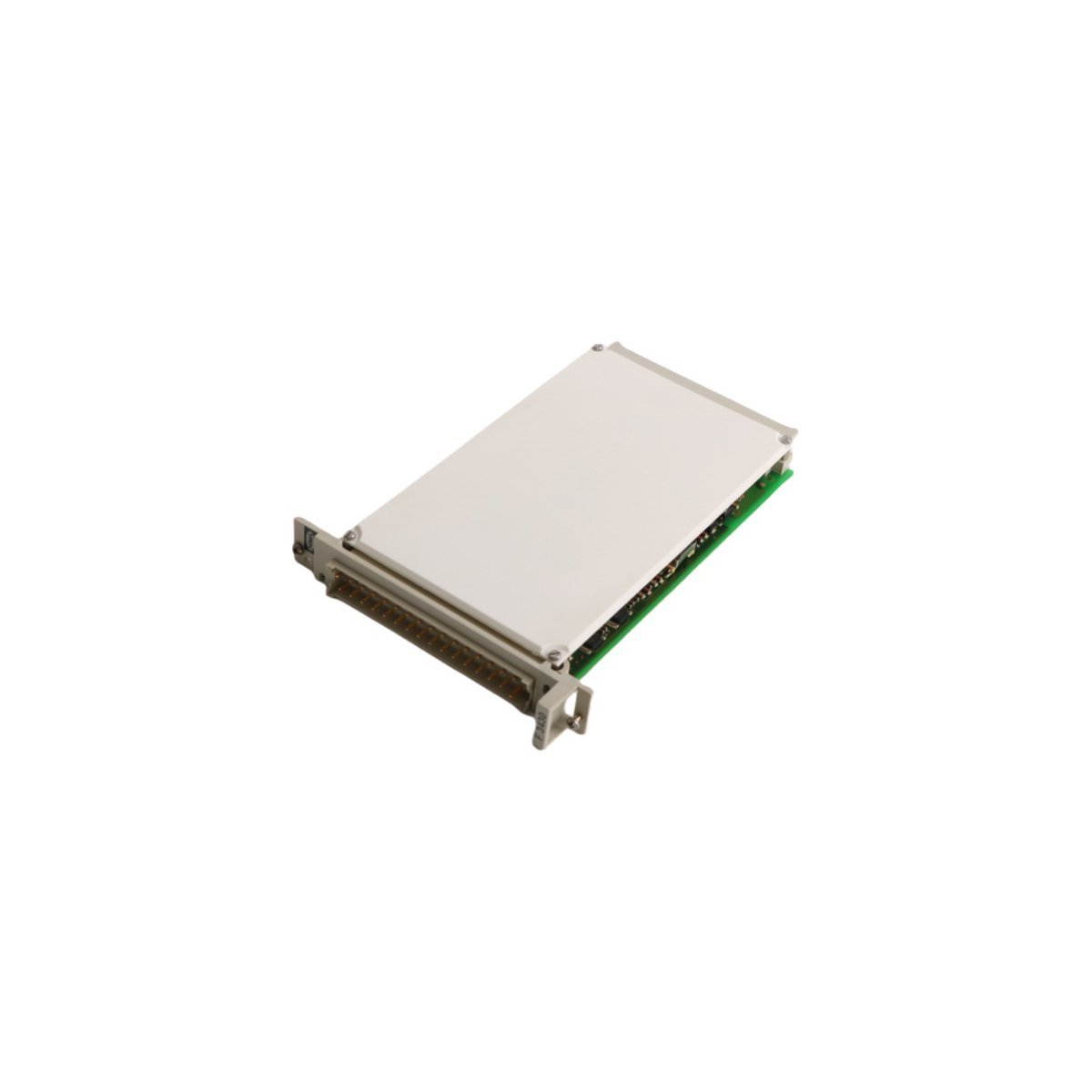

The HIMA F3430 is a safety-certified 4-channel relay module designed to provide high-integrity switching for H41q and H51q automation systems. This module acts as a critical interface for safety-instrumented functions, ensuring dependable isolation and control for actuators in hazardous industrial environments.

Industrial Safety Switching and Control Logic

The HIMA F3430 serves as a high-reliability interface between the central safety controller and field-level actuators. By utilizing four independent relay channels, this module facilitates the safe execution of control commands in critical applications. It primarily functions within the HIQuad H41q and H51q safety architectures, where it manages the switching of external loads while maintaining galvanic isolation between the control logic and the field environment. This separation protects the sensitive electronic components of the DCS from voltage spikes and electrical noise, thereby increasing the overall availability of the safety loop.

Versatile Integration for Safety-Instrumented Systems

Engineers specifically developed the F3430 to meet the rigorous demands of safety-instrumented systems (SIS), such as emergency shutdown (ESD) and interlocking mechanisms. The module’s robust relay contacts are designed for long-term durability, ensuring consistent performance even in high-cycle or harsh industrial settings. Because of its compact and standardized design, the F3430 integrates seamlessly into existing HIMA system racks, allowing for rapid expansion or replacement without extensive rewiring. This adaptability makes it an essential component for facilities that prioritize both functional safety and operational efficiency.

Rugged German Engineering for Maximum Reliability

Constructed in Germany, the F3430 adheres to the highest international quality and safety standards. The module features a user-friendly mechanical layout that simplifies routine maintenance and system inspections. Furthermore, the hardware is optimized for thermal stability, allowing it to function effectively within dense control cabinets. By providing clear channel separation and reliable switching states, the F3430 assists operators in maintaining compliance with strict industrial safety regulations, effectively mitigating risk in complex process automation sectors.

Key Technical Characteristics

• Four-Channel Output: Provides four independent, high-integrity relay contacts for multi-device control.
• Safety System Compatibility: Fully optimized for the HIMA H41q and H51q (HIQuad) system ranges.
• Galvanic Isolation: Ensures complete electrical separation between the safety controller and field actuators.
• High Durability Contacts: Engineered to withstand frequent switching cycles in demanding industrial conditions.
• Simplified Maintenance: The plug-and-play design reduces downtime during module replacement or system upgrades.
• Certified Reliability: Complies with global safety standards for use in interlocking and shutdown applications.

Technical Specifications
