Description

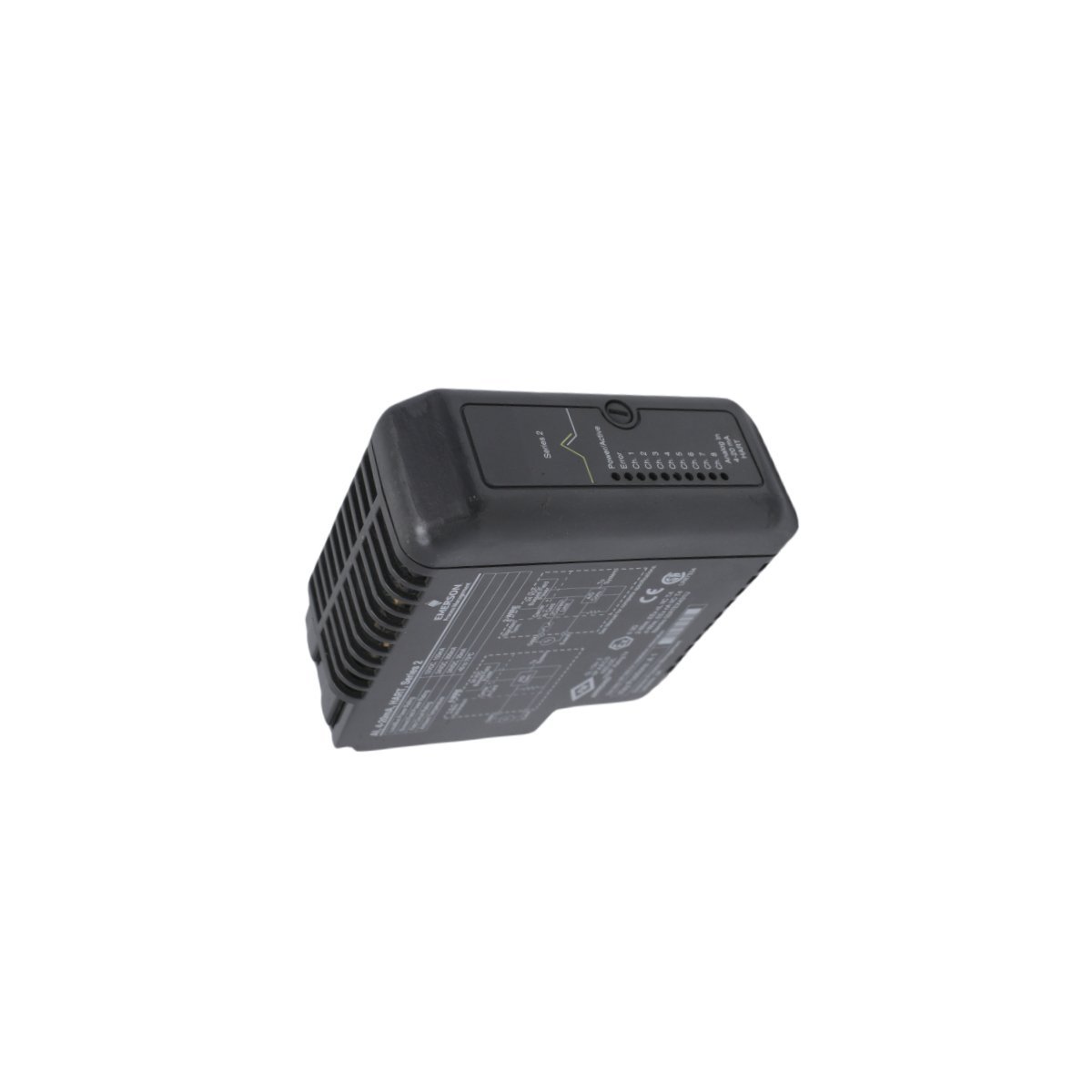

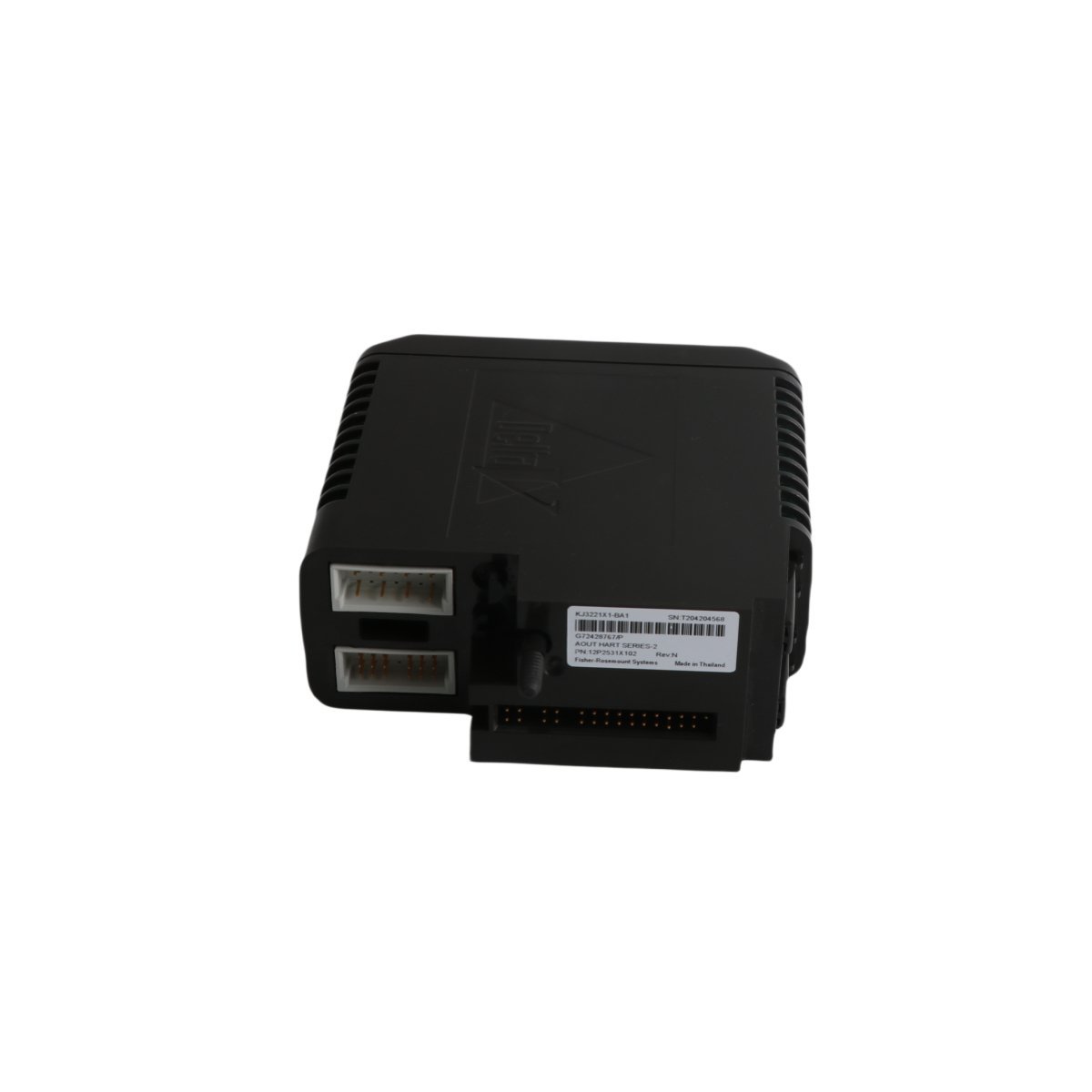

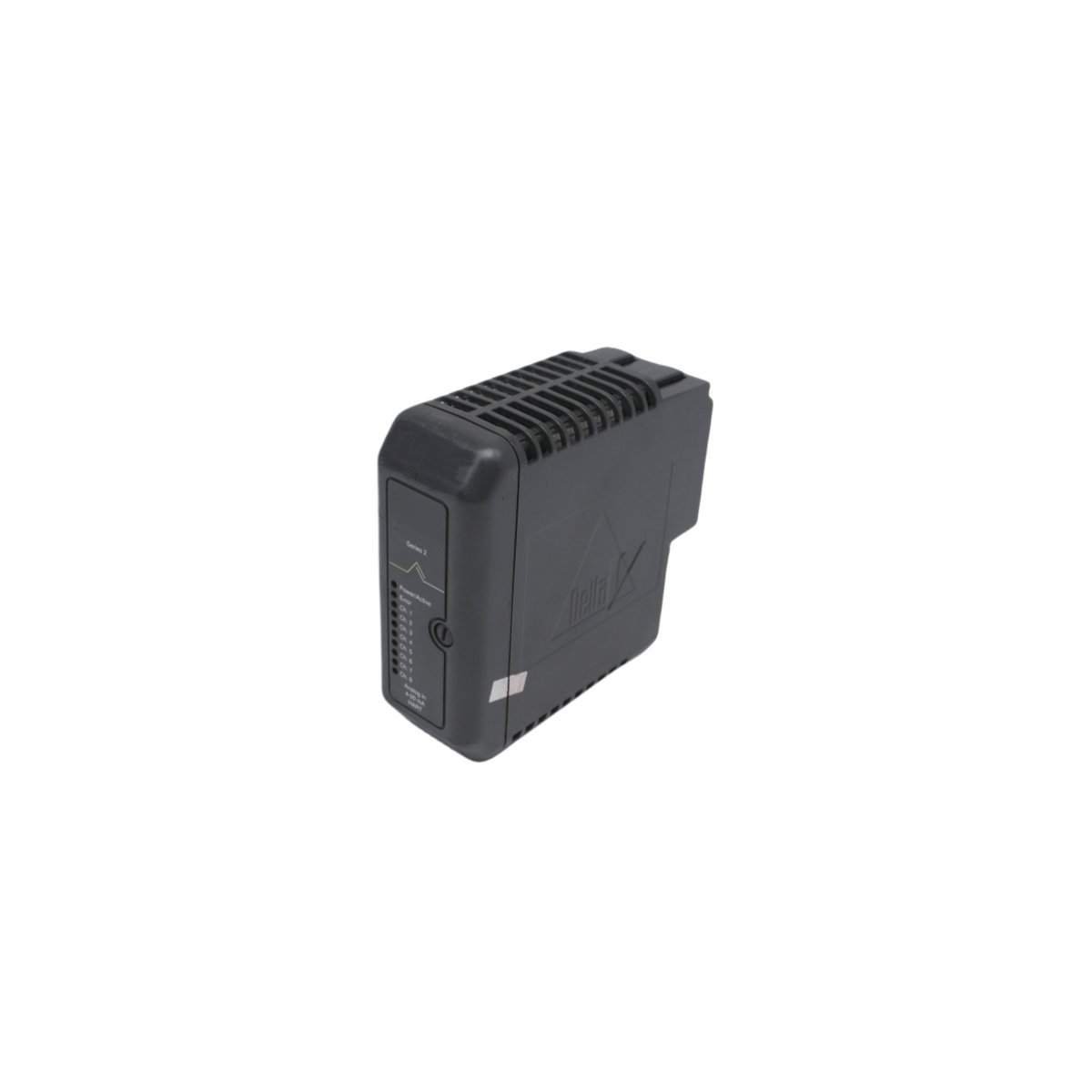

The KJ3222X1-BA1 serves as a high-precision input interface for the Emerson DeltaV M-series subsystem. This module converts continuous analog signals from field instruments into digital values for the DCS. It specifically processes 4-20 mA current loops across eight dedicated channels. Consequently, the card facilitates accurate real-time monitoring of critical process variables. The 12P2532X122 hardware revision ensures low signal noise and high measurement stability. This makes it an essential component for synchronized automation tasks.

Hardware Reliability and Protection

The VE4003S2B2 fused termination block provides superior electrical protection for the module. These individual channel fuses prevent external wiring faults from affecting the internal circuitry. Furthermore, the KJ3222X1-BA1 features robust galvanic isolation between the field and the system. This design eliminates ground loops and protects the controller from surges. The card also supports hot-swapping under active power conditions. Thus, maintenance teams can replace faulty units without interrupting plant production.

Diagnostic Capabilities and Integration

The 12P2532X122 module delivers advanced diagnostics through the DeltaV software environment. It automatically detects open circuits and shorted field loops during operation. Additionally, the HART-compatible interface allows for remote instrument configuration. Operators can access secondary device variables without visiting the field. This capability streamlines calibration routines and improves overall asset management. The module integrates seamlessly with existing M-series carriers for rapid system expansion.

Industrial System Applications

Process industries utilize this analog card in various high-demand environments. It manages sensitive measurements in oil refineries and chemical processing facilities. Furthermore, the module handles critical temperature and pressure loops in power stations. Its rugged build withstands the thermal stress of heavy manufacturing sites. It also ensures consistent performance in pharmaceutical and water treatment applications. This module helps engineers achieve higher operational efficiency and safety.

Technical Specifications

• Manufacturer: Emerson Process Management
• Model Number: KJ3222X1-BA1
• Part Number: 12P2532X122
• Termination Block: VE4003S2B2 (Fused Type)
• Signal Type: 4-20 mA DC with HART Pass-through
• Channel Count: 8 Analog Inputs
• Digital Resolution: 16-Bit A/D Conversion
• Operating Temperature: -40°C to 70°C
• Storage Temperature: -40°C to 85°C
