Product Overview

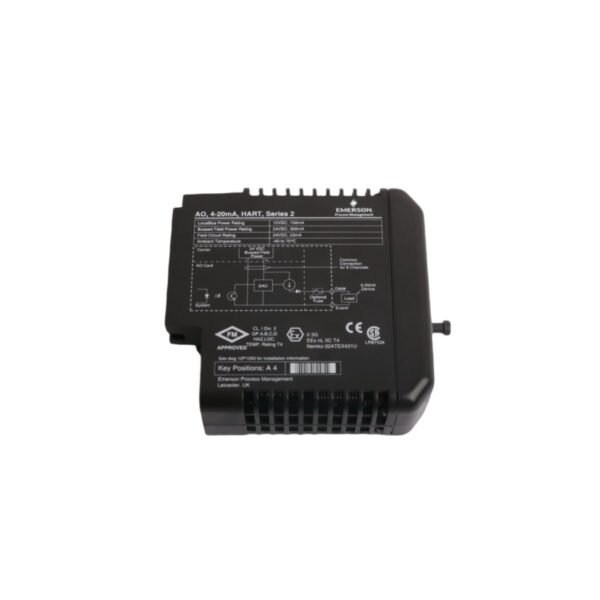

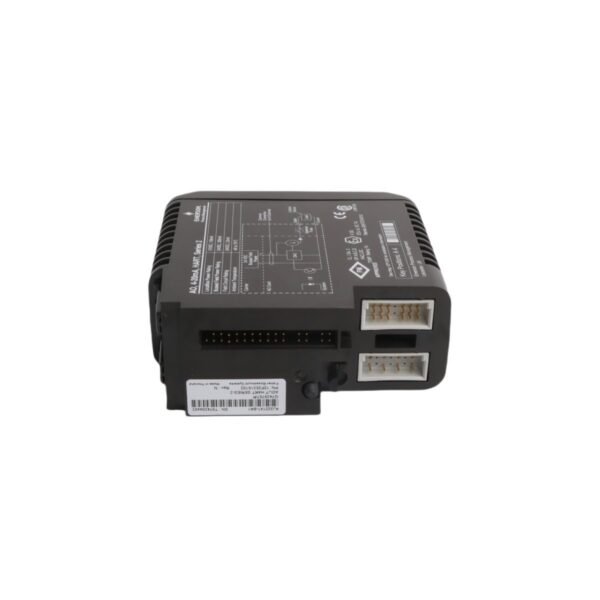

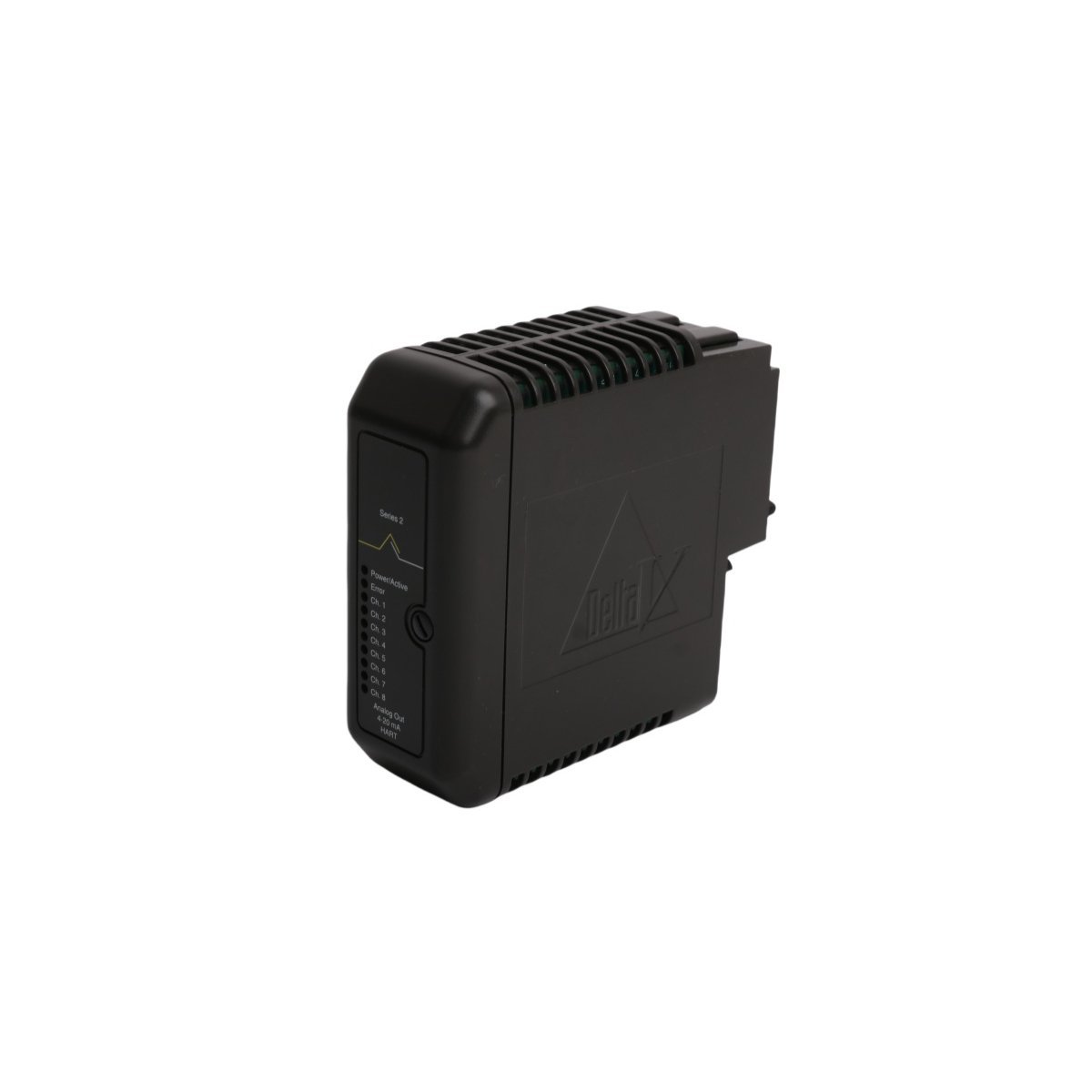

The Emerson KJ3221X1-BK1 is a high-precision 8-channel analog output module designed for the DeltaV™ M-series I/O subsystem. This card facilitates accurate control of field actuators and valves by providing 4-20 mA signals integrated with HART digital communication.

Advanced Process Control and Communication

The KJ3221X1-BK1 module provides critical interface capabilities for modern Distributed Control Systems (DCS). By supporting the HART (Highway Addressable Remote Transducer) protocol, the card allows for the simultaneous transmission of analog control signals and digital diagnostic data over the same wire pair. This dual-functionality enables operators to perform remote configuration and retrieve device-level health information without interrupting the process. Consequently, this leads to more proactive maintenance strategies and reduced field service requirements in high-stakes environments like chemical refineries and power plants.

Signal Integrity and Resolution

Emerson engineered the SE4005S2B1 card to deliver superior output fidelity for dynamic control loops. The hardware features 15-bit resolution, ensuring that incremental adjustments to valve positions are smooth and highly repeatable. Furthermore, the card maintains a strict accuracy of $\pm$0.1% of span, which is essential for stabilizing complex chemical reactions or precision fluid handling. Because the module effectively manages load resistances between 300 and 1100 $\Omega$, it offers broad compatibility with various long-distance field instrument installations.

Industrial Resilience and Fault Detection

Designed for survival in demanding climates, the 12P4704X032 module operates reliably across an expansive temperature range from -40°C up to +70°C. The card utilizes low-drift circuitry to maintain calibration stability even during rapid ambient temperature shifts. Moreover, the integrated diagnostic suite monitors the health of each output channel in real-time. If a loop fault or hardware failure occurs, the system immediately notifies the control layer, allowing for rapid intervention. This robust design minimizes unplanned downtime and protects the overall integrity of the automation infrastructure.
