Description

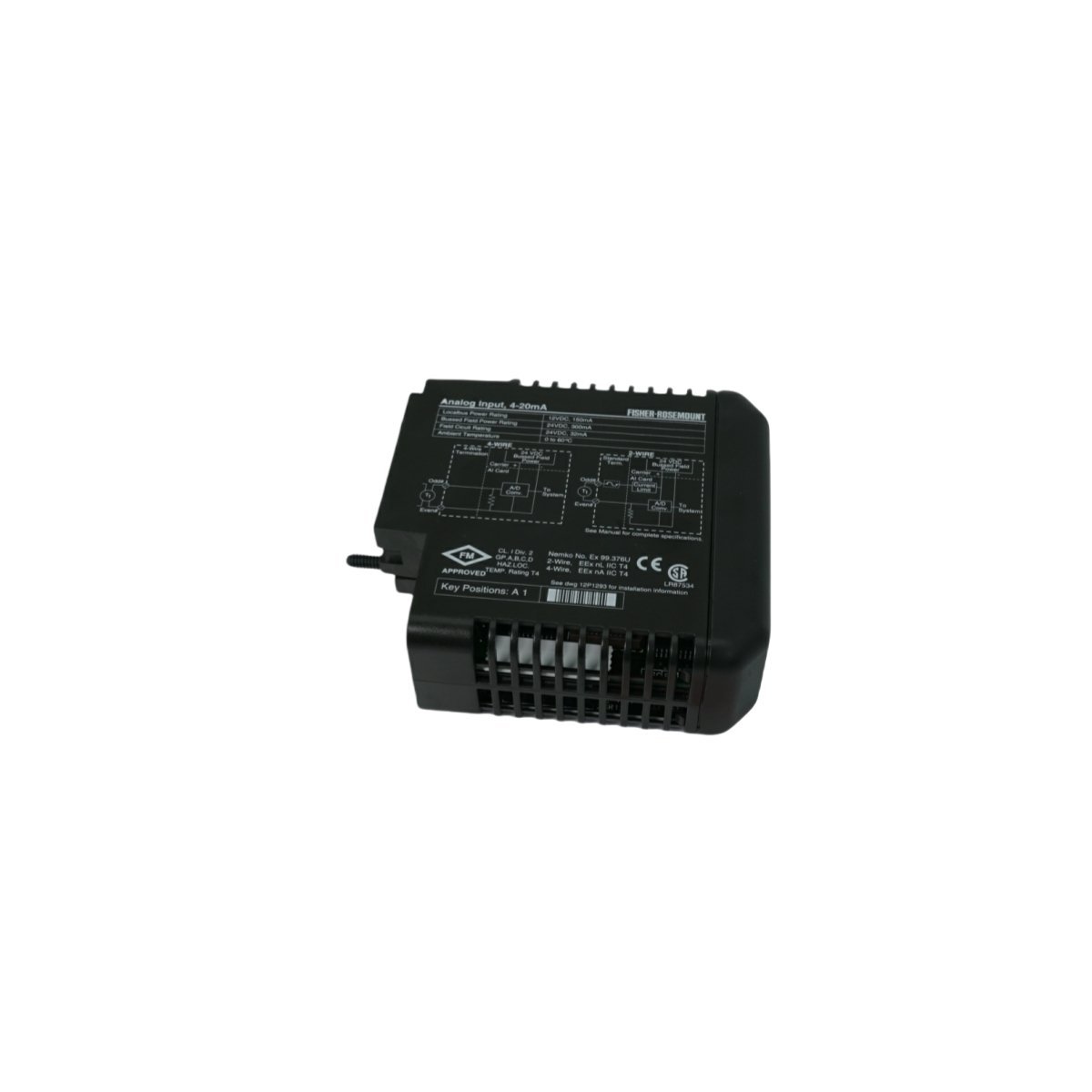

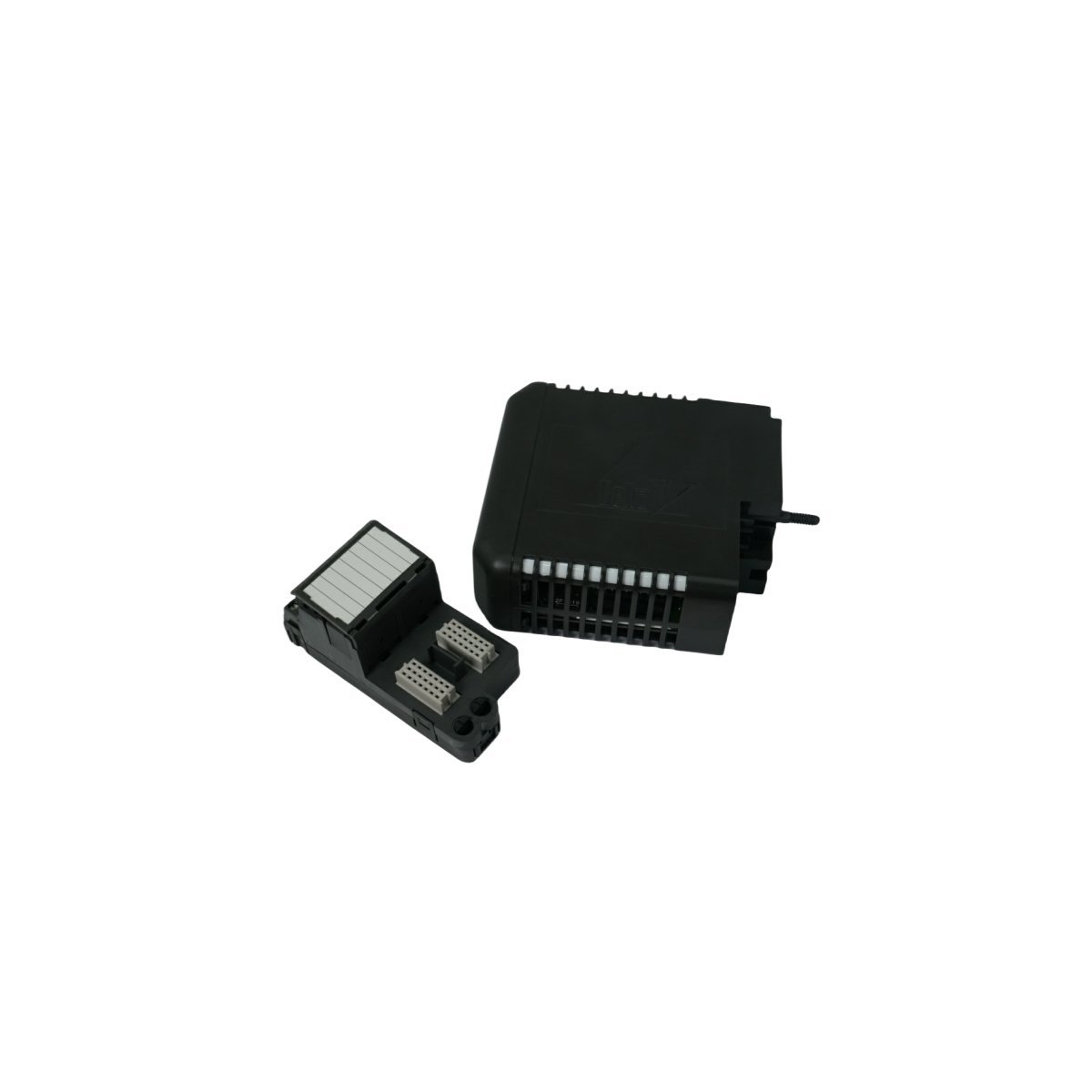

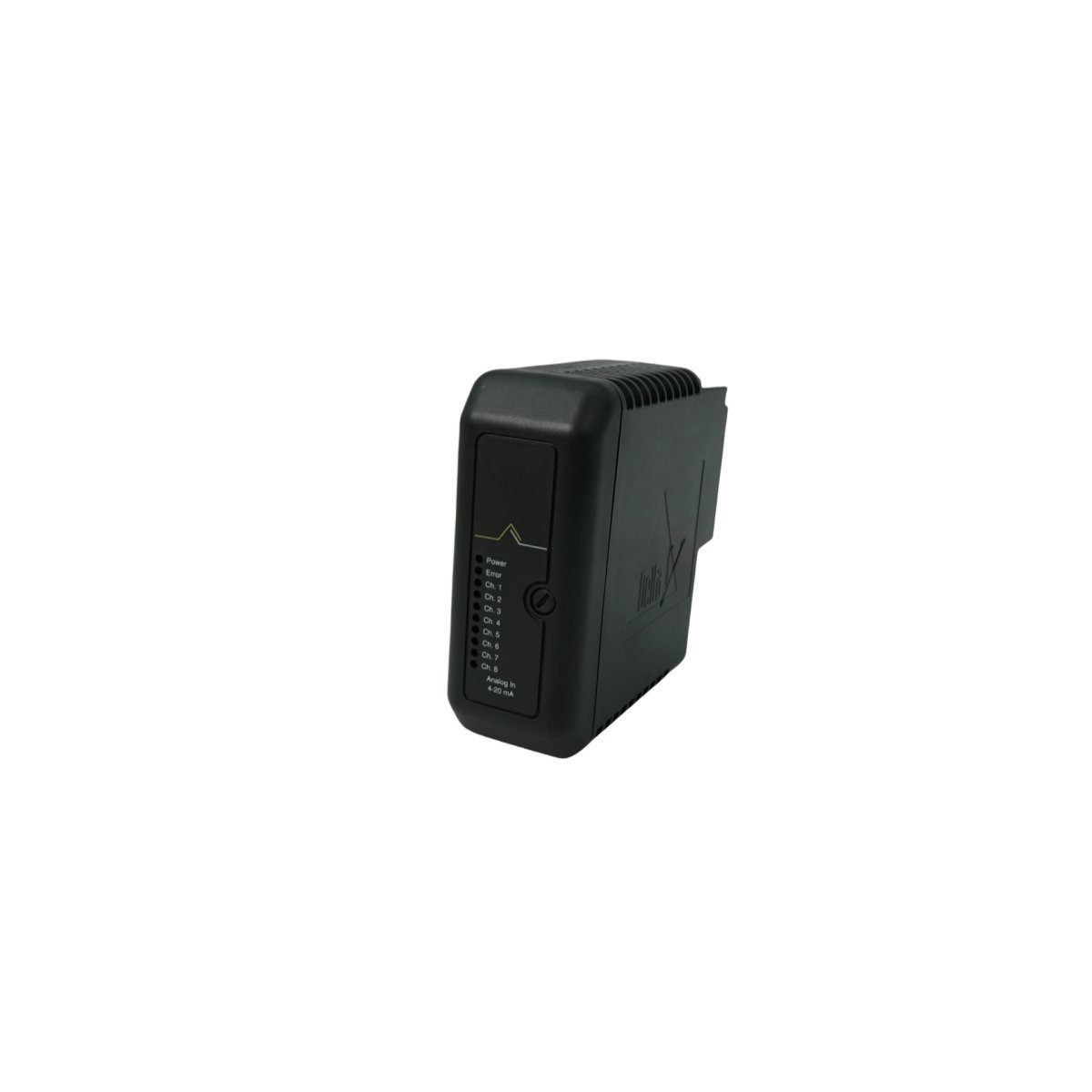

The Emerson KJ3002X1-BC1 functions as a specialized 4-wire analog input card for the DeltaV M-series I/O subsystem. This module enables the precise acquisition of 4-20 mA signals from various field transmitters. It specifically supports 8 channels of high-resolution data for continuous process monitoring. Operators utilize this card to track essential variables like pressure, temperature, and flow. Its integration into the DeltaV ecosystem ensures seamless communication with the controller. This hardware serves as a critical interface for maintaining stable and efficient industrial operations.

Key Technical Specifications and Data

Advanced Signal Integrity and Diagnostics

This analog input card prioritizes signal accuracy in high-interference industrial zones. It incorporates robust electrical isolation to protect the system from field-side surges. Furthermore, built-in noise filtering ensures that data remains clean and reliable. The KJ3002X1-BC1 also features comprehensive self-diagnostics to monitor hardware health. It identifies loop errors or hardware malfunctions immediately to prevent process downtime. Consequently, maintenance teams can address signal issues before they impact production. These protective measures ensure long-term stability in demanding chemical and power plants.

Industrial Applications and Scalability

The modular architecture of the DeltaV M-series allows for rapid system expansion. This 8-channel card fits into standard I/O carriers for easy hot-swapping during maintenance. It suits critical sectors such as oil and gas or pharmaceutical manufacturing perfectly. Because the module supports 4-wire configurations, it handles externally powered transmitters with ease. This versatility makes it a cornerstone for modernizing existing automation infrastructure. It provides the high-performance data processing required for sophisticated control loops. Therefore, it remains an essential component for distributed control and automation excellence.
