Description

Product Overview

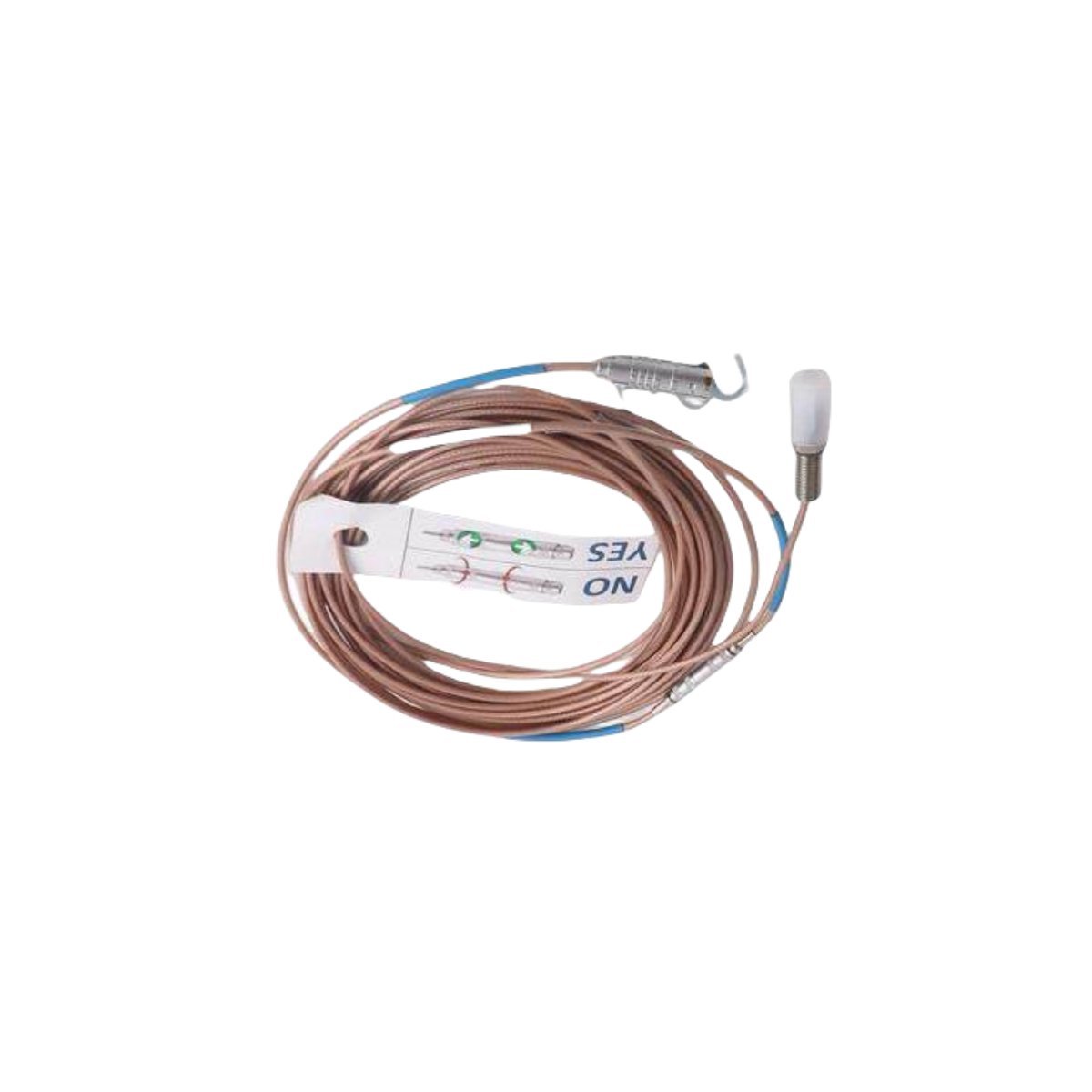

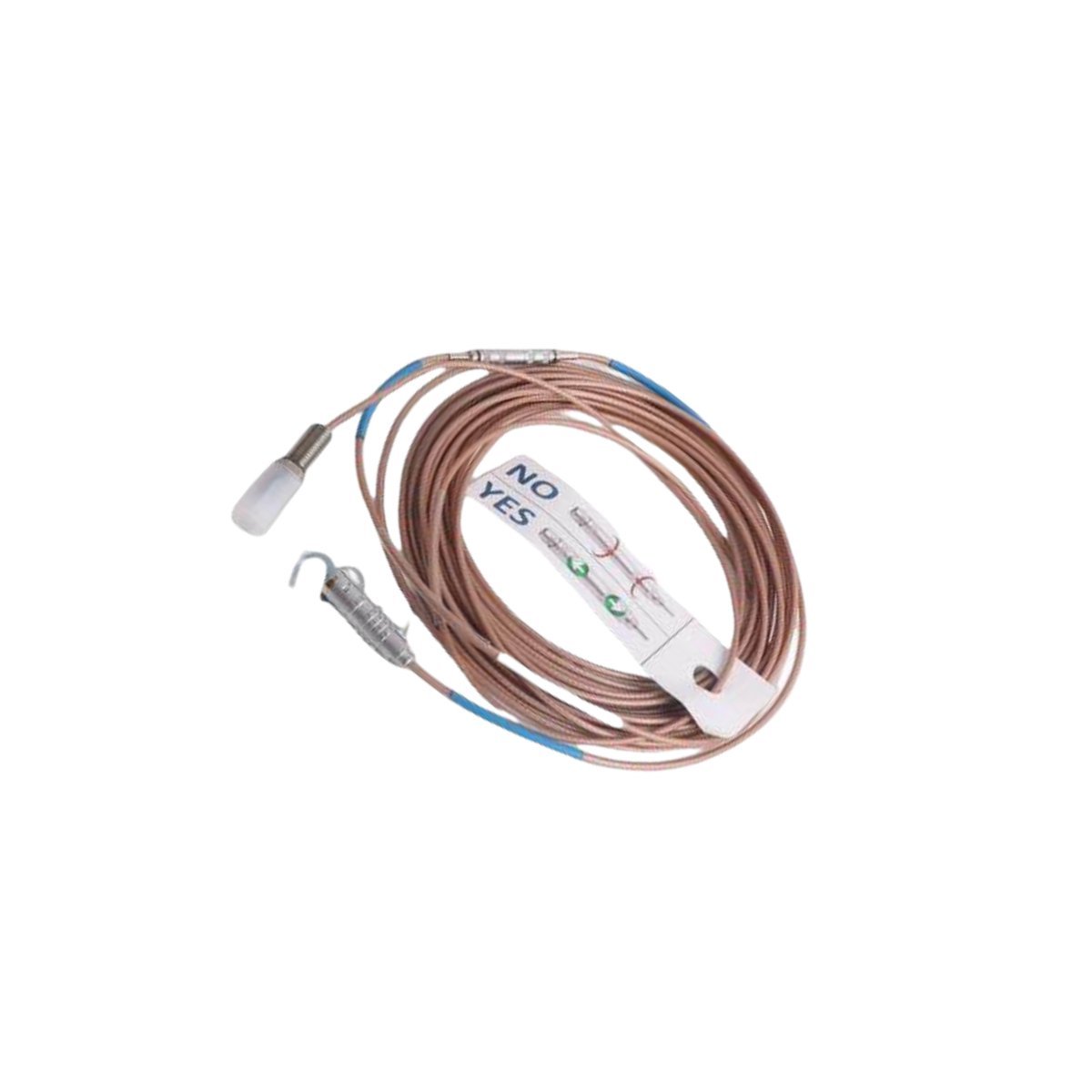

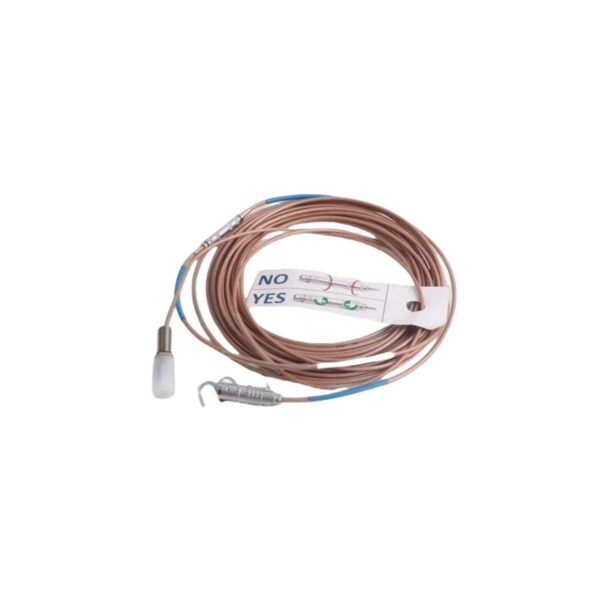

The Emerson PR6423/106-0F1 is a specialized non-contact eddy current sensor engineered for the high-precision measurement of shaft vibration and axial displacement in critical rotating machinery. Part of the epro product family, this sensor facilitates continuous condition monitoring for high-speed turbines, compressors, and industrial pumps.

High-Precision Inductive Measurement

This sensor operates on the eddy current principle to provide frictionless, wear-free monitoring of metallic targets. The PR6423/106-0F1 generates a high-frequency electromagnetic field that interacts with the target shaft, allowing the module to detect microscopic changes in distance with exceptional sensitivity. Consequently, maintenance teams can identify shaft runout or bearing wear in real-time. By delivering rapid response times, the sensor ensures that even transient vibration peaks are captured, which is vital for the protection of multi-million dollar assets in power and chemical plants.

Robust Industrial Resilience

Emerson designed the PR6423/106-0F1 to endure the volatile environments of industrial machinery housings. The sensor tip and cable assembly resist high-pressure conditions, oil submersion, and chemical contamination. Moreover, the module maintains high signal integrity despite significant thermal fluctuations and electromagnetic interference. This durability ensures a long service life with minimal calibration drift. Because the sensor lacks moving parts, it inherently offers a more reliable alternative to contact-based measurement tools in high-velocity applications.

System Integration and Predictive Maintenance

The PR6423/106-0F1 serves as a cornerstone for predictive maintenance strategies. It integrates seamlessly with the Emerson AMS 6500 Machinery Health Monitor and other standard DCS or PLC architectures. The analog signal output reflects the exact gap between the sensor tip and the shaft, providing the raw data necessary for advanced frequency analysis. By utilizing this sensor, operators can transition from reactive repairs to data-driven maintenance schedules, significantly extending the operational lifespan of rotating equipment while reducing the risk of catastrophic mechanical failure.

Technical Characteristics
