Description

Product Overview

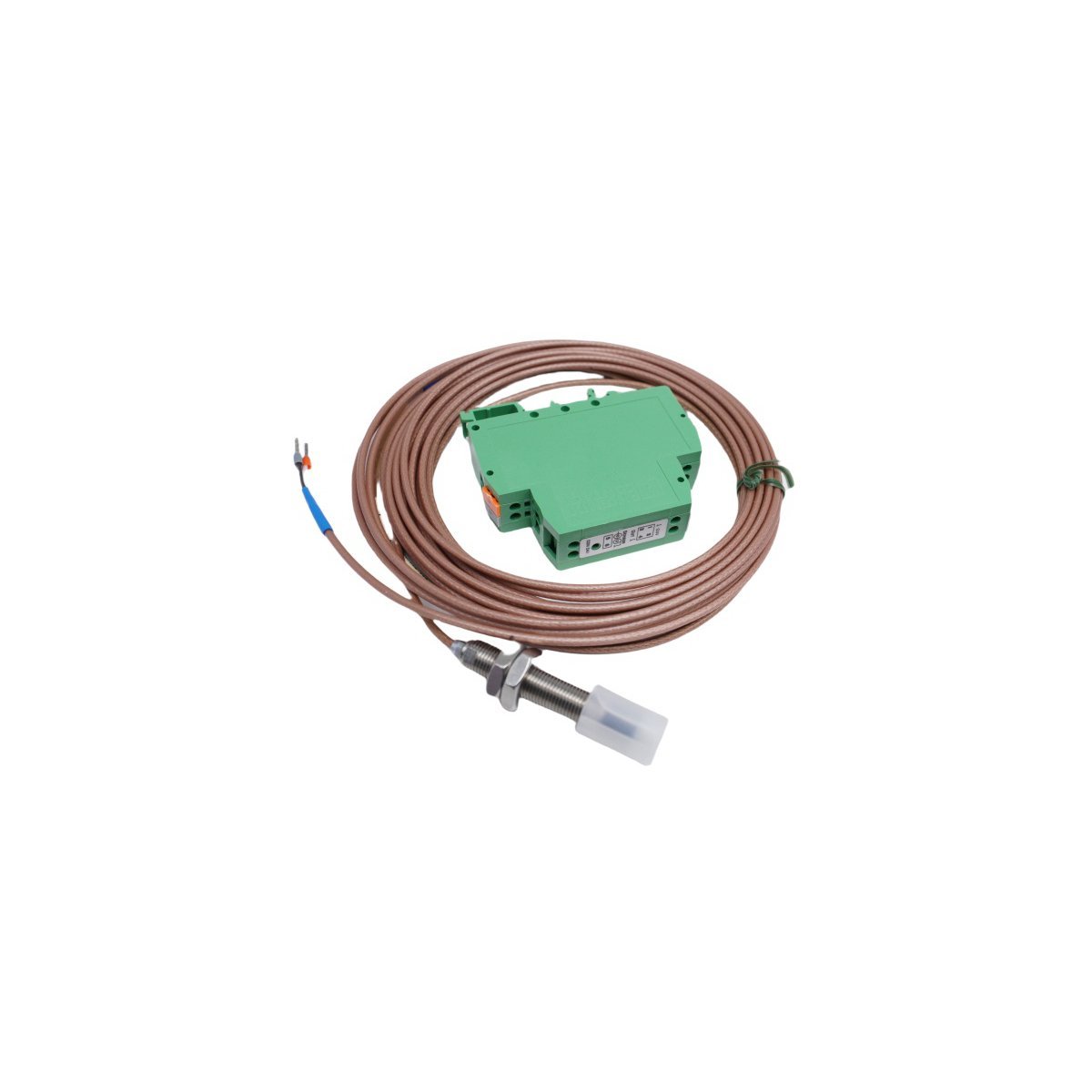

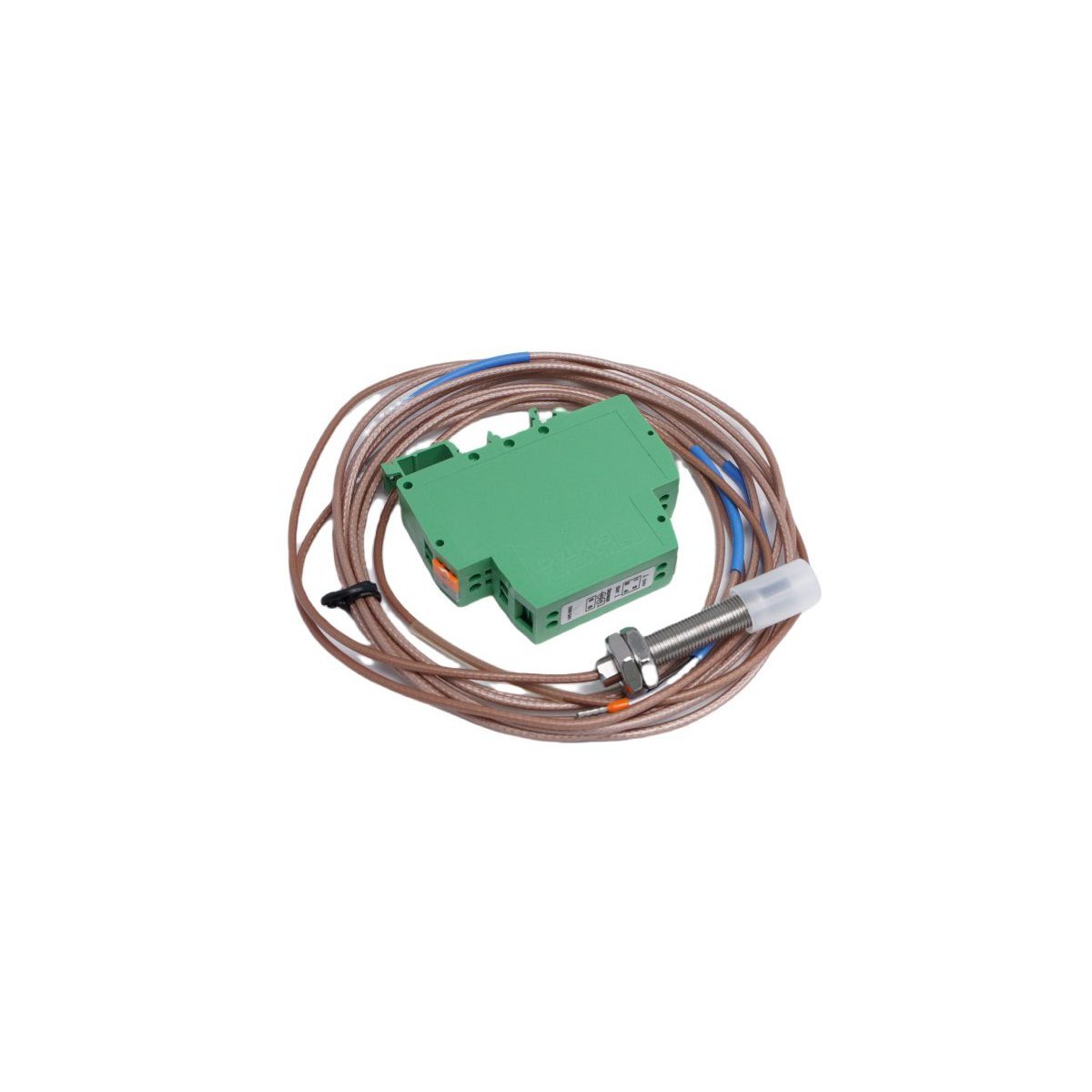

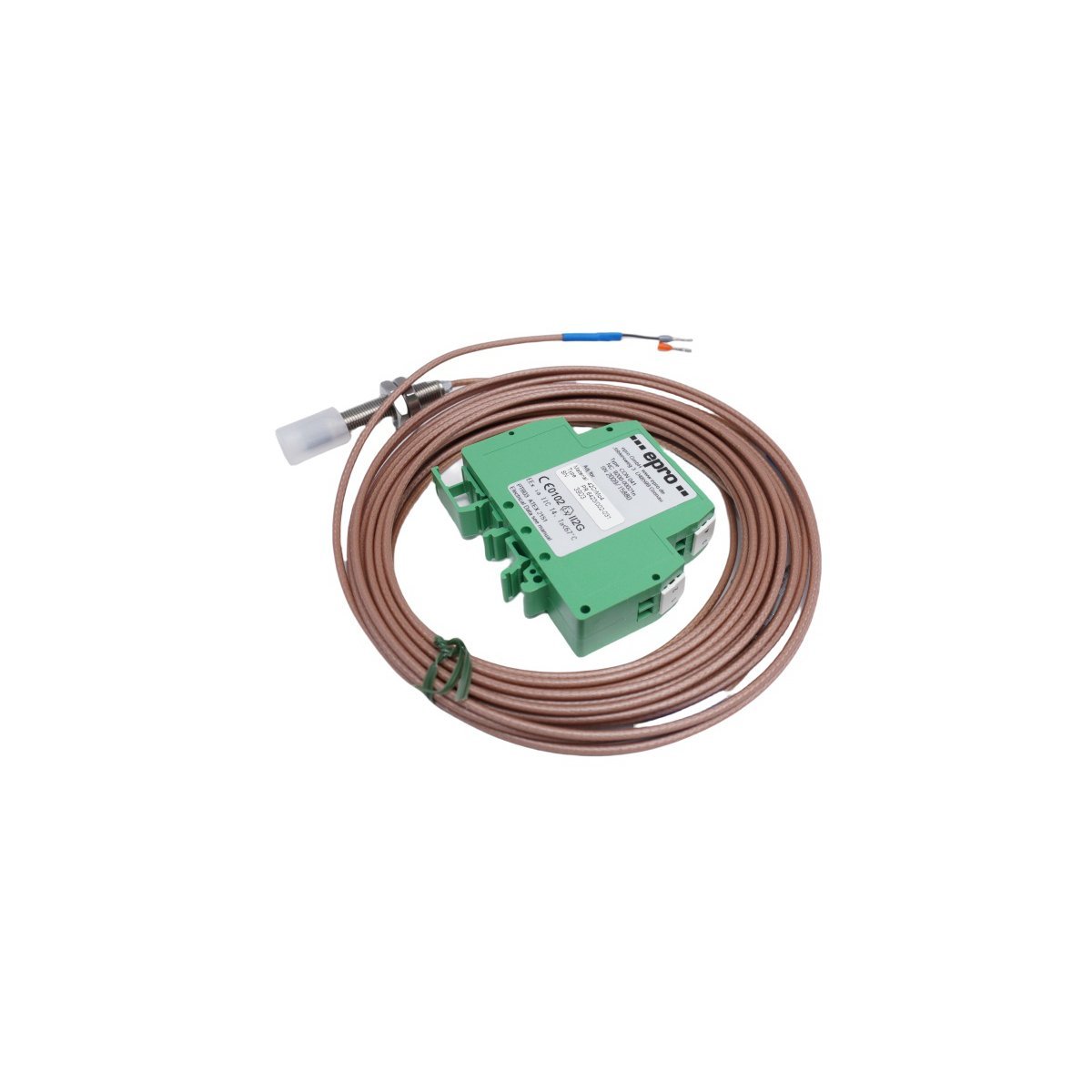

The Emerson PR6423/002-121 CON041 is a high-precision eddy current sensor engineered for the non-contact measurement of vibration, shaft displacement, and eccentricity in critical rotating machinery. As a core component of the EPRO series, this sensor provides essential data for machine health monitoring systems to prevent catastrophic mechanical failure.

Precision Vibration and Displacement Monitoring

The PR6423/002-121 utilizes the eddy current principle to track the position and movement of metallic targets, such as turbine shafts, with sub-micron accuracy. By maintaining a constant electromagnetic field, the sensor detects minute changes in distance between the probe tip and the target material. This functionality allows maintenance teams to monitor radial and axial shaft vibration in real-time. Consequently, operators can identify mechanical imbalances, bearing wear, or misalignment before these issues escalate into costly downtime. Because the sensor does not physically touch the shaft, it eliminates mechanical wear and allows for continuous oversight at extremely high rotational speeds.

Engineered for Extreme Industrial Environments

Emerson designed the EPRO PR6423 series to survive the rigorous conditions found in power generation and petrochemical facilities. The sensor features a hermetically sealed construction that resists the ingress of moisture, oil, and chemical contaminants. Moreover, the rugged housing withstands significant thermal fluctuations and mechanical shocks typical of large-scale industrial assets like steam turbines, compressors, and large pumps. This environmental resilience ensures signal stability and prevents data drift, providing a reliable foundation for predictive maintenance programs in the most demanding process sectors.

Seamless Integration and System Reliability

The CON041 configuration simplifies the electrical connection within a larger machine protection system (MPS). The sensor integrates flawlessly with Emerson’s vibration monitoring racks, converting physical displacement into a standardized proportional voltage signal. This compatibility facilitates easy calibration and loop-checking during system commissioning. Furthermore, the low-impedance output design minimizes the impact of external electromagnetic interference (EMI), ensuring that the data transmitted to the DCS remains clean and actionable. This high signal-to-noise ratio is vital for detecting subtle frequency shifts that indicate early-stage equipment fatigue.

Technical Specifications
