Description

Product Overview

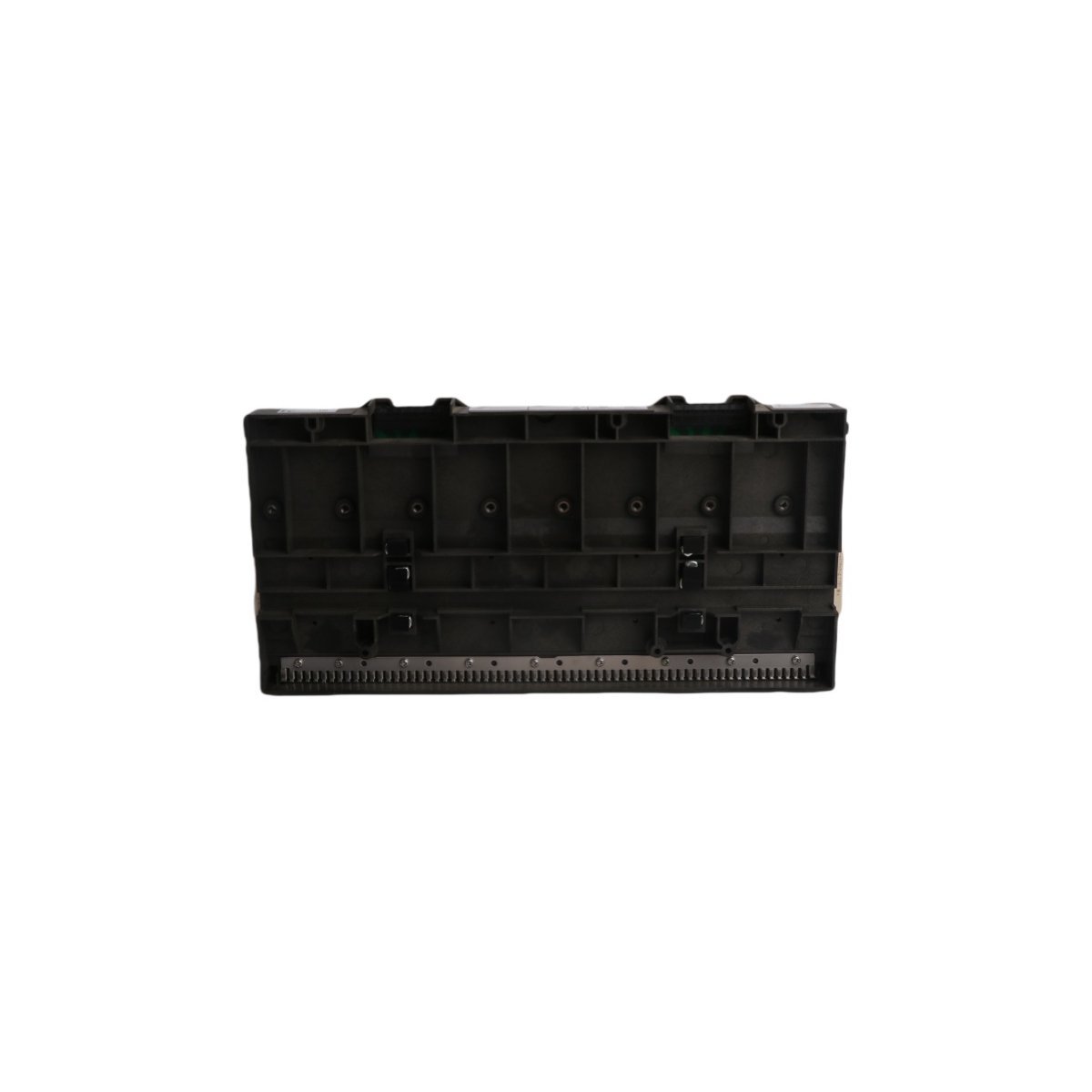

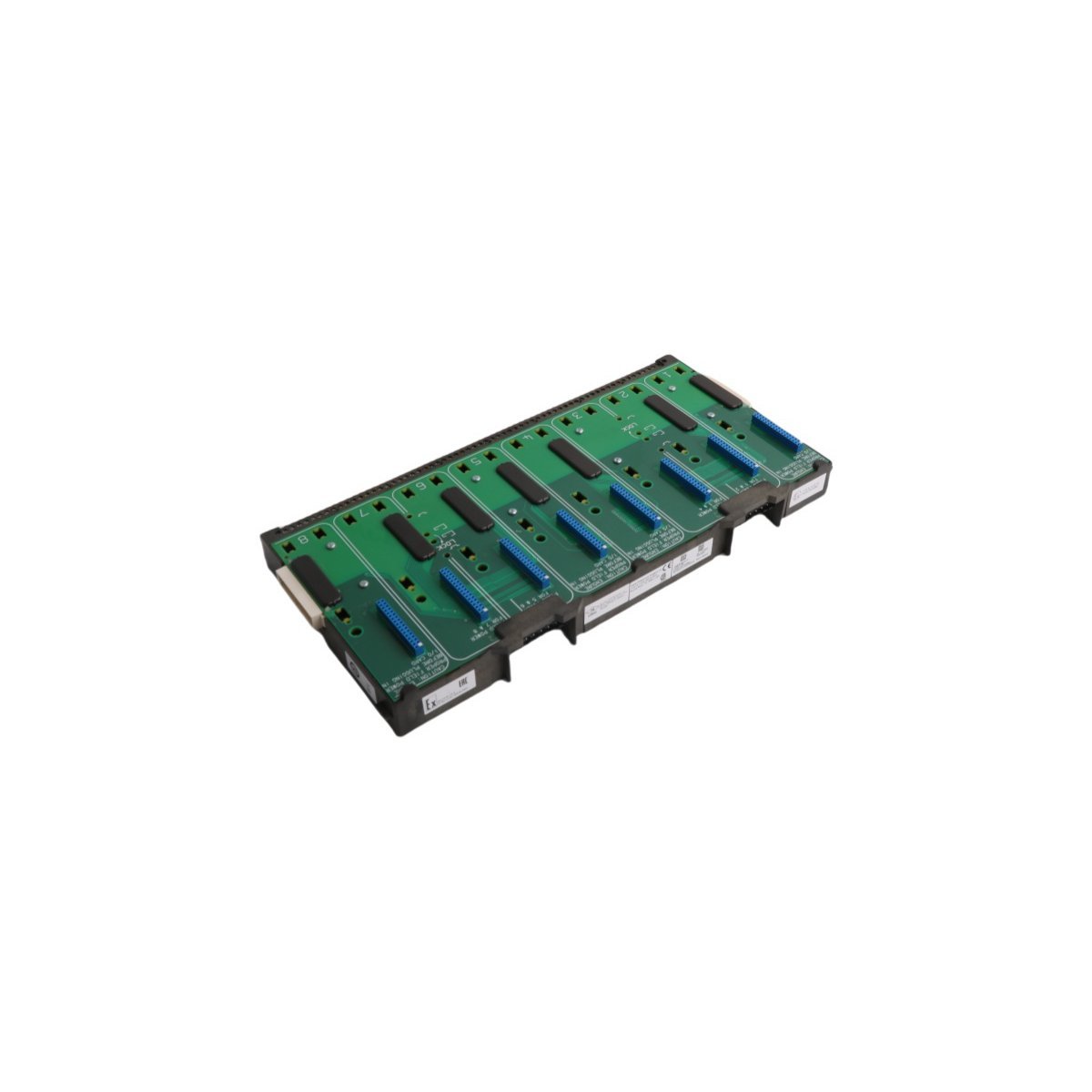

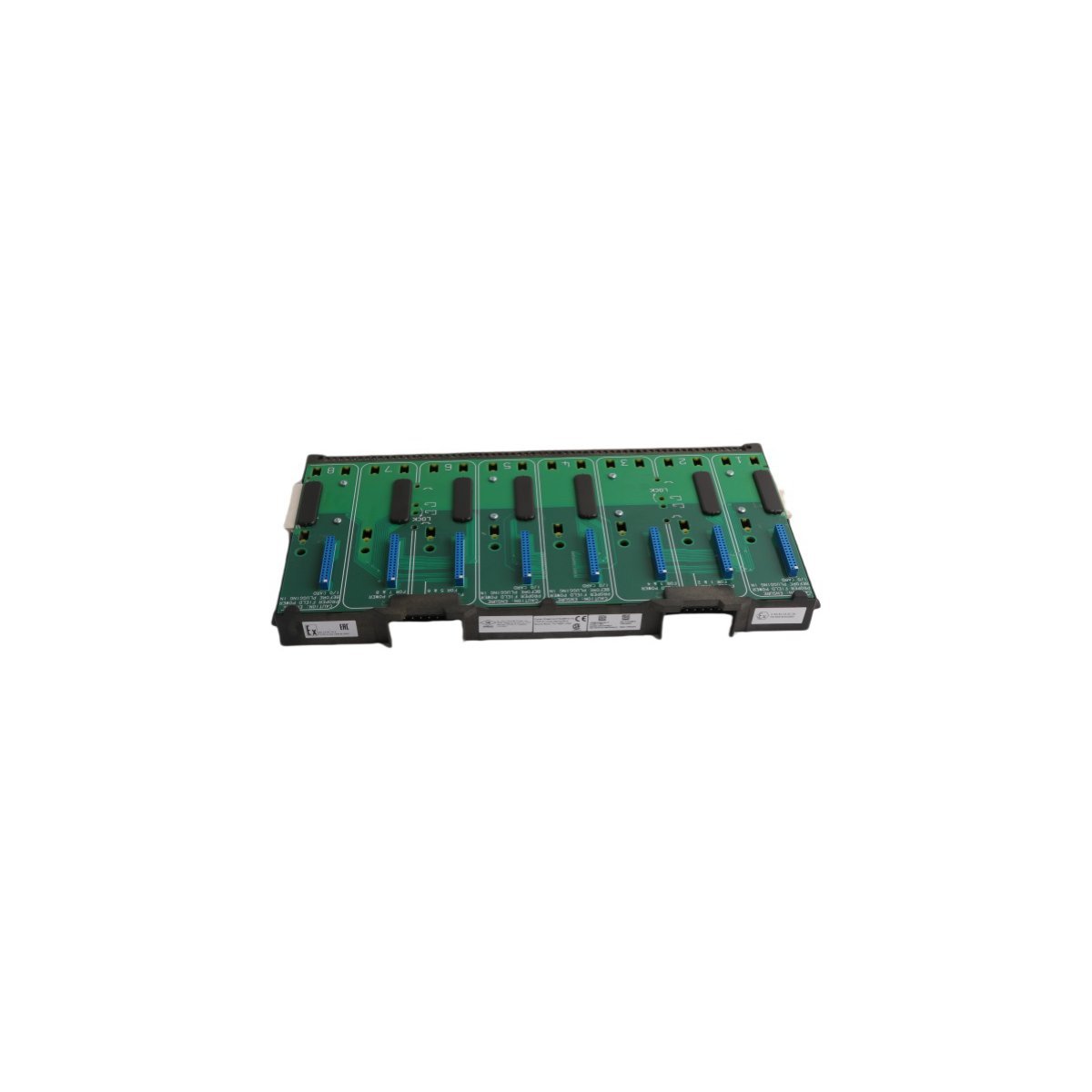

The Emerson KJ4001X1-BE1 (Part Number 12P0818X092, Model VE4050S2K1C0) serves as a foundational structural component for the DeltaV™ M-series I/O Subsystem. This carrier module provides the physical mounting surface and electrical backplane for various I/O cards, enabling them to communicate with the system controllers. By consolidating power distribution and signal routing into a single robust assembly, the carrier simplifies field wiring and ensures the high-speed data flow necessary for complex automation tasks.

Core Applications

System integrators and facility engineers install this I/O carrier to build organized, scalable control architectures. Typical use cases include:

• Providing the primary interface for I/O modules in chemical processing plants.
• Housing distributed I/O nodes in large-scale pharmaceutical manufacturing facilities.
• Managing signal concentration for power generation control systems.
• Facilitating modular expansion of DeltaV DCS networks in oil and gas refineries.

Functional Characteristics

The KJ4001X1-BE1 enhances system modularity and durability through several key engineering features:

• Facilitates Rapid System Expansion: The carrier design supports multiple I/O slots, which allows technicians to add or replace modules without disturbing the permanent field wiring or disrupting the entire backplane.
• Ensures Reliable Power Distribution: The internal backplane distributes redundant power to all attached I/O cards, ensuring that a single power supply failure does not compromise the process control loop.
• Resists Mechanical Stress: Engineered for industrial environments, the module withstands high vibrations and a wide temperature range, protecting sensitive electronic components from physical fatigue.
• Streamlines Network Connectivity: Integrated communication pathways and Ethernet compatibility allow the carrier to bridge local I/O signals with the broader plant network, enhancing overall system flexibility.
• Adheres to Global Safety Standards: Compliance with ISO 9001 and CE certifications ensures that the hardware meets rigorous quality control and safety benchmarks for international industrial use.

Technical Specifications

• Brand: Emerson
• Model Number: KJ4001X1-BE1
• Part Number: 12P0818X092
• Order Code: VE4050S2K1C0
• Product Type: I/O Carrier Module
• Subsystem: DeltaV™ M-series
• Mounting Type: DIN Rail or Panel Mount
• Net Weight: 0.72 kg
• Dimensions: 34.6 cm x 17 cm x 3.5 cm
• Country of Origin: USA
