Description

Product Overview

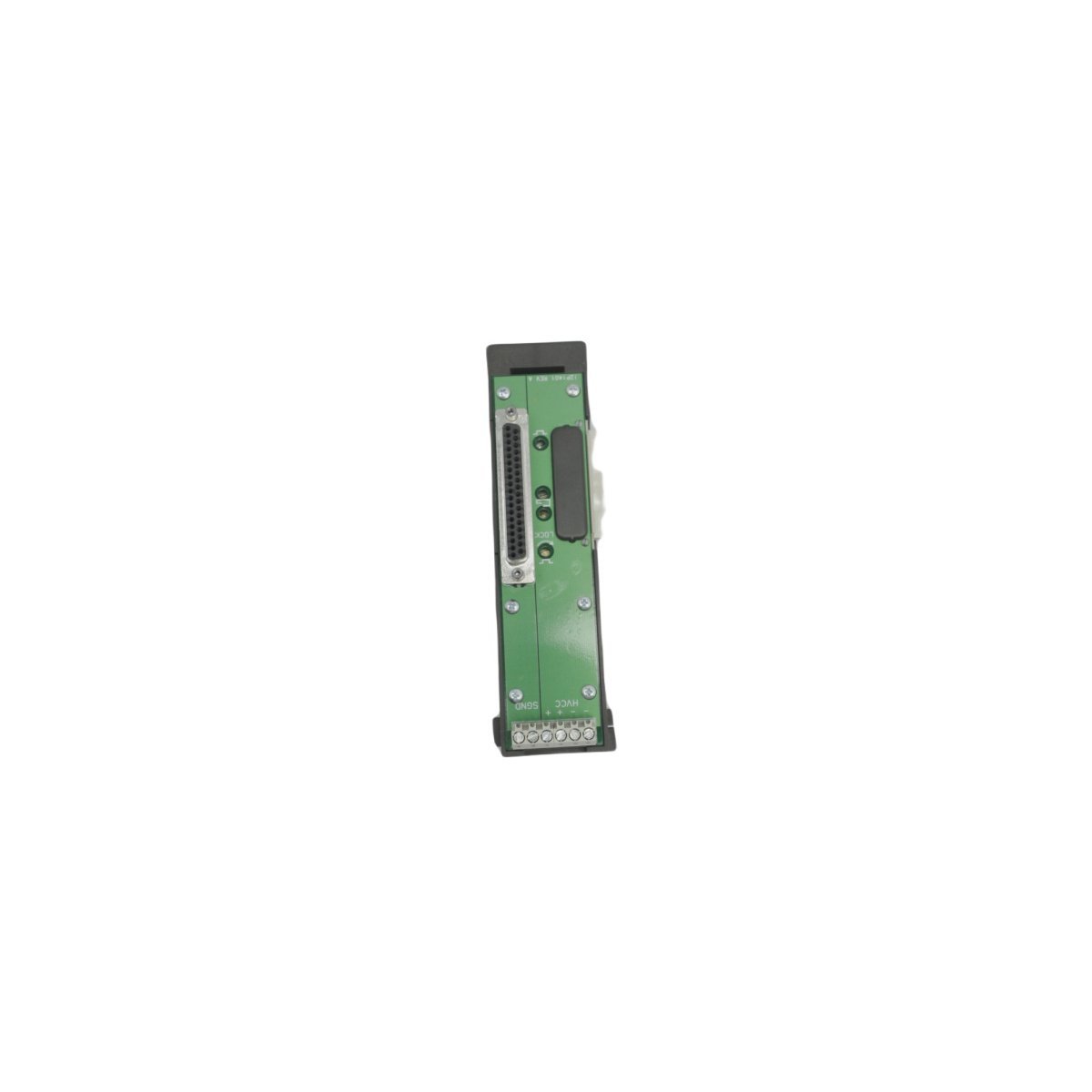

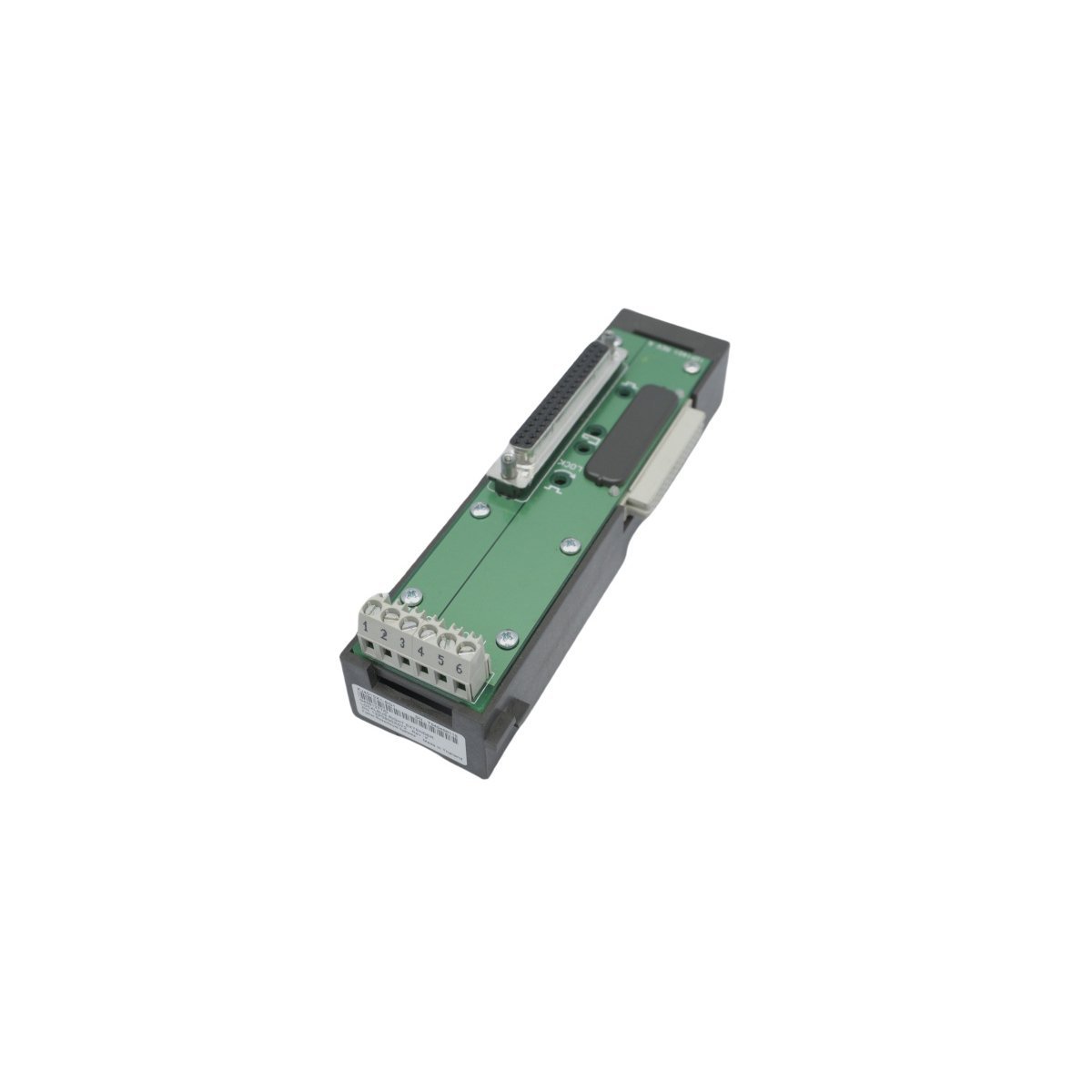

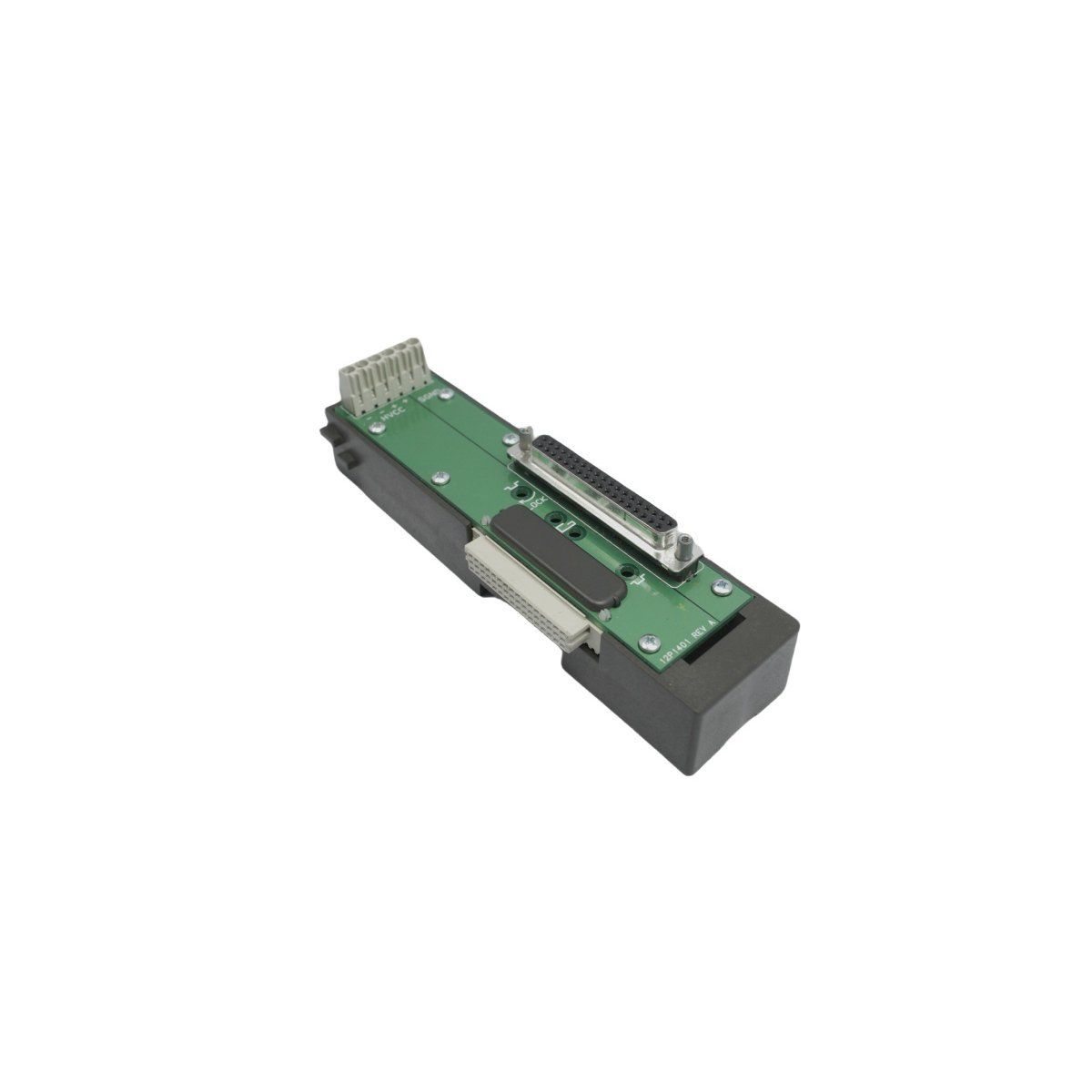

The Emerson KJ4010X1-BG1 (Part Number 12P0830X062) is a specialized bus extension module designed to expand the physical and logical capacity of the DeltaV™ M-series I/O subsystem. It enables the seamless connection of additional I/O carriers to the right side of an existing local bus segment, ensuring high-speed data communication across an expanded controller backplane.

Critical Local Bus Expansion

The KJ4010X1-BG1 serves as the primary hardware bridge for horizontal system growth within a DeltaV cabinet. By installing this right-side extender, engineers can lengthen the local bus to accommodate more functional modules, such as I/O cards and communication interfaces, without needing a secondary controller. This module maintains signal integrity across the extended backplane, preventing data latency or packet loss between the controller and the field-side electronics. Because it facilitates direct bus continuity, the system recognizes expanded I/O as part of the local node, which simplifies overall hardware addressing and configuration.

Industrial Reliability and System Integration

Emerson engineered the 12P0830X062 with a focus on long-term availability and industrial-grade durability. The module features a passive-bridge design that maximizes reliability by minimizing active electronic components that could fail under thermal stress. It integrates natively with DeltaV diagnostic software, allowing the system to monitor the health of the bus extension in real-time. This capability ensures that any physical connection issues are identified immediately before they can cause process disruptions. Furthermore, its compact form factor allows for high-density DIN-rail mounting, making it an essential component for large-scale plant upgrades where cabinet space is limited.

Simplified Maintenance and Scalability

The modular nature of the KJ4010X1-BG1 supports a “build-as-you-grow” philosophy for process automation. Technicians can easily snap the extender onto standard M-series carriers, providing a secure electrical and mechanical locking mechanism. This robust connection withstands the vibrations and environmental fluctuations typical of oil and gas or petrochemical manufacturing facilities. While this specific revision reached a discontinued milestone in late 2018, it remains a critical spare part for maintaining the operational life of existing DeltaV installations. Its straightforward installation process allows for rapid system expansion with minimal engineering overhead.
