Description

Product Overview

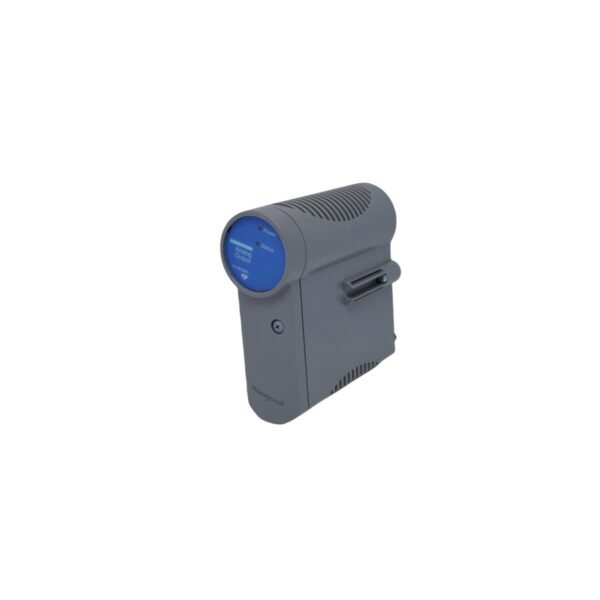

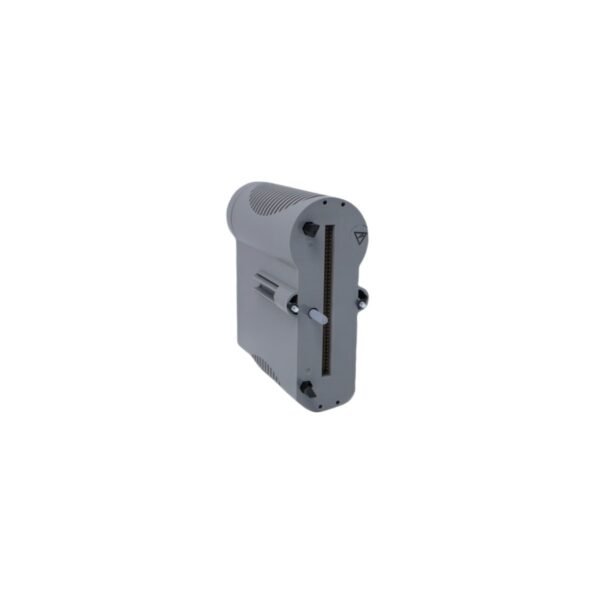

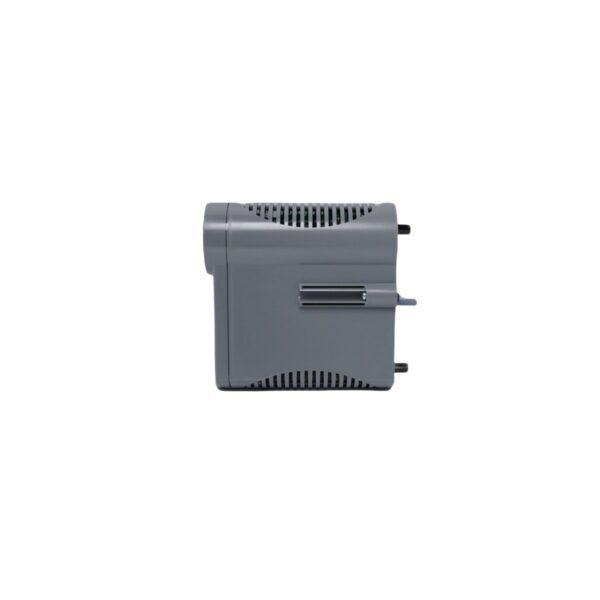

The Honeywell CC-PAON01 is a high-performance Analog Output (AO) module designed for the Experion PKS C300 controller environment. It converts digital control commands into precise 4-20mA signals to drive field equipment like control valves, actuators, and variable speed drives.

Precision Control Signal Transmission

The CC-PAON01 module functions as the executive link between the C300 controller logic and physical process hardware. By delivering stable, high-resolution current signals, this module ensures that final control elements respond with the exact positioning required to maintain process equilibrium. This precision proves essential in high-stakes environments such as pharmaceutical manufacturing and chemical processing, where even minor signal deviations can compromise batch quality. Furthermore, the module maintains signal integrity across its 16 channels, providing a high-density solution that optimizes cabinet space while maximizing control capacity.

Advanced Diagnostics and System Reliability

Honeywell engineered the CC-PAON01 with an emphasis on proactive maintenance and system uptime. The module features integrated diagnostic capabilities that continuously monitor the health of each output loop, detecting open circuits or field-side wiring faults in real-time. Because it integrates natively with the Experion PKS platform, operators receive immediate alerts regarding module status through the system’s human-machine interface (HMI). These diagnostic tools enable technicians to address potential issues before they lead to process shutdowns, thereby enhancing the overall safety and reliability of the industrial plant.

Robust Architecture and Hot-Swap Capability

Designed for the Series C I/O form factor, the CC-PAON01 utilizes a vertical orientation that promotes superior heat dissipation and efficient cable management. The module supports “Hot-Swap” functionality, which allows maintenance personnel to replace a unit while the rest of the system remains powered and operational. This design philosophy minimizes Mean Time to Repair (MTTR) and protects against accidental process interruptions. Additionally, the module’s hardened circuitry provides significant resistance to electromagnetic interference and harsh ambient conditions, ensuring a long service life in unconditioned industrial spaces.

Technical Characteristics
