Description

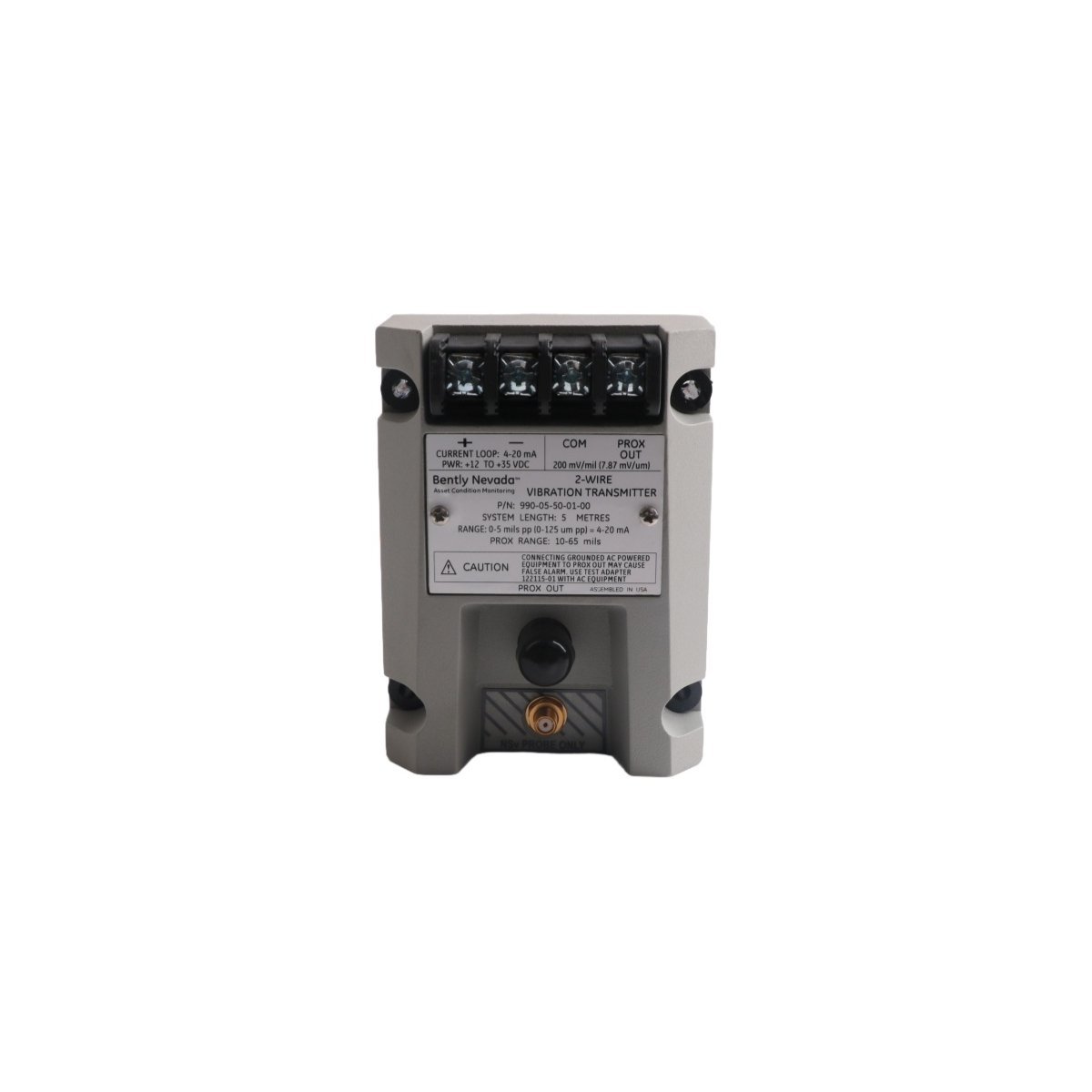

The Bently Nevada 990-05-50-01-00 provides a streamlined solution for non-contact vibration sensing. This transmitter primary serves original equipment manufacturers (OEMs) for asset integration. It effectively monitors radial vibration on pumps, motors, and centrifugal air compressors. By converting eddy current probe signals into stable outputs, it protects rotating components. The device offers a cost-effective alternative to complex rack-based monitoring systems. Consequently, users achieve reliable machinery oversight with simplified hardware requirements.

Signal Conditioning and System Integration

This transmitter accepts high-frequency inputs from a 3300 NSv proximity probe. It then produces a proportional 4-20 mA signal for various control architectures. The standard measurement range covers 0 to 5 mils peak-to-peak displacement. Furthermore, the unit supports a total system length of 5.0 meters (16.4 feet). This configuration allows for flexible probe placement relative to the transmitter location. The loop-powered architecture simplifies field wiring by using only two conductors.

Robust Hardware and Installation Features

The compact housing facilitates mounting in dense electrical cabinets or junction boxes. Integrated 35 mm DIN rail clips ensure a secure mechanical installation. Additionally, the transmitter maintains high signal accuracy across a wide supply voltage range. It operates reliably between +12 Vdc and +35 Vdc power inputs. The unit also includes internal current limiting to prevent loop overloads. Its high-resistance capacity allows for long cable runs without losing signal precision.

Technical Performance Summary

Optimized Maintenance and Safety

The transmitter design minimizes installation complexity for field technicians. It provides a dedicated Prox Out terminal for diagnostic troubleshooting. Technicians use this port to view raw vibration waveforms with an oscilloscope. Therefore, maintenance teams can verify sensor health without interrupting the 4-20 mA loop. The device features advanced RFI/EMI immunity for electrically noisy environments. This protection ensures data stability near variable frequency drives and large motors.
