Description

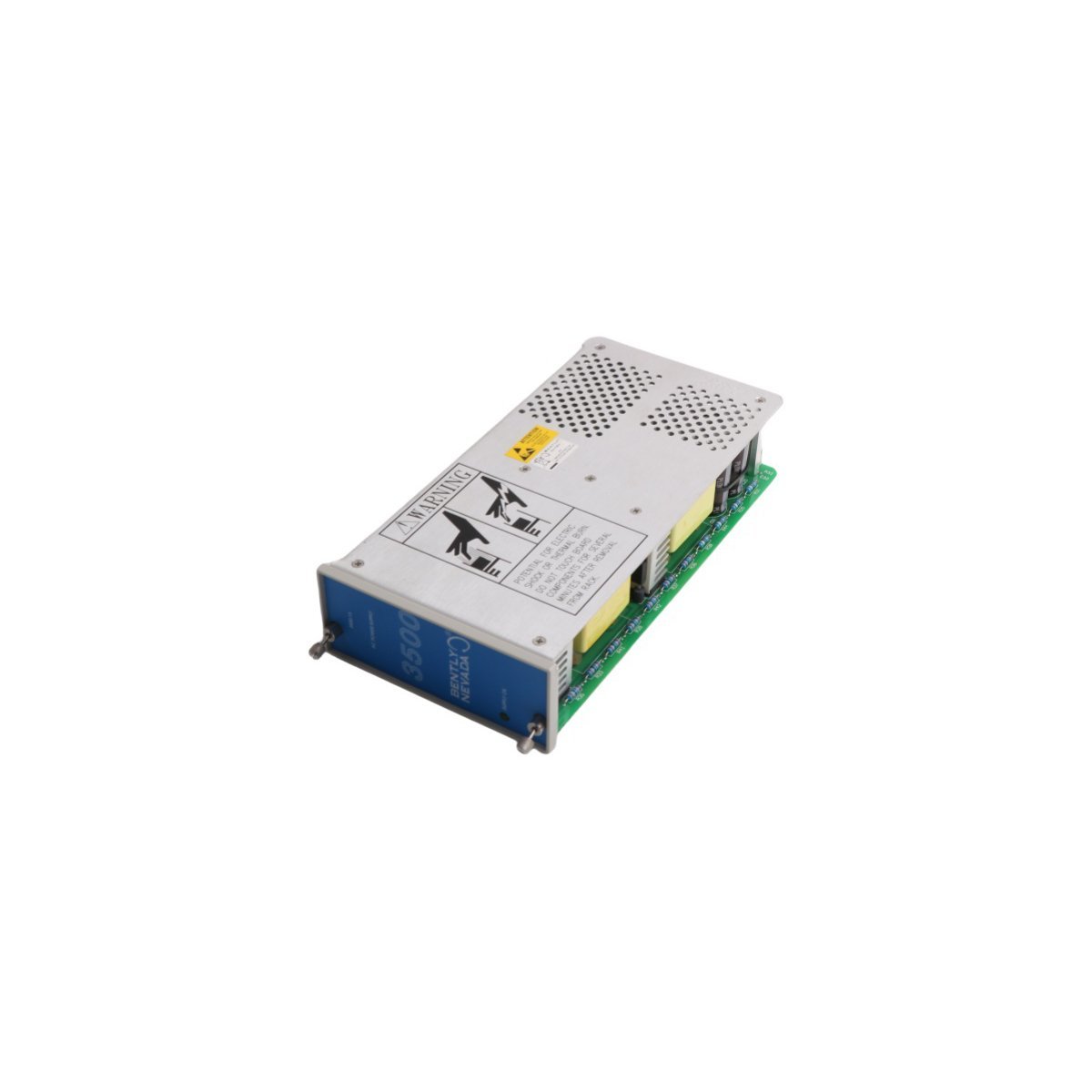

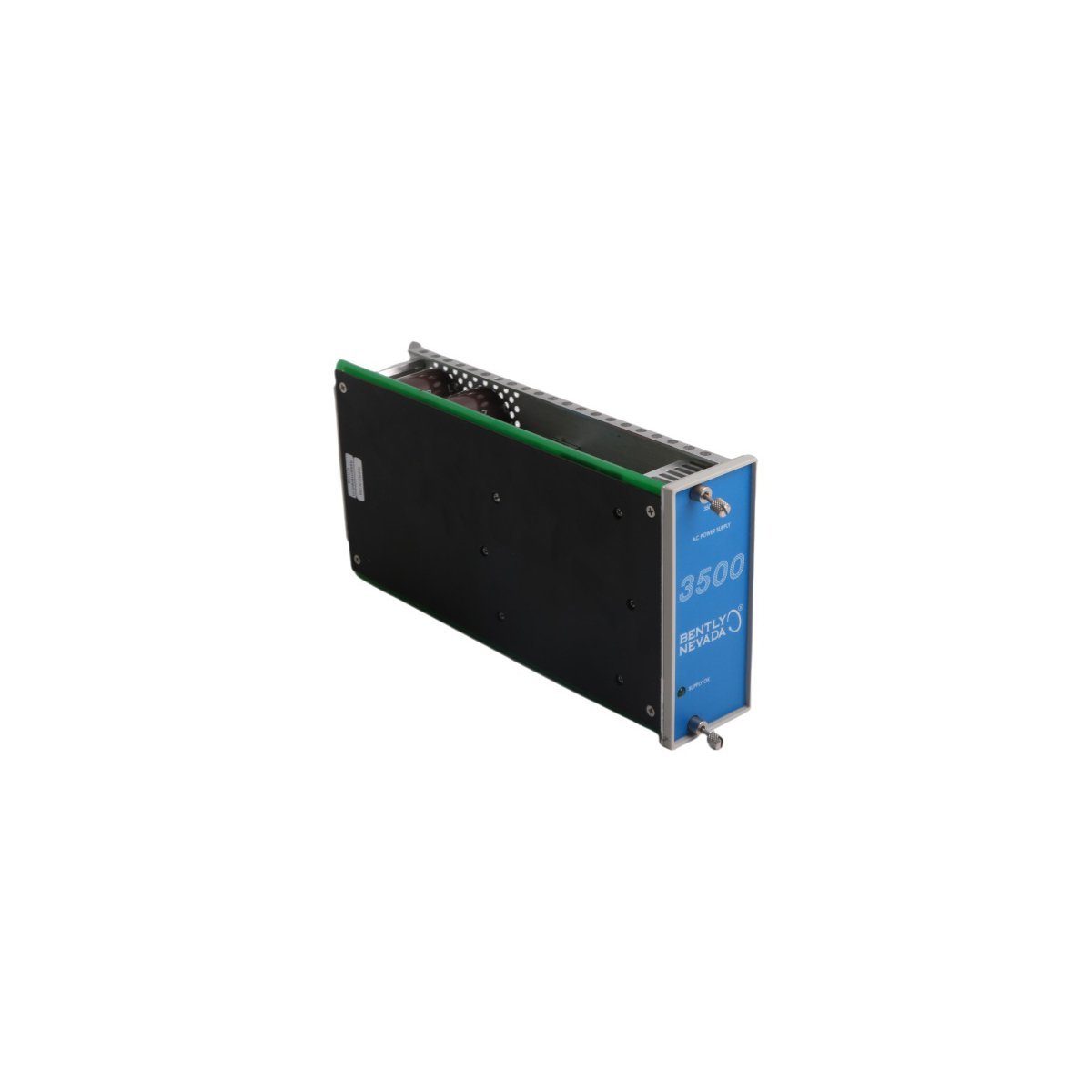

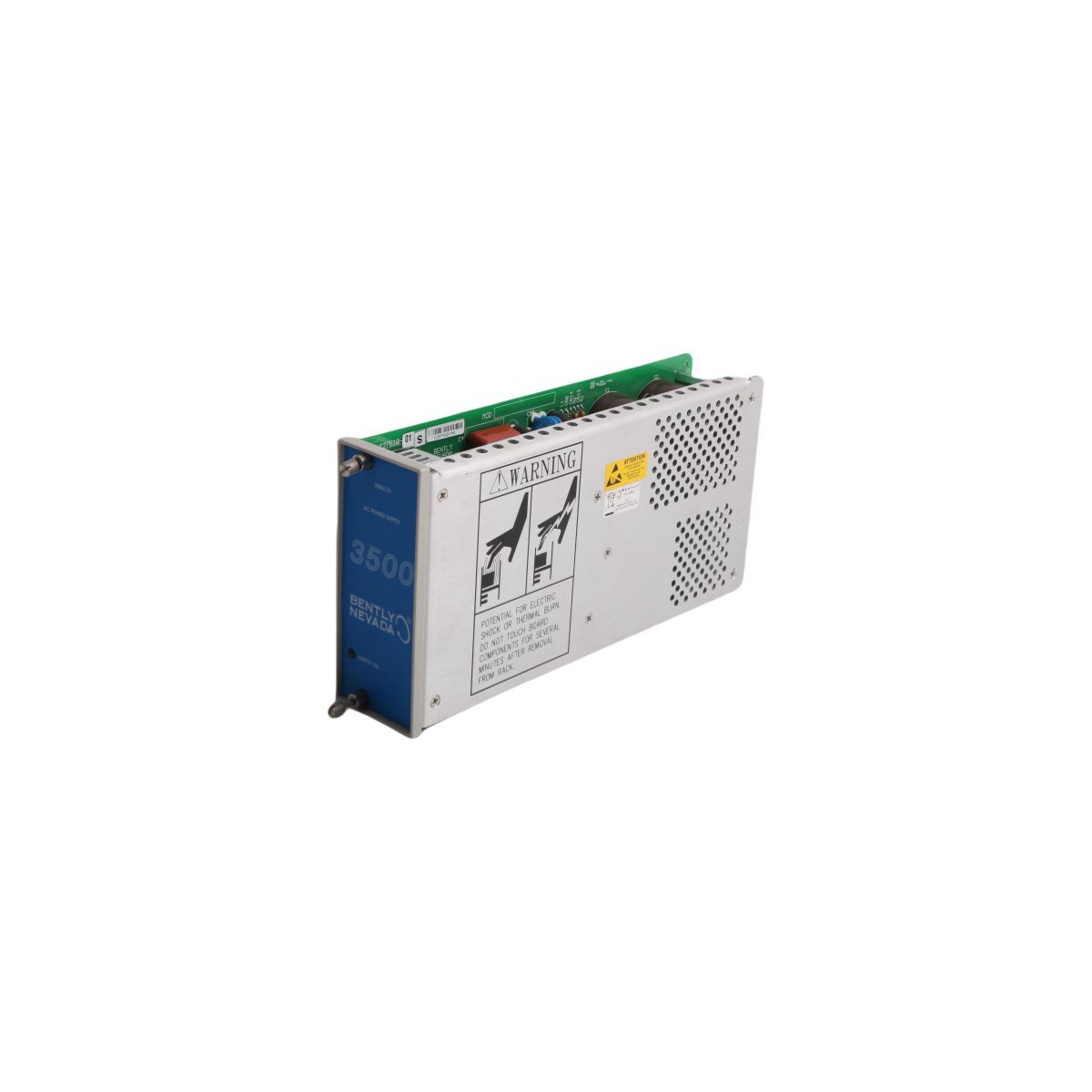

Bently Nevada 3500/15 127610-01 High AC Power Supply Module

The Bently Nevada 3500/15 127610-01 serves as a high-performance power conversion module specifically designed for the 3500 Series Machinery Protection System. This half-height module resides in the left-most slots of the 3500 rack, where it converts supplied input power into the regulated DC voltages necessary for all other installed modules. Because machinery protection systems require 24/7 availability, this module utilizes high-quality filtering to eliminate electromagnetic interference and maintain stable operation. Moreover, the 3500/15 supports both single power supply configurations and redundant setups to prevent system failure during a primary power loss.

Operational Characteristics and Benefits

• Reliable Power Distribution: This module ensures that every monitor and interface card in the rack receives stable, noise-free DC power for accurate sensor readings.
• Redundancy Support: Users can install two power supply modules in a single rack, which allows the system to switch sources automatically without interrupting machinery protection.
• Integrated Safety Features: The 127610-01 includes sophisticated over-voltage and short-circuit protection to shield the entire rack from external electrical faults.
• Efficiency and Thermal Management: With an efficiency rating exceeding 92%, the unit minimizes heat generation, thereby extending the service life of adjacent electronic components.
• Diagnostic Monitoring: The 3500 system continuously monitors the health of the power supply and provides immediate status alerts through the Rack Interface Module (RIM).

Technical Specifications

FAQ

Can I mix different voltage versions of the 3500/15 in a redundant setup?

It is technically possible if the rack backplane supports it, but standard practice recommends using two identical 127610-01 modules to ensure consistent power load sharing.

Does this module include the input connector header?

The power supply module typically slides into the front of the rack, while the input power reaches the module through a corresponding Power Input Module (PIM) located at the rear.

What is the significance of the “High AC” designation?

The 127610-01 is designed for standard facility mains (110V/220V). If your facility uses 24V DC, you would require the “Low DC” version of the 3500/15 instead.

How do I verify if the power supply is failing?

The front panel of the 3500 rack features status LEDs, and the 3500 Rack Configuration Software provides detailed voltage output diagnostics for each supply module.
