Description

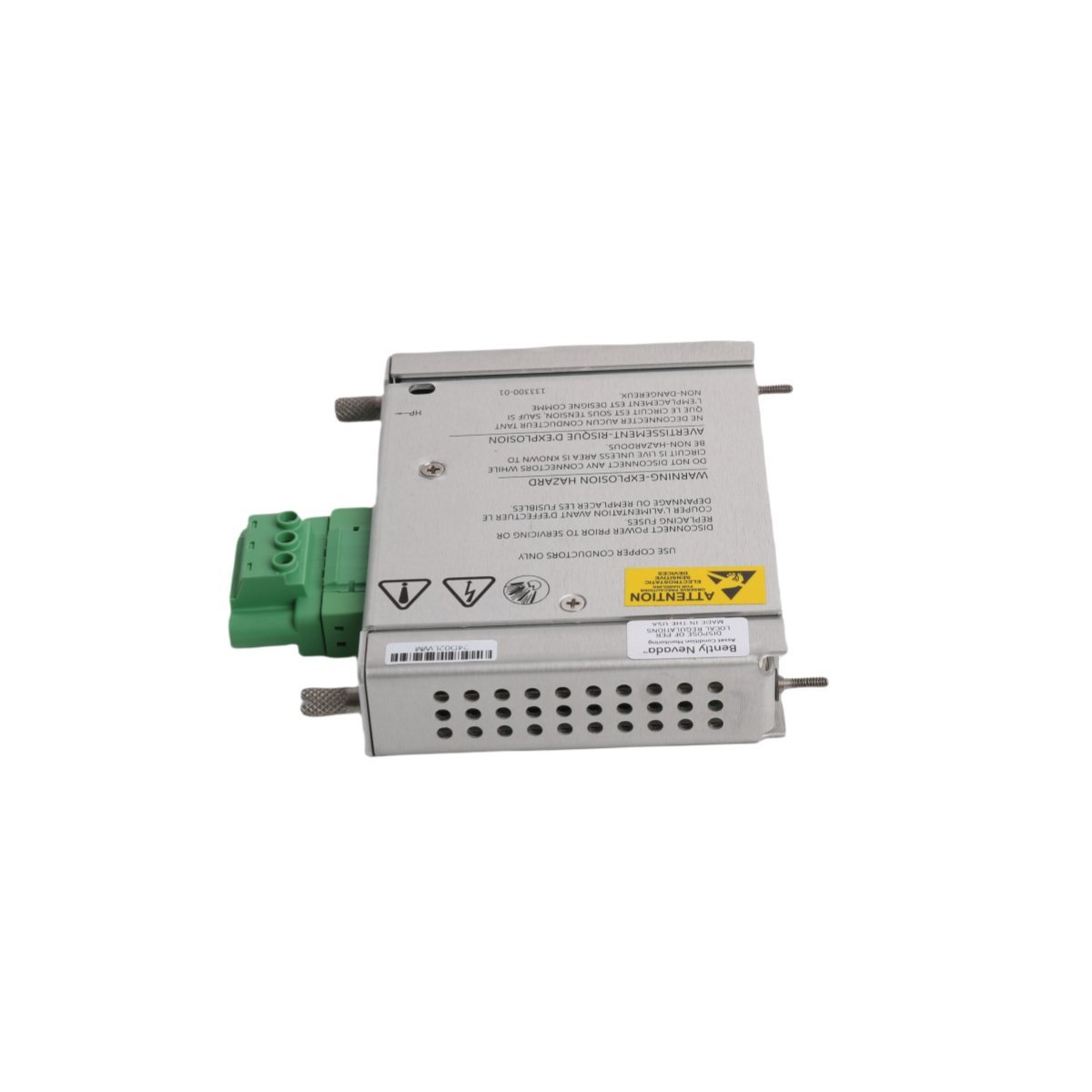

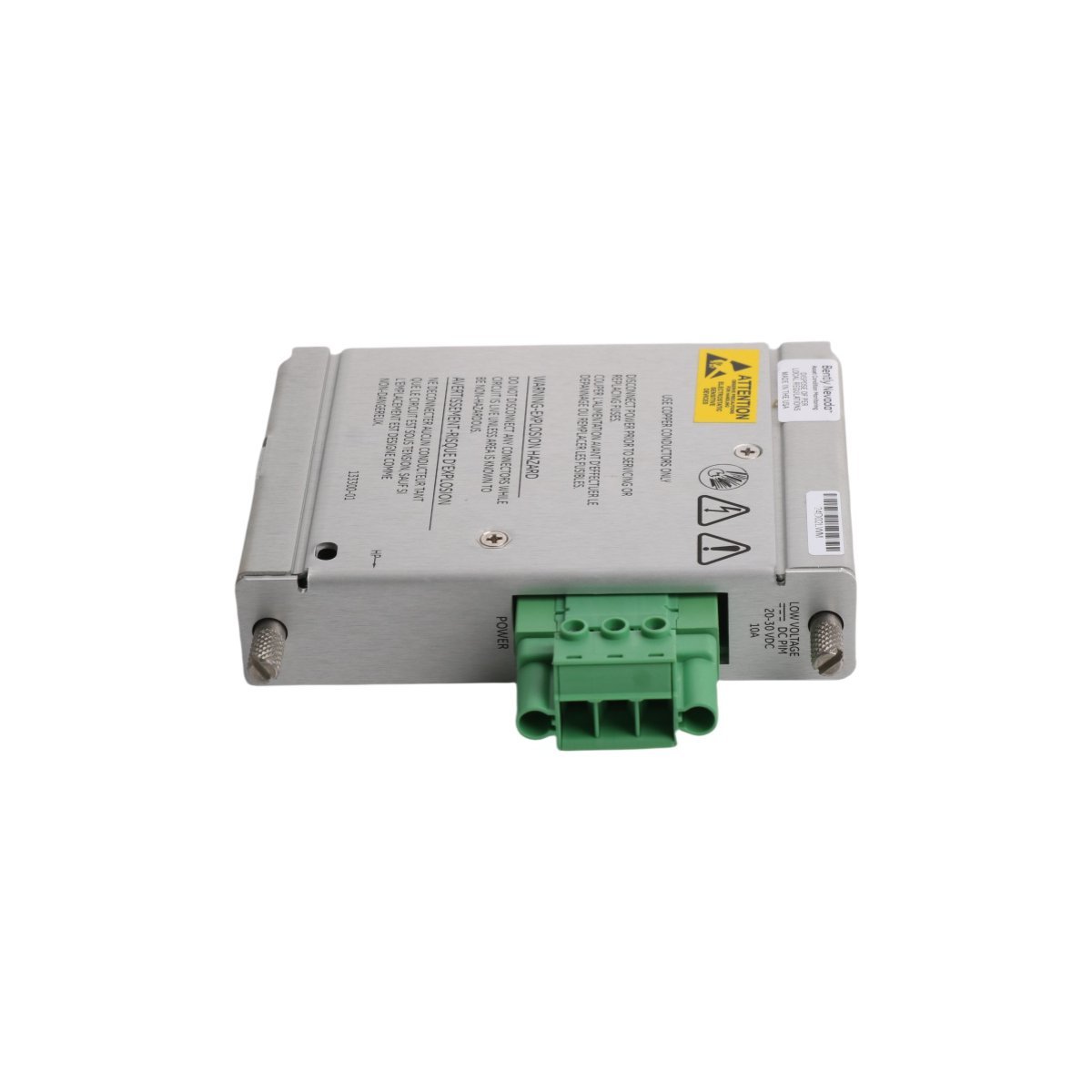

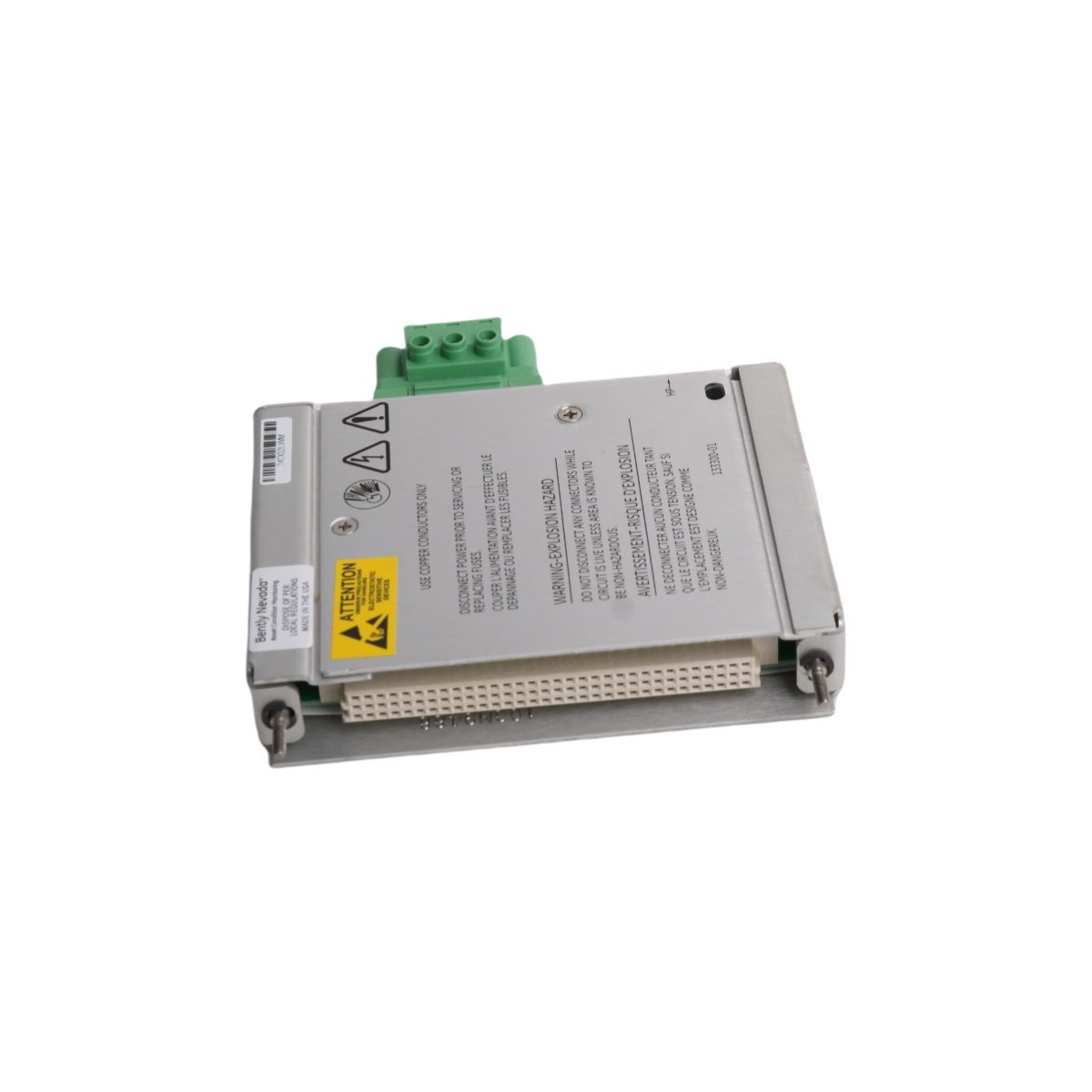

The Bently Nevada 3500/15-04-04-01 serves as a critical power interface for the 3500 Machinery Protection System. This Low Voltage DC Power Input Module (PIM) resides in the rear of the 3500 rack. It accepts external DC power and distributes it to the internal power supply. Furthermore, the module filters the incoming voltage to protect sensitive monitoring electronics. This process ensures the system receives clean, stable energy for continuous vibration monitoring. Consequently, it supports the overall reliability of the Turbomachinery Instrumentation (TSI) rack.

Advanced Filtering and Circuit Protection

This Power Input Module features high-performance electromagnetic interference (EMI) suppression. It mitigates industrial electrical noise to maintain signal integrity across all monitoring channels. Additionally, the unit includes robust overcurrent protection to safeguard the backplane. The 133300-01 hardware manages low-voltage DC inputs typically ranging from 20V to 30V. This range allows for integration with standard plant battery systems and backup supplies. Therefore, the module maintains system uptime during primary power fluctuations.

Redundant Configuration and Diagnostic Capabilities

Engineers often install two Power Input Modules to create a fully redundant power architecture. The 3500/15-04-04-01 supports this “diode-ORing” configuration to prevent single points of failure. If one input source fails, the other module immediately assumes the full load. Furthermore, the 3500 system provides real-time diagnostics for each power input. Operators can monitor the status of the DC sources via the Rack Configuration Software. This transparency helps maintenance teams identify power issues before they impact machinery protection.

Technical Specifications
