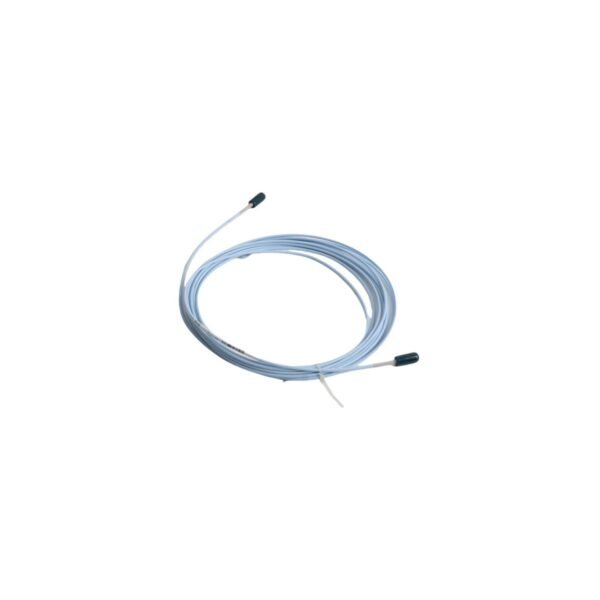

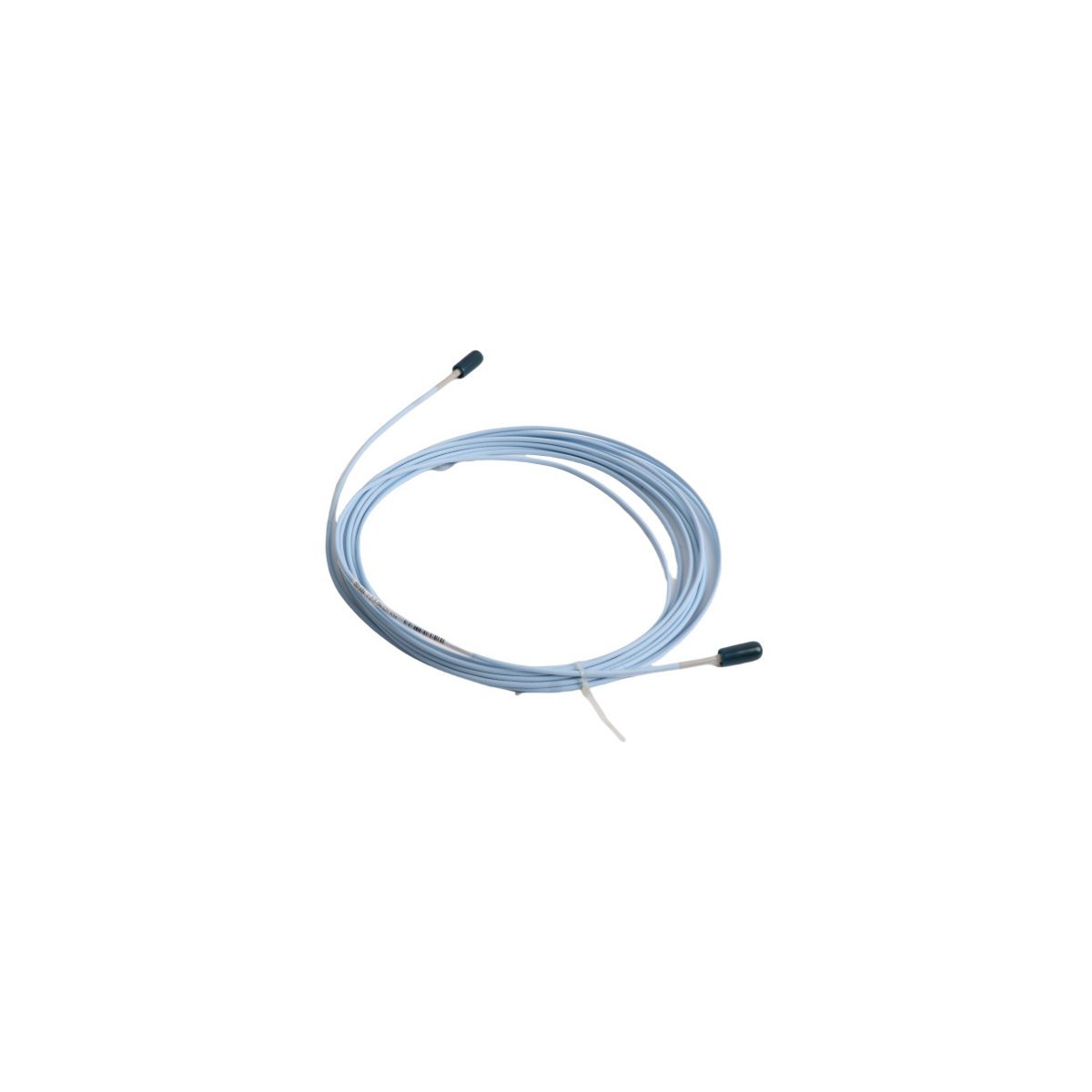

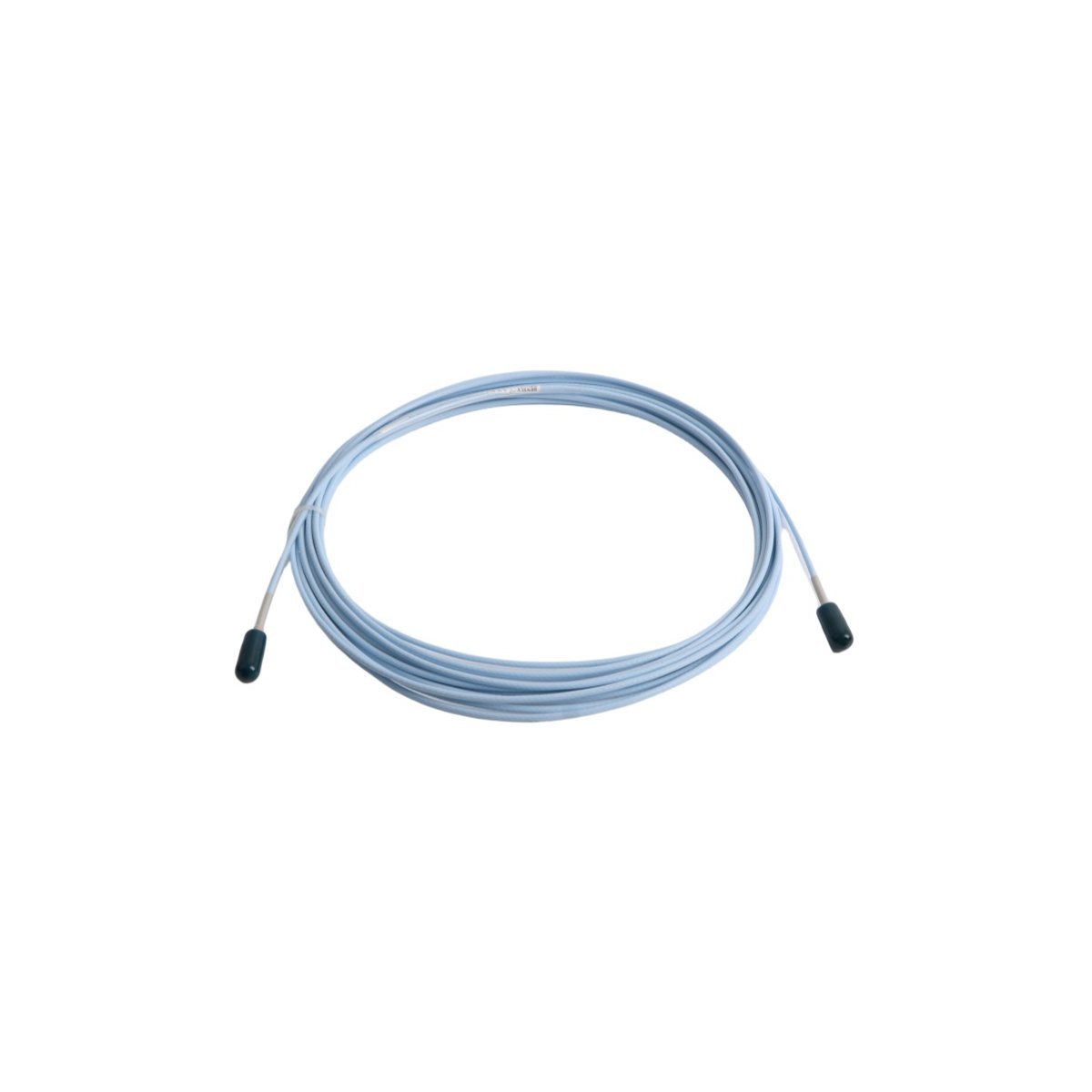

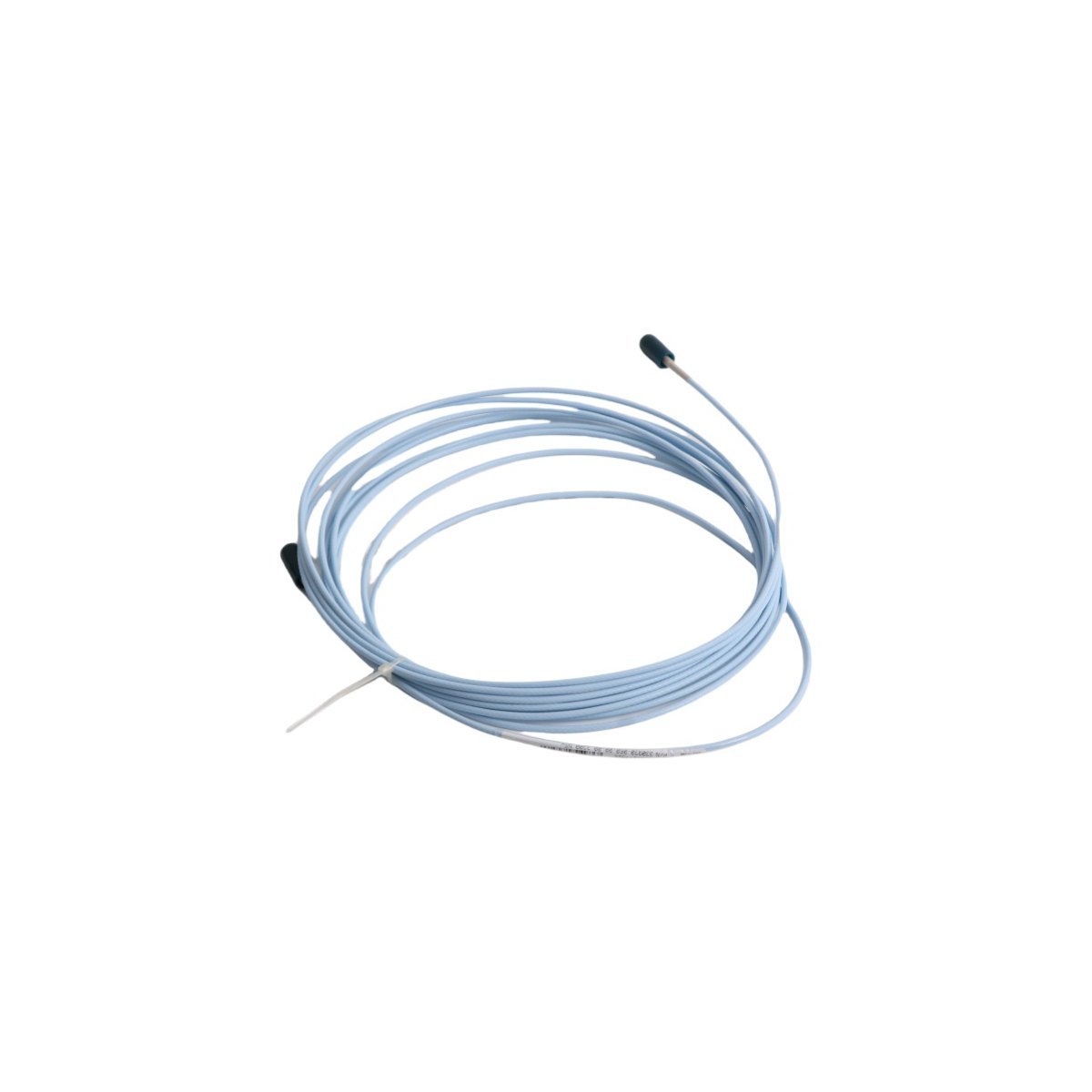

Bently Nevada 330930-060-00-00 3300 NSv Extension Cable

The Bently Nevada 330930-060-00-00 is a high-reliability extension cable specifically engineered for the 3300 NSv (Narrow Side View) Proximity Transducer System. This specialized cable is designed for applications where space constraints or small shaft diameters require the unique sensing characteristics of an NSv probe. It serves as the vital electrical link between the proximity probe and the Proximitor sensor, ensuring the transmission of high-frequency eddy current signals with minimal attenuation or distortion.

Engineering for Narrow Side View Applications

The 3300 NSv system is primarily utilized when standard proximity probes cannot be used due to a lack of sufficient side clearance or when monitoring shafts smaller than 76 mm (3 inches). Specifically, this extension cable is calibrated to maintain the strict electrical properties required for these sensitive measurements. Furthermore, the 330930-060-00-00 is built with advanced shielding to protect the low-level displacement signals from the high levels of electromagnetic interference typically found in industrial motor and turbine environments. Consequently, it allows for precise radial vibration and axial position monitoring in restricted centrifugal and reciprocating machinery spaces.

Technical Specification Matrix

Industrial Durability and Signal Protection

Constructed with a rugged fluoro-polymer jacket, the 330930-060-00-00 extension cable is highly resistant to corrosive agents, lubricating oils, and extreme temperature fluctuations. As a result, it ensures long-term stability for predictive maintenance programs in the power generation and oil and gas sectors. Moreover, the 6.0-meter length provides flexibility for routing from the machine internally to external junction boxes. Therefore, this cable is an essential component for facilities that require high-resolution data to detect early signs of mechanical fatigue, rotor imbalance, or bearing degradation in small-bore machinery.

FAQ

What makes the NSv system different from standard 3300 XL systems?

The NSv (Narrow Side View) system is designed for environments where the probe must be mounted in tight spaces or near conductive surfaces that would interfere with a standard probe’s magnetic field. Specifically, this extension cable must be used with NSv-specific probes and Proximitors to ensure the system reaches its intended 100 mV/mil or 200 mV/mil scale factor.

How does the 6.0-meter length affect system calibration?

Bently Nevada proximity systems are length-dependent. Accordingly, the Proximitor sensor must be calibrated for a total system length (probe plus cable) that matches the hardware. If your Proximitor is designed for a 7.0-meter system and you use a 1.0m probe, this 6.0m extension cable is the correct choice to maintain linear accuracy.

What are the benefits of the gold-plated ClickLoc connectors?

The gold-plated connectors on the 330930-060-00-00 offer superior conductivity and corrosion resistance. In addition, the ClickLoc mechanism provides a tactile “click” to confirm a secure connection, preventing the cables from vibrating loose over time. Ultimately, this secure interface is critical for preventing signal spikes that could lead to false machinery trips.

Can this cable be used in hazardous areas?

Yes, when used as part of a certified Bently Nevada transducer system and connected to appropriate safety barriers or monitors, this cable is suitable for use in various hazardous area classifications. Consequently, it is widely adopted for monitoring critical assets in explosive gas or dust environments.
