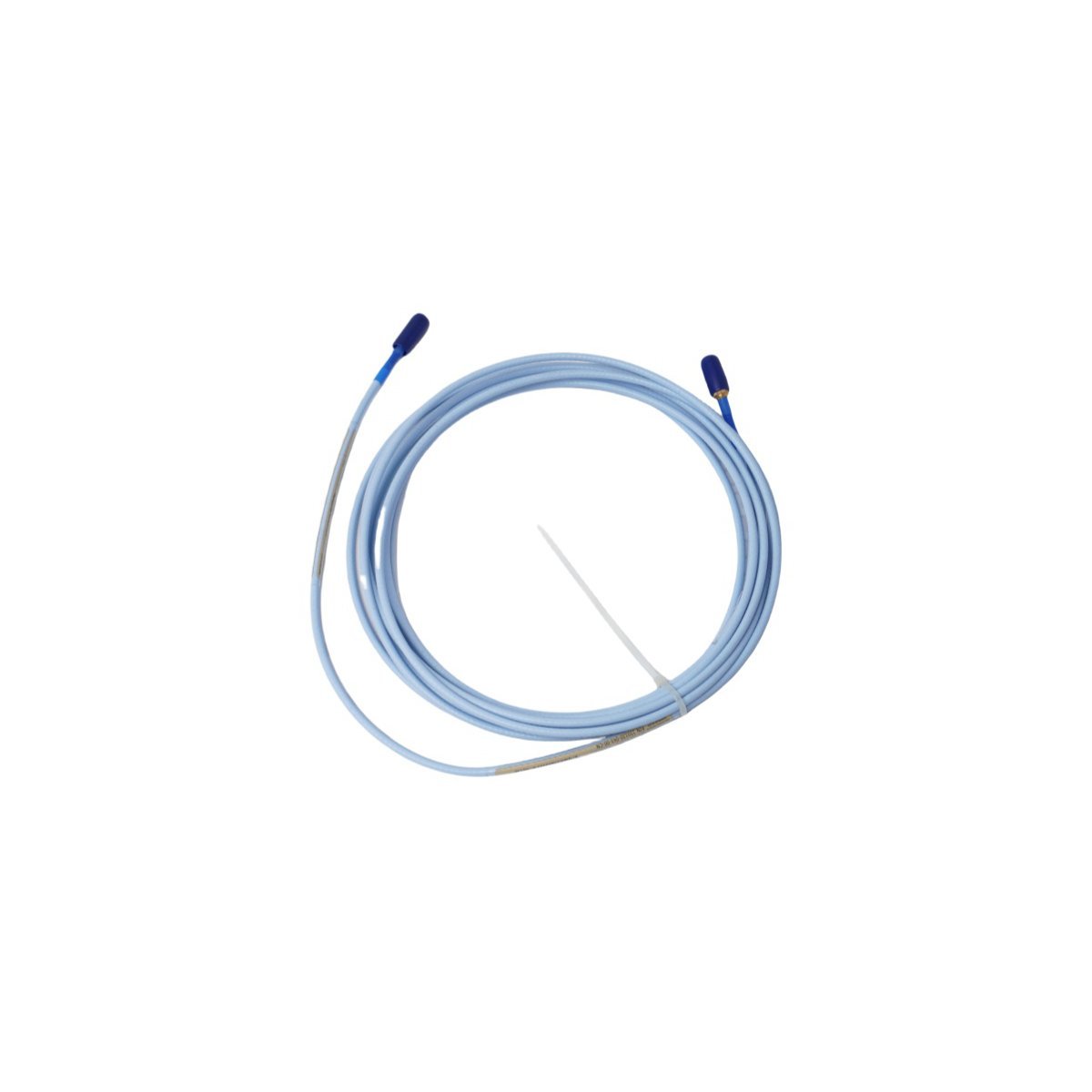

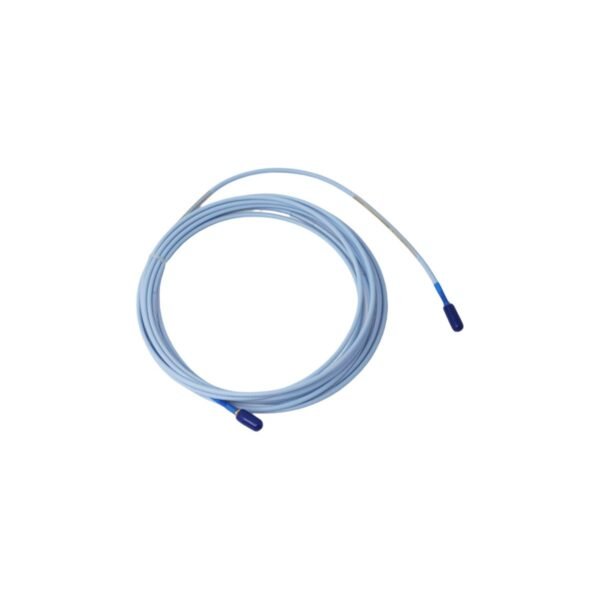

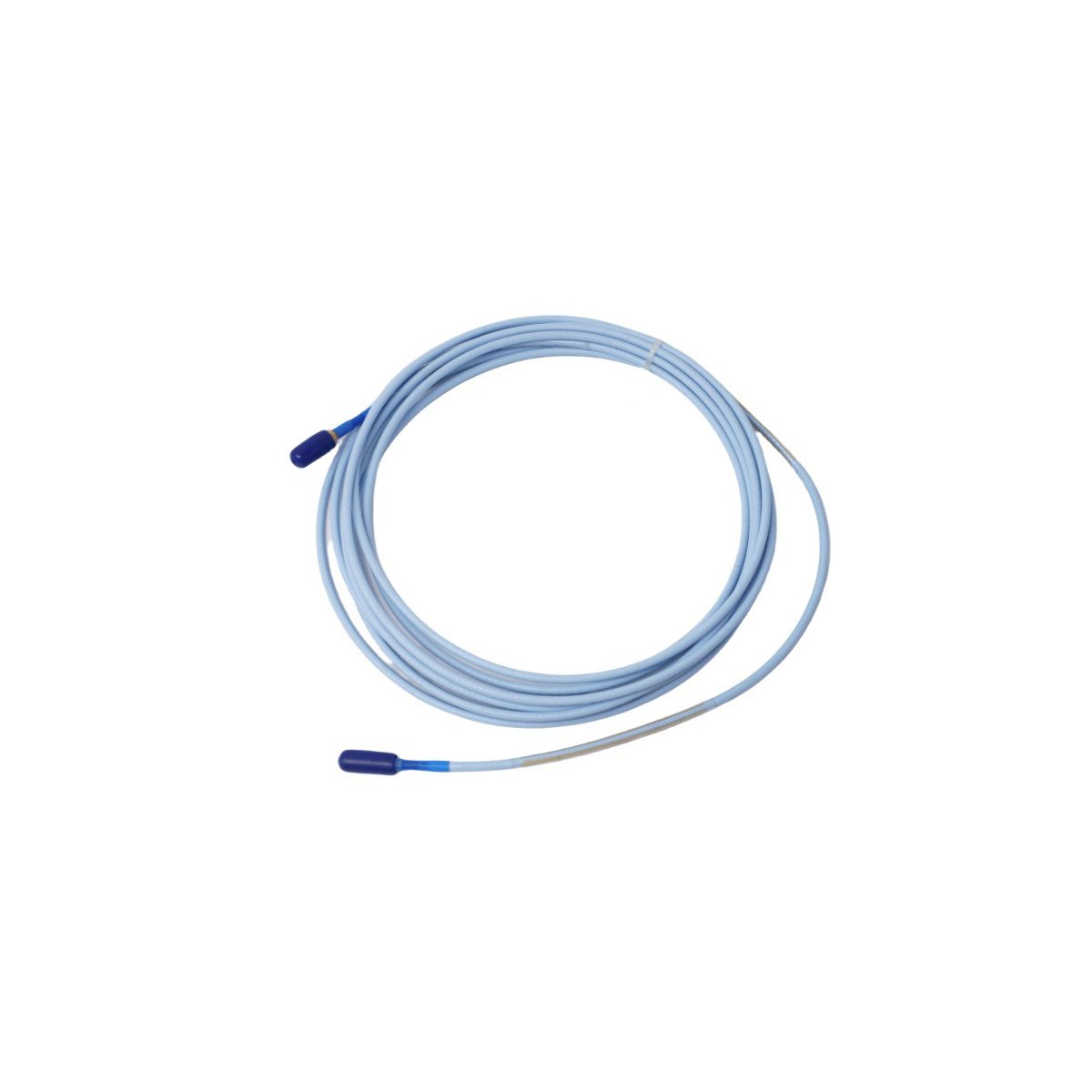

Bently Nevada 330930-045-00-CN 3300 NSv Proximity Extension Cable

The Bently Nevada 330930-045-00-CN is a high-precision extension cable engineered for the 3300 NSv (Near Surface version) Proximity Transducer System. This specialized component is designed for applications where space constraints or small shaft diameters make standard proximity probes unsuitable. The cable serves as the critical electrical bridge between the NSv probe and the Proximitor sensor, ensuring the transmission of clean, unattenuated displacement signals in compact machinery environments.

Precision Signal Transmission for Narrow Clearances

The NSv system is specifically optimized for measuring vibration and position in confined spaces where the probe tip must be small. Specifically, the 330930-045-00-CN cable maintains the strict electrical impedance required for the 3300 NSv system’s calibration. Furthermore, the cable is designed to provide a linear response even when the probe is installed near the edges of a target, a common requirement in small centrifugal compressors or high-speed gearboxes. As a result, operators can monitor critical shaft dynamics with the same level of confidence provided by larger-scale monitoring systems.

Technical Specification Matrix

Robust Construction and Hazardous Area Compliance

Designed to survive the rigors of industrial process environments, the 330930-045-00-CN utilizes a high-temperature FEP jacket that is impervious to common turbine oils and chemical exposure. Moreover, the “CN” suffix ensures that this specific model meets regional regulatory requirements for safety in explosive or volatile atmospheres. In addition, the ClickLoc connectors feature a specialized lock-and-stay mechanism that prevents accidental disconnection during high-frequency machine vibration. Therefore, this cable is an essential asset for long-term reliability in condition-based maintenance programs across the energy and manufacturing sectors.

FAQ

Why is the NSv cable different from a standard 3300 XL cable?

The NSv (Near Surface version) system is electrically tuned to a different frequency to accommodate smaller probe tips. Specifically, using a standard 8 mm XL cable with an NSv probe will cause significant calibration errors. Accordingly, always ensure that the cable part number specifically belongs to the NSv series.

What total system length is achieved with this 4.5-meter cable?

When paired with a 0.5-meter NSv probe, this extension cable creates a 5.0-meter total system length. Furthermore, your 3300 NSv Proximitor sensor must be calibrated for a 5-meter total electrical length to provide accurate displacement data.

Is this cable suitable for high-temperature turbine environments?

Yes, the cable is rated for continuous operation up to 177 °C. Consequently, it is ideal for installation within bearing housings or near steam paths where heat would degrade standard commercial-grade cabling.

How do I ensure the connection remains secure in high-vibration areas?

The 330930-045-00-CN uses the ClickLoc connector system. Ultimately, these gold-plated connectors are designed to be hand-tightened until they “click,” providing a mechanically and electrically secure interface that resists loosening under extreme centrifugal forces.
