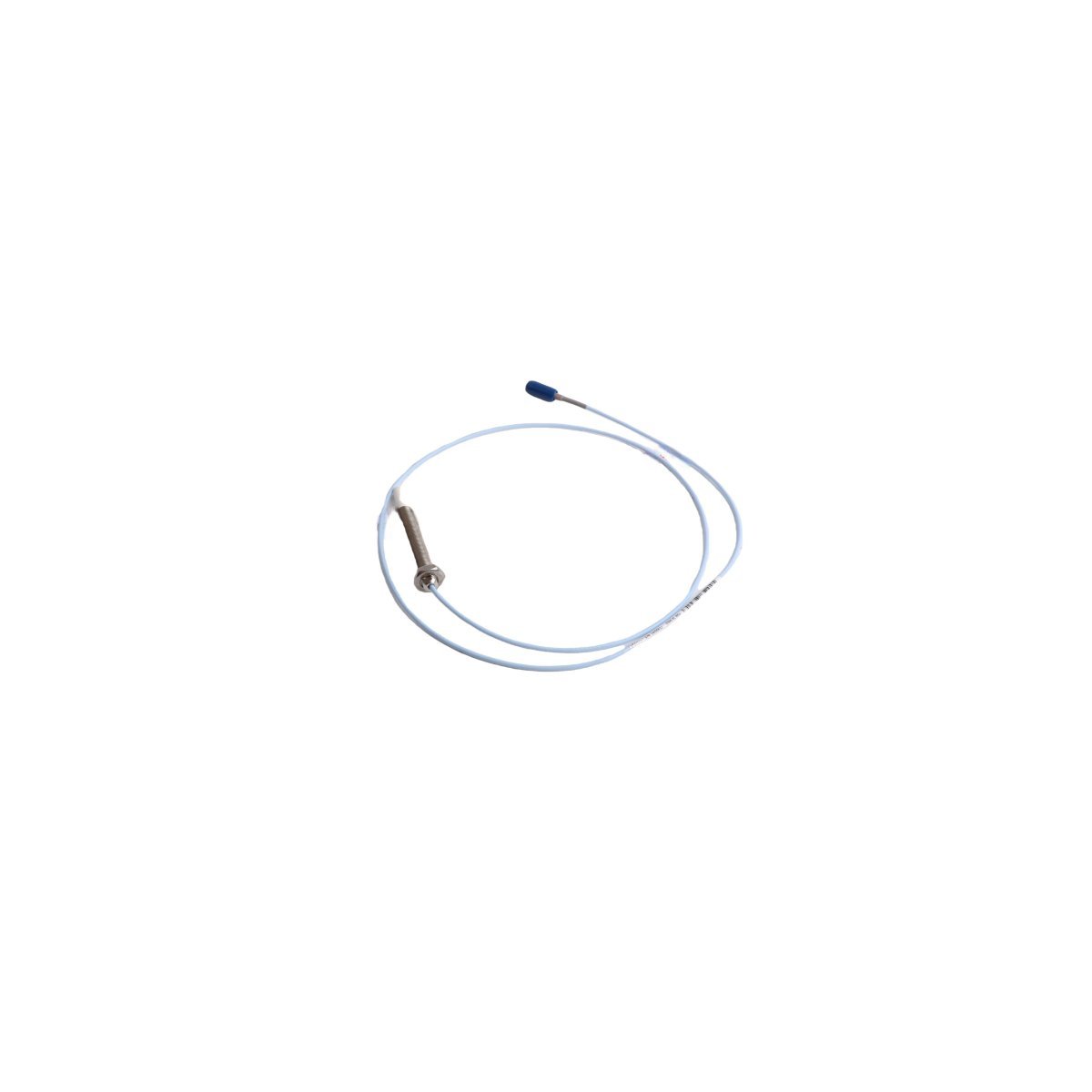

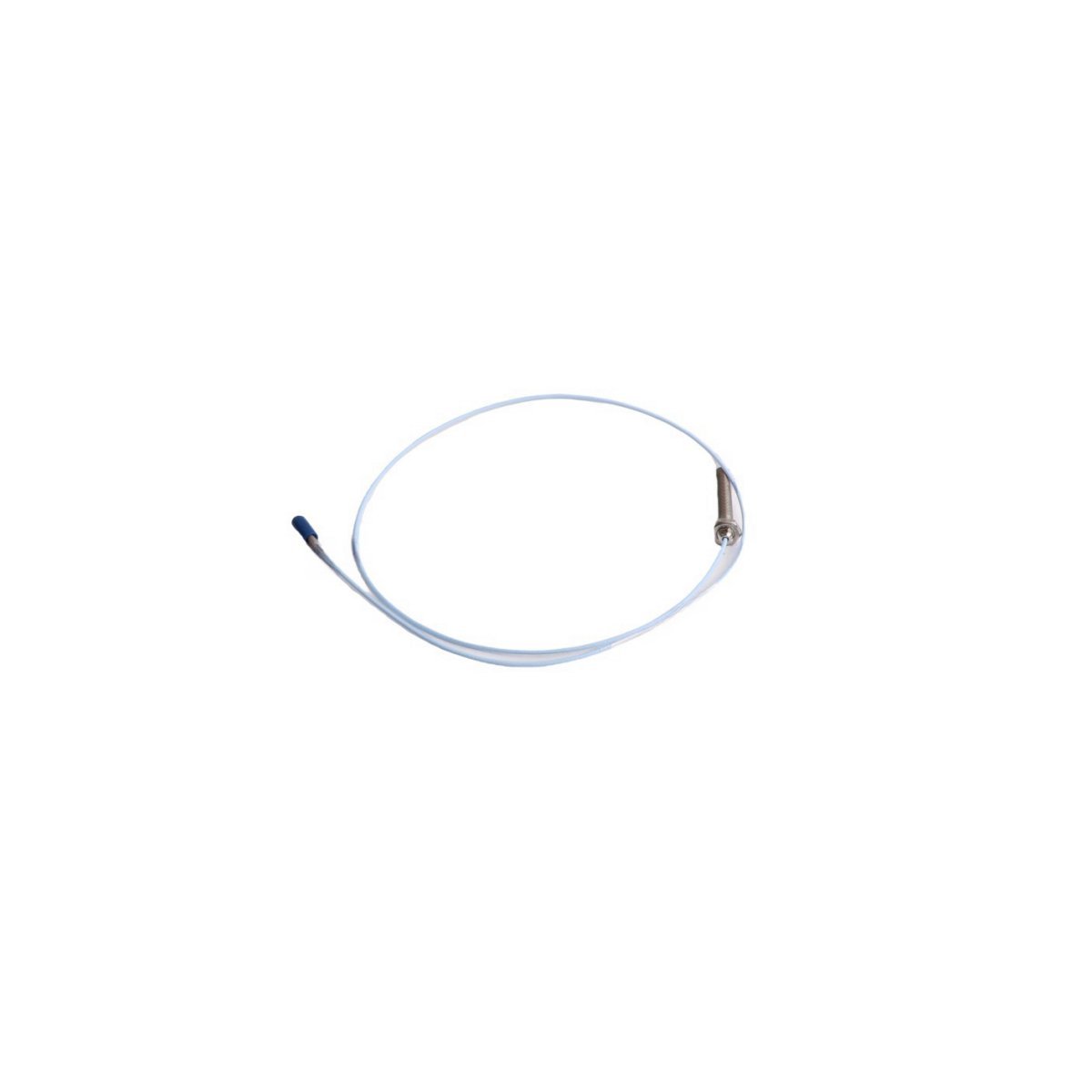

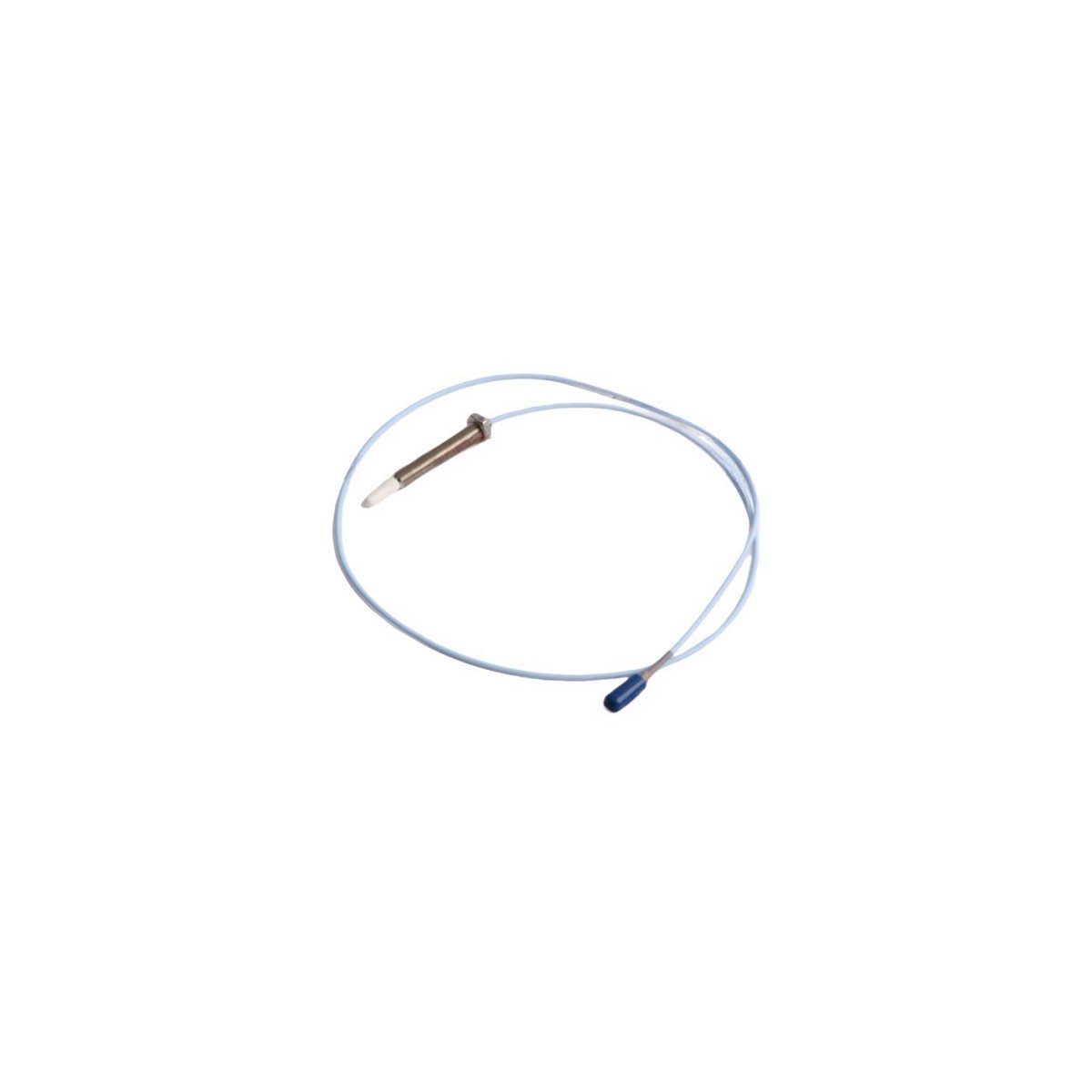

Bently Nevada 330905-00-07-10-02-00 | 3300 NSv Reverse Mount Probe

The Bently Nevada 330905-00-07-10-02-00 is a specialized reverse-mount proximity probe belonging to the 3300 NSv (Narrow System) transducer family. Engineers specifically developed this system for applications involving small target areas or restricted installation clearances where standard 8 mm probes cannot function. By utilizing a tighter magnetic field, the NSv probe provides highly accurate displacement and vibration data. This makes it an essential component for monitoring high-speed centrifugal compressors, small pumps, and other turbomachinery with compact rotor designs.

Optimized for Confined Machine Spaces

The reverse-mount design of the 330905 series allows for installation from the opposite side of the mounting bracket, which is often necessary when internal access is limited. This sensor effectively measures the dynamic gap between the probe tip and the shaft to detect mechanical instabilities such as imbalance or misalignment. To ensure longevity, the probe tip consists of chemical-resistant polyphenylene sulfide (PPS), while the body uses high-grade stainless steel. These materials allow the sensor to operate reliably while submerged in lubricating oil or exposed to corrosive process gases.

Technical Specifications

The 330905-00-07-10-02-00 configuration incorporates the following specific engineering details:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 330905-00-07-10-02-00
• System Series: 3300 NSv (Narrow System)
• Mounting Style: Reverse Mount (3/8-24 UNF thread)
• Unthreaded Length: 00 (0 mm)
• Overall Case Length: 07 (70 mm)
• Total Length: 10 (1.0 meter / 3.3 feet)
• Connector Option: 02 (Miniature coaxial ClickLoc connector with protector)
• Agency Approval: 00 (Standard non-hazardous area version)
• Linear Range: 1.5 mm (60 mils)
• Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

Machinery Protection and Predictive Maintenance

Integrating the 330905-00-07-10-02-00 into a 3500 series monitoring system enables real-time condition monitoring of critical assets. The probe delivers stable, high-resolution signals that help operators identify early-stage bearing wear and shaft eccentricity. This proactive approach to machinery health significantly reduces the probability of catastrophic failure and helps avoid the massive costs associated with unplanned downtime. Because the NSv system is designed for high accuracy in narrow environments, it ensures that even small-scale rotating equipment receives premium protection.

Installation and System Compatibility

For optimal performance, this probe must be used with a matching 3300 NSv Proximitor Sensor. The reverse-mount housing facilitates easy adjustment of the probe gap from outside the machine casing, simplifying the calibration process during commissioning. The gold-plated ClickLoc connectors provide a secure, low-resistance electrical path that remains stable under high vibration. Whether used in power generation or petrochemical manufacturing, this probe provides the durability and precision required to maintain the operational efficiency of complex industrial systems.
