Description

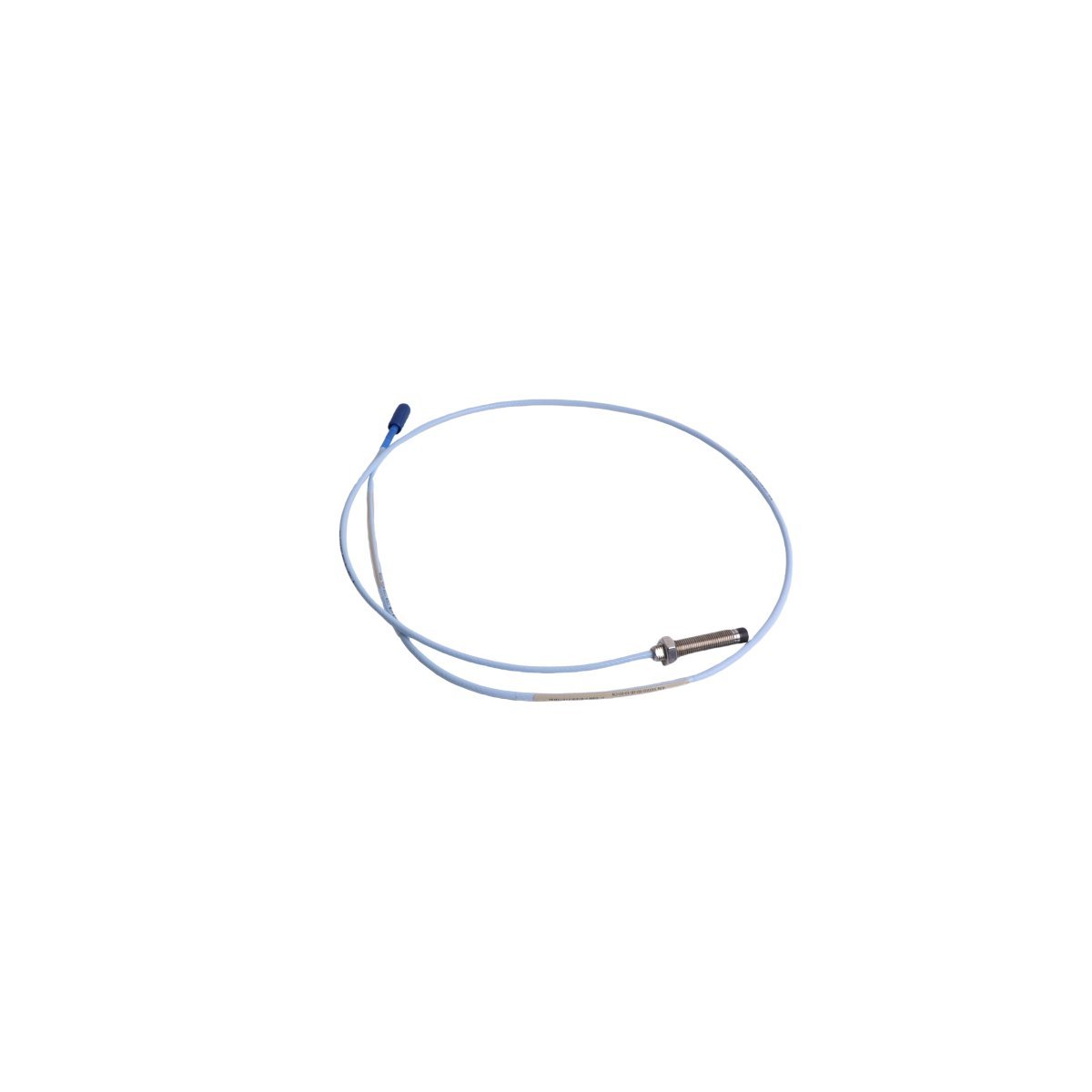

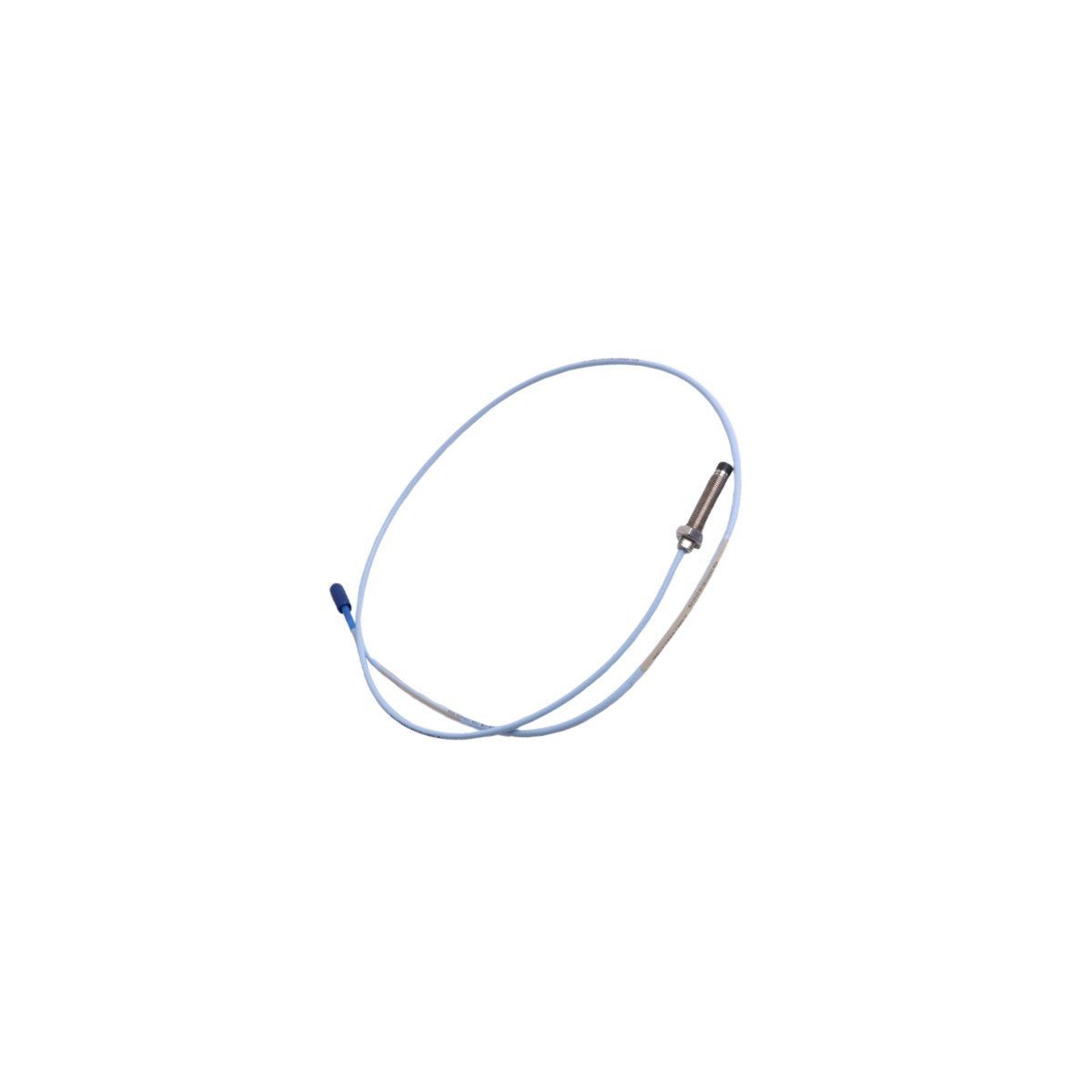

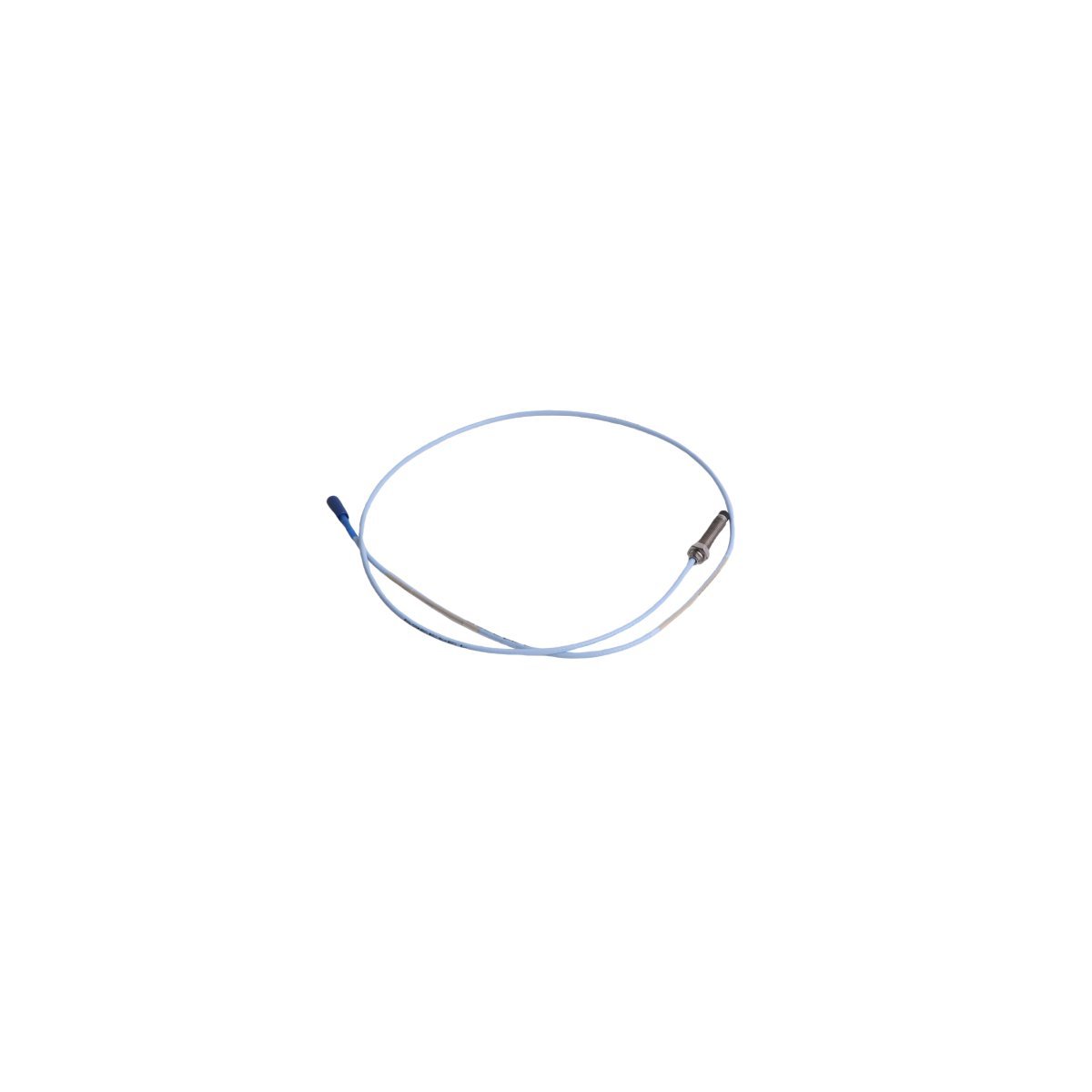

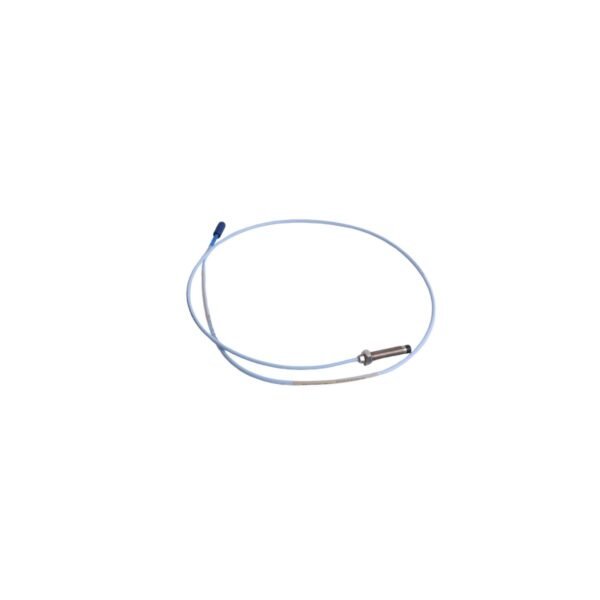

The Bently Nevada 330905-00-05-05-02-CN serves as a specialized non-contacting sensor for industrial machinery. This NSv (Narrow Side View) probe specifically addresses applications with restricted mounting clearances. It effectively monitors radial vibration and axial position on small-diameter rotating shafts. Because it utilizes a compact design, it fits where standard probes cannot operate. Maintenance teams rely on this data to detect early signs of mechanical fatigue. Consequently, this sensor plays a vital role in protecting high-speed centrifugal compressors and fluid-film bearings.

Performance Characteristics and Construction

This probe features a smaller tip diameter compared to standard 8mm systems. This design reduces side-view sensitivity to adjacent metal surfaces. Furthermore, the probe maintains high linearity even in tight installation bores. The PPS (polyphenylene sulfide) tip ensures durability against chemical exposure and thermal cycling. Stainless steel housing protects the internal coil from physical deformation. Therefore, the sensor remains accurate across a broad temperature range. These features guarantee long-term stability in demanding petrochemical and power generation environments.

System Compatibility and Installation

The 330905-00-05-05-02-CN integrates perfectly with Bently Nevada 3300 NSv Proximitor sensors. It adheres to strict industrial standards for machinery protection and signal integrity. The Click-Loc connector prevents accidental disconnection during periods of intense machine vibration. Additionally, the short cable length supports efficient routing to local junction boxes. Using this genuine NSv probe ensures full compliance with predictive maintenance protocols. This specialized hardware helps operators extend machine life while reducing the risk of catastrophic failure.

Technical Configuration and Specifications

• Part Number: 330905-00-05-05-02-CN
• Transducer Type: 3300 NSv Proximity Probe
• Mounting Thread: 1/4-28 UNF English threads
• Unthreaded Length: 0.0 inches (Option 00)
• Overall Case Length: 0.5 inches (Option 05)
• Total Cable Length: 0.5 meters / 1.6 feet (Option 05)
• Connector Style: Miniature coaxial Click-Loc (Option 02)
• Certification: CN (Chinese standard approval/compliance)
• Net Weight: 0.06 kg
