Description

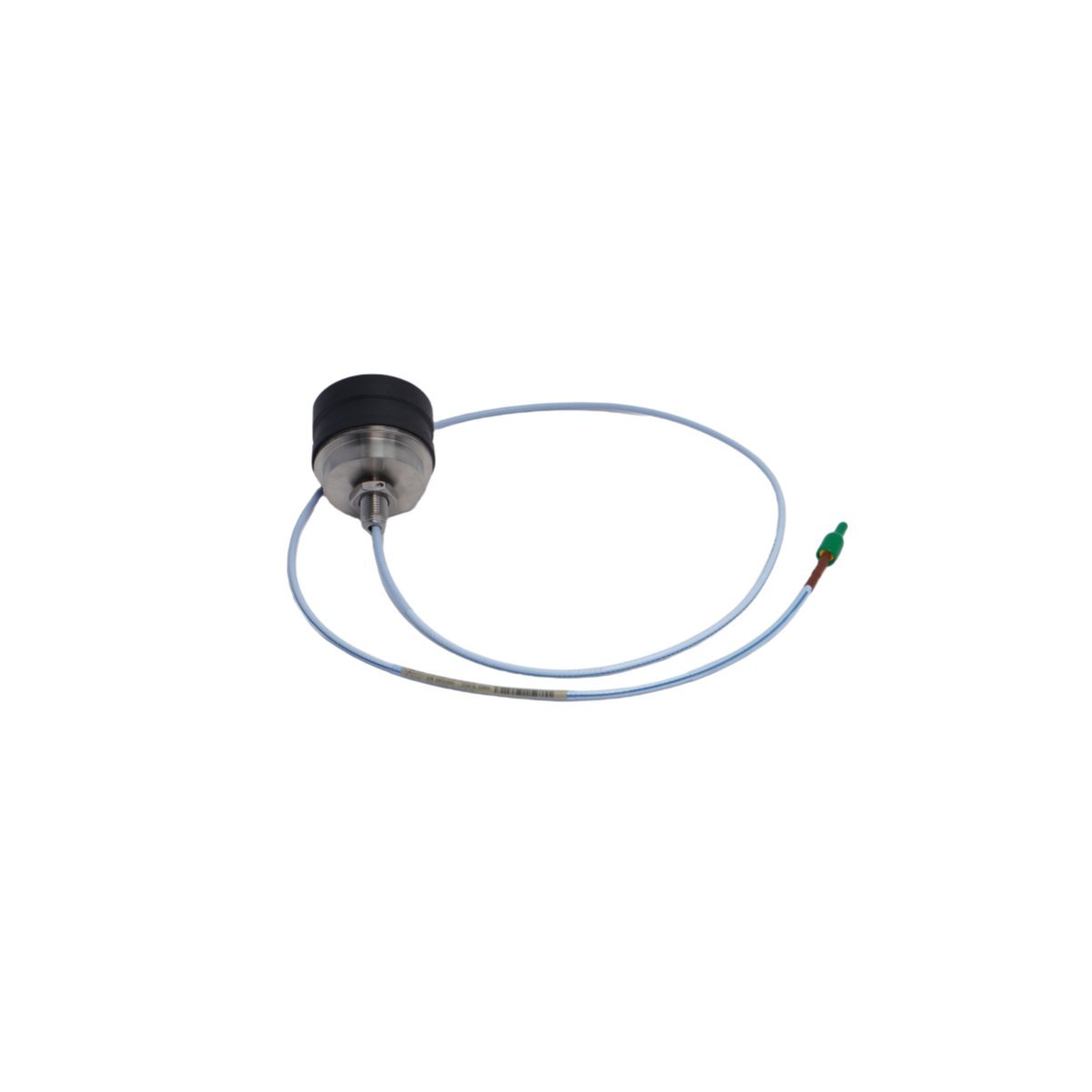

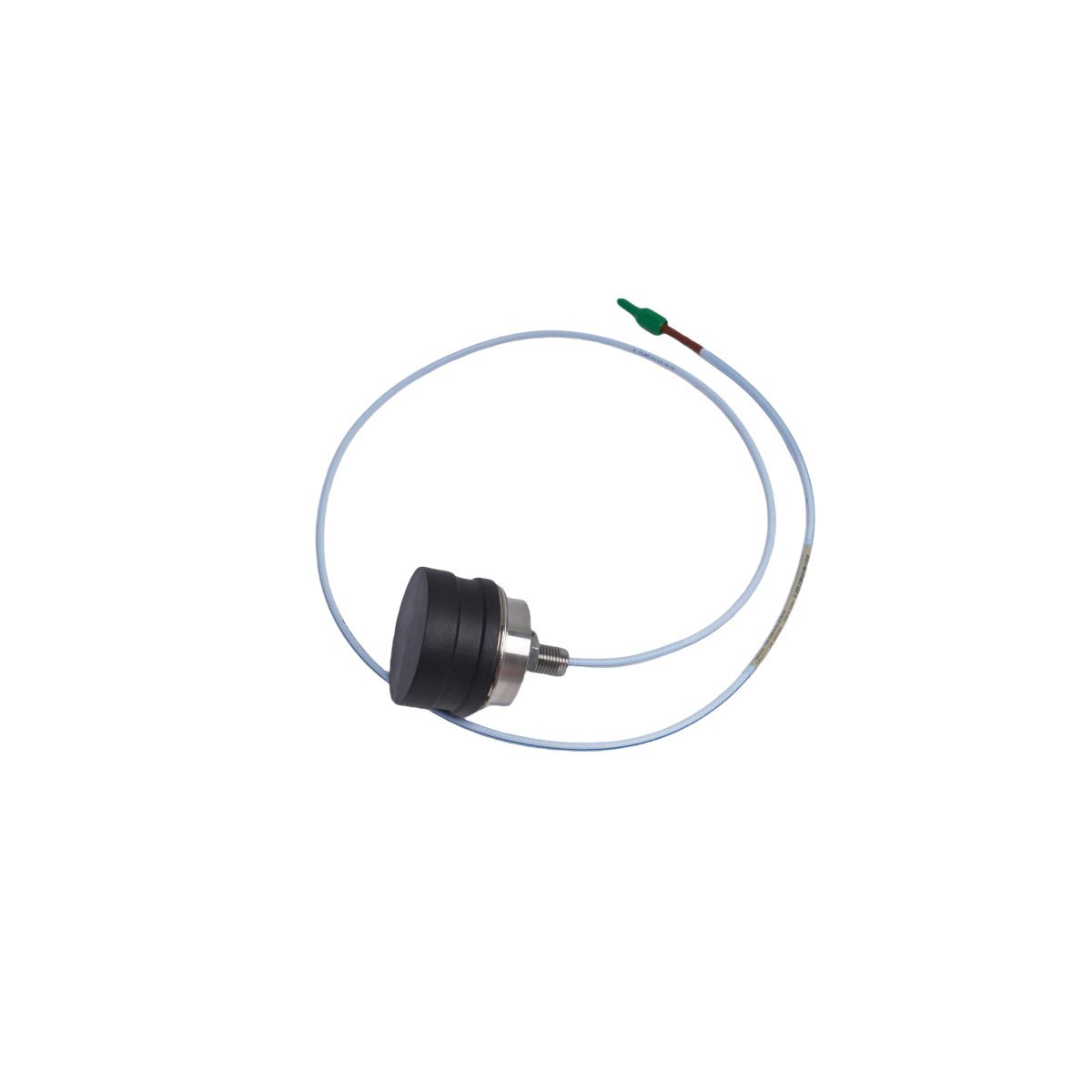

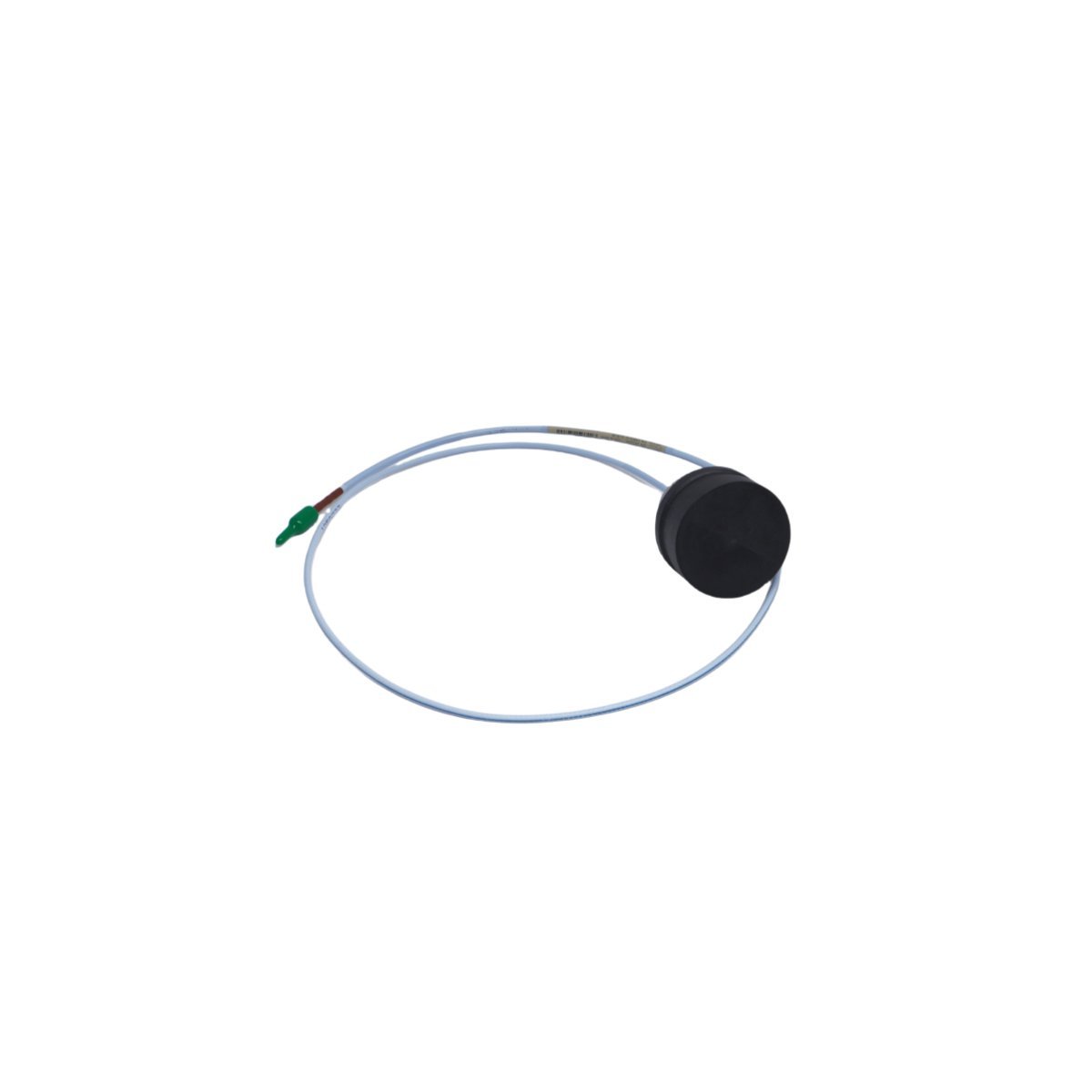

Bently Nevada 330876-02-10-00-00 3300 XL 50 mm Proximity Transducer Probe

The Bently Nevada 330876-02-10-00-00 is an advanced eddy current proximity sensor engineered for large-scale displacement measurements. As a specialized component of the 3300 XL series, this 50 mm transducer is designed to observe machinery motion and position without physical contact. It is primarily utilized in applications requiring a significantly larger linear range than standard 8 mm or 11 mm probes, making it ideal for monitoring differential expansion or axial position in massive steam turbines and industrial generators.

Engineering Design and Signal Precision

This proximity probe operates on the eddy current principle to provide a voltage signal proportional to the distance between the probe tip and the target material. Specifically, the 50 mm tip diameter allows for an extended linear measurement range, which is critical for identifying thermal growth and axial shift in large rotating assets. Furthermore, the probe is manufactured with high-stability materials that maintain calibration across wide temperature fluctuations. As a result, the system delivers consistent, high-resolution data that enables maintenance teams to track subtle mechanical trends and prevent catastrophic component failure.

Technical Specification Matrix

Industrial Integration and Asset Protection

The 330876-02-10-00-00 is built to withstand the rigors of heavy industrial environments, including exposure to lubricants and high-pressure steam. Moreover, its integration into the Bently Nevada 3500 Machinery Protection System allows for automated alarm and shutdown capabilities. In addition, the large surface area of the 50 mm probe tip reduces the sensor’s sensitivity to target surface irregularities like scratches or metallurgical variations. Therefore, this probe provides a highly reliable solution for monitoring critical parameters in power generation and petrochemical facilities where accuracy is non-negotiable.

FAQ

What are the primary use cases for a 50 mm proximity probe?

The 50 mm system is specifically designed for measuring differential expansion—the difference in thermal growth between a machine’s rotor and its casing. Specifically, it is used where the expected movement exceeds the range of smaller 11 mm or 25 mm sensors.

Does this probe require a specific extension cable?

Yes, the 330876-02-10-00-00 must be paired with the correct 3300 XL 50 mm extension cable and Proximitor sensor. Furthermore, using cables calibrated for smaller systems will result in significant measurement errors. Accordingly, always verify that the entire transducer chain is rated for the 50 mm series.

How does the probe handle electromagnetic interference?

The probe utilizes advanced shielding and a coaxial design to minimize signal noise. Consequently, it can be installed near large electric motors or generators without sacrificing data integrity. Ultimately, this ensures that the vibration or position data remains clean and actionable for the control system.

What is the significance of the “02” mounting option?

The “02” designator refers to the physical thread and housing configuration of the probe. As a result, this must match the existing tap or mounting bracket on the machine casing to ensure a secure and leak-proof installation.
