Description

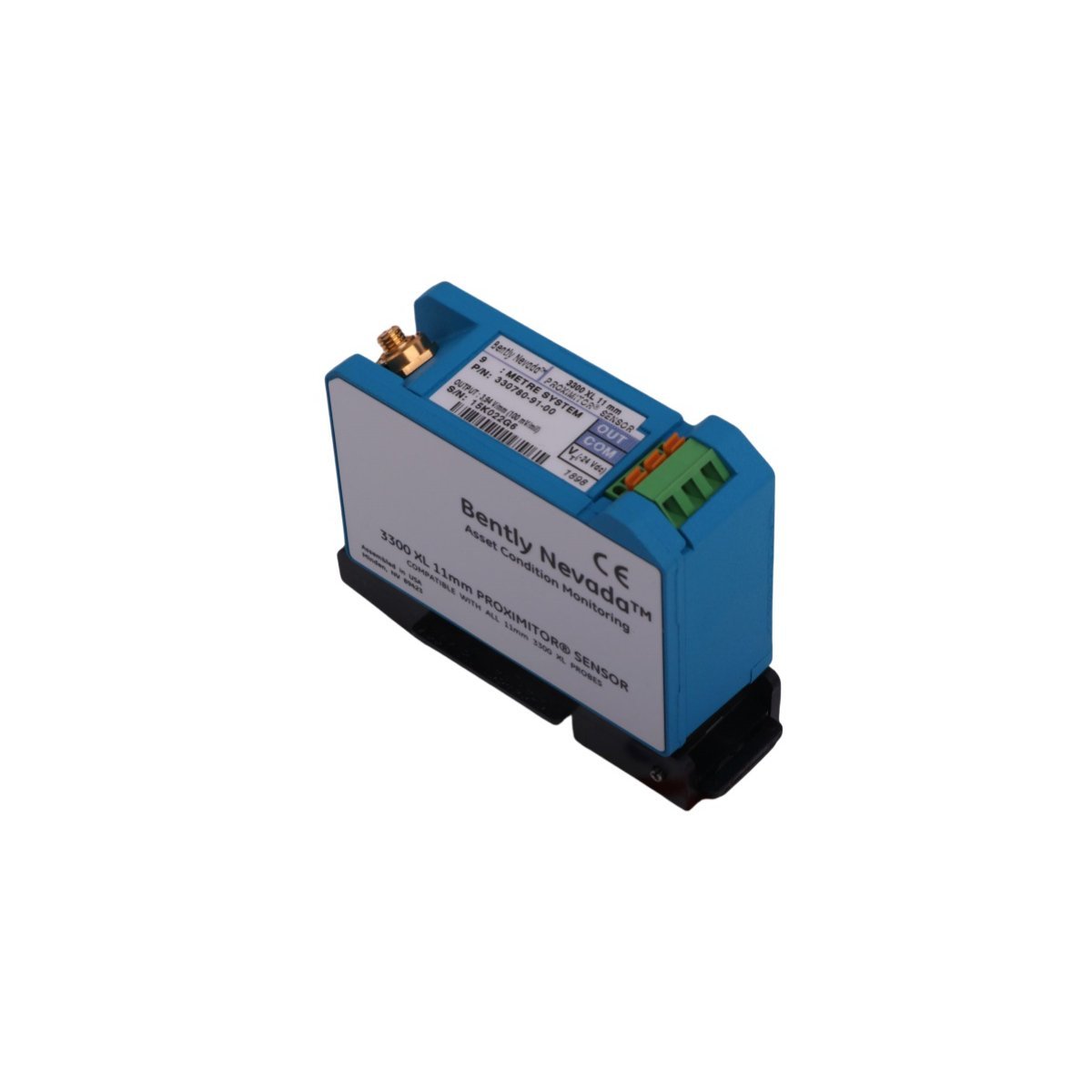

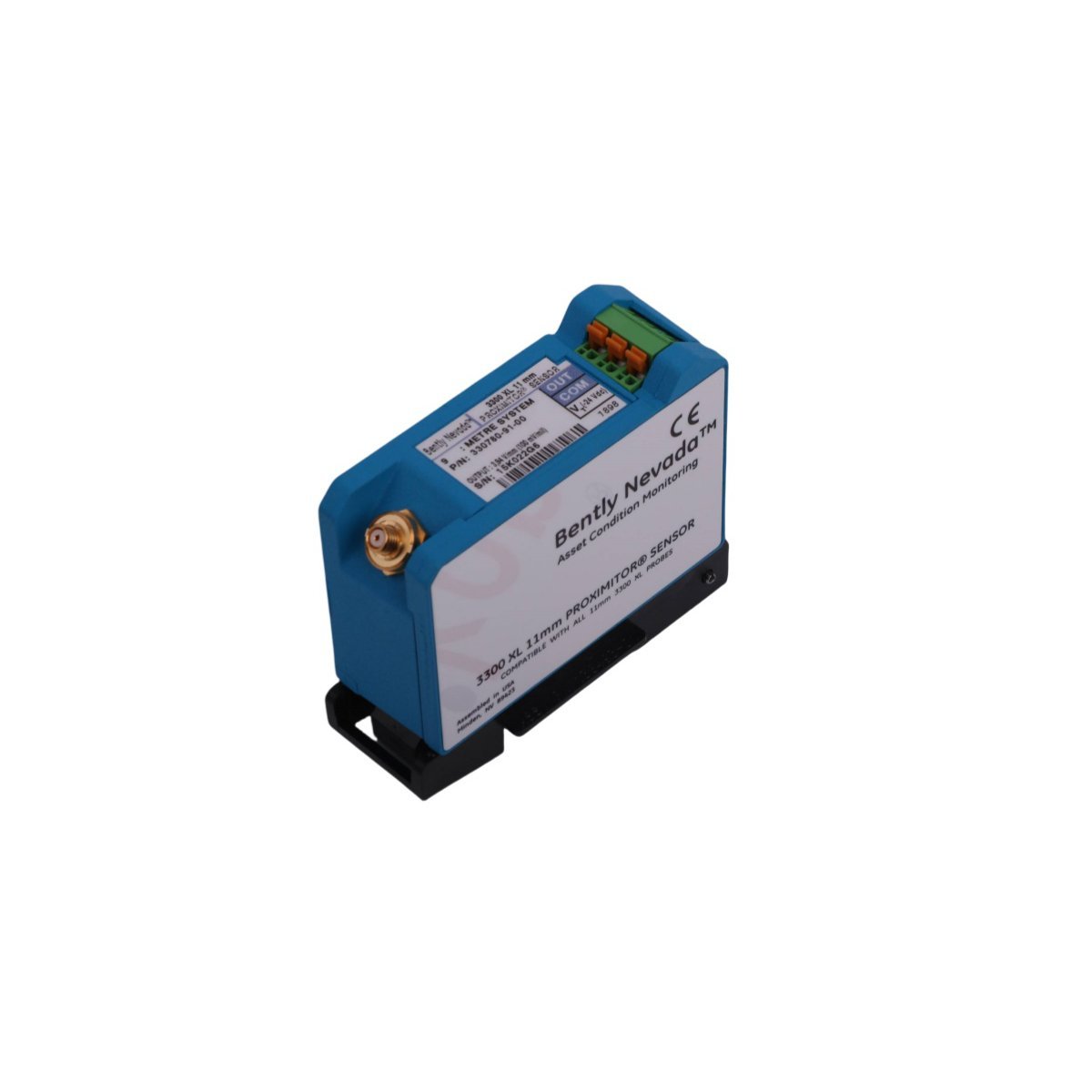

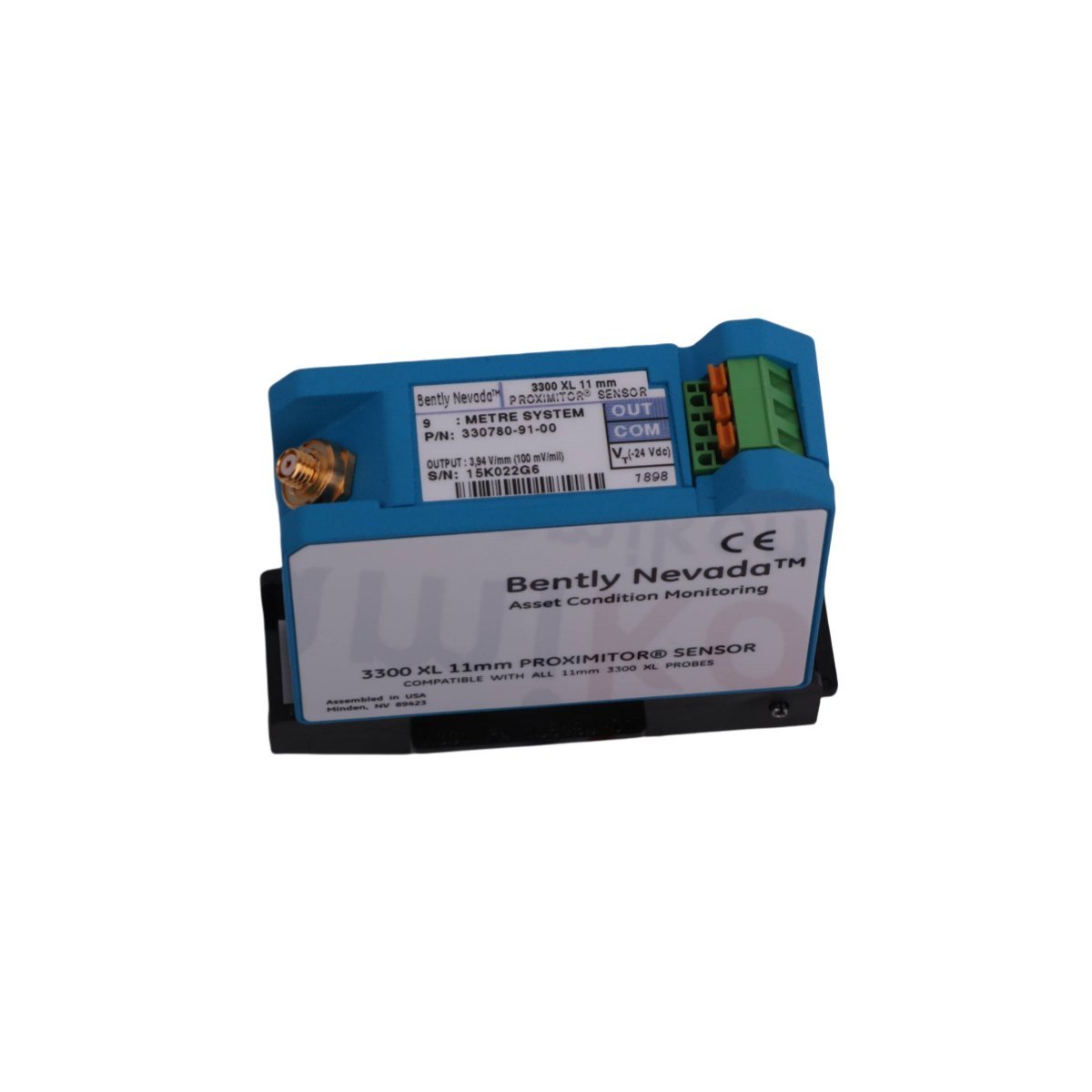

The Bently Nevada 330780-91-00 serves as a core component for advanced industrial protection systems. This Proximitor sensor specifically supports the 3300 XL 11 mm proximity probe series. It effectively measures shaft vibration and axial position in critical rotating equipment. Furthermore, the 9.0-meter system length provides flexibility for diverse installation requirements. The device ensures accurate data delivery for turbomachinery monitoring in power and oil sectors. Reliability remains a hallmark of this USA-manufactured sensing technology.

Technical Performance and Electrical Stability

This sensor maintains exceptional signal integrity under varying power conditions. It operates within a standard input range of -17.5 Vdc to -26 Vdc. Additionally, the unit exhibits minimal sensitivity to voltage fluctuations during operation. The output signal changes less than 2 mV for every volt of input variation. This stability ensures precise measurements even during minor power inconsistencies. Moreover, the 12 mA maximum current draw promotes efficient energy usage in large-scale monitoring arrays.

Key Hardware Characteristics

Installation and Interference Resistance

The 330780-91-00 features a compact design for high-density DIN rail mounting. Consequently, it saves valuable space within industrial control cabinets. The integrated SpringLoc terminal strips simplify the field wiring process significantly. Maintenance personnel can secure connections quickly without using specialized tools. Furthermore, the sensor boasts superior immunity against RFI and EMI disturbances. This protection allows for reliable performance in electrically noisy industrial environments. Compliance with CE standards further validates its robust engineering and safety.

Target Applications

• Tracking axial thrust position in large steam turbines.
• Measuring radial vibration in centrifugal gas compressors.
• Supporting rod drop monitoring for reciprocating compressors.
• Facilitating phase reference measurements via Keyphasor signals.
• Enhancing predictive maintenance for high-speed industrial pumps.
