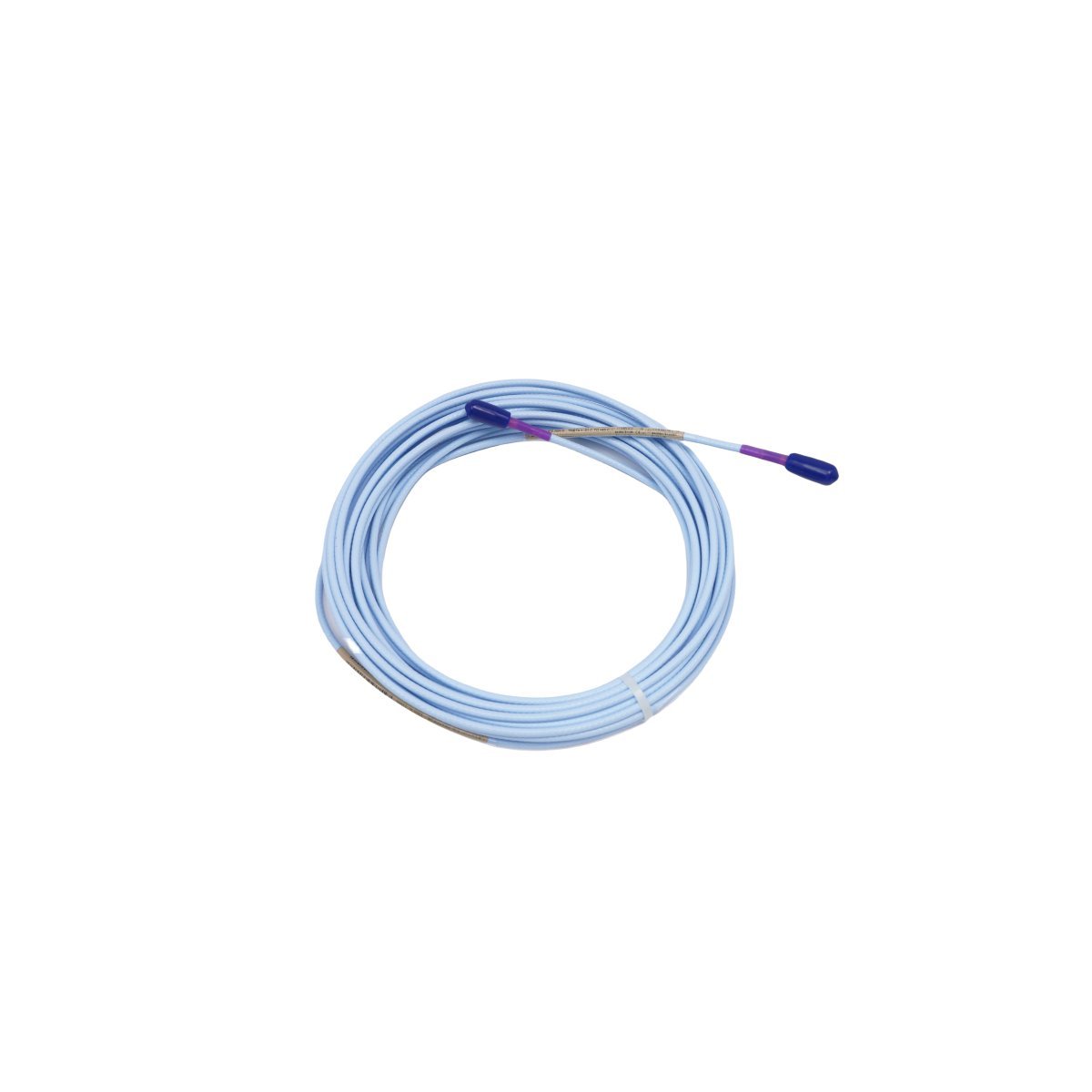

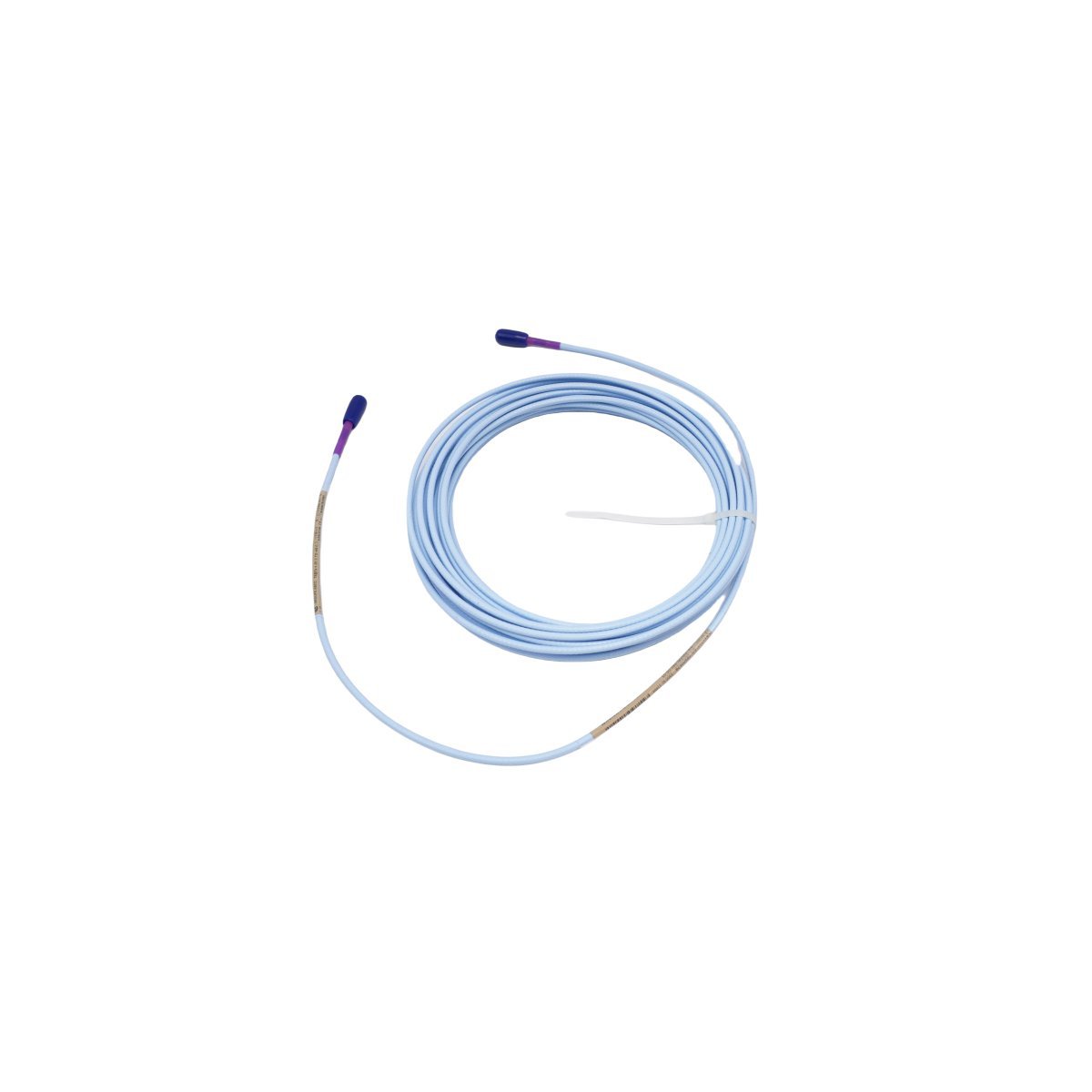

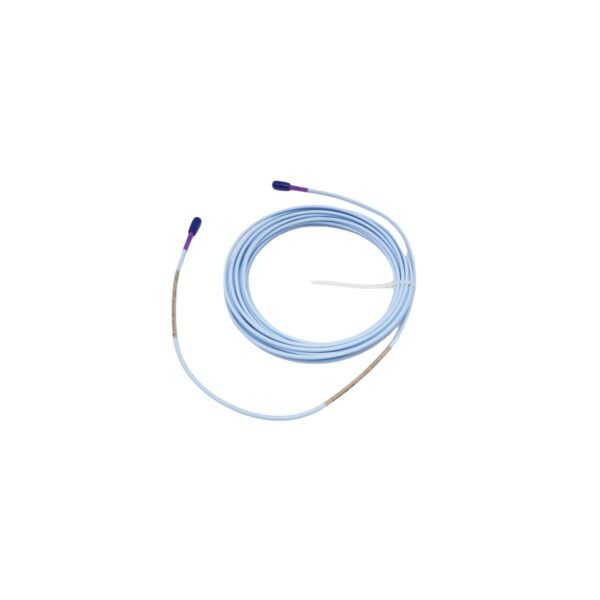

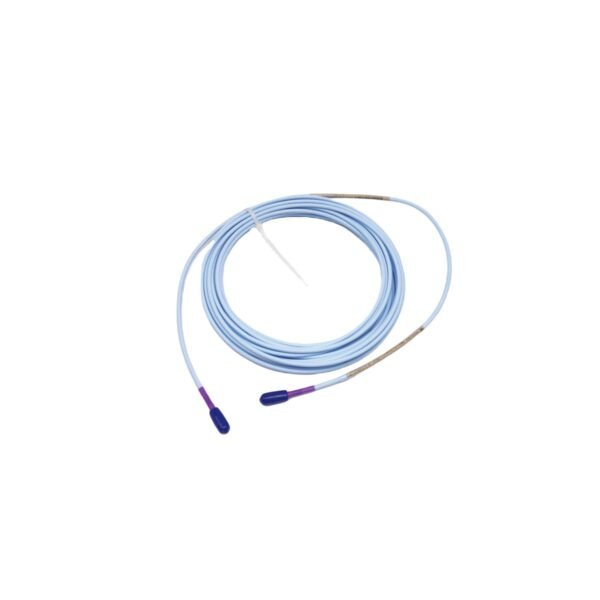

Bently Nevada 330730-080-00-05 3300 XL 11 mm Extension Cable

The Bently Nevada 330730-080-00-05 is a high-performance extension cable specifically engineered for use within the 3300 XL 11 mm Proximity Transducer System. This specialized cable acts as the vital link between the 11 mm proximity probe and the Proximitor sensor, facilitating the transmission of high-frequency eddy current signals. Designed for large-scale machinery, the 11 mm system is typically deployed where a wider linear range or greater probe-to-target standoff is required than what standard 8 mm systems can provide.

Critical Signal Integrity and Shielding

In industrial vibration monitoring, signal accuracy is paramount for determining machinery health. Specifically, the 330730-080-00-05 is constructed with high-quality coaxial shielding to prevent electromagnetic interference (EMI) from distorting displacement data. Furthermore, the cable is designed to maintain a constant impedance, ensuring that the calibration of the 3300 XL system remains precise over its entire length. As a result, maintenance teams receive clean, reliable data for monitoring axial position and vibration in large turbines, compressors, and generators.

Technical Specification Matrix

Environmental Resilience and Integration

The 330730-080-00-05 is built to endure the aggressive conditions of power generation and petrochemical processing plants. Moreover, the FEP (Fluorinated Ethylene Propylene) outer jacket provides exceptional resistance to moisture, high temperatures, and chemical exposure from lubricating oils. In addition, the ClickLoc connectors ensure a secure, vibration-proof connection that prevents signal loss due to mechanical loosening. Therefore, this extension cable is a fundamental component for ensuring the long-term reliability of machinery protection systems in high-demand environments.

FAQ

What total system length does an 8-meter extension cable create?

When this 8-meter extension cable is paired with a 1-meter 11 mm probe, it creates a 9-meter total system length. Specifically, the Proximitor sensor must be calibrated for a 9-meter system to ensure accurate voltage-to-displacement conversion.

Does this cable support 3300 XL 8 mm probes?

No, this cable is specifically designed for the 11 mm transducer series. Furthermore, the physical connectors and electrical characteristics differ from the 8 mm series. Accordingly, you must match the cable series to the probe and sensor series to avoid measurement errors or hardware incompatibility.

How does the lack of armor affect installation?

The 00 option indicates this cable does not have stainless steel armor. Consequently, it is more flexible and easier to route through conduit. However, if the cable is exposed to potential physical damage or crushing forces, it should be protected by an external conduit or an armored version should be specified.

Are the connectors moisture resistant?

The ClickLoc connectors are designed to be robust, but they are not inherently waterproof. Ultimately, for installations in wet or oily environments, Bently Nevada recommends using connector protectors or silicone tape to ensure the junction remains clean and dry.
