Description

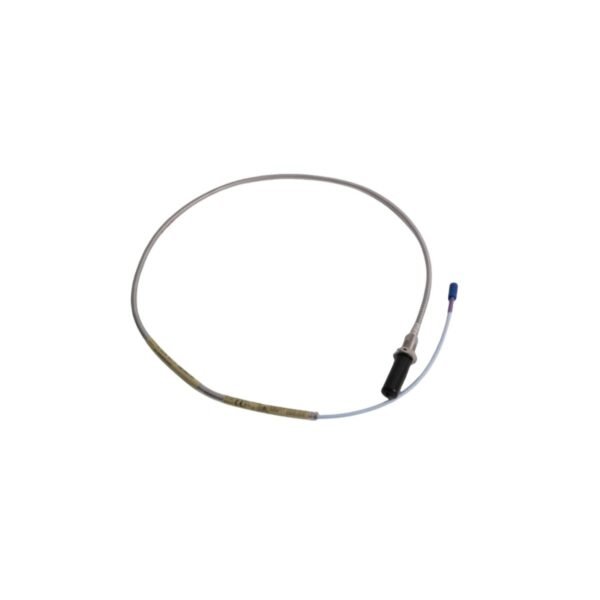

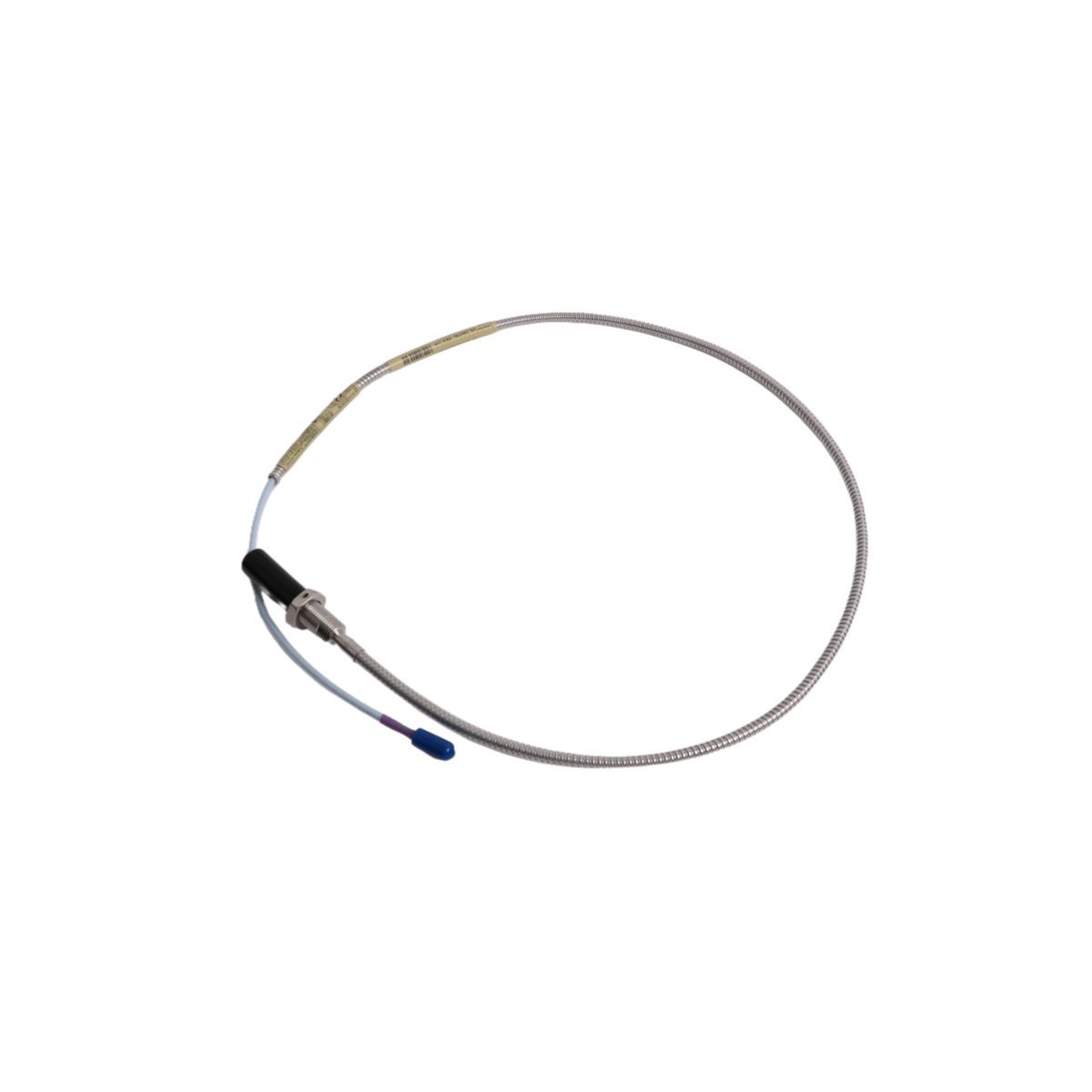

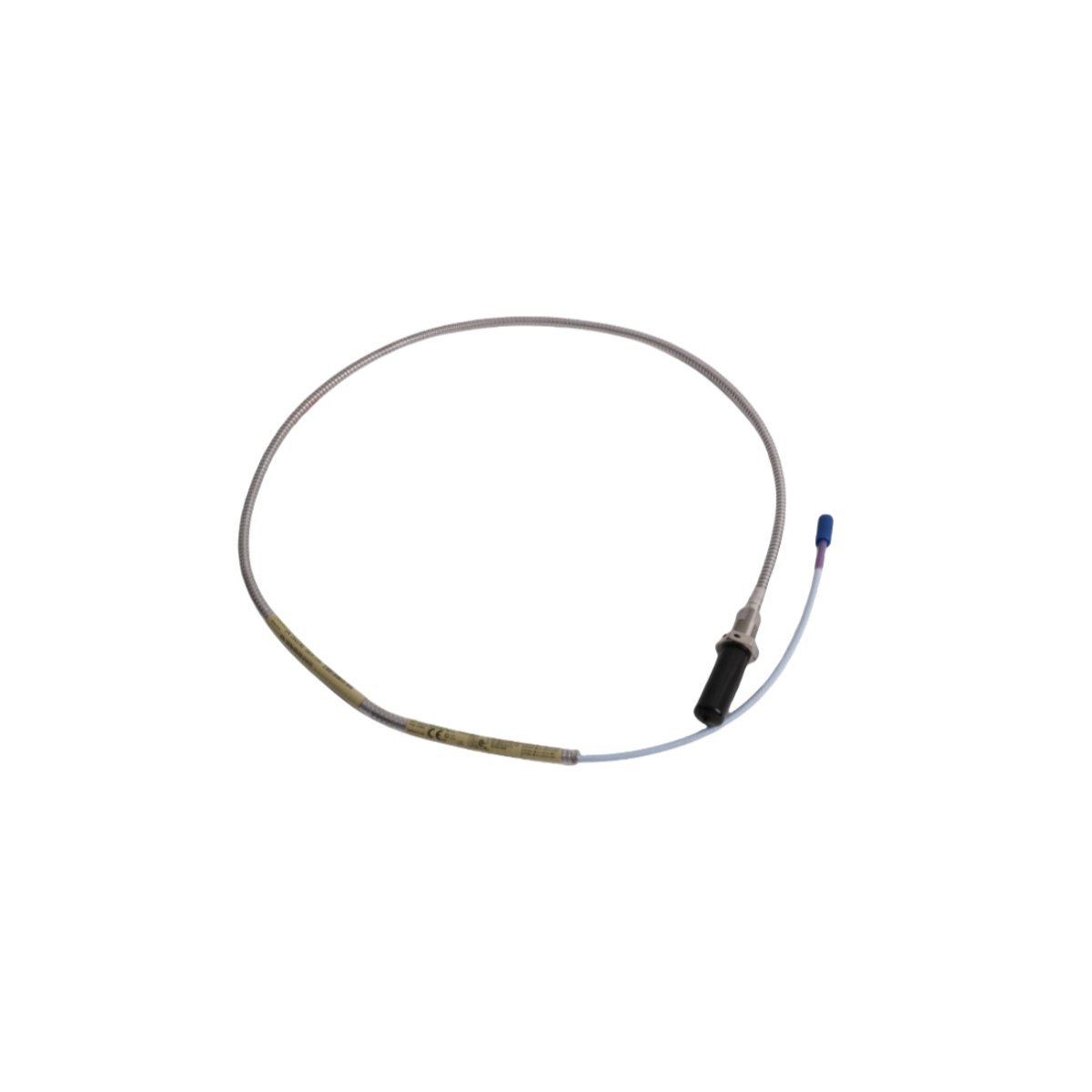

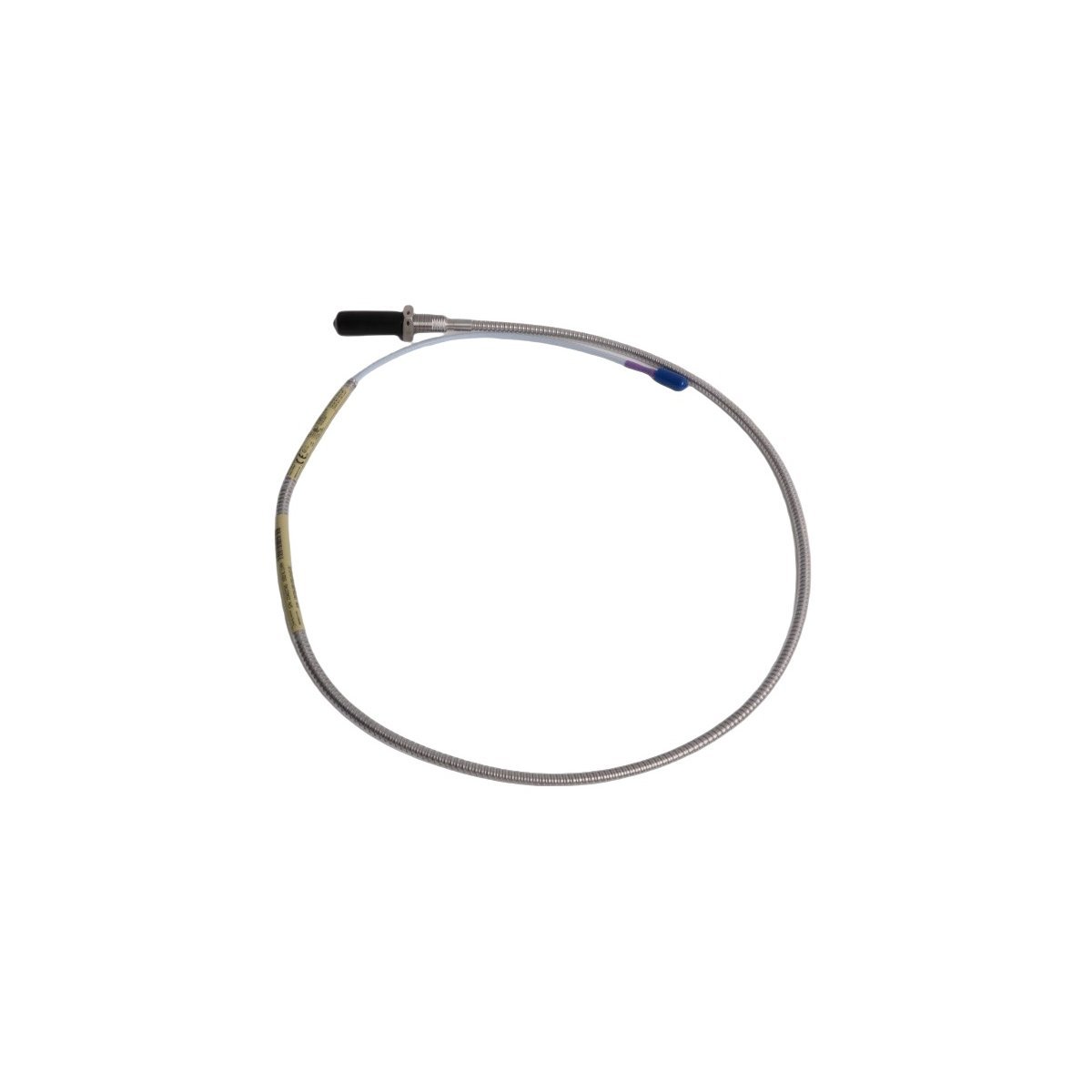

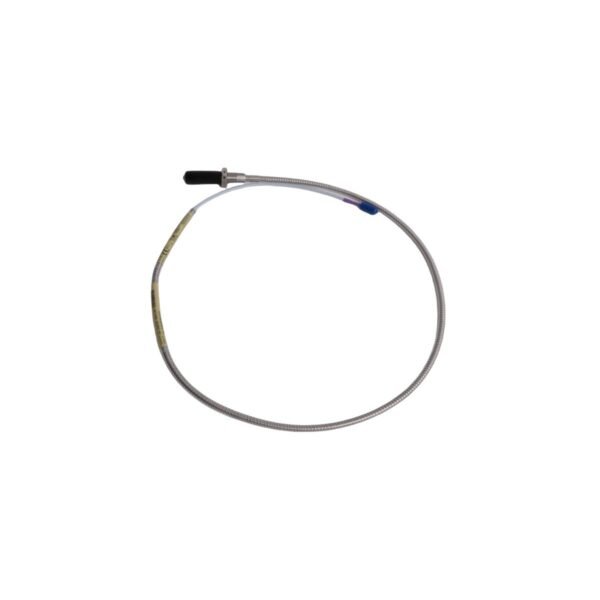

The Bently Nevada 330704-000-050-10-02-05 serves as a high-precision eddy current sensor for industrial asset protection. This 11 mm proximity probe captures critical data regarding shaft vibration and axial position in large-scale machinery. Due to its larger tip diameter, the unit provides a significantly wider linear range than standard 8 mm probes. This capability is vital for monitoring machines with high thermal expansion or significant shaft movement. The sensor ensures reliable performance for both static gap measurements and dynamic vibration analysis.

Rugged Hardware Construction

This specific configuration features an M14 x 1.5 threaded probe body with a 50 mm case length. The 1.0-meter cable includes stainless steel armor to protect the internal wiring from mechanical damage. Furthermore, the miniature coaxial ClickLoc connector provides a secure, vibration-resistant electrical link. The probe withstands extreme temperatures ranging from -51 °C to +177 °C during storage. Consequently, these robust materials allow for long-term installation in harsh turbine and compressor environments.

Essential Technical Specifications

System Flexibility and Integration

The 3300 XL series utilizes fully interchangeable components to simplify maintenance and spare parts management. This probe connects directly to 3300 XL extension cables and Proximitor sensors without requiring custom calibration. Additionally, the hardware maintains compatibility with legacy non-XL 3300 series 5 mm and 8 mm systems. This backward compatibility allows for easy upgrades within existing monitoring racks. The sensor provides high-resolution data for predictive maintenance programs in power generation and petrochemical sectors.

Typical Industrial Use Cases

• Measuring axial thrust position in high-pressure steam turbines.
• Monitoring radial vibration in large-diameter centrifugal compressors.
• Tracking differential expansion in heavy-duty gas turbine casings.
• Providing phase reference signals for high-speed Keyphasor applications.
• Detecting rod drop in horizontal reciprocating compressors.
