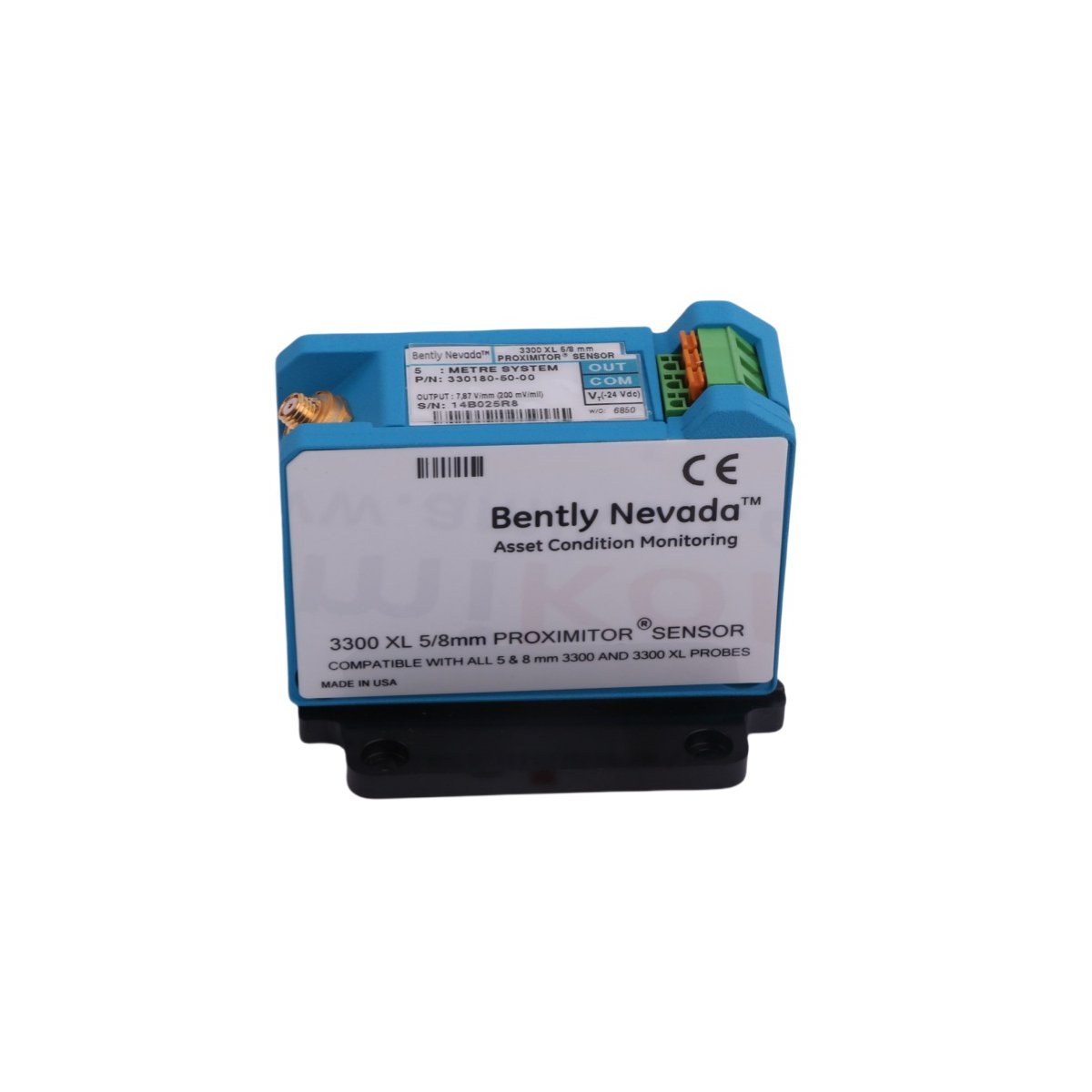

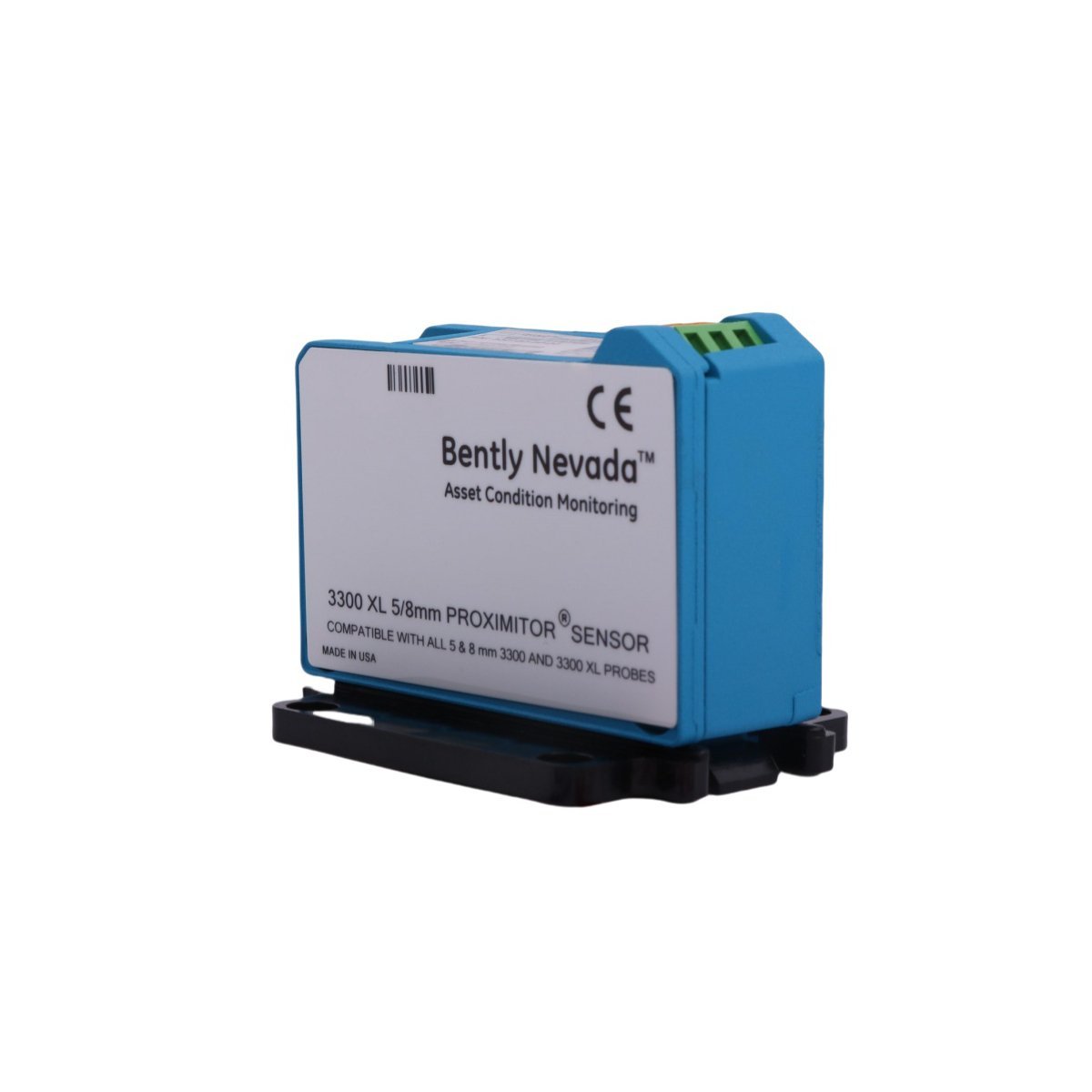

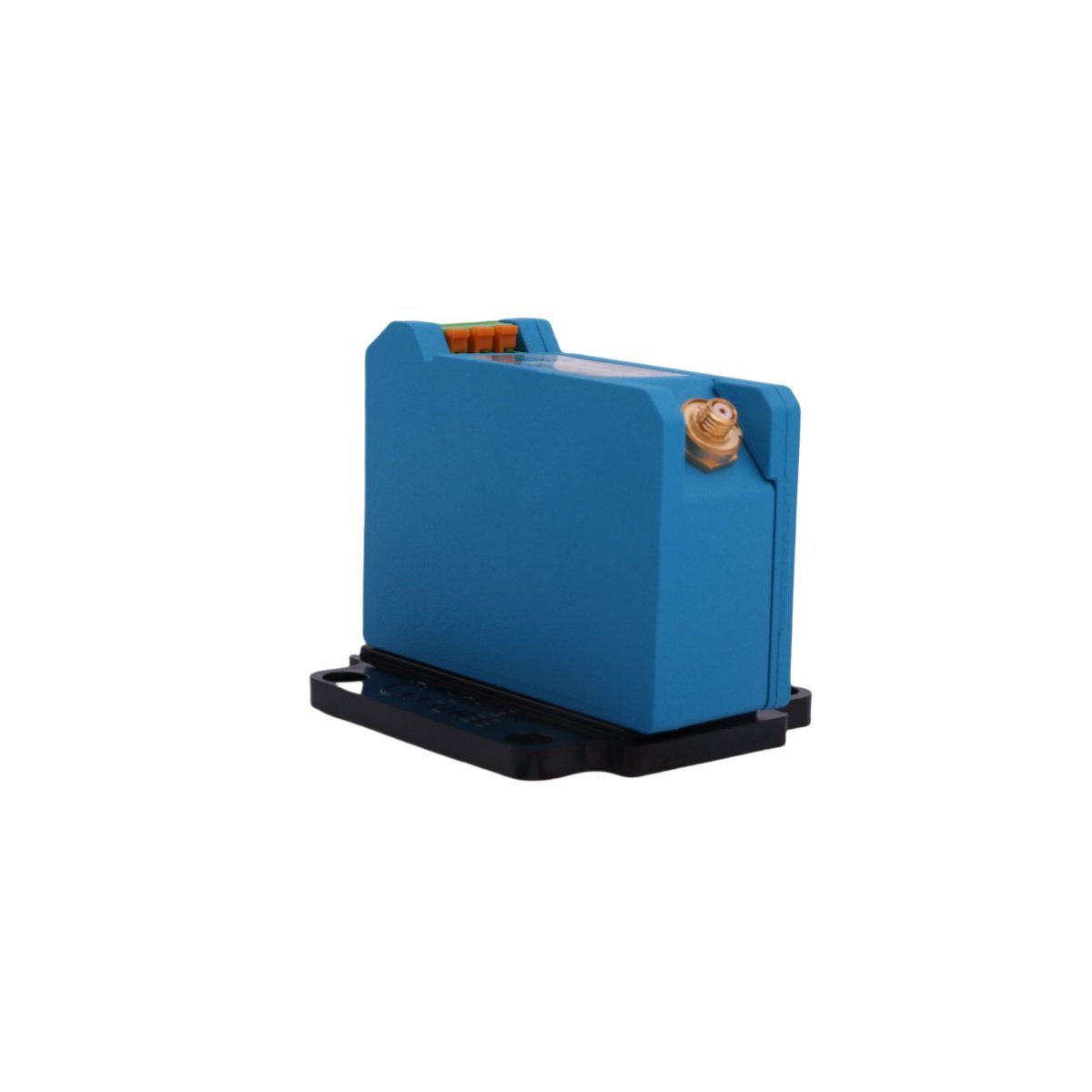

The Bently Nevada 330180-50-00 is a high-precision Proximitor Sensor engineered for the 3300 XL 5mm and 8mm Proximity Transducer Systems. This specific model features a 5.0-meter (16.4 feet) total system length calibration and a standard panel mount configuration. By converting the gap between a transducer probe tip and a conductive target into a proportional voltage signal, the sensor provides essential data for machinery health monitoring. It serves as a cornerstone in Turbine Supervisory Instrumentation (TSI), delivering both static displacement and dynamic vibration measurements.

Core Functions and Engineering Advantages

Operators utilize the 330180-50-00 to monitor fluid-film bearing machines, where precision is mandatory for preventing mechanical failure. Furthermore, the 3300 XL series introduces full interchangeability among probes, extension cables, and sensors. This technical advancement eliminates the requirement for individual component matching or manual bench calibration. Consequently, maintenance teams can replace parts in the field with total confidence in system accuracy.

• Signal Processing: The sensor generates a linear output signal directly proportional to the physical distance from the probe to the observed surface.
• System Compatibility: While designed for the 3300 XL range, the 330180-50-00 remains backward compatible with non-XL 3300 series 5mm and 8mm components.
• Mounting Design: The unit employs a robust panel-mount base, which ensures a secure installation within industrial instrument racks or weatherproof housings.
• Calibration Standards: Under standard conditions of -24 Vdc power and a 10 kΩ load, the system maintains strict performance tolerances when targeting AISI 4140 steel.

Industrial Applications and Integration

Because the Bently Nevada 330180-50-00 supports both analog and digital communication, it integrates seamlessly with plant-wide process control systems. Specifically, it provides reliable input for Keyphasor signals and speed measurements on high-speed rotors. In addition to basic vibration monitoring, the sensor facilitates advanced diagnostics through Bently Nevada online condition monitoring software.

Since the alarm setpoints are stored in non-volatile memory, the system retains critical safety parameters even during power interruptions. Moreover, the fault-tolerant circuitry minimizes the risk of false trips, which effectively protects capital assets while maintaining operational uptime. Whether deployed in power generation or petrochemical processing, this Proximitor Sensor delivers the stability required for modern predictive maintenance strategies.

Technical Specifications Summary

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 330180-50-00
• System Length: 5.0 Meters (16.4 Feet)
• Mounting Option: Panel Mount
• Output Signal: Negative Voltage (Proportional to Gap)
• Operating Temperature: -51°C to +100°C (-60°F to +212°F)
• Weight: 0.22 kg
