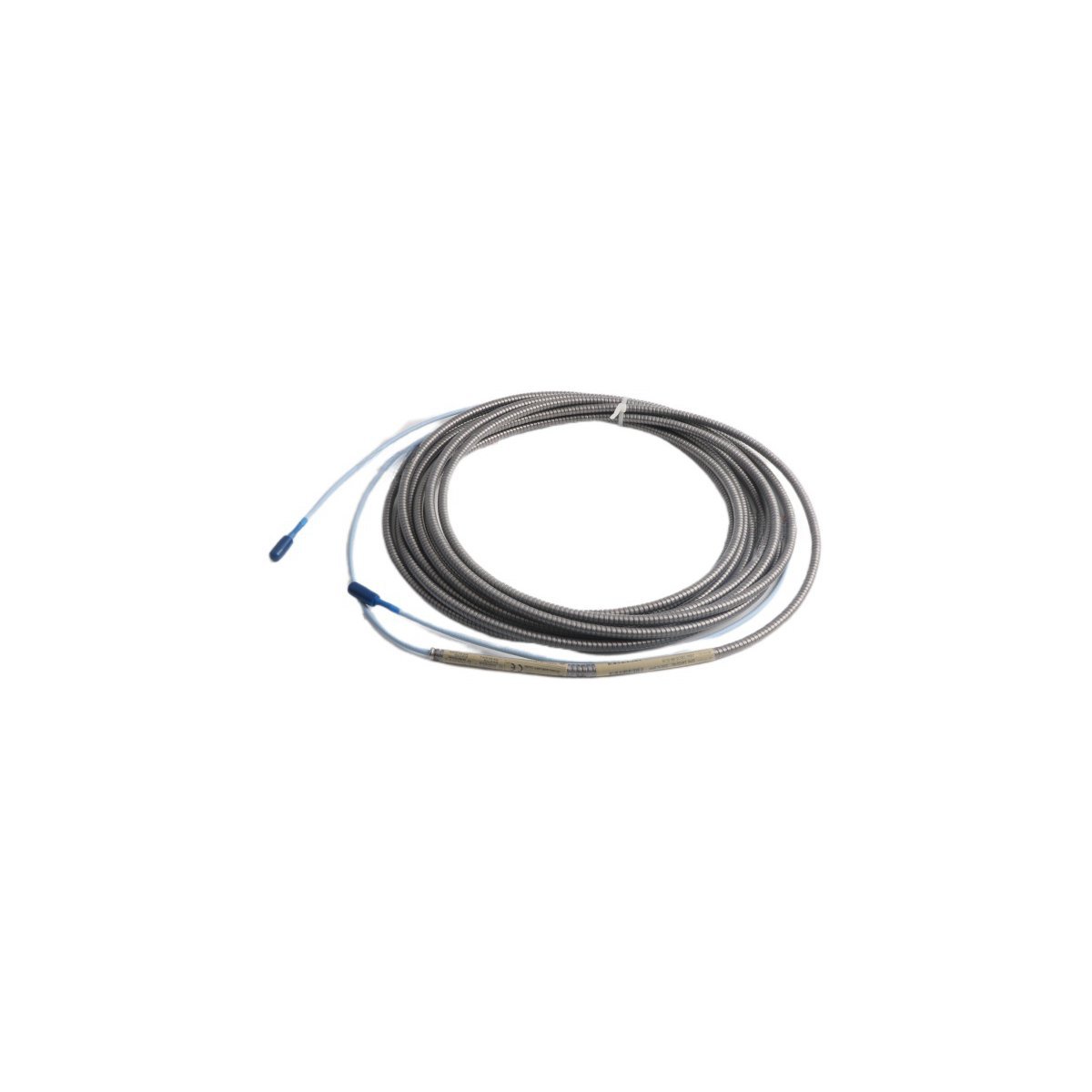

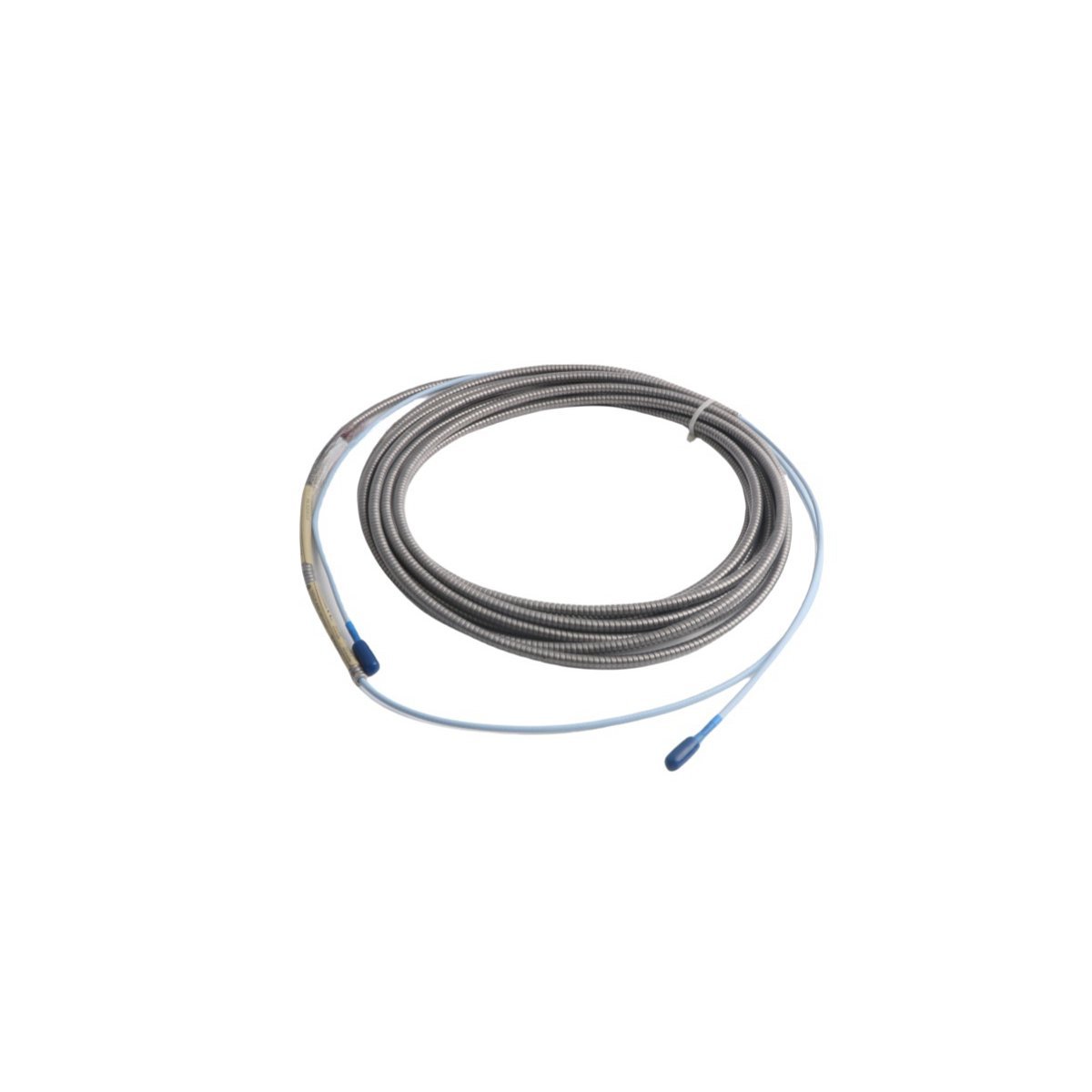

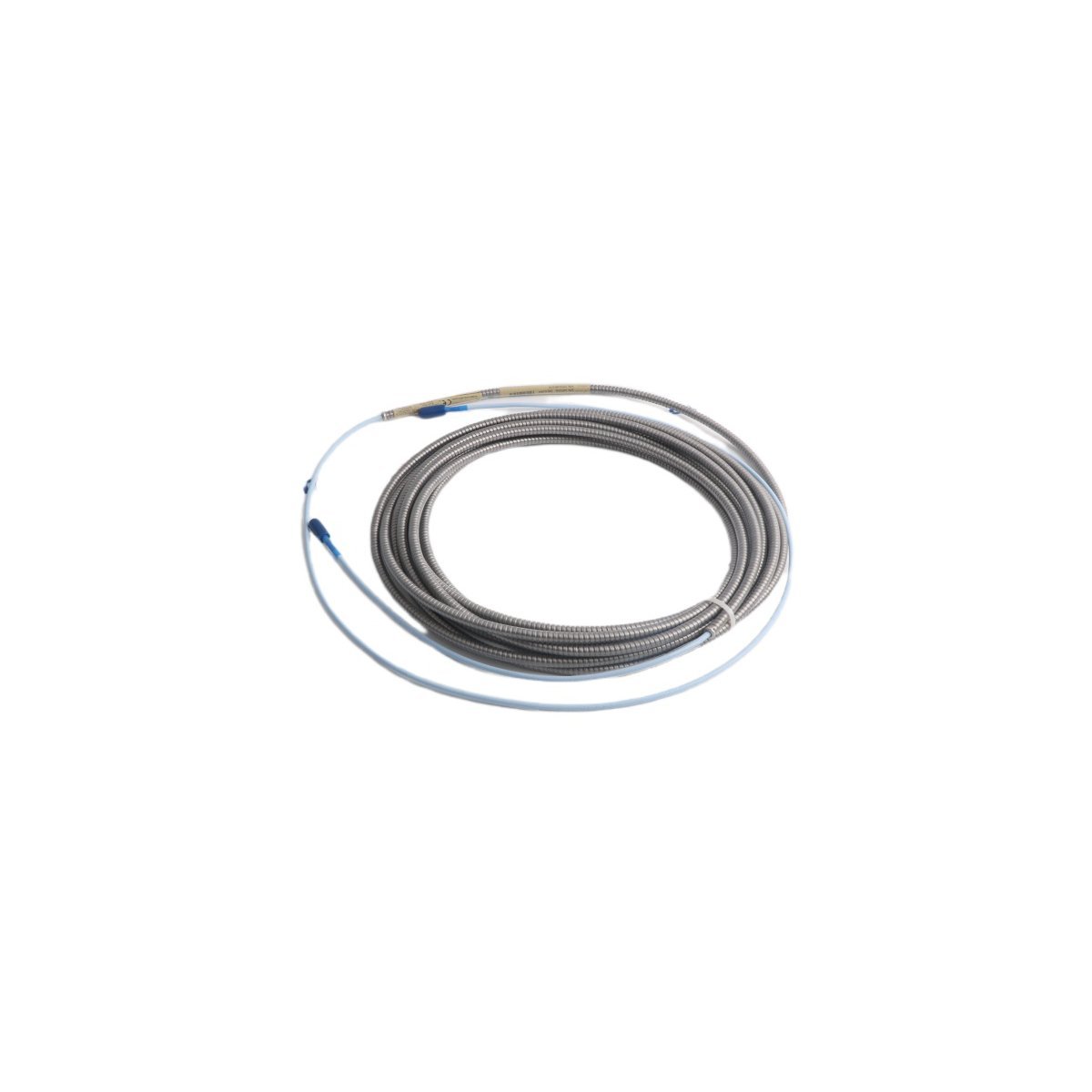

Bently Nevada 330130-080-01-05 3300 XL 8mm Armored Extension Cable

The Bently Nevada 330130-080-01-05 is a high-fidelity extension cable engineered for the 3300 XL 8mm Proximity Transducer System. This specialized component bridges the connection between the proximity probe and the Proximitor sensor, ensuring the accurate transmission of eddy current signals. Designed for critical machinery protection, it facilitates the monitoring of shaft vibration, axial position, and speed. The armored construction is specifically intended for environments where the cable is exposed to mechanical stressors, providing a robust pathway for vital diagnostic data.

Technical Engineering and Environmental Protection

This cable assembly is manufactured to maintain the precise electrical impedance required for Bently Nevada’s high-frequency monitoring systems. Specifically, the 330130-080-01-05 features stainless steel armor that shields the internal coaxial line from physical crushing, abrasion, and sharp industrial debris. Furthermore, the fluoropolymer insulation provides significant resistance to moisture, oils, and chemical solvents commonly found in turbine decks and compressor stations. In addition, the integrated ClickLoc connectors provide a gold-plated, vibration-resistant interface. Consequently, the system remains calibrated and reliable even under the thermal and mechanical stresses of 24/7 industrial operations.

Technical Specifications Matrix

System Integration and Asset Safety

The 330130-080-01-05 armored cable is an essential part of Turbine Supervisory Instrumentation (TSI) within the power generation and oil and gas sectors. As a result, it is frequently used to monitor high-value rotating assets such as steam turbines, centrifugal pumps, and gearboxes. Moreover, because the cable complies with the API 670 standard, it is a trusted choice for automated machinery protection loops. Therefore, integrating this armored extension cable reduces the risk of signal loss or false alarms caused by mechanical cable failure, ensuring maximum equipment uptime and personnel safety.

FAQ

What is the primary function of the ClickLoc connector?

The ClickLoc connector is designed to provide a secure, tactile locking mechanism that prevents the cable from loosening in high-vibration environments. Furthermore, the gold plating prevents oxidation. Accordingly, you receive a stable signal over the long term without the need for manual retightening.

Is an 8.0-meter extension cable compatible with a 9-meter system?

A 9.0-meter system is typically achieved by pairing an 8.0-meter extension cable with a 1.0-meter proximity probe. Specifically, using this 8.0-meter cable with any other probe length will alter the total system capacitance. Consequently, the Proximitor sensor would require recalibration to ensure the vibration readings remain accurate.

How does the stainless steel armor handle chemical exposure?

The armor is designed to be fluid-tight and corrosion-resistant. In addition, the outer jacket is resilient against most industrial lubricants and coolants. Therefore, it is highly suitable for internal bearing housing applications or areas where the cable is subject to oil splash or washdown procedures.

Can the 330130-080-01-05 withstand extreme temperatures?

Yes, this cable is rated for a wide operating range, reaching up to 177 °C. As a result, it can be routed near heat-generating machine surfaces without melting or electrical drift. Moreover, its low-temperature rating ensures it remains flexible and functional in arctic or cryogenic processing environments.
