Description

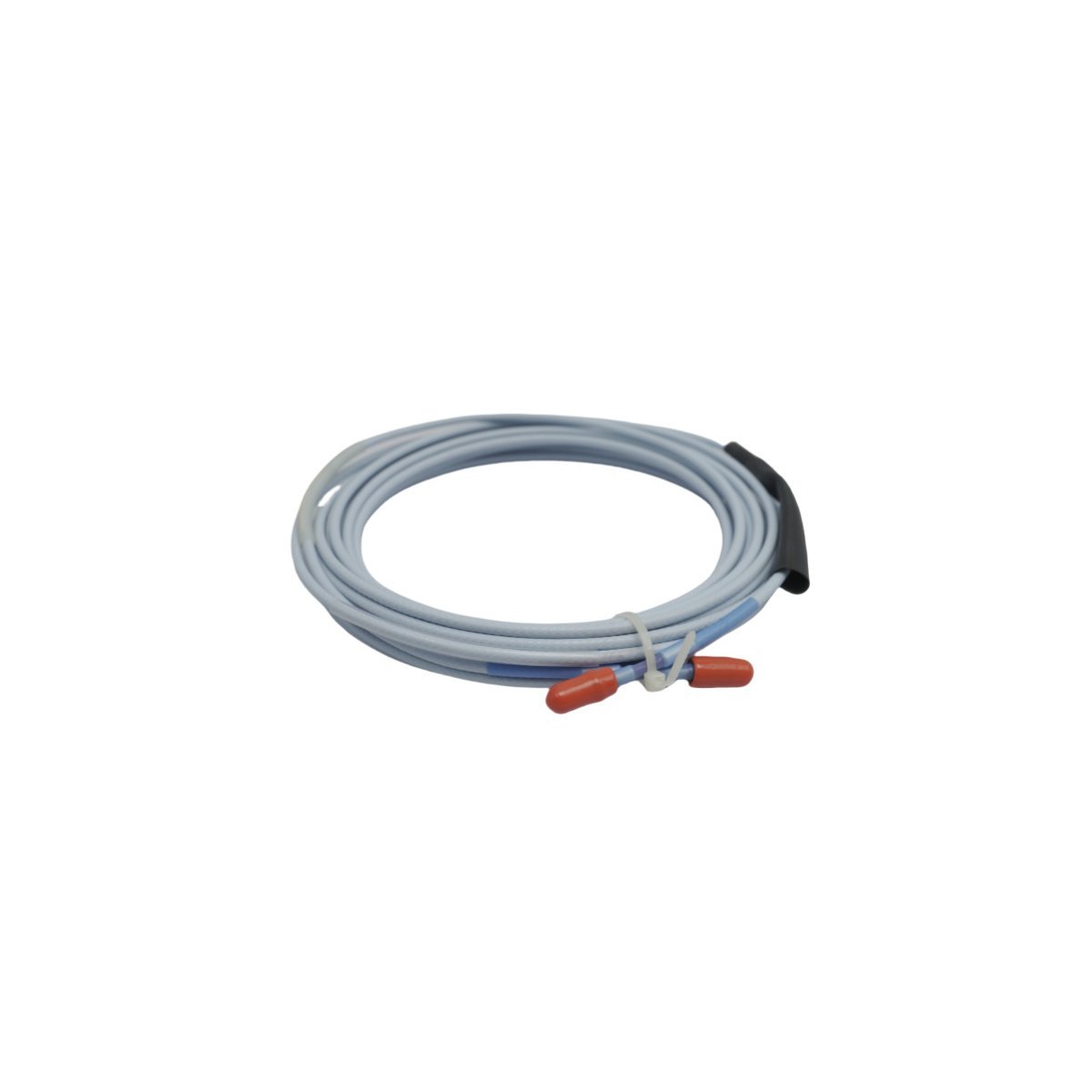

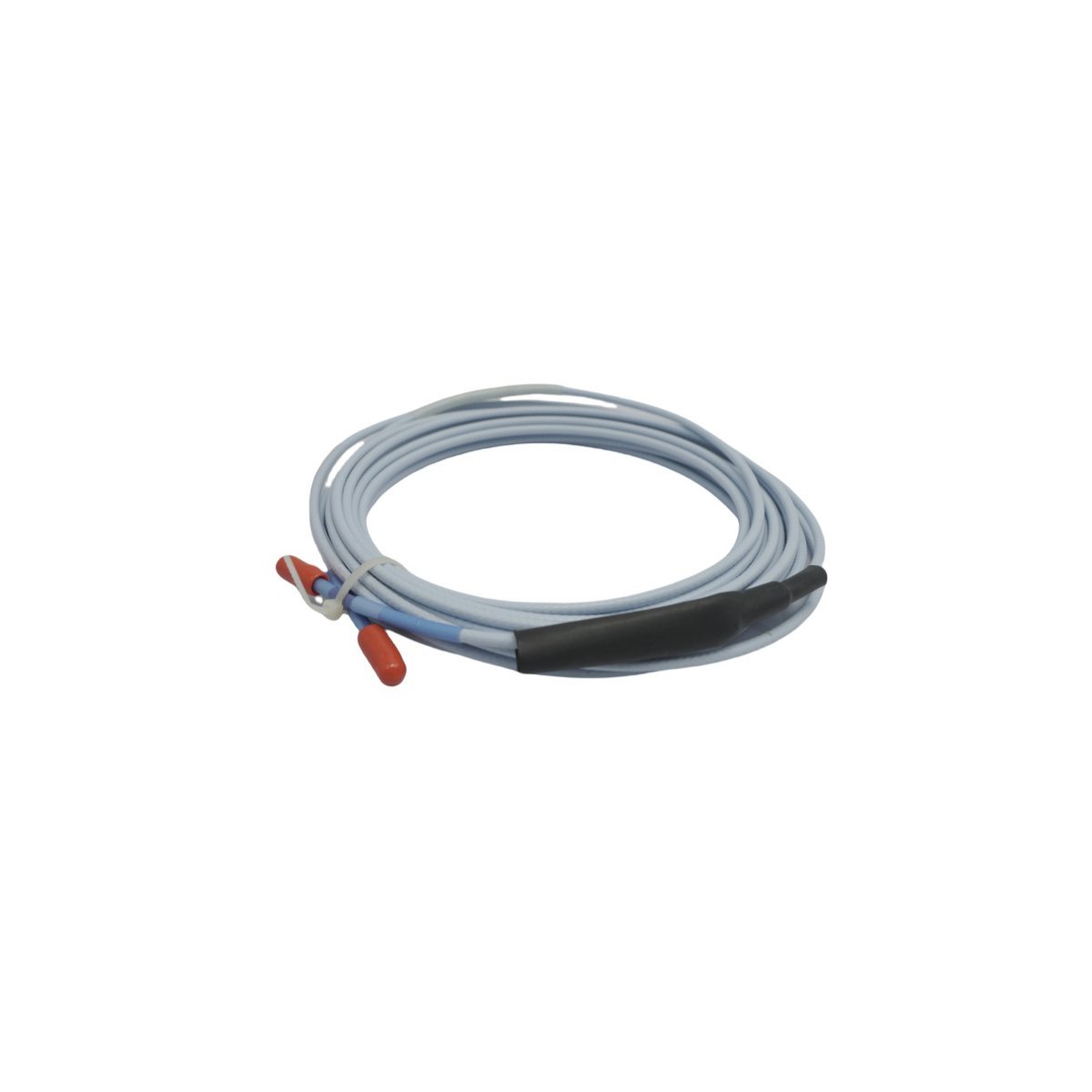

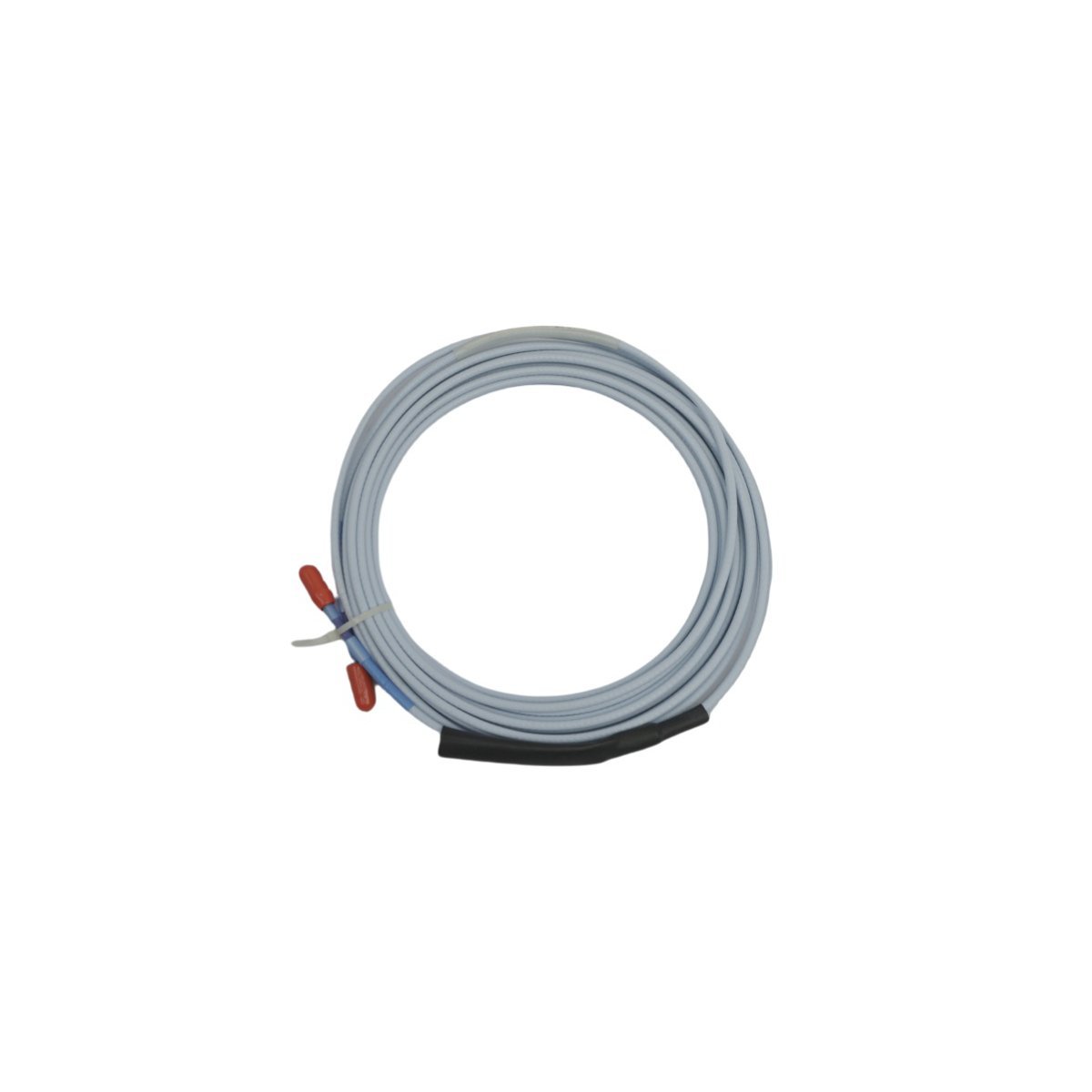

The Bently Nevada 330130-070-00-00 performs a vital role in industrial machinery protection systems. This 8mm proximity probe monitors radial vibration and axial position on rotating shafts. It utilizes eddy current technology to capture high-resolution data without physical contact. Because it provides real-time information, plant operators can detect mechanical wear early. This transducer effectively tracks rotor stability in turbines, compressors, and large pumps. Reliable data acquisition helps prevent catastrophic failures and extends equipment life.

Material Engineering and Durability

The probe features a polyphenylene sulfide (PPS) tip for maximum chemical resistance. Furthermore, the stainless steel housing protects the internal coil from physical impact. This robust design ensures consistent performance in temperatures ranging from -51°C to +177°C. The FEP-jacketed cable resists oil and moisture penetration in harsh environments. Consequently, the sensor maintains signal integrity despite exposure to industrial contaminants. These durability features reduce long-term maintenance costs and sensor replacement frequency.

System Compatibility and Installation

The 330130-070-00-00 integrates perfectly with the Bently Nevada 3500 Monitoring System. It meets the rigorous requirements of the API 670 standard for machinery protection. The Click-Loc connector ensures a stable electrical connection during high-vibration operation. Moreover, the 7-meter length allows for direct connection without requiring additional extension cables. This configuration simplifies the signal path and improves overall measurement accuracy. It serves as a fundamental component for modern predictive maintenance strategies.

Product Configuration and Attributes

• Transducer Type: 3300 XL 8mm Proximity Probe
• Thread Specification: 3/8-24 UNF threads
• Total Length: 7.0 meters / 23.0 feet (Option 070)
• Unthreaded Length: 0.0 inches (Option 00)
• Agency Approval: Standard non-certified configuration (Option 00)
• Body Material: AISI 303 stainless steel
• Weight: 0.26 kg
• Origin: United States
