Description

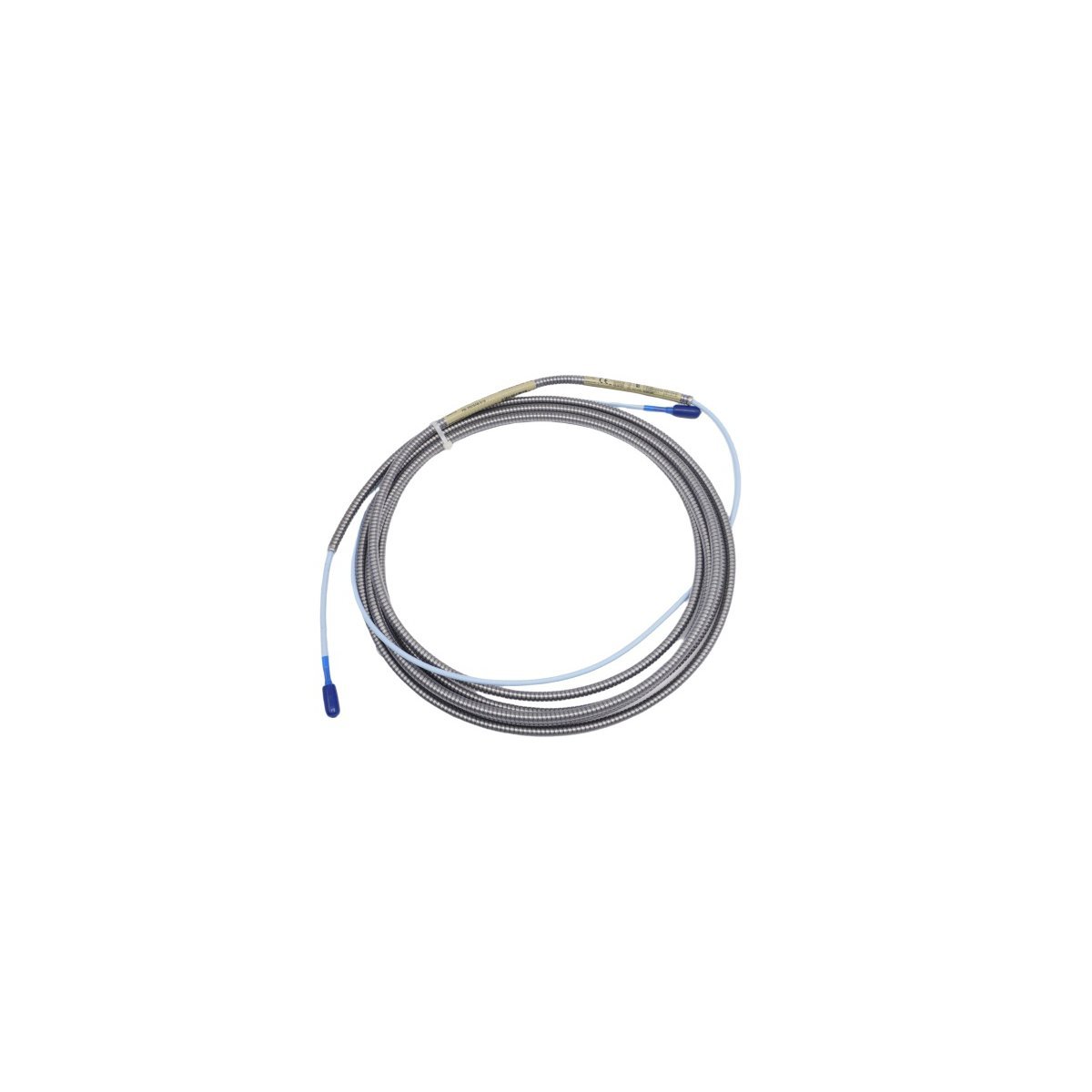

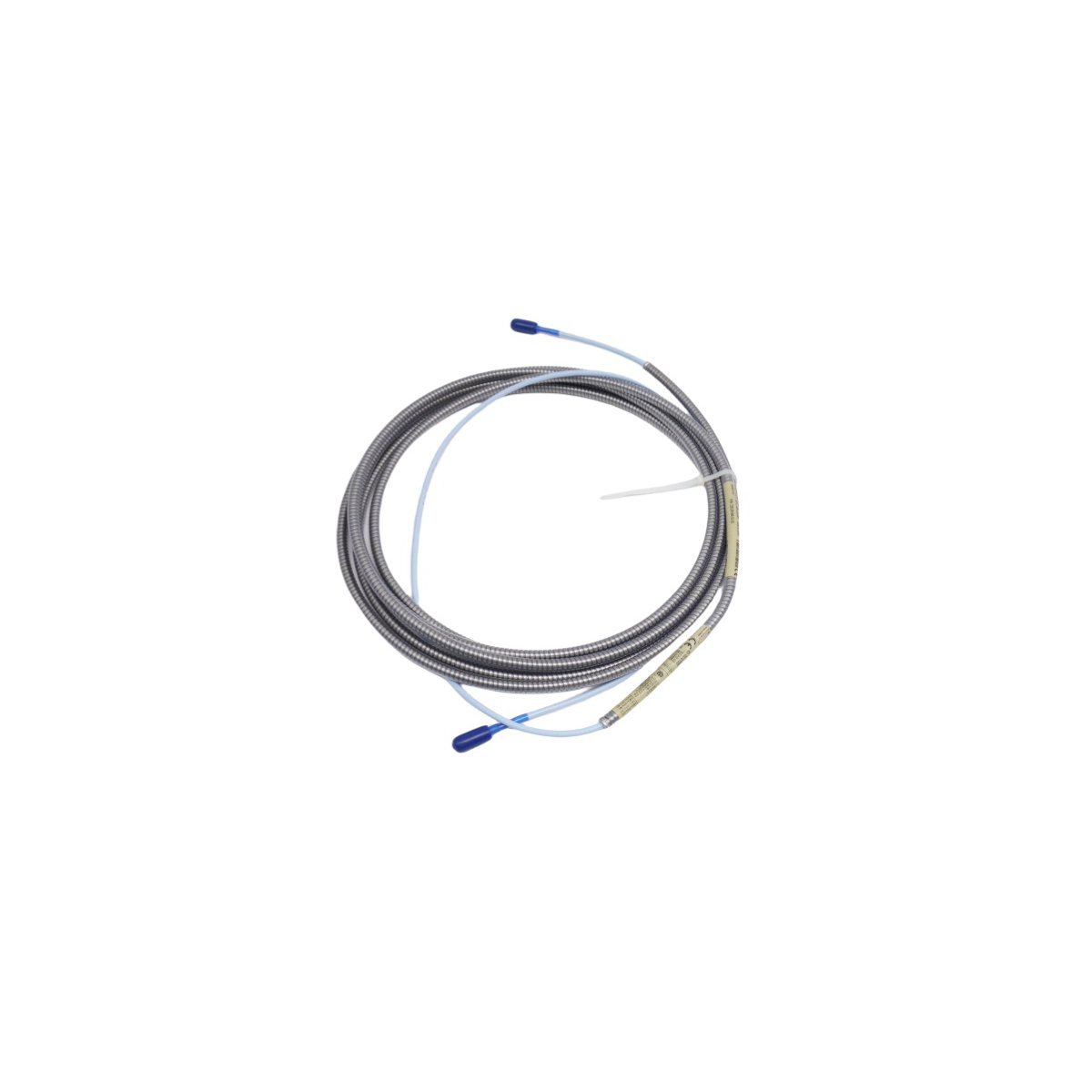

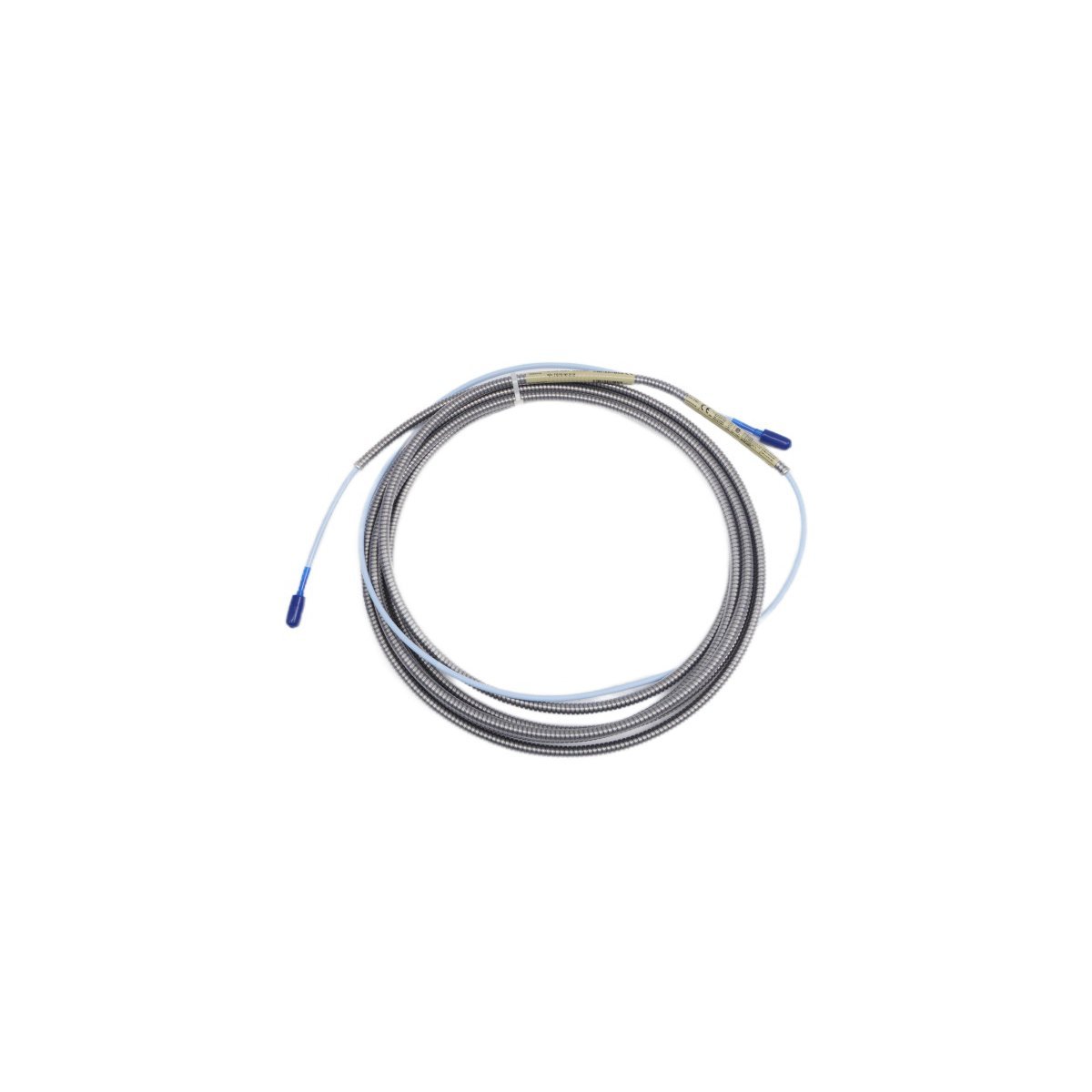

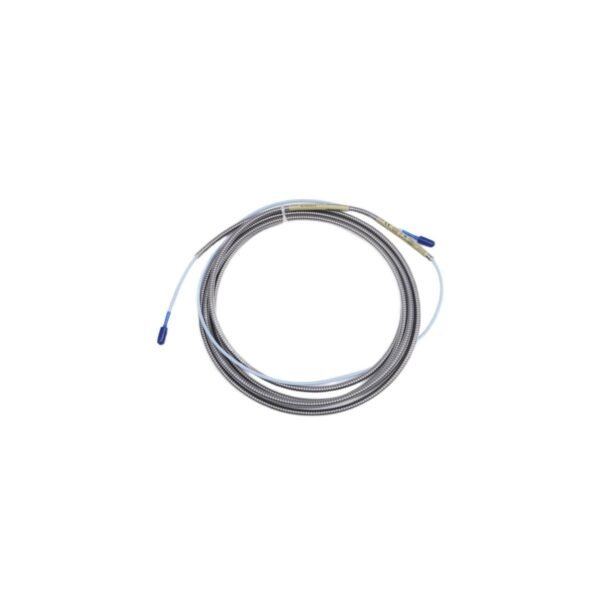

The Bently Nevada 330130-045-01-05 serves as a vital bridge in the 3300 XL proximity transducer system. This extension cable connects the proximity probe to the Proximitor sensor. It transmits high-frequency eddy current signals with minimal loss. Furthermore, the cable maintains calibrated impedance for accurate displacement measurements. This ensures the monitoring system tracks shaft vibration and axial position correctly.

Design and Construction

This specific model features high-performance coaxial construction for superior signal integrity. It includes a 4.5-meter total length to accommodate various machinery footprints. Moreover, the stainless steel armor provides essential mechanical protection in oily environments. The FEP jacket resists chemical corrosion and extreme industrial temperatures. These robust materials guarantee long-term stability for critical rotating assets.

Industrial Applications

Reliability is essential for monitoring steam turbines and centrifugal compressors. Engineers install the 330130-045-01-05 in power generation and petrochemical facilities. It supports Turbomachinery Instrumentation (TSI) for high-speed rotating equipment. The cable enables remote mounting of sensors away from high-heat zones. This configuration improves the safety and lifespan of the electronic components.

Key Specifications

Installation Benefits

• Stainless steel armor prevents crushing and abrasive wear in tight spaces.
• ClickLoc connectors ensure a secure and moisture-resistant connection.
• The 4.5-meter length offers flexible routing through complex machine housings.
• Factory calibration matches the 3300 XL 8mm probe standard sensitivity.
• Protective connector sleeves prevent electrical grounding issues during operation.
