Description

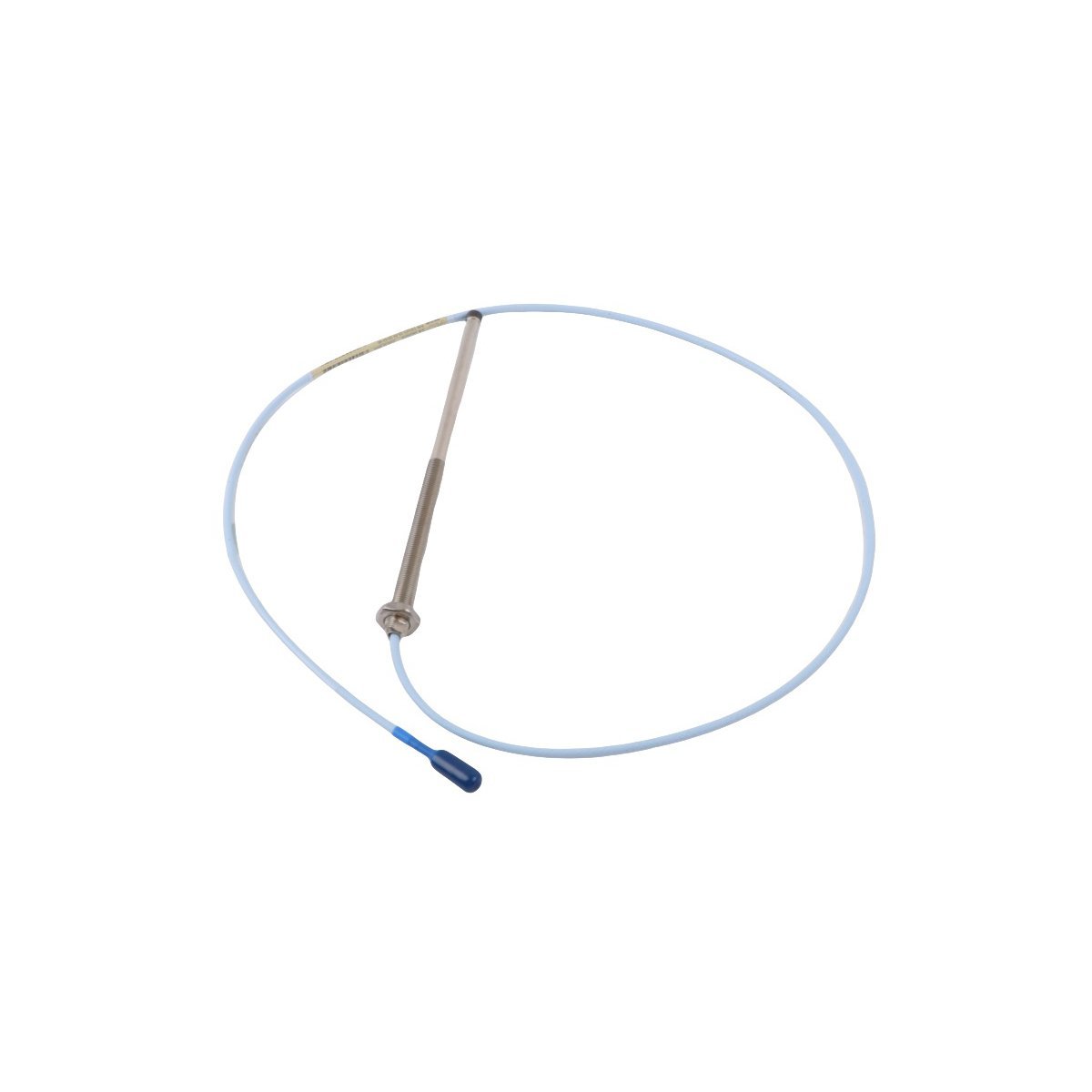

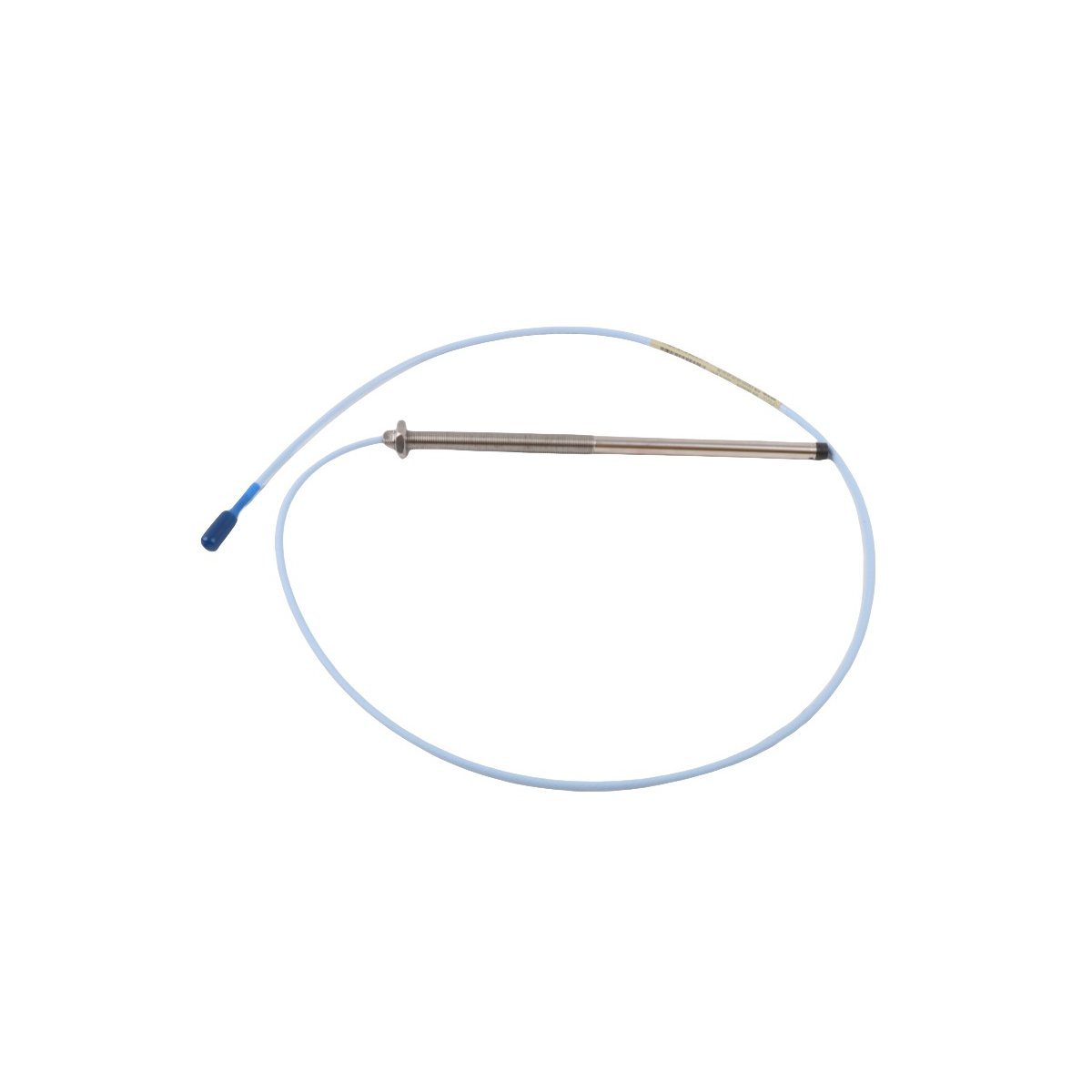

The Bently Nevada 330106-05-30-05-00-00 operates as a core sensor for the 3300 XL Transducer System. This 8mm proximity probe measures shaft vibration and static position in high-speed rotating machinery. It utilizes eddy current technology to detect distance between the probe tip and the target surface. This measurement occurs without physical contact to prevent sensor wear or machine damage. Consequently, it provides critical data for preventing catastrophic mechanical failures.

Robust Design and Construction

This model features a reverse mount design with a 3/8-24 UNF thread configuration. The probe tip consists of high-performance polyphenylene sulfide (PPS) plastic. This material offers superior resistance to moisture and chemical corrosion in industrial environments. Additionally, the gold-plated ClickLoc connectors ensure a secure electrical path. These specialized connectors prevent signal drift caused by mechanical vibration or poor contact. The design facilitates reliable operation in temperature ranges from -52°C to +177°C.

Technical Performance Data

System Integration and Compatibility

A major benefit involves the complete interchangeability of 3300 XL components. Users can swap probes and extension cables without performing time-consuming bench calibrations. This flexibility significantly reduces maintenance labor and spare parts inventory costs. Furthermore, the 3300 XL probes demonstrate high immunity to electromagnetic interference. This allows for accurate readings even in electrically noisy environments. The probe integrates seamlessly with standard 3500 series machinery protection systems.

Industrial Applications

• Monitoring radial vibration on fluid-film bearing shafts.
• Measuring axial thrust position in large industrial turbines.
• Analyzing eccentricity in power generation equipment.
• Detecting phase reference through Keyphasor applications.
• Tracking thermal expansion in high-pressure casing systems.
