Description

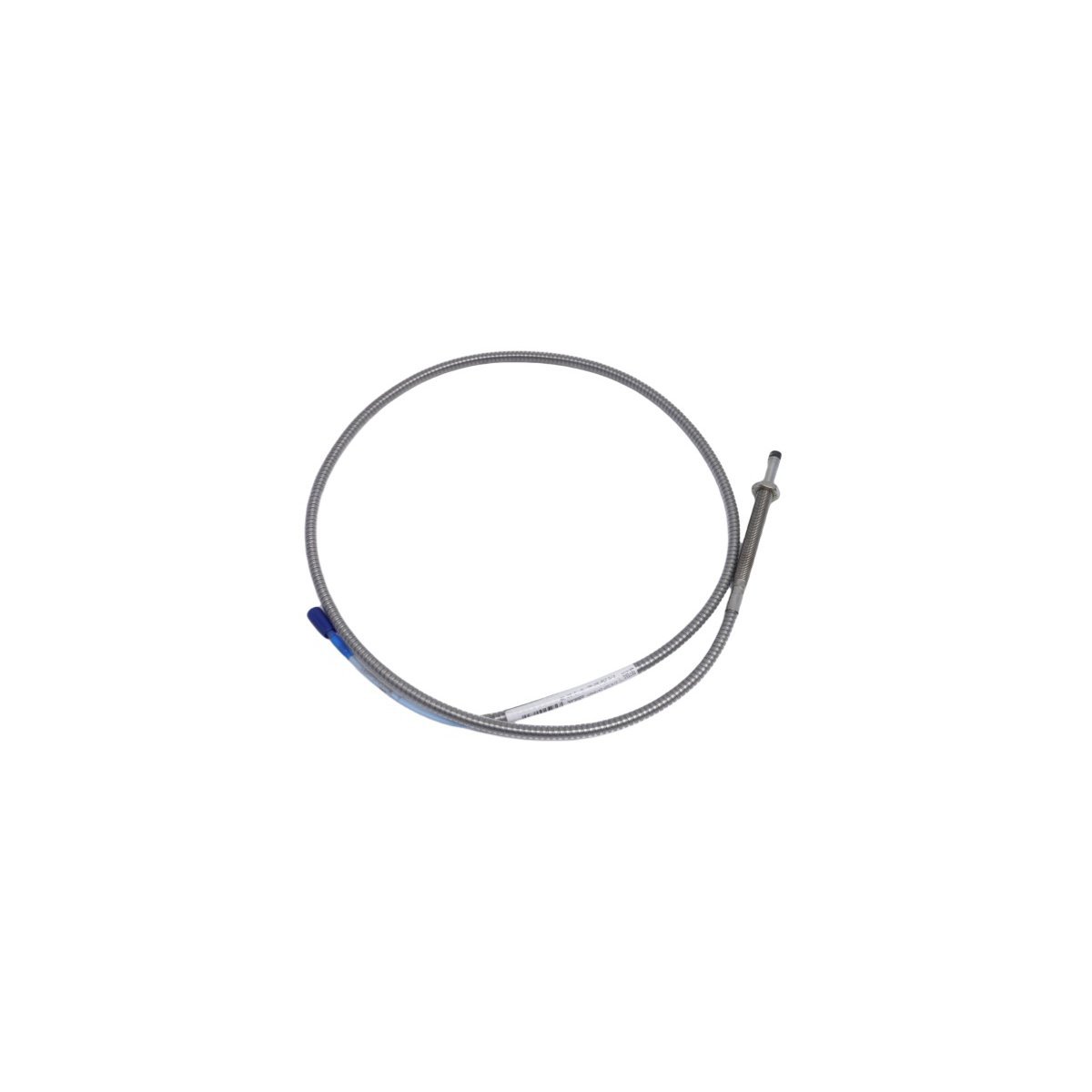

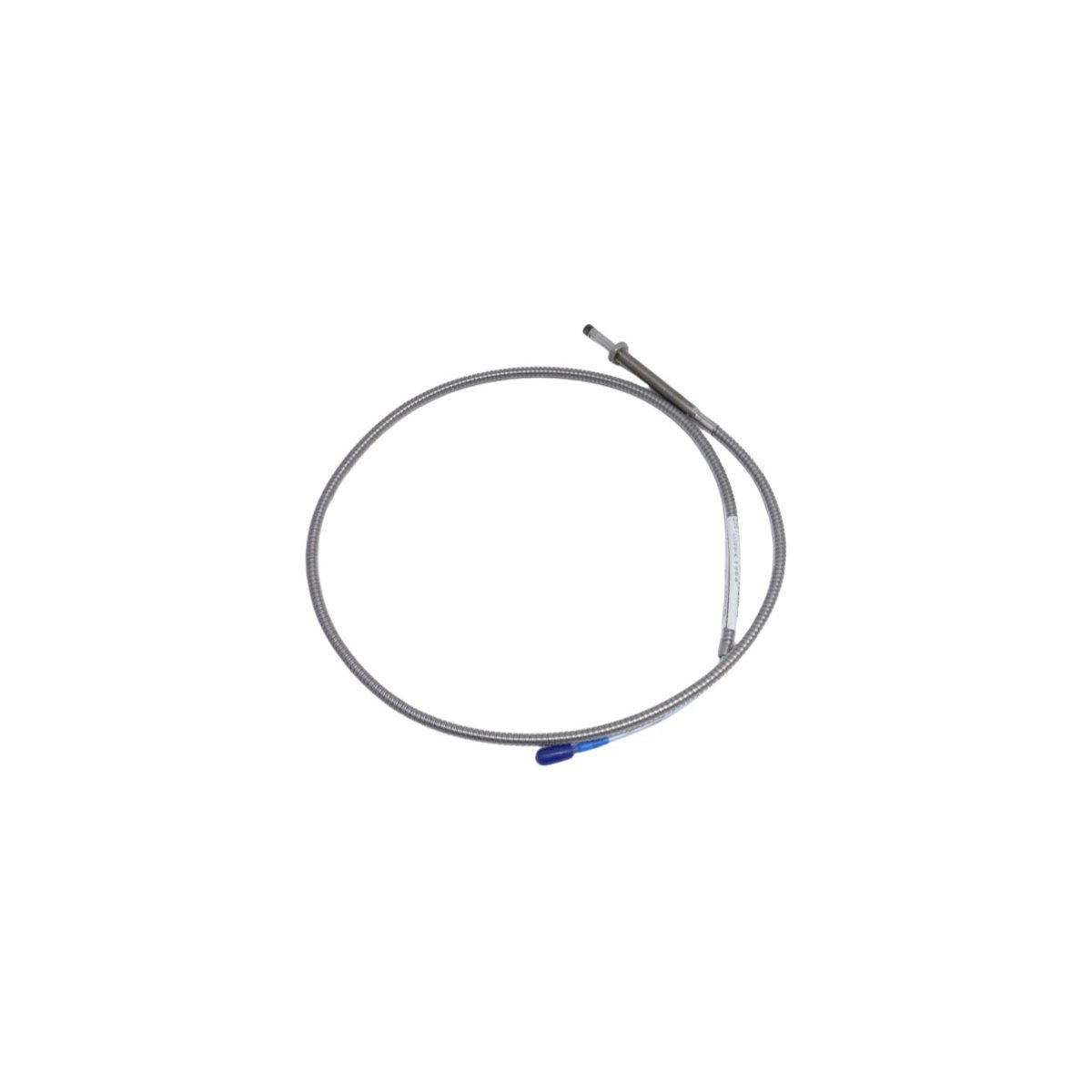

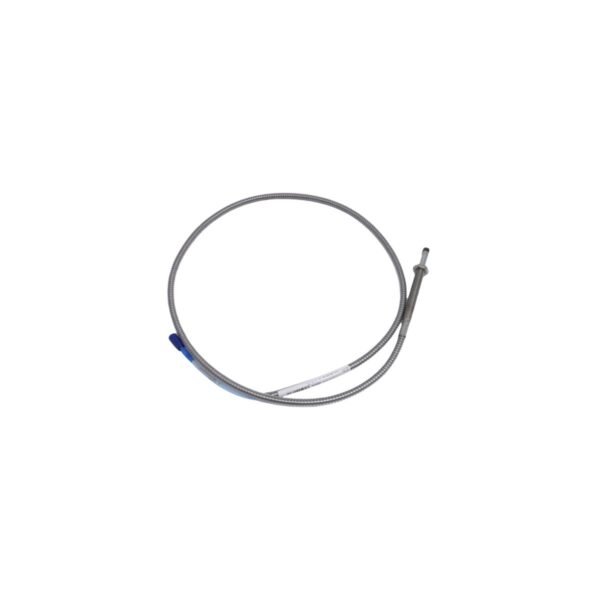

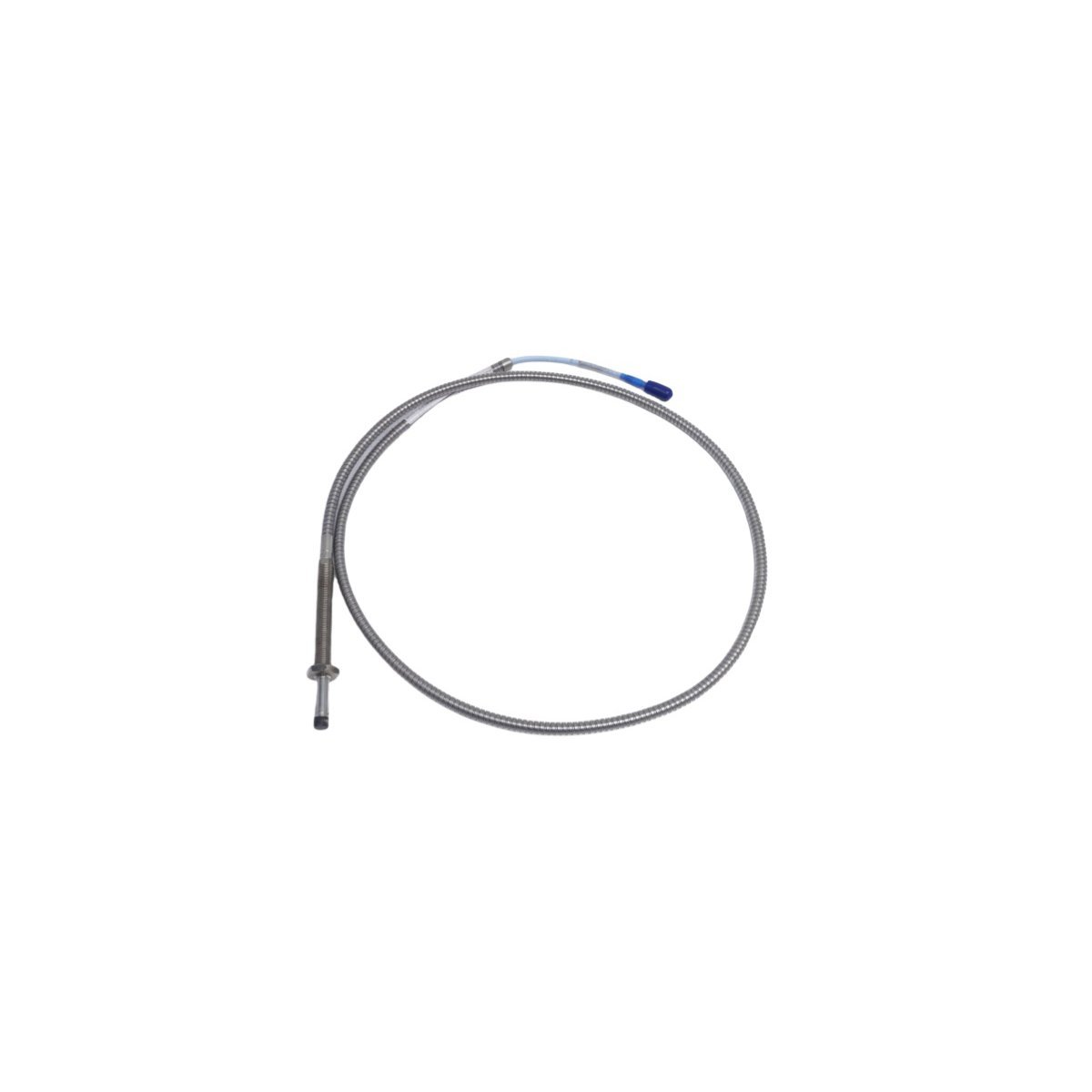

The Bently Nevada 330104-02-10-10-02-00 belongs to the 3300 XL 8 mm Proximity Transducer series. This eddy current sensor measures vibration and position on rotating machinery. It converts the distance between the probe tip and the target into a proportional voltage. The system provides critical data for Turbomachinery Protection Systems (TPS).

Functional Performance

This proximity probe excels in high-speed industrial environments. It utilizes advanced induction technology to detect shaft displacement. The 3300 XL series offers a linear range of 2 mm (80 mils). It maintains a constant incremental scale factor of 200 mV/mil. This precision allows operators to monitor axial thrust and radial vibration accurately.

Configuration and Build

The 330104-02-10-10-02-00 model features specific physical dimensions for versatile mounting. The probe tip uses a high-performance Polyphenylene Sulfide (PPS) material. This ensures chemical resistance and mechanical strength. The 3/8-24 UNF thread design facilitates secure installation into machine housings.

Industrial Applications

Reliability remains a priority for Turbomachinery Instrumentation (TSI) setups. These probes monitor steam turbines, centrifugal compressors, and industrial pumps. They withstand extreme temperatures and pressurized oil environments. Engineers rely on this probe for early fault detection in critical rotating assets.

Specifications Table

Key Technical Characteristics

• Integrated ClickLoc connectors prevent moisture ingress and signal loss.
• The probe design reduces the impact of cross-talk between adjacent sensors.
• Hardened casing protects internal coils from mechanical shock.
• Full compatibility with 3300 XL Proximitor sensors ensures seamless integration.
• Gold-plated brass connectors enhance electrical conductivity and corrosion resistance.
