Description

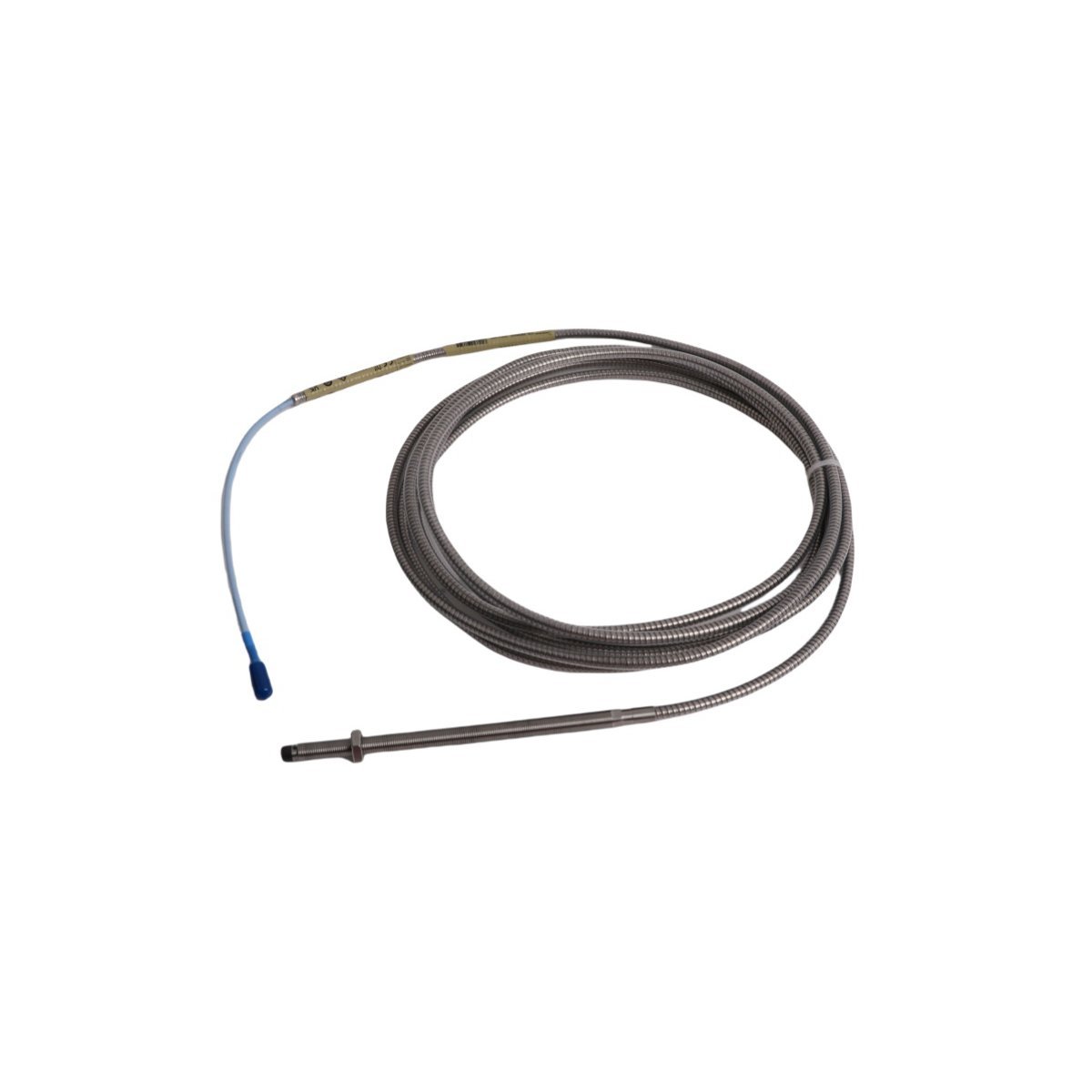

The Bently Nevada 330104-00-16-50-02-00 performs critical monitoring for high-speed industrial machinery. This 8 mm proximity probe belongs to the specialized 3300 XL transducer series. It delivers a standard scale factor of 7.87 V/mm for precise shaft measurements. Furthermore, the system tracks both dynamic vibration and static axial position. This data allows for accurate machine health assessments in power plants. Operators can effectively identify early rotor issues before costly damage occurs.

Armored Design for Extreme Environments

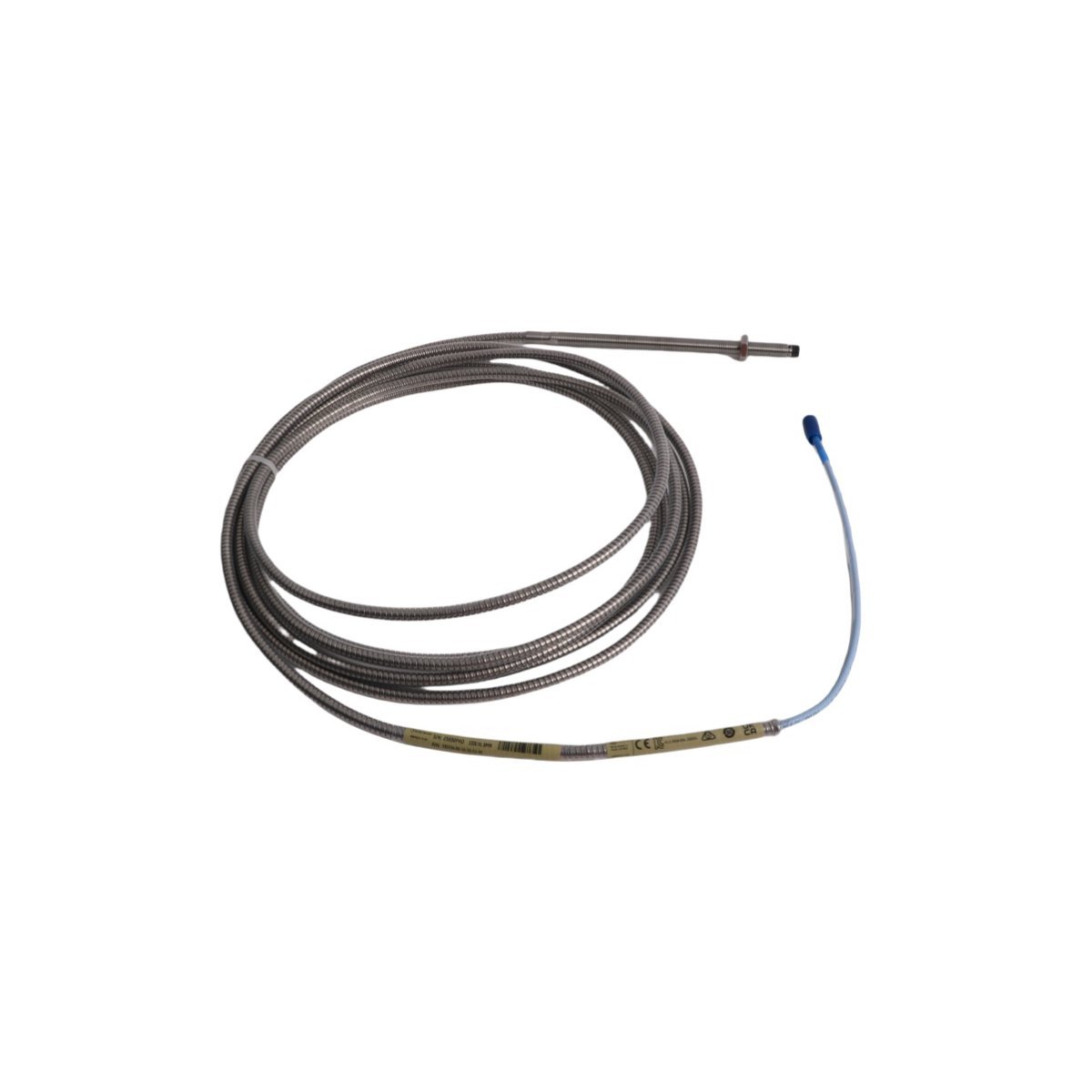

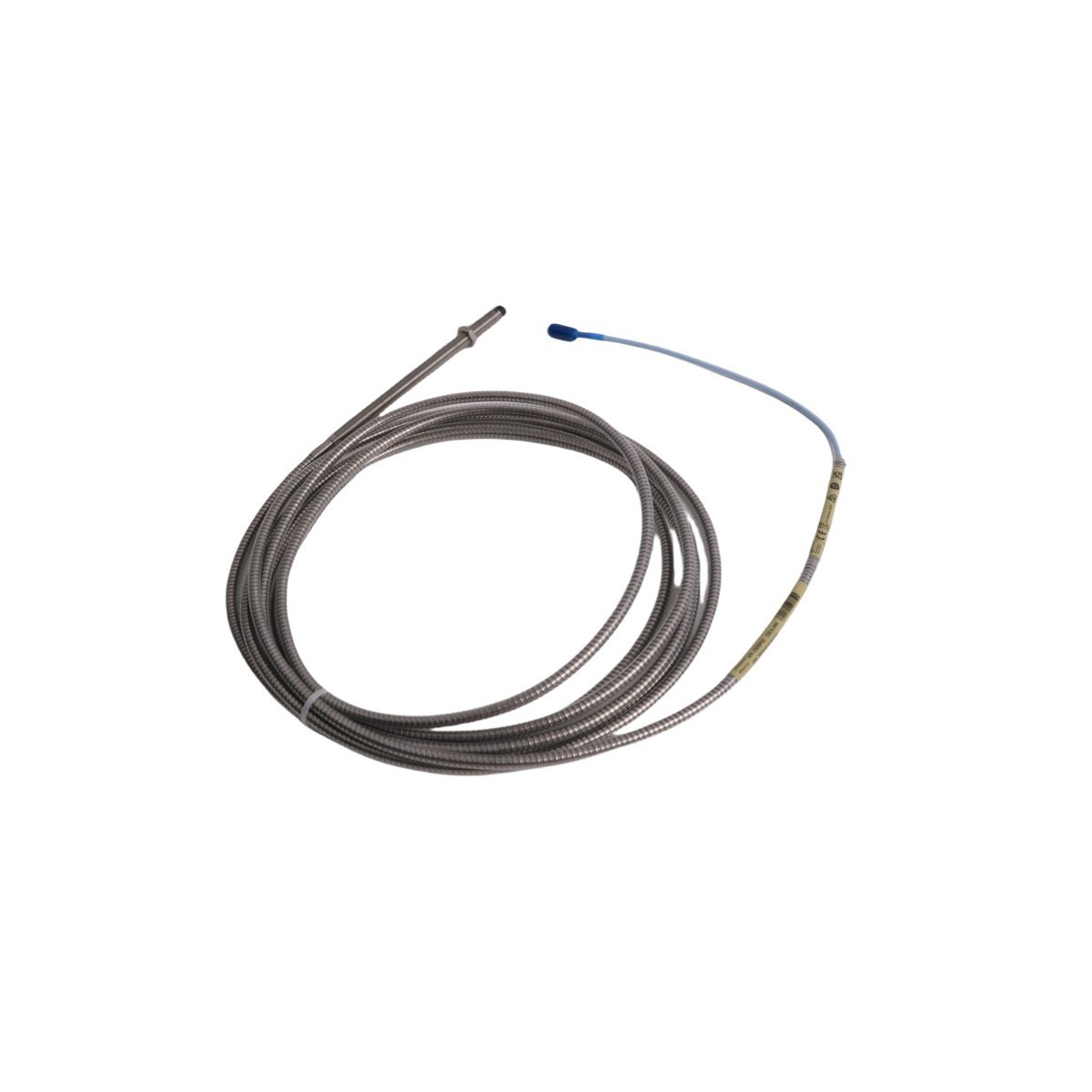

This specific model features robust stainless steel armor for maximum cable protection. This armored casing prevents mechanical damage in heavy industrial zones. Additionally, the probe utilizes an M10 x 1 metric threaded body. The 160 mm case length supports deep installation into machine housings. A 5.0-meter standard cable provides long-reach connectivity to the proximitor sensor. Moreover, the miniature coaxial ClickLoc connector ensures a secure electrical link. These features maintain signal integrity despite high vibration and moisture.

Technical Specifications and Configuration

Advanced Installation and System Stability

The 3300 XL system offers significant improvements over legacy transducer designs. It supports high-density DIN-rail mounting or traditional panel configurations. Furthermore, the integrated mounting base provides built-in electrical isolation. This design eliminates the need for extra insulator plates during setup. The sensor also demonstrates high immunity to radio frequency interference (RFI). Consequently, users can install probes in non-metallic housings without signal loss. These advancements reduce installation complexity and overall labor costs.

Industrial Machinery Applications

• Measuring radial shaft vibration in fluid-film bearings.
• Tracking axial thrust position in steam and gas turbines.
• Providing phase reference signals for Keyphasor systems.
• Monitoring eccentricity in large centrifugal compressors.
• Supporting speed monitoring and overspeed protection loops.
