Description

The Bently Nevada 330104-00-08-10-01-00 belongs to the industry-standard 3300 XL series. This 8 mm proximity probe acts as a non-contacting sensor for critical industrial machinery. It translates the physical distance between the probe tip and a conductive target into a proportional voltage signal. Because it captures both static and dynamic data, it is essential for comprehensive asset health monitoring. The sensor provides high-resolution insights into shaft behavior, enabling operators to detect early signs of mechanical wear or misalignment.

Technical Configuration and Hardware Specs

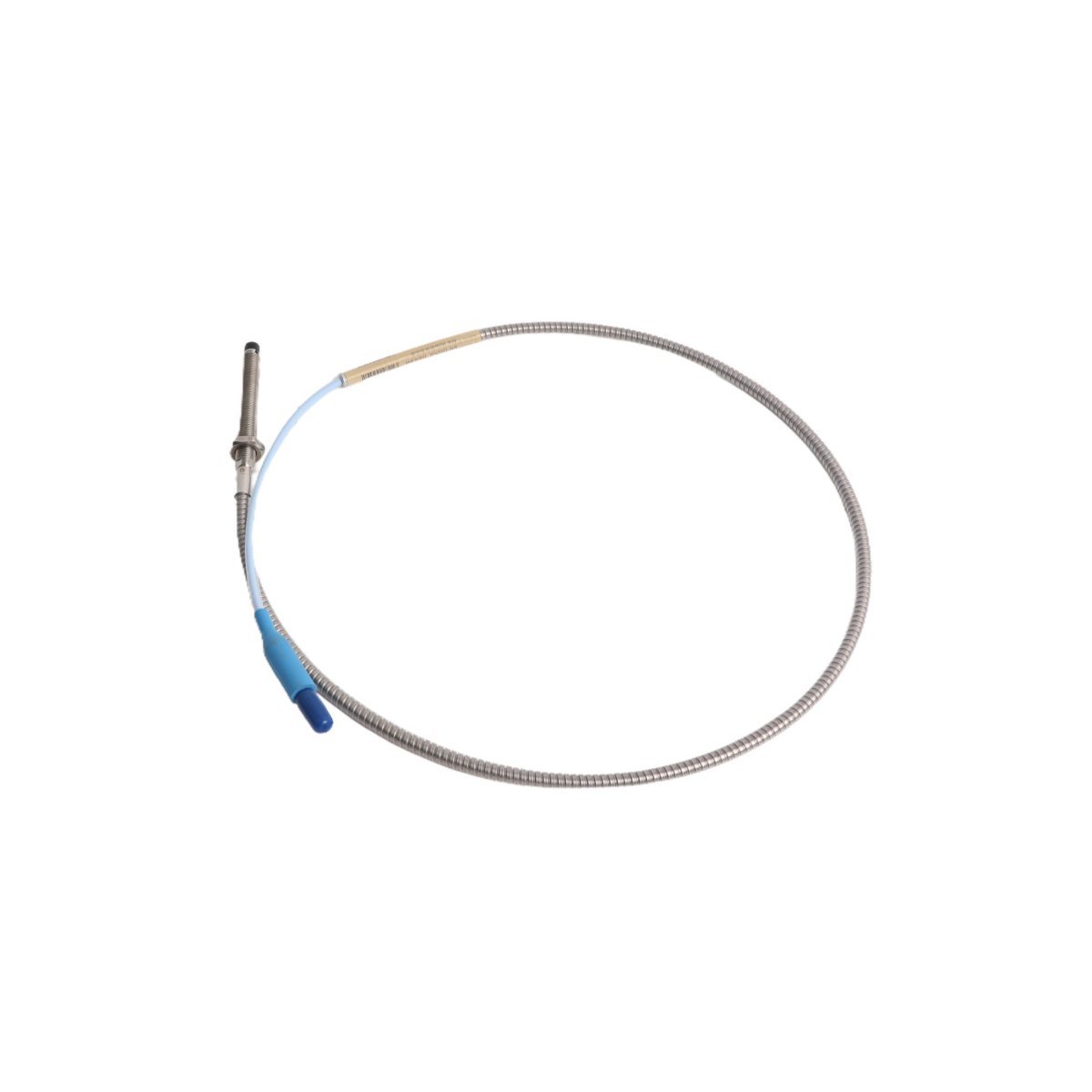

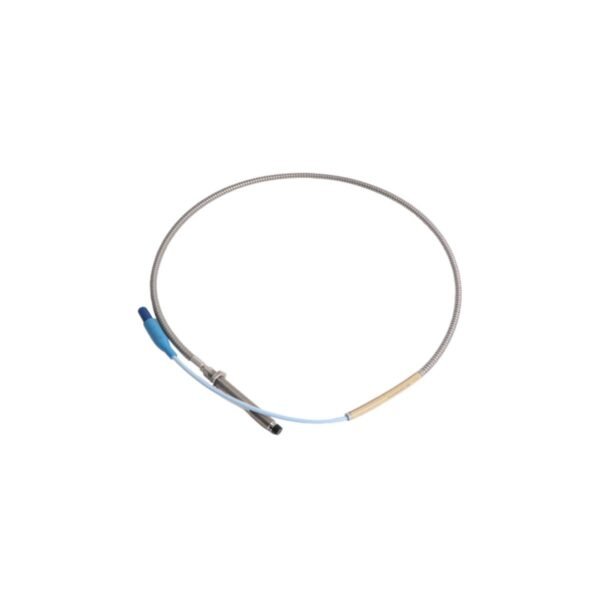

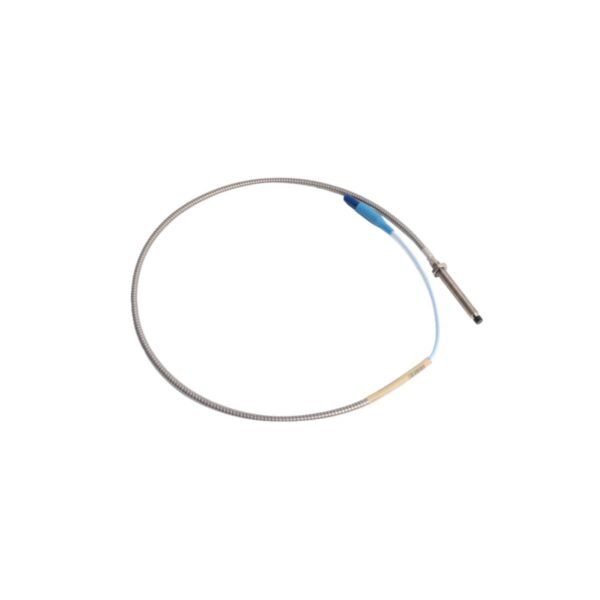

This specific model features a metric M10 x 1 threaded body with a 1.0-meter cable length. The 330104-00-08-10-01-00 configuration includes integrated stainless steel armor to safeguard the lead wire from industrial contaminants and mechanical stress. Furthermore, the cable terminates in a miniature coaxial ClickLoc connector, which includes a dedicated connector protector. These robust materials ensure the sensor maintains signal integrity in high-vibration and high-temperature zones.

Core Industrial Applications

The 3300 XL series is highly versatile and integrates seamlessly with various monitoring systems. Common use cases include:

• Monitoring radial vibration in fluid-film bearing machines.
• Measuring axial thrust position to prevent catastrophic contact.
• Serving as a Keyphasor reference for phase angle measurements.
• Providing precise RPM data for overspeed protection systems.
• Tracking differential expansion in large steam turbine casings.

Reliability in Demanding Environments

Engineered for the petrochemical and power generation sectors, this probe offers superior stability. It maintains linear accuracy across a wide temperature range and resists chemical exposure. The armored design specifically targets installations where cables face exposure to high-pressure oil or flying debris. Consequently, this hardware provides the long-term durability required for mission-critical machinery protection systems (MPS).
