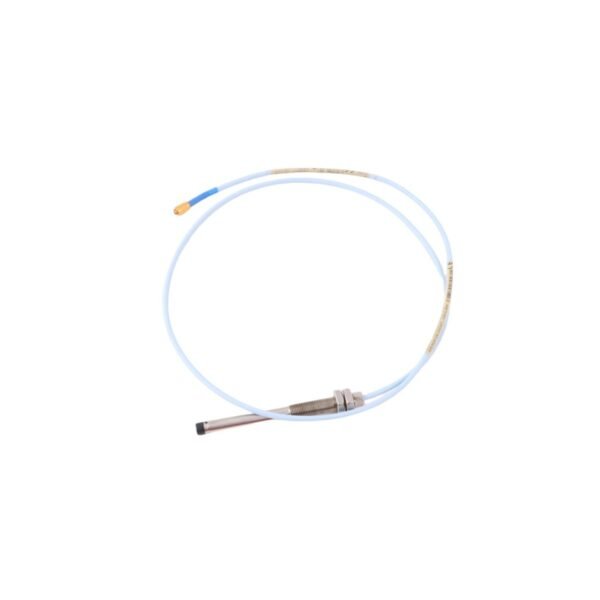

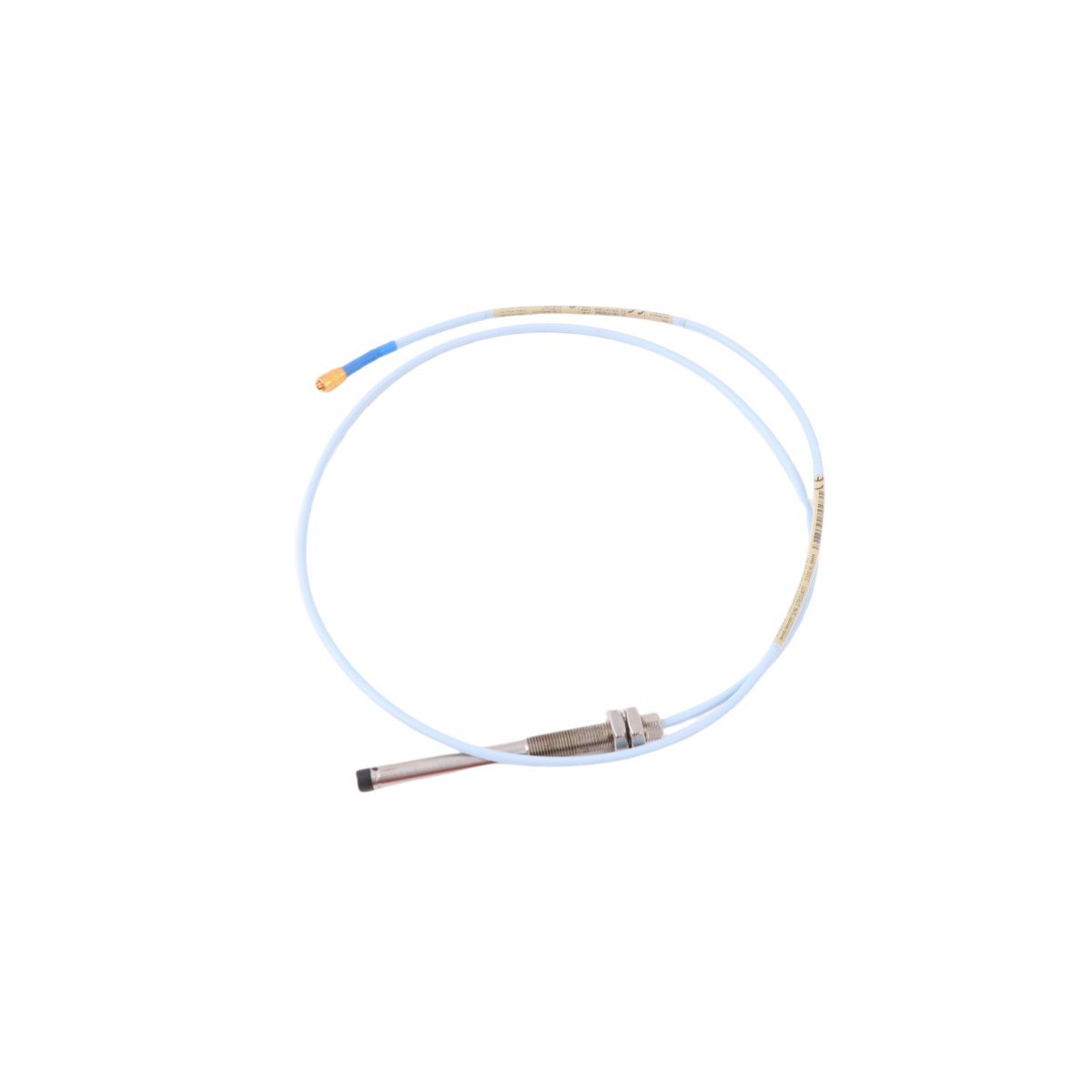

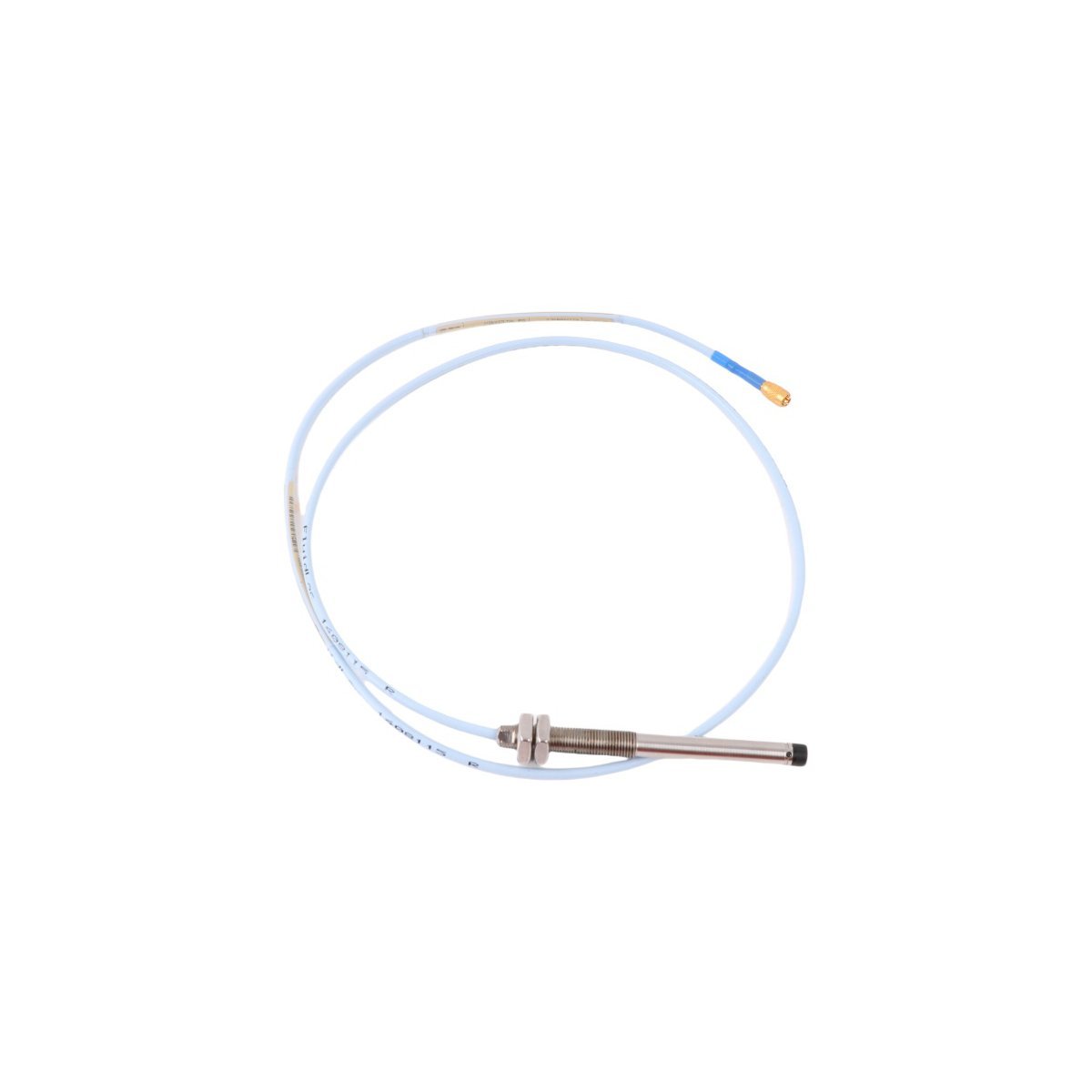

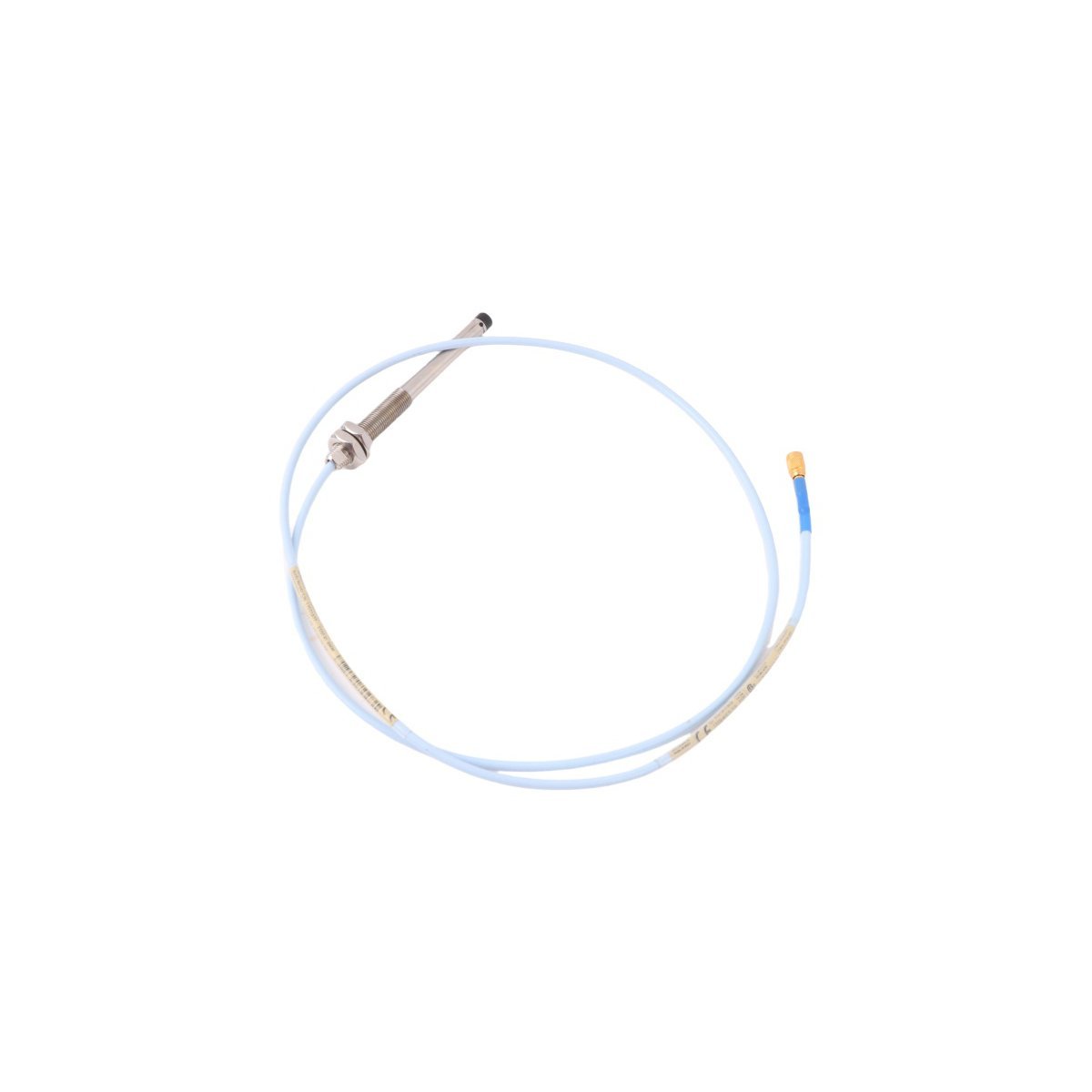

Bently Nevada 330103-05-10-10-12-05 3300 XL 8mm Proximity Sensor

The Bently Nevada 330103-05-10-10-12-05 is a specialized eddy current sensor designed for the non-contact measurement of shaft vibration and position. As a central component of the 3300 XL 8mm Transducer System, this probe is engineered for high-reliability machinery protection in demanding industrial sectors such as oil and gas, power generation, and chemical processing. It provides a linear voltage output proportional to the distance between the probe tip and the target surface, enabling precise monitoring of critical rotating assets.

Advanced Monitoring for Machinery Protection

This proximity probe is specifically configured to provide stability and accuracy in harsh environments. Specifically, the 330103 series features a 3/8-24 UNF thread housing with an extended length designed for deep-reach installations. Furthermore, the 330103-05-10-10-12-05 configuration includes a 0.5-meter (approx. 20-inch) integral cable and is built to withstand extreme thermal fluctuations and chemical exposure. As a result, operators can maintain 24/7 surveillance of turbine and compressor health, significantly reducing the risk of catastrophic mechanical failure.

Technical Specification Matrix

Industrial Durability and Precision Engineering

The physical architecture of the 330103-05-10-10-12-05 is optimized for longevity and signal integrity. Moreover, the probe tip is manufactured from high-performance polyphenylene sulfide (PPS), which provides a hermetic seal against pressurized lubricants and corrosive process fluids. In addition, the gold-plated ClickLoc connector ensures a vibration-proof electrical path, preventing signal attenuation or intermittent data loss. Therefore, this sensor is a critical tool for any maintenance strategy focused on maximizing Overall Equipment Effectiveness (OEE) and extending the mean time between failures (MTBF).

FAQ

What is the specific application for the 330103 model?

The 330103 is primarily used when a standard length probe is insufficient. Specifically, its threaded housing is designed to be installed through brackets or machine walls where precise gap adjustment is required from the external side.

Is an extension cable necessary for this probe?

Yes, because the probe has a short integral cable, it must be connected to an extension cable to reach the Proximitor sensor. Furthermore, the combined length of the probe and extension cable must match the calibrated length required by the Proximitor (typically 5m or 9m).

How does the ClickLoc connector improve reliability?

ClickLoc connectors are designed to resist loosening caused by high-intensity machine vibration. Ultimately, the locking mechanism provides a moisture-resistant seal and prevents signal dropouts, ensuring consistent data for the monitoring system. Moreover, this design eliminates the need for specialized tools during the connection process.

Can this probe operate in high-temperature environments?

This probe is rated for operation in temperatures ranging from -40°C to +177°C. Accordingly, it is suitable for use in the hot sections of steam and gas turbines where standard electronic sensors might fail.
