Description

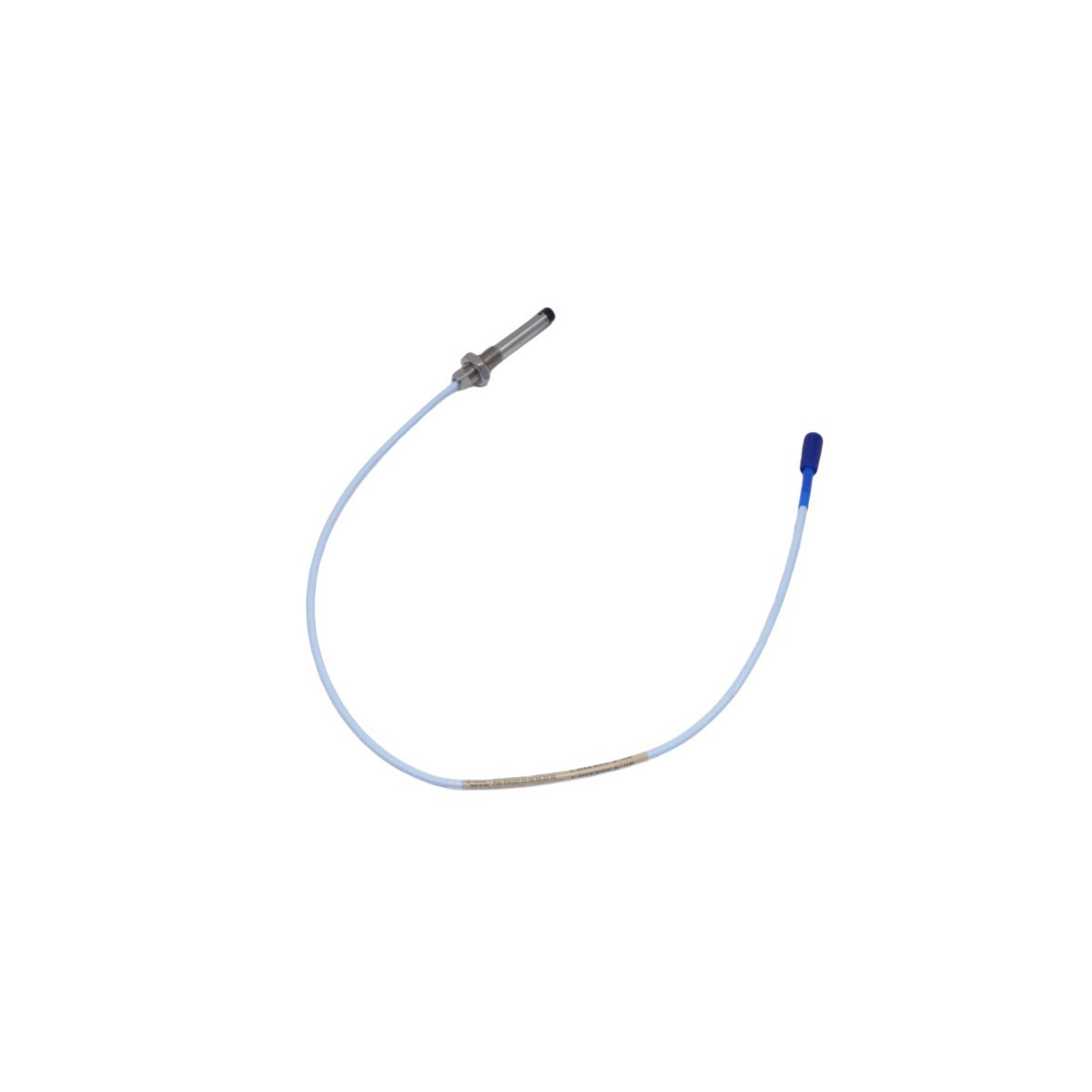

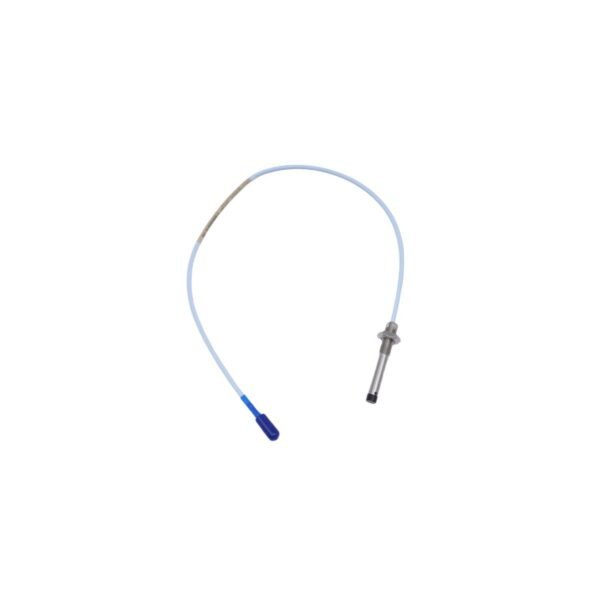

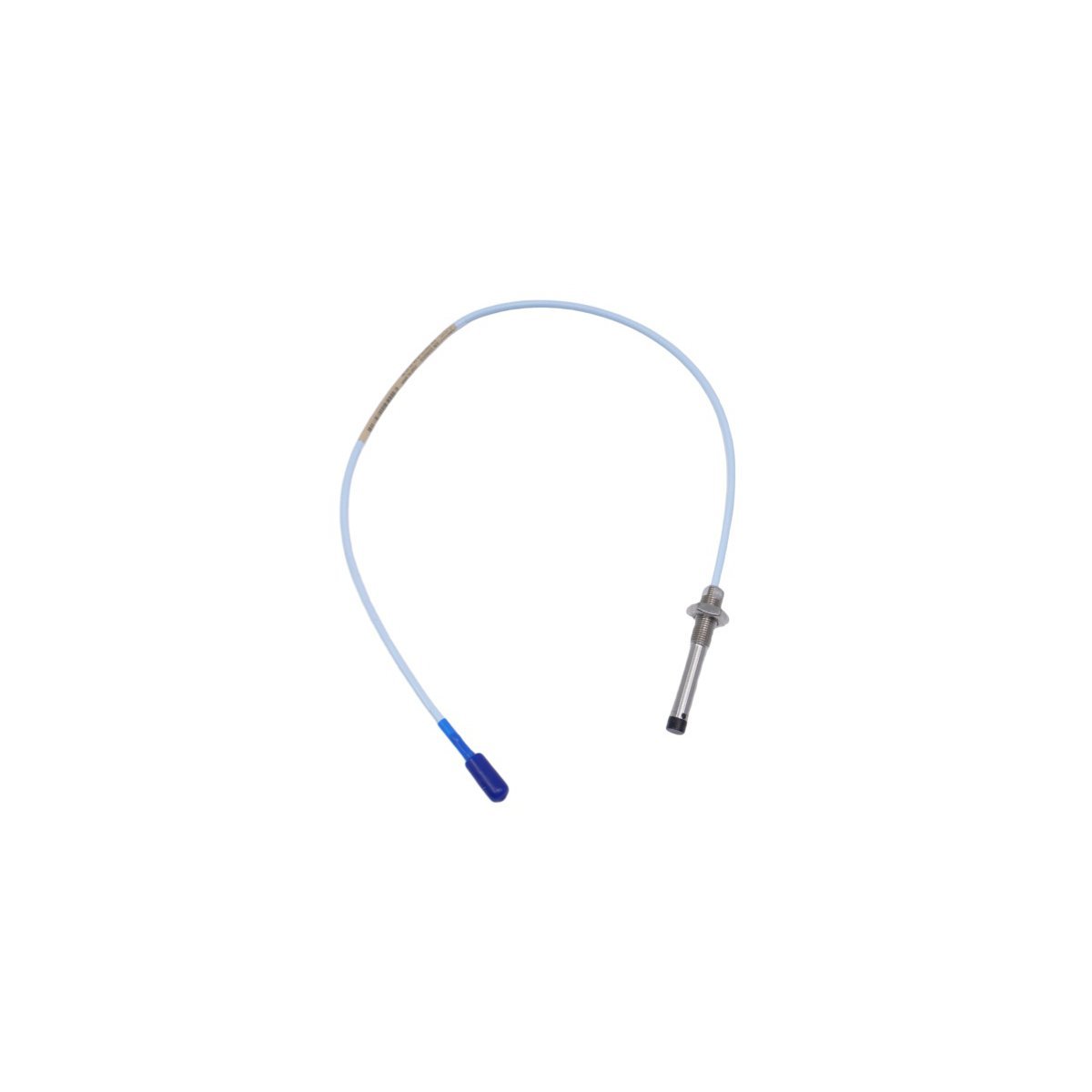

The Bently Nevada 330103-03-06-05-02-00 serves as a specialized 3300 XL 8mm eddy current sensor. It provides reliable displacement measurements for industrial rotating machinery. This probe excels at monitoring shaft vibration and position in non-critical auxiliary systems. Furthermore, the non-contacting design prevents physical wear on the sensor tip and the target shaft. It ensures a stable electrical output proportional to the gap distance between the surfaces.

Technical Characteristics

This proximity probe features a 3/8-24 UNF thread housing for standard mounting configurations. The specific configuration includes a 0.3-inch unthreaded length and a 0.6-inch total case length. Additionally, the integrated cable extends 0.5 meters (1.6 feet) and includes a ClickLoc connector. Gold-plated connectors ensure high signal integrity in humid or corrosive industrial environments. The robust polyphenylene sulfide (PPS) tip withstands extreme pressure and temperature fluctuations.

Key Applications

Facility managers typically deploy this probe for basic protection on smaller rotating assets. It performs effectively on fans, centrifugal pumps, and auxiliary motors. Because the probe integrates with the 3500 Series system, it fits seamlessly into existing racks. This model is ideal for budget-conscious projects requiring Bently Nevada quality. It provides necessary data for trend analysis and automated alarm triggering during mechanical events.

System Reliability

The 3300 XL 8mm probe series represents a significant standard in turbomachinery instrumentation. Its simplified architecture contributes to an exceptionally high mean time between failures (MTBF). Moreover, the interchangeable design allows for fast replacement of individual components without full recalibration. This flexibility reduces labor costs during routine plant turnarounds. Reliable monitoring with this sensor helps prevent unexpected mechanical damage to high-speed shafts.

Specifications Table

Operational Advantages

• Non-contact measurement technology eliminates friction and maintenance of the sensing tip.
• Compact case dimensions allow for installation in restricted machine internal spaces.
• High thermal stability minimizes signal drift during equipment startup and cooldown cycles.
• Rugged cable insulation protects the signal from chemical exposure and oil saturation.
• Full compatibility with 3300 XL Proximitor sensors simplifies overall system configuration.
