Description

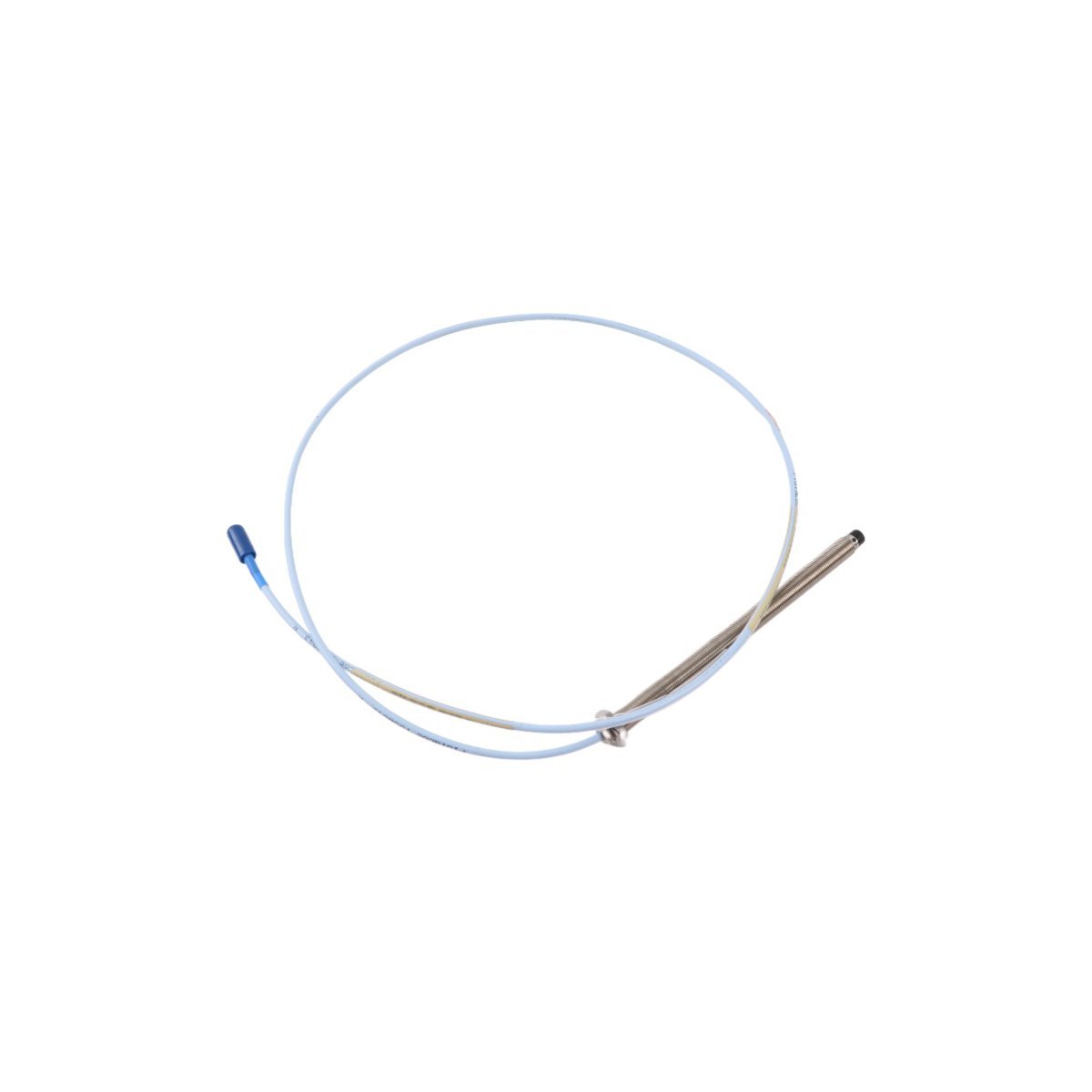

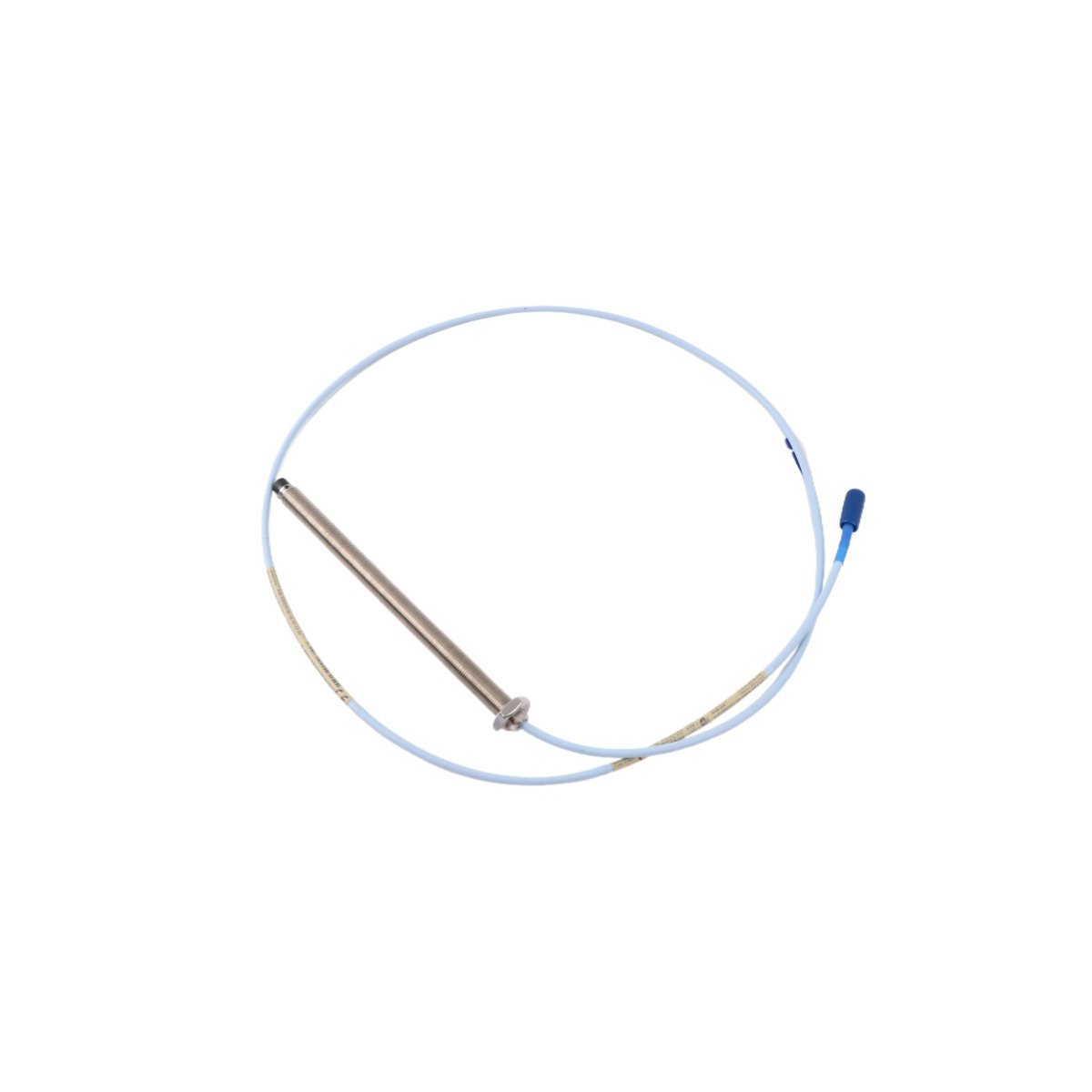

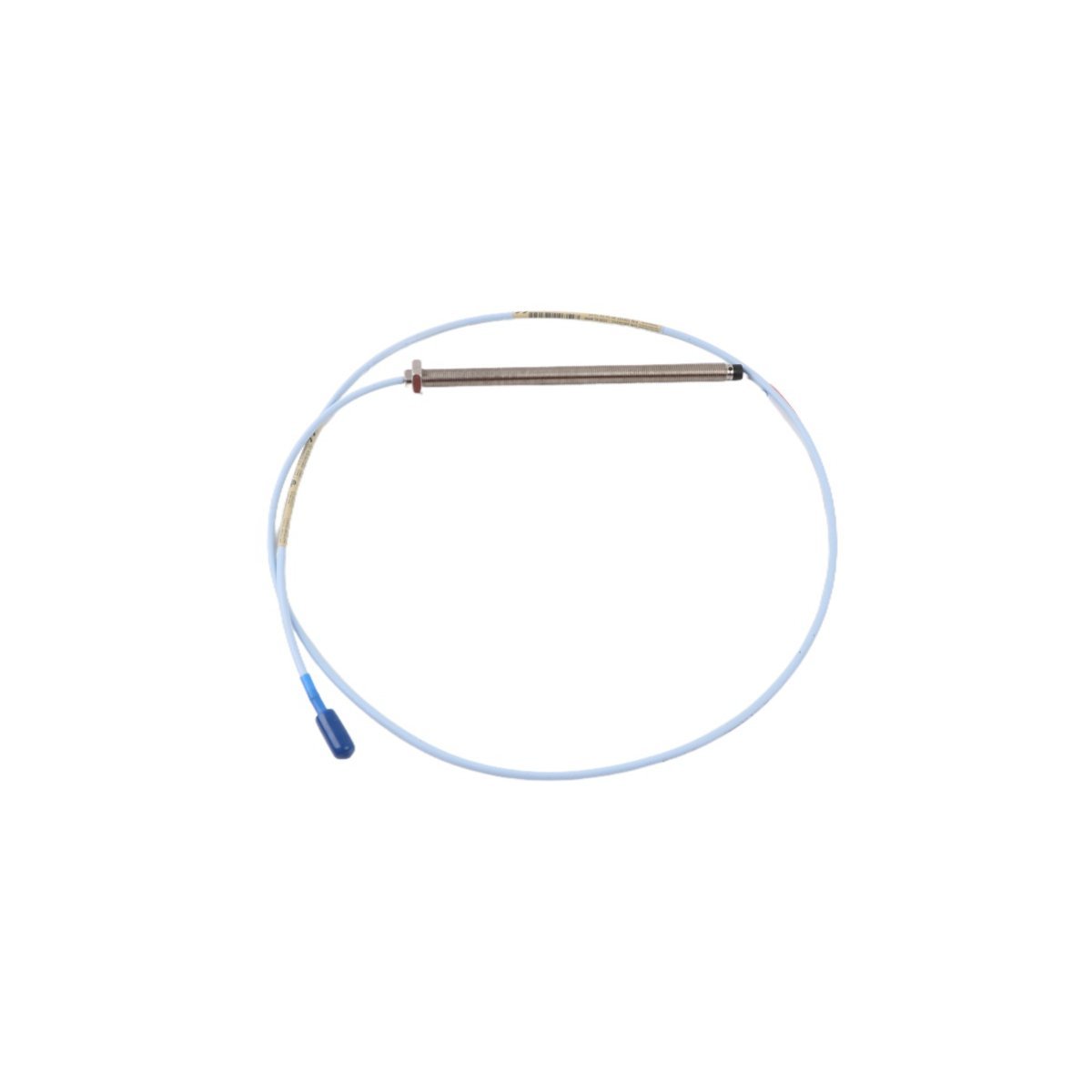

The Bently Nevada 330103-00-17-10-02-CN serves as a high-performance displacement sensor. This 8mm probe measures the distance between the sensor tip and a target surface. It successfully converts physical movement into a precise electrical voltage. The system effectively tracks both dynamic vibration and static shaft position. Consequently, it provides essential data for machinery protection systems. This probe belongs to the 3300 XL series, known for industrial reliability.

Core Design and Configuration

Engineers designed this probe with an M10x1 metric thread for standard industrial mounting. The stainless steel body ensures high durability in harsh environments. This specific configuration features a 17mm unthreaded case length. Furthermore, the unit includes a 1.0-meter integrated cable for signal transmission. The cable terminates with a miniature coaxial ClickLoc connector for secure attachments. This connector prevents signal loss and resists mechanical vibration during operation.

Technical Performance Specifications

Key System Advantages

The 3300 XL series offers exceptional immunity to radio frequency interference. Therefore, you can install these sensors in non-metallic housings without data degradation. The probe maintains full compatibility with standard 3300 XL Proximitor sensors. This interchangeability simplifies spare parts management for large facilities. Additionally, the robust tip material resists moisture and chemical exposure. This resilience ensures a long service life in demanding industrial sectors.

Primary Industrial Applications

• Continuous radial vibration monitoring for rotating shafts.
• Axial thrust position tracking in steam and gas turbines.
• Eccentricity measurements for large power generation units.
• Speed sensing and Phase Triggering for industrial pumps.
• Condition monitoring for centrifugal and axial compressors.
